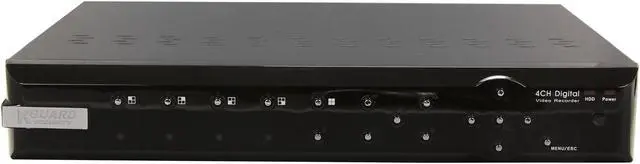

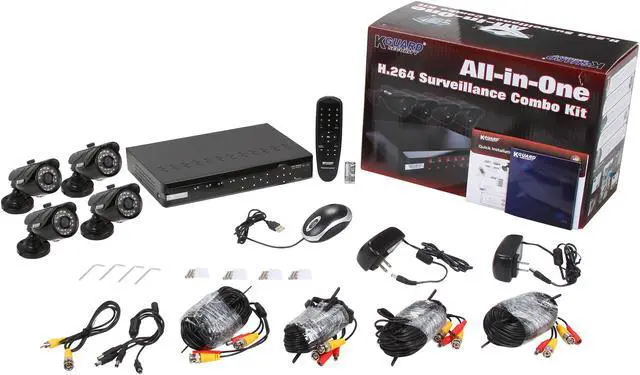

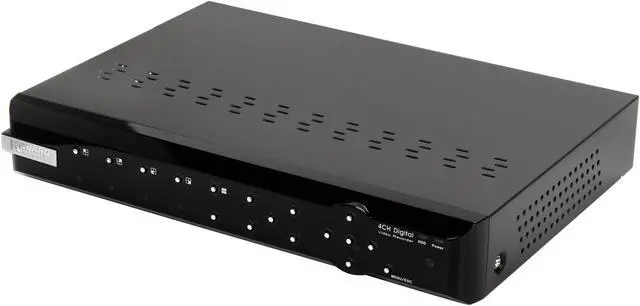

KGuard NS401-4CW214H 4 Channel H.264 Level Surveillance DVR Kit
- 4 x BNC
- H.264 Level
- Up to 2TB / 1 SATA Fixed HDD Rack
- 4 Channel
- Bundled Camera Number 4
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the KGuard NS401-4CW214H
| Brand | KGuard |
|---|---|
| Model | NS401-4CW214H |
| Type | Kit Solution |
| Camera inputs | 4 Channel |
|---|---|
| Video Input | 4 x BNC |
| Audio Input | 1 x RCA |
| Resolution Recording | NTSC: CIF(352x240) / HD1(704x240) / D1(704x480) PAL: CIF(352x288) / HD1(704x288) / D1(704x576) |
| Recording Frame Rate | NTSC: 120fps-CIF / 120fps-HD1 / 120fps-D1 PAL: 100fps-CIF / 100fps-HD1 / 100fps-D1 |
| Recording Mode | Always / Schedule / Motion Detection |
| Recording Compression | H.264 Level |
| Video Output | 2 x BNC, 1 x VGA |
|---|---|
| Audio Output | 1 x RCA |
| Resolution Display | NTSC: 704x480, PAL: 704x576 |
| Display Frame Rate | NTSC: 120fps, PAL: 100fps |
| Storage Capacity | Up to 2TB / 1 SATA Fixed HDD Rack |
|---|---|
| Backup Device | USB 2.0 Flash Disk / USB 2.0 HDD drive / Network |
| Network Connection | RJ45, 10M/100M |
|---|---|
| Network Protocol | Supports TCP/IP, DHCP,DDNS, PPPoE |
| Operating System | Linux |
|---|---|
| Power Supply | DC12V / 2A |

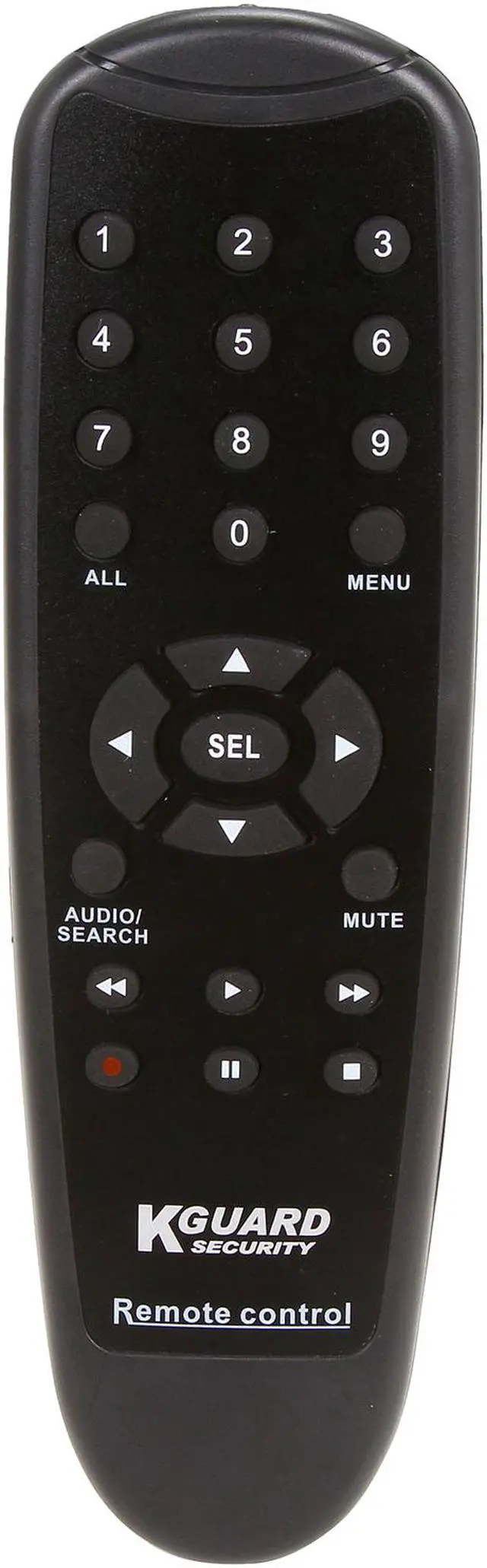

| Remote Control | Yes |
| Bundled Camera Number | 4 |
|---|---|

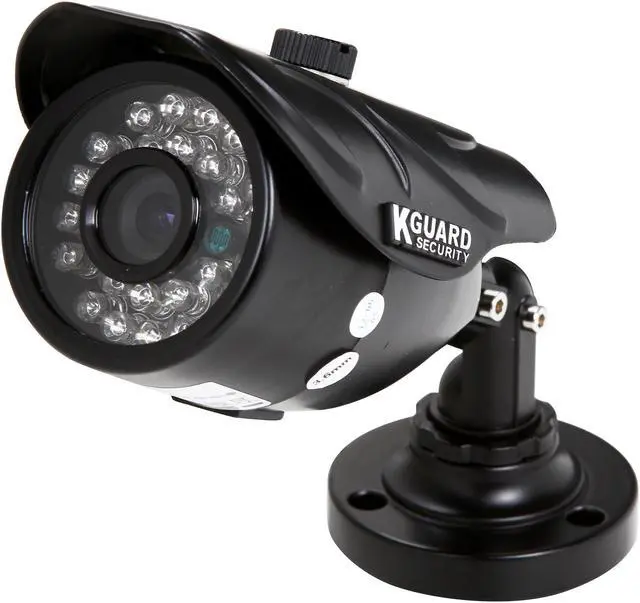

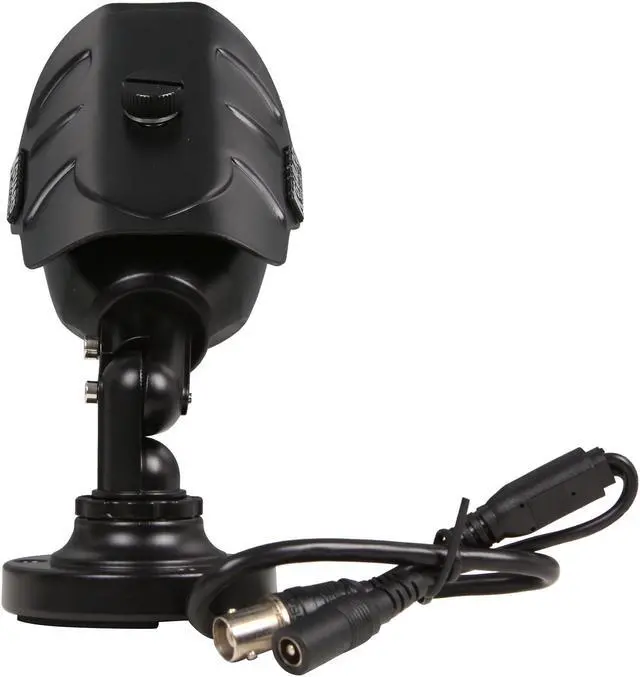

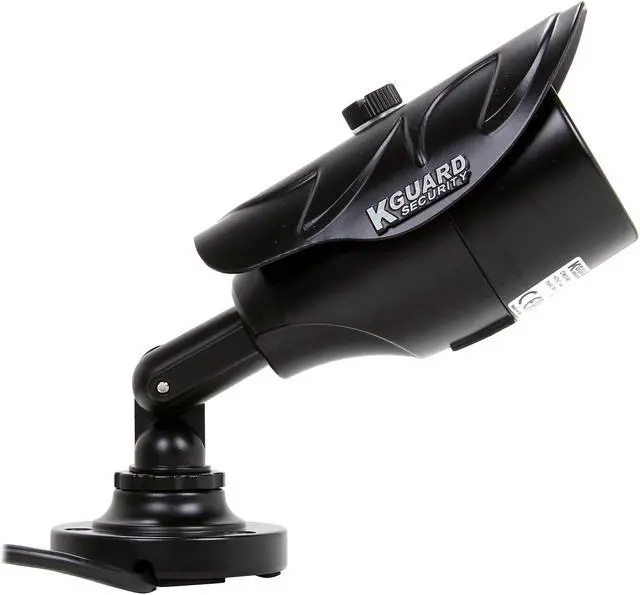

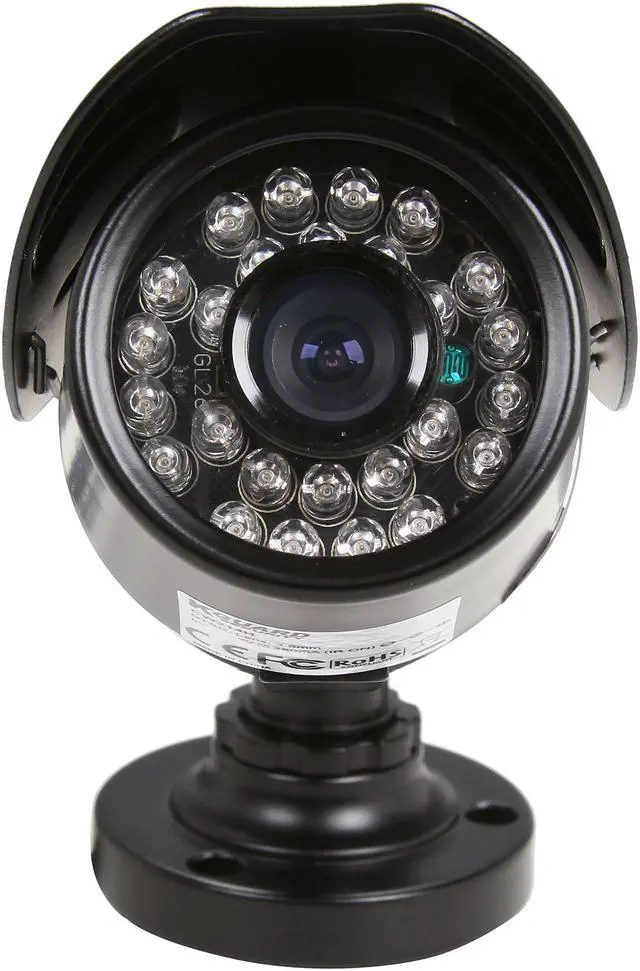

| Bundled Camera Spec | Sensor: 1/4 SHARP Color CCD Number of effective pixels NTSC: 512(H) x 492(V) Number of effective pixels PAL: 500(H) x 582(V) TV System: NTSC / PAL Minimum Illumination: While Infrared LED ON 0 lux Horizontal Resolution: 420 TV Lines Electronics Shutter NTSC: 1/60-1/120,000(sec) Electronics Shutter PAL: 1/50-1/120,000(sec) Len: 3.6mm View Angle: 65 Degrees Infrared Distance: 20M (60 ft.) Infrared LED: 24 pcs Weatherproof Housing Anti-cut Bracket |
| First Listed on Newegg | September 06, 2012 |
|---|
