Question 1

Would you say that this system is pretty much "Plug & Play" or do I still need to purchase additional items if I want this system to work properly?

Example - I originally ordered the exact system without the HDD on accident - then I was told that I needed to order the HDD if I wanted to record - so I am in the process of returning that one. And am now just trying to find a SIMPLE system that will record around my home. No bells. No whistles needed.

Is this particular model relatively easy to install - Ready to go? Can anyone give info on any of the extras that I will need? - Even as small as a Drill?

Mom of 2 asking... gonna have to install this myself! Yikes!
Any and all Legit advice and suggestions welcomed! ;)
Please don't be mean and waste my time. Thanks :)

Accepted Answer

Nicky, I purchased this system for my father, he installed it with no problems. Everything is in the box that you would need for the system to function and record. Tools required would be a drill and a 5/8 inch bit, phillips screwdriver, and ladder as needed. The problems with install will be where are the cameras to be placed? The cables provided are only 60 feet long. If you are placing cameras outside, getting the cable to them. Going into the attic or thru walls? This would be up to you and how you want the install to look. Caution not to drill into any home wiring or plumbing. The only thing my dad got extra was a 15 ft SVGA cable to connect the DVR to his TV, the system comes with a short BNC to RCA cable, it wasn't long enough for what he needed. Final thoughts, the system has good quality video, don't expect HD quality or being able to read license plates. I'm sure setting up the online viewing would be difficult, my father didn't mess with it.

Question 2

I have this system and its all installed mostly except the internet which I will do tonite - but my question is - I see that I have the Option to make the cameras ZOOM - but they DO NOT. I try several times and they just will not zoom. why is the option there is they do not zoom?  is there an after market or something I can do to make them zoom in and out?

ALSO,  I have 2 inside my house up against the window - during the day it is Fine! at night there is an Awful Glare! - Any Ideas/Suggestions about how to rid the glare at night?

Thank you!! :)

Accepted Answer

the included cameras can not be controlled. You would need PTZ cameras. (Pan/Tilt/Zoom). As for the glare, it is the reflection from the night vision ir leds off of the glass window. Cameras need to placed outdoors.

Question 3

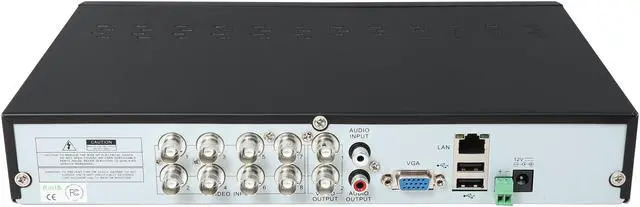

So is this a 8 channel system with 4 cameras or a 4 channel system with 4 cameras? The description some places say 8 channel and other place says 4 channel. The product image shows 8 inputs.

Accepted Answer

I got this for my dad, it's an 8 channel system with 4 cameras included.

Question 4

Ok I'm going to buy this system! Can anyone tell me the name of the cables I would need to order in order to lengthen 2 cameras - 2 of them will go outside -so I am sure that I will need longer cables for those 2 cameras only - are they the SVGA Cables? Or do they have a different name? Are they both Male Ends? Should I just order 100ft cables to be safe?
I have the system in my cart waiting to check out! Woohoo! Thanks guys for your VERY Helpful answers! Just this one last question will do the trick!  P.s. I would like to order the cables from Newegg obviously and in the same order.. if you can answer as soon as poss. That would be awesome! :)  Thanks again!!!

Accepted Answer

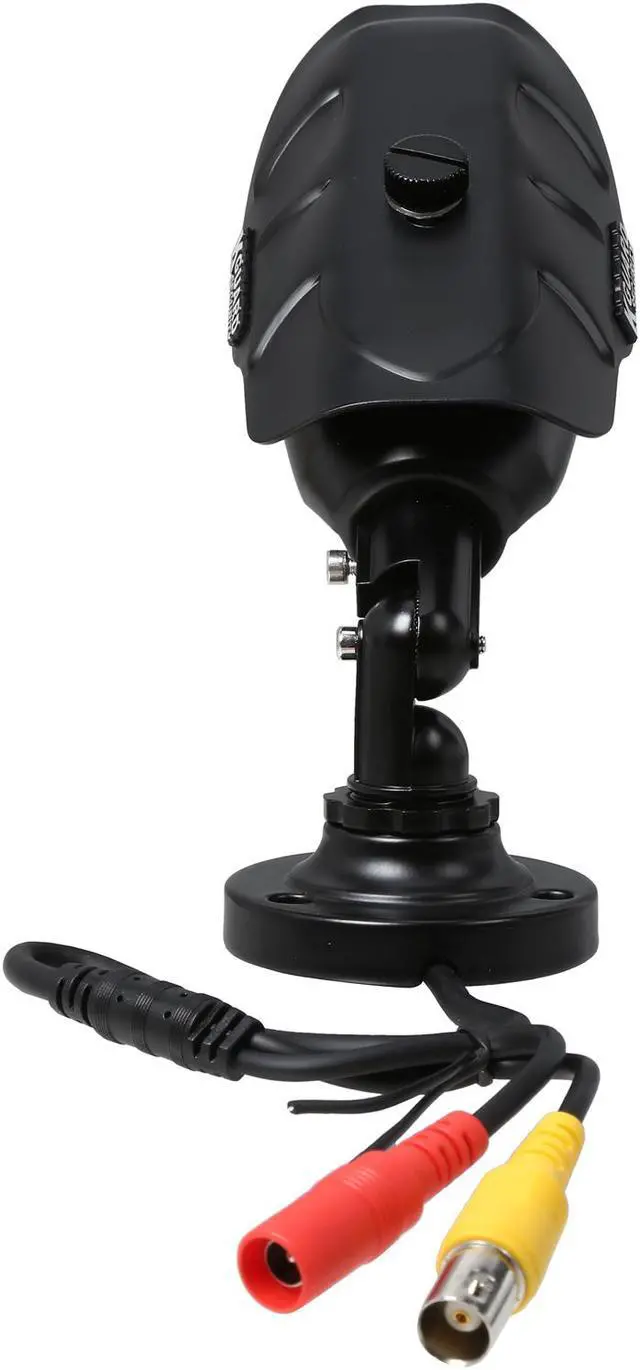

Go to NewEgg and search on "security camera cable" .  Both ends have a BNC, and there is a coaxial power male on one end with a coaxial power female on the other.  I have used 100' cables and just wound the extra in a roll.

Question 5

What is the length of the cables for the cameras?

Accepted Answer

The manufacture brochure has it listed as (18M), aka 59 feet. The set comes with 4 cables.

Question 6

Does it CIF (360x240) or D1 (720x480)?

Accepted Answer

Hello, Thank you for contacting us with your question. We apologize that we are unable to provide you with direct technical assistance; however, we recommend visiting our online community forum. www.eggxpert.com or view the manufacture's product page http://bit.ly/1kJPEg0. Hope this information is helpful. Have an Eggcellent Day! Newegg.com

Question 7

Does this product come with wiring?

Accepted Answer

Hello,

Thank you for showing your interest in this item.

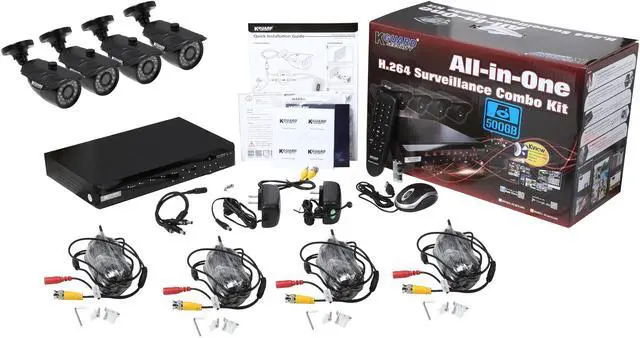

The item is brand new. It will come closed in the original retail package with manufacturer seal. You may also see what will be included by looking at the last picture shown in the image gallery.

We hope this information was helpful!

Thank you,
Newegg Support

Brand	KGuard
Model	NS801-4CW214H-500G

Video Input	8 x BNC
Audio Input	1 x RCA
Resolution Recording	NTSC: CIF(352x240) / HD1(704x240) / D1(704x480) PAL: CIF(352x288) / HD1(704x288) / D1(704x576)
Recording Frame Rate	NTSC: 240fps-CIF / 120fps-HD1 / 60fps-D1 PAL: 200fps-CIF / 100fps-HD1 / 50fps-D1
Recording Mode	Always / Schedule / Motion Detection / Remote Recording
Recording Compression	H.264 Level

Video Output	2 x BNC, 1 x VGA
Audio Output	1 x RCA
Resolution Display	NTSC: 704x480 / PAL: 704x576
Display Frame Rate	NTSC: 240fps / PAL: 200fps

Storage Capacity	500GB HDD
Backup Device	USB

KGuard NS801-4CW214H-500G 8 Channel H.264 DVR Surveillance DIY System, CCD Sensor, Night Vision, Outdoor Housing Camera, 500GB HDD Included

Learn more about the KGuard NS801-4CW214H-500G

Customer Reviews of the KGuard NS801-4CW214H-500G

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Manufacturer Contact Info

Bundled Camera Number	4

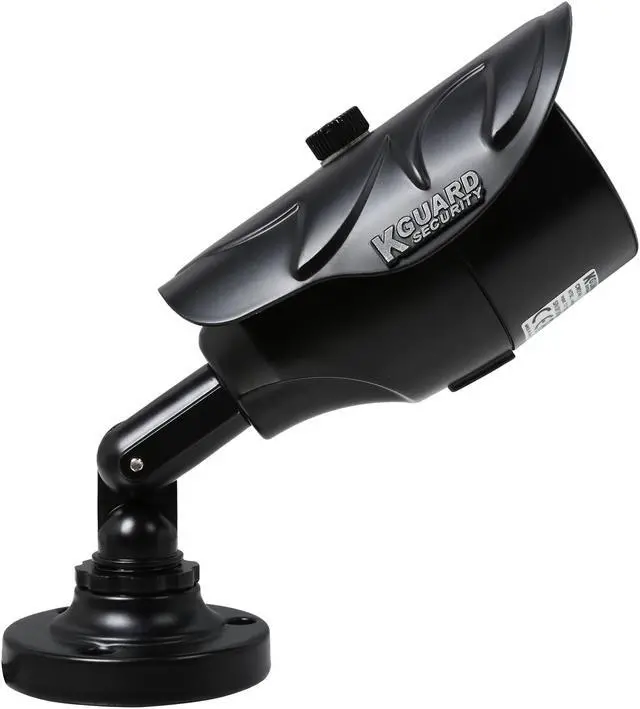

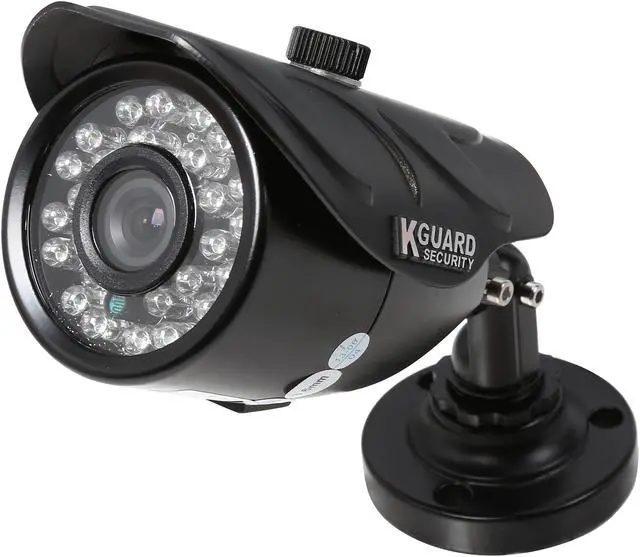

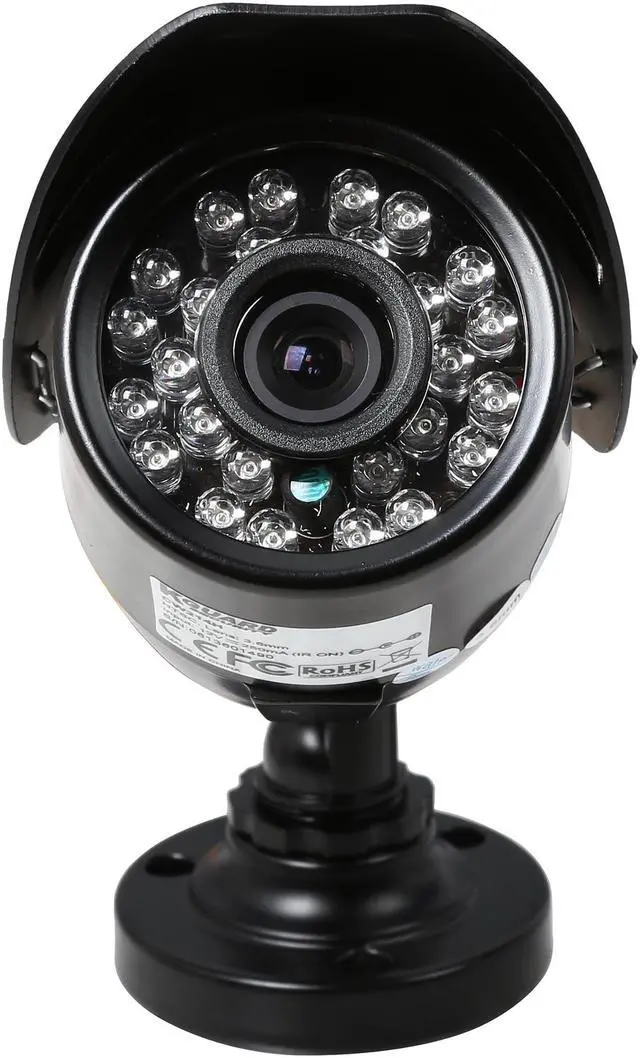

Bundled Camera Spec	1/4" SHARP Color CCD Effective pixels - NTSC: 512(H) x 492(V) Effective pixels - PAL: 500(H) x 582(V) Electronics Shutter NTSC: 1/60-1/120,000(sec) Electronics Shutter PAL: 1/50-1/120,000(sec) Horizontal Resolution: 420 TV Lines Lens: 3.6mm Fixed View Angle: 65 Degrees Video Output: 1.0VP-P,75O S/N Ratio: More than 52dB(AGCOFF) Day / Night Mode: Color during day / switches to B&W at night Minimum Illumination: While Infrared LED ON "0" lux Gain Control Auto Backlight Compensation Auto Night Vision Distance: Up to 20M / 65ft. Number of Infra-Red LED: 24 pcs Infra-Red Wavelength: 850 mm Infra-Red LED Life: 10,000 hrs
