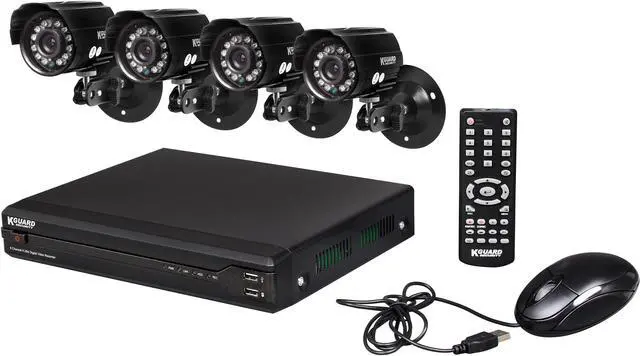

KGuard OT801-4CW134M-500G 8 Channel H.264 Level Surveillance DVR Kit
- 8 x BNC
- H.264 Level
- 500GB SATA HDD, Up to 2TB
- 8 Channel
- Bundled Camera Number 4
Specs
Reviews (16)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the KGuard OT801-4CW134M-500G
| Brand | KGuard |
|---|---|
| Series | OT series |
| Model | OT801-4CW134M-500G |
| Type | Kit Solution |
| Camera inputs | 8 Channel |
|---|---|

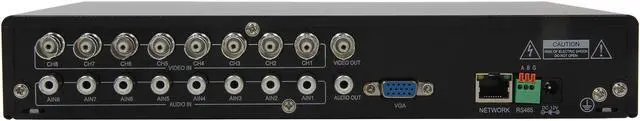

| Video Input | 8 x BNC |
| Audio Input | 8 x RCA |
| Resolution Recording | NTSC: CIF(352x240) / HD1(704x240) / D1(704x480) PAL: CIF(352x288) / HD1(704x288) / D1(704x576) |
| Recording Frame Rate | NTSC: 240fps@CIF, 120fps@HD1, 60fps@D1 PAL: 200fps@CIF, 100fps@HD1, 50fps@D1 |
| Recording Mode | Always / Scheduled / Motion Detection |
| Recording Compression | H.264 Level |
| Video Output | 1 x BNC, 1 x VGA |
|---|---|
| Audio Output | 1 x RCA |
| Resolution Display | NTSC: 704x480, PAL: 704x576 |
| Display Frame Rate | NTSC: 240fps, PAL: 200fps |
| Storage Capacity | 500GB SATA HDD, Up to 2TB |
|---|
| Network Connection | RJ45, 10M/100M |
|---|---|
| Network Protocol | Supports TCP/IP, DHCP,DDNS, PPPoE |

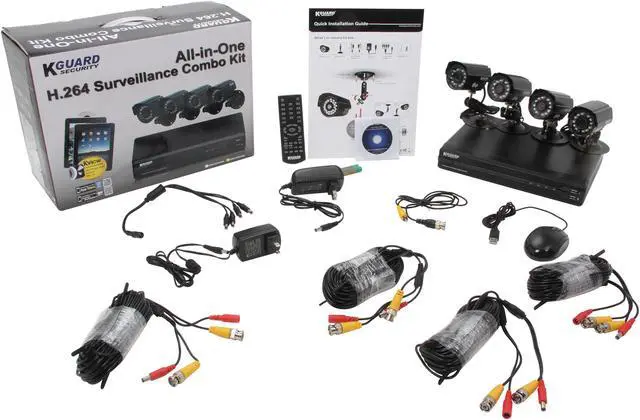

| Features | 8-Channel H.264 Standalone DVR 4 Day & Night weather-proof CMOS video cameras viewable in total darkness Live video display, record, playback and backup with user-friendly interface Motion detection with instant E-mail notification Easily connects to TV for additional LCD display Free KView and IE browser supported for remote monitoring on web or mobile devices. |
|---|---|
| Operating System | LINUX |
| Power Supply | DC12V / 2A |

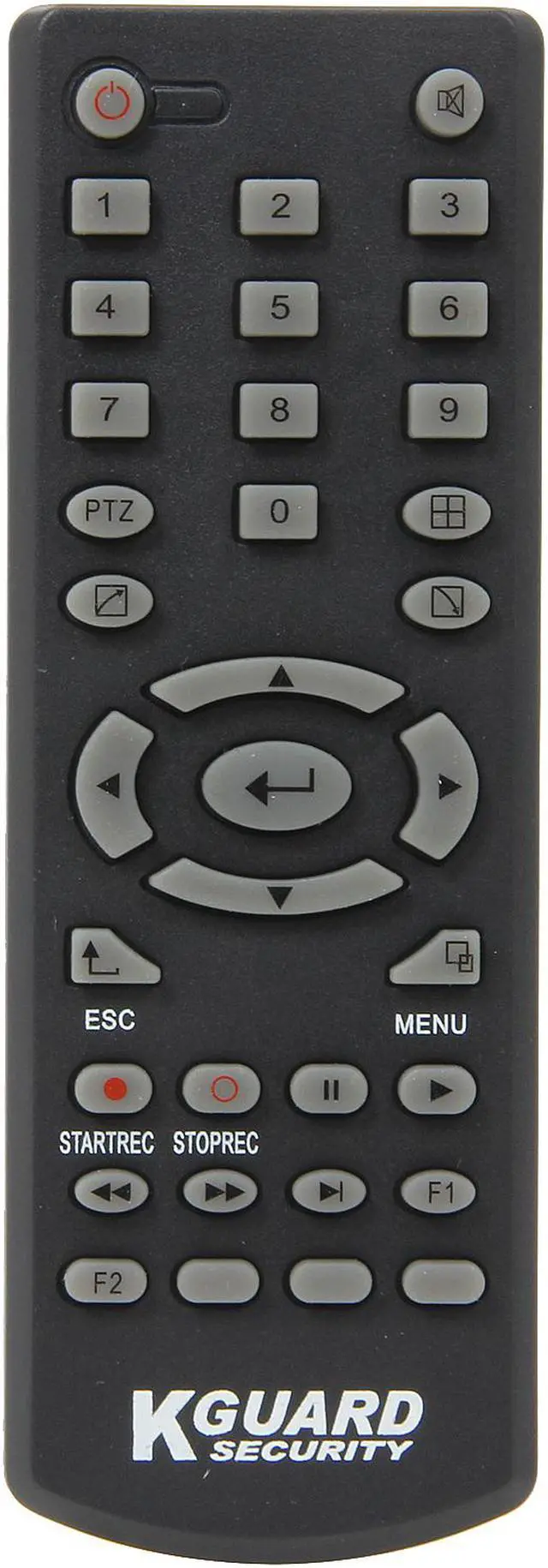

| Remote Control | Yes |
| Bundled Camera Number | 4 |
|---|---|

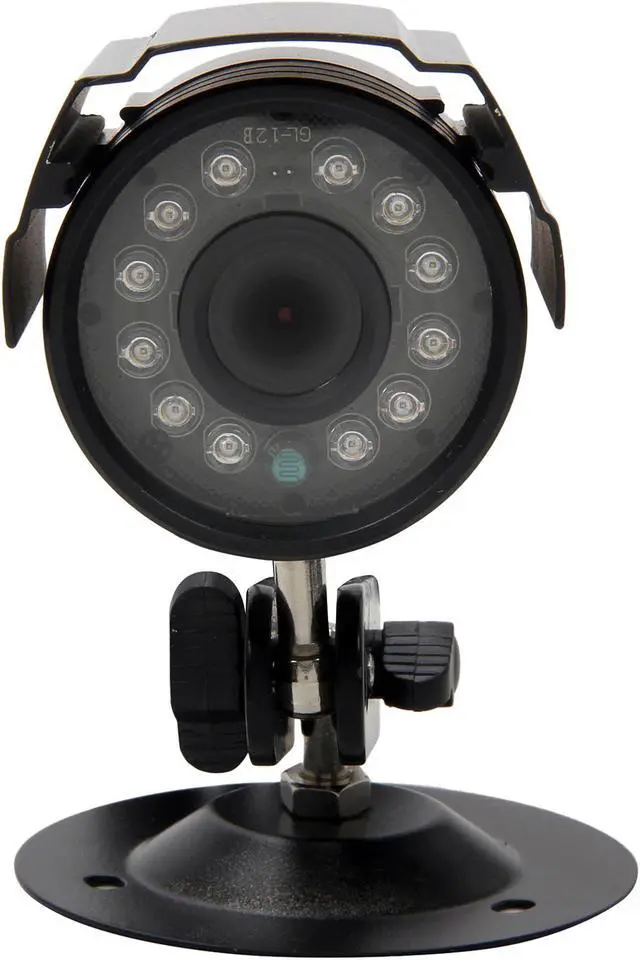

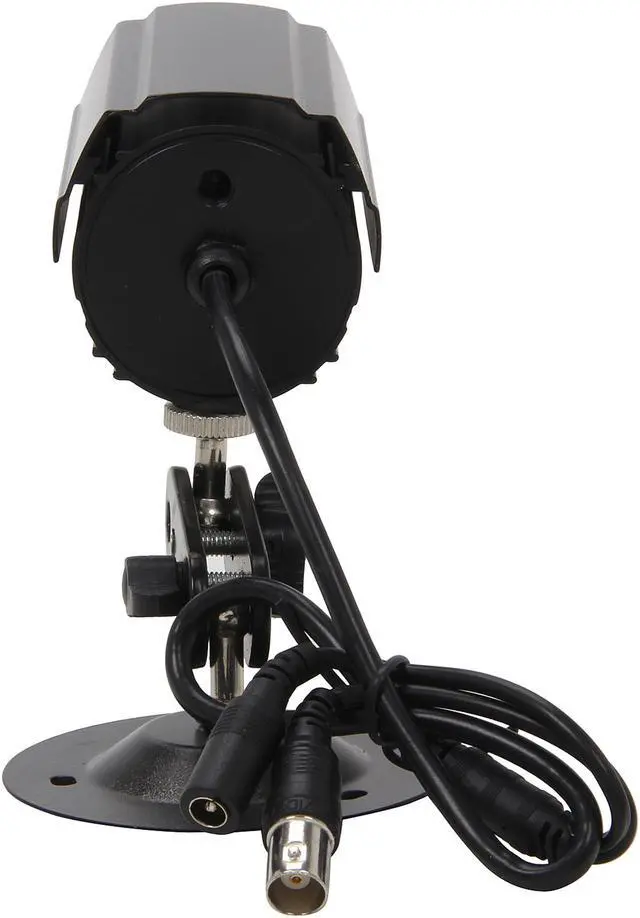

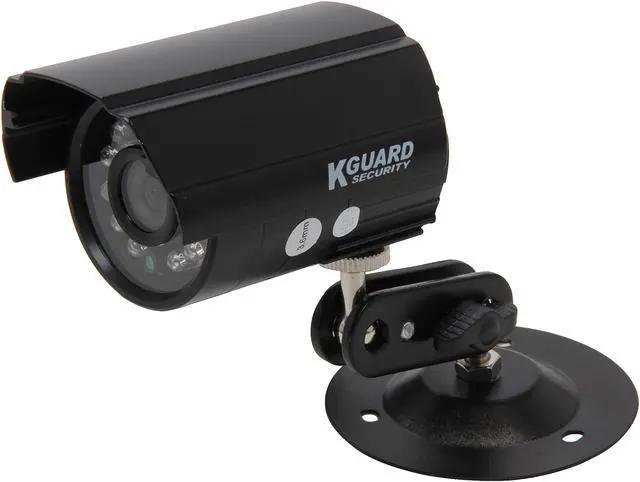

| Bundled Camera Spec | Sensor: 1/4" COLOR CMOS Horizontal Resolution: 420 TV Lines Number of effective pixels NTSC: 510(H) x 492(V) Number of effective pixels PAL: 500(H) x 582(V) Electronics Shutter (NTSC): 1/60 - 1/100.000 sec Electronics Shutter (PAL): 1/50 - 1/100.000 sec S/N Ratio: > 48dB(AGC OFF) Video Output: 1.0VP-P, 75 omega (BNC) Lens Mount: 3.6mm Lens Infrared Distance: 10M (33 ft) Infrared LED: 12 pcs Minimum Illumination: 0 LUX (IR ON) / F1.2 Weatherproof Housing: IP66 Power Supply: 12V DC |
| First Listed on Newegg | August 07, 2012 |
|---|
