Question 1

I purchased this unit thinking it came with a 500gb HDD. I was interested because of a dealnews listing that said:

As one of its daily deals, newegg offers the KGuard 8-Camera DVR Home Security System, model no. SHA24, for $169.99. Coupon code "EMCWWWV68" cuts it to $69.99. With free shipping, that's the lowest total price we could find by $96. It features a 500GB hard drive (with support for up to 2TB), network access, H.264 compression, remote viewing via smartphone, tablet, and PC, and VGA video output. Deal ends today.

I just received the unit, but it doesn't appear to have a HDD.  Was the Dealnews listing incorrect?

Accepted Answer

Apparently, the dealnews listing was incorrect. I got my link to the Newegg offer from techbargains, which made no indication of an included hard drive. Had one been included, the $69.95 price for the unit would have been less than the typical cost of a 500GB drive. Here's what they had:

Newegg has the KGuard SHA24 8 Channel Standalone DVR for $69.99 Free Shipping after Coupon Code: "EMCWWWV68" (Exp 11/18). Tax in CA, NJ, TN. This is $80 less than elsewhere and the lowest price we've seen.• Motion detection with instant email notification
• Free Kview series allows remote monitoring and control on your smartphones and tablets
• 8 Channels & H.264 compression latest recording technology; pre-recording feature allows additional images to be captured prior to the motion detected event
• 1 SATA Fixed HDD Rack and expandable up to 2TB hard drive

Question 2

Some DVRs will only allow all camera's FPS to equal 60. So 2 cameras running at 30 FPS each or 4 running at 15 FPS each. Is there such a restriction on this unit?

Accepted Answer

The available resolutions on this unit are: CIF, HD1, and D1. The total frame rate for all eight channels is 240 FPS, which means that the maximum frame rate per channel is 30 FPS. You can find the user manual on the KGuard web site.

Question 3

Can this be used with any smartphone or tablet such as the iPhone or iPad?  I noticed that it is requiring Internet Explorer so I am doubting that it will work on other non-Microsoft products.
Thank you

Accepted Answer

You can use the kview app from either marketplace.  I prefer IPcamviewer by robert chow.  I have used it for many years and best I have found.  He has an ios and android versions.

Question 4

Some DVRs have a restriction where adding up all camera's FPS has to equal 60. So 2 cameras running at 30 FPS each or 4 cameras running at 15 FPS each. Does this unit have such a restriction?

Accepted Answer

i've run this with 2 x cameras at 720p/30fps.  the frame rate output from the cameras depends on the codec in use and whether you want a VBR or fixed bitrate.  i haven't run it with more than 2 cameras,  but you can configure the output bitrate of the cameras so you don't come close to saturating the Ethernet or disk bandwidth

Question 5

Is there a hard drive already installed and if so what is the size. If there isn't a hard drive what do you recommend?

Accepted Answer

can this be used as a dvr for tv where you can pause, rewind, record, etc, while watching tv shows?

Brand	KGuard
Series	SHA SERIES
Model	SHA24

Supported Protocols	Supports TCP/IP, DHCP,DDNS, PPPoE
Network Interface	RJ45, 10M/100M

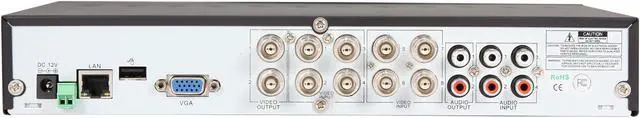

Video Input	8 x BNC
Video Output	2 x BNC, 1 x VGA
Audio Input	4 x RCA
Frame Rate	Recording Frame Rate NTSC: 240fps@CIF, 120 fps@HD1, 60fps@D1 Recording Frame Rate PAL: 200fpx@CIF, 100fpx@HD1, 50fpx@D1
Compression Format	H.264
Recording Type	Always / Scheduled / Motion Detection
Storage Installed	Up to 2TB SATA
Operating System	LINUX
Power Supply	12V 3A

KGuard SHA24 8 Channel Standalone DVR with H.264 Compression Technology
