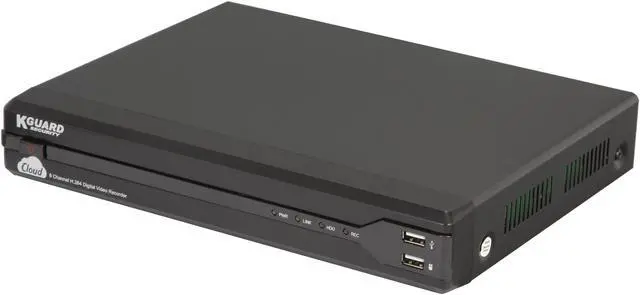

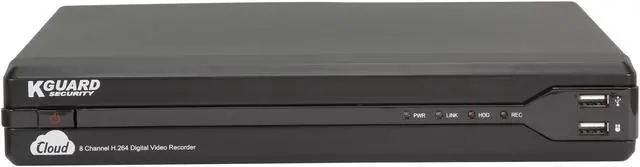

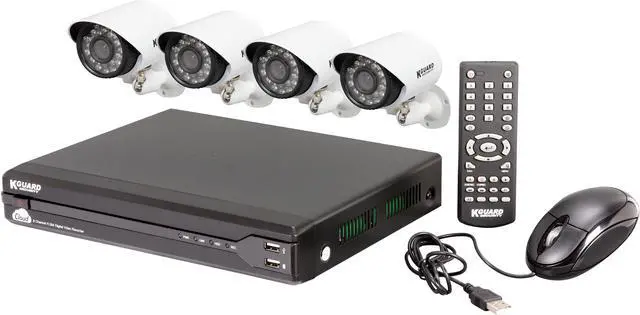

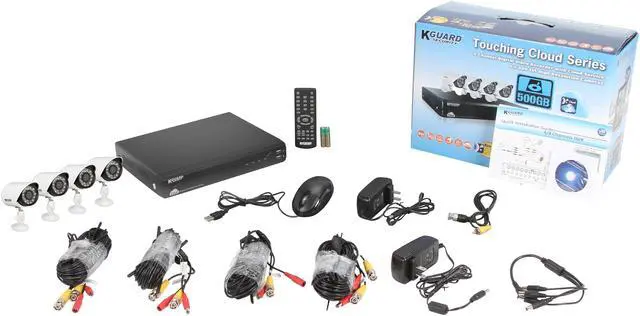

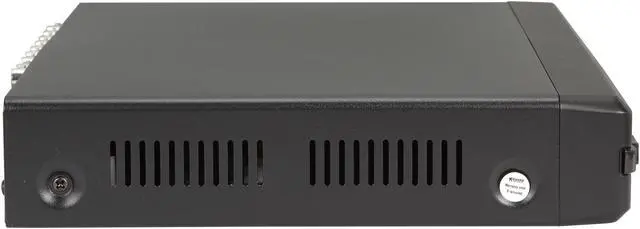

KGuard TC801-4HW227A-500G 8 Channel DVR Touching Cloud Security System & 4 cameras 600 TVL with SmartPhone and Tablet Remote Viewing
OPEN BOX Product Type
- Upload images to the Cloud
- H.264 Level Format
- 500GB SATA HD, up to 2TB
- Remote viewing compatible with smartphone,Tablet and PC
- Night vision
- Weather proof
- Motion detector snap shot E-mail Alert
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the KGuard TC801-4HW227A-500G
| Brand | KGuard |
|---|---|
| Model | TC801-4HW227A-500G |
| Type | Kit Solution |
| Camera inputs | 8 Channel |
|---|---|
| Video Input | 8 x BNC |
| Audio Input | 8 x RCA |
| Resolution Recording | NTSC: CIF(352x240), HD1(704x240), D1(704x480) PAL: CIF(352x288), HD1(704x288), D1(704x576) |
| Recording Frame Rate | NTSC: 240fps@CIF, 120fps@HD1, 60fps@D1 PAL: 200fps@CIF, 100fps@HD1, 50fps@D1 |
| Recording Compression | H.264 Level |
| Video Output | 1 x BNC, 1 x VGA |
|---|---|
| Audio Output | 1 x RCA |
| Storage Capacity | 500GB SATA HD, Up to 2TB |
|---|---|
| Backup Device | USB flash disk / USB HDD disk / Network |
| Network Connection | RJ45, 10M/100M |
|---|---|
| Network Protocol | TCP/IP, DHCP, DDNS, PPPoE |
| Features | Cloud Storage: Yes Storage Mode: Schedule / Motion Detection Video Format: NTSC / PAL Recording Pack Time: 15 / 30 / 45 / 60mins Playback: Local Playback: 8 channels simultaneously Playback Search: Date / Time / File list Playback Mode: PLAY / FWD / Fast / Rewind / Frame by Frame General PTZ Control: RS485 built-in, supports PELCO-P & PELCO-D Alarm Mode: Motion Detection / Video Loss / HDD Loss / HDD Full Quick Do-It-Yourself installation 8 Channels & H.264 compression latest recording technology Exclusive DVR to connect Cloud Service and you have a personal space Pre-recording feature allows additional images to be captured prior to the motion detected event Free Kview series allows remote monitoring and control on your smartphones and tablets KGUARD Fulcolor to provide excellent colorful images Using 6mm fixed lens with 40 degrees viewing angle to monitor particular areas 600 TVL high resolution to make video clearer Night vision up to 20m/65ft in total darkness Waterproof case to protect the camera and survive rainy days. |
|---|---|
| Power Supply | DC 12V/2A |

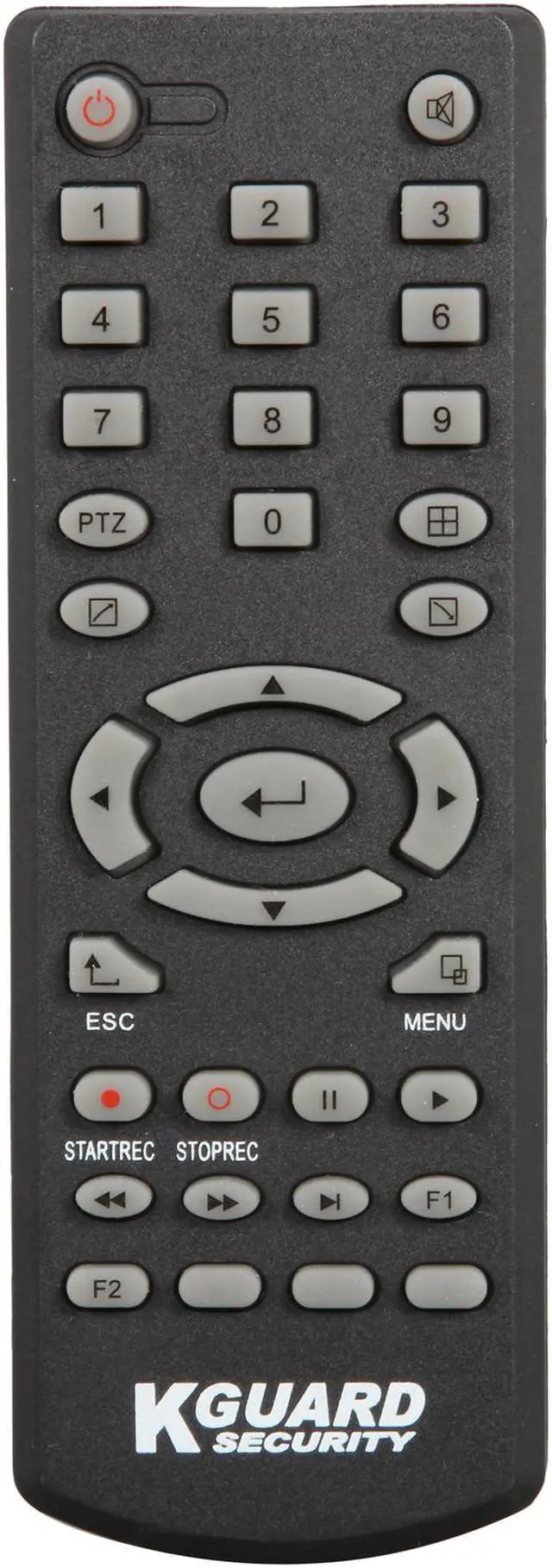

| Remote Control | Yes |
| Bundled Camera Number | 4 |
|---|---|

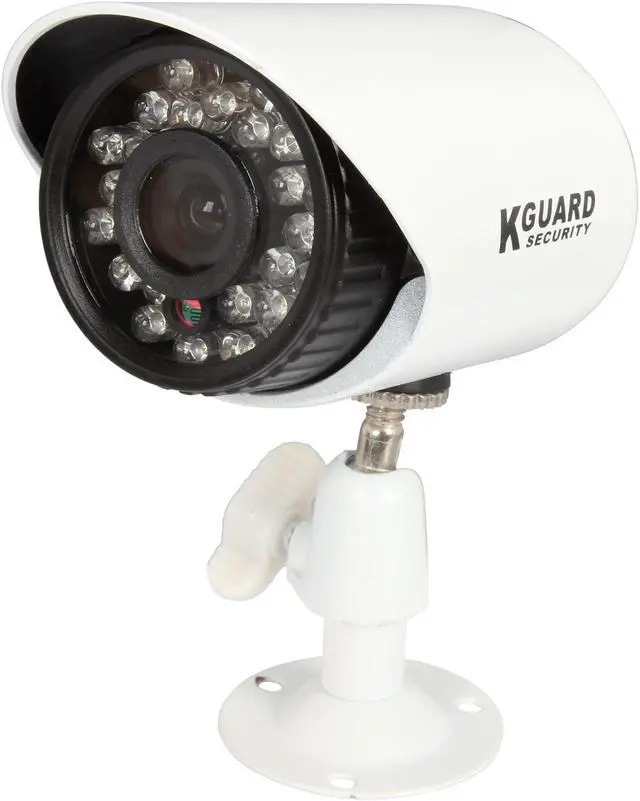

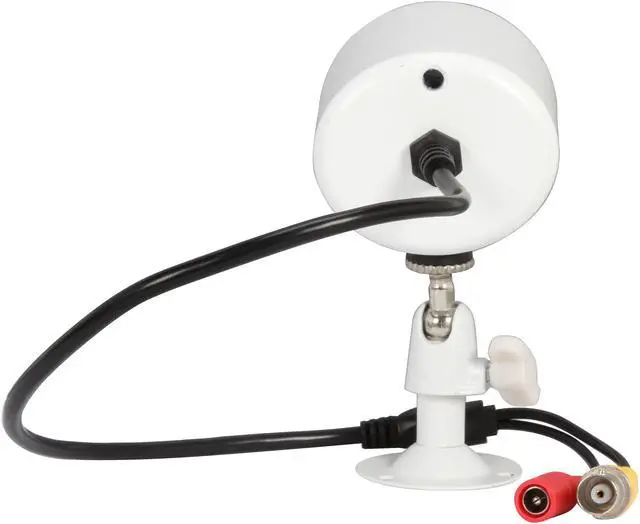

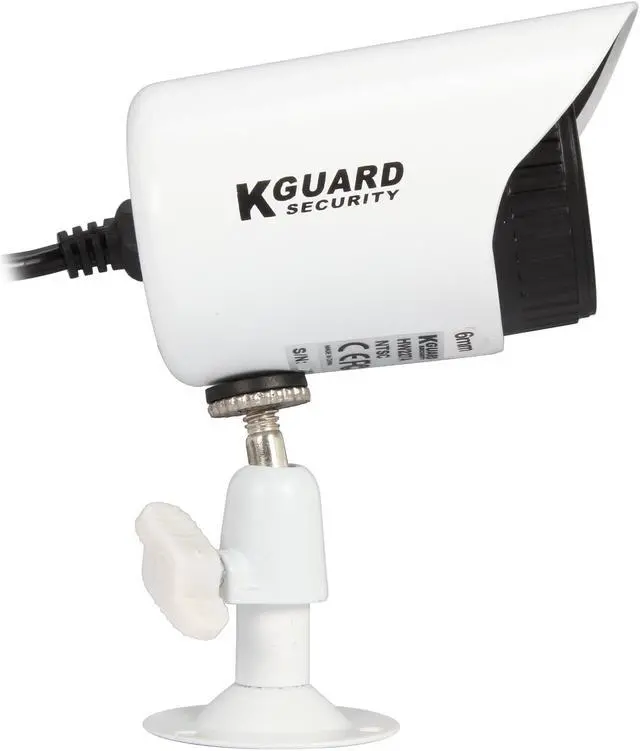

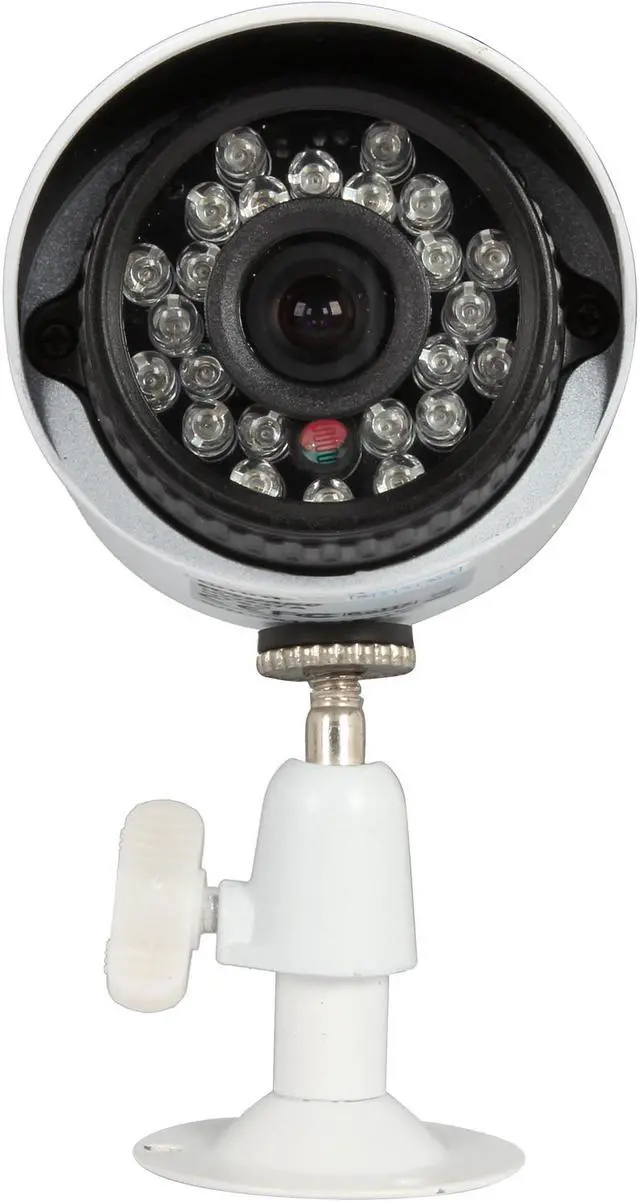

| Bundled Camera Spec | Image Sensor: KGUARD Fulcolor Pixels: 728(H) x 560(V) Electronics Shutter: NTSC 1/60-1/100,000(sec) / PAL 1/50-1/100,000(sec) Horizontal Resolution: 600 TVL Lens: 6mm Fixed Viewing Angle: 40 Degrees Video Output: 1.0VP-P, 75 ohms S/N Ratio: More than 48dB(AGC OFF) Day / Night Mode: Color during day / switches to B&W at night Minimum Illumination: While Infrared LED ON 0 lux Gain Control: Auto Backlight Compensation: Auto Night Vision: Night Vision Distance: 20m / 65ft Illumination Infra-Red Wavelength: 850nm Infra-Red LED Life: 10,000hrs Weatherproof Dimensions - Camera with Stand (WxDxH): 95x58x138mm Weight - Camera with Stand: 295g / 0.65lbs |
| Dimensions | 274 x 214.5 x 45mm |
|---|
| First Listed on Newegg | November 15, 2013 |
|---|
