Processor |
Intel Core Ultra 7 255H(16C/16T) |
Frequency |
5.1GHz turbo frequency |
AI Performance |
Total computing power: 96 TOPS GPU: 74 TOPS |
Graphics |
Intel Arc 140T GPU 2.25GHz dynamic frequency |
Memory |
64GB LPDDR5X memory Maximum frequency: 8400MHz |
Storage |
2TB PCIe 4.0 M.2 2230 SSD; Expandable Slot: PCIe 4.0 M.2 2230 SSD × 1 |
Battery & Power |
Built-in 5.55Wh standby battery 65W USB-C power adapter |
Communications |
Wi-Fi 6E (802.11ax) Bluetooth 5.3 Chipset: Intel® Wi-Fi 6E AX211 |
I/O Ports |
Thunderbolt 4 × 1 USB4 × 1 HDMI 2.1 TMDS (18Gbps) × 1 USB-A 3.2 Gen2 (10Gbps) × 2 |
Mind Link |
PCIe 5.0 x8 bandwidth Max speed of 256 GT/s Supports USB 3.2 Gen2, HDMI 2.1 10A input power |
Display Output |
HDMI 2.1 TMDS: up to 4K 60Hz ; Thunderbolt 4 or USB4: up to 8K (60Hz), 5K (72Hz) or 4K (240Hz) |
Operating System |
Windows 11 Home |
Size & Weight |
146 × 105 × 20 mm 435 g |
What's In The Package1 × Khadas Mind 2s
1 × 65W Power Adapter
1 × USB-C to USB-C Cable ( 1.2 m)
1 × Manual
1 × Warranty Card
Specs:
Processor:
Intel® Core Ultra 7 255H
5.1GH z turbo frequency
16 cores, 16 threads
24MB cache
Size & Weight:
146 × 105 × 20 mm
435 g
AI Performance:
Total computing power: 96 TOPS
GPU: 74 TOPS
Graphics:
Intel Arc 140T GPU
2.25GH z dynamic frequency
Memory:
64GB LPDDR5X memory
Maximum frequency: 8400MHz
Storage
2TB PCIe 4.0 M. 2 2230 SSD
Expandable Slot: PCIe 4.0 M. 2 2230
SSD × 1(Max: 2TB)
Battery & Power:
Built-in 5.55W h standby battery
65W USB-C power adapter
Communications:
Wi-Fi 6E ( 802.11 ax)
Bluetooth 5.3
I/O Ports:
Thunderbolt 4 × 1
USB4 × 1
HDMI 2.1 TMDS (18Gbps) × 1
USB-A 3.2 Gen2 (10Gbps) × 2

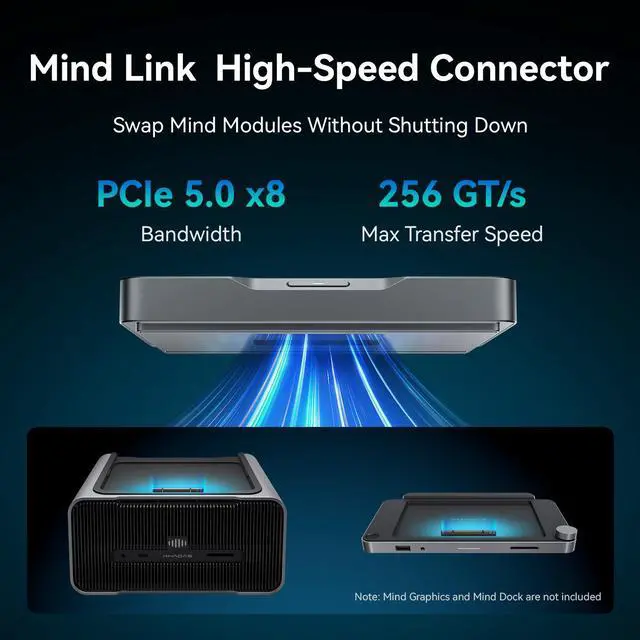

Mind Link:
PCIe 5.0 x8 bandwidth
Max speed of 256 GT/s
Operating System:
Windows 11 Home
10A input power
Display Output Resolution:
HDMI 2.1 TMDS: up to 4K (60Hz)
Thunderbolt 4 or USB4: up to 8K (60Hz), 5K (72Hz) or 4K (240Hz)
Display Support (In Extend Mode):
Mind 2s (standalone): up to 3 displays
USB-C: 4K (240Hz) or 8K (60Hz) × 2
HDMI: 4K (60Hz) × 1
Mind 2s (connected to Mind Dock): up to 4 displays
USB-C: 4K (240Hz) or 8K (60Hz) × 2
HDMI: 4K (60Hz) × 2
Mind 2s (connected to Mind Graphics): up to 4 displays
USB-C: 4K (240Hz) or 8K (60Hz) × 2
HDMI or DisplayPort: 4K (240Hz) or 8K (60Hz) × 2
