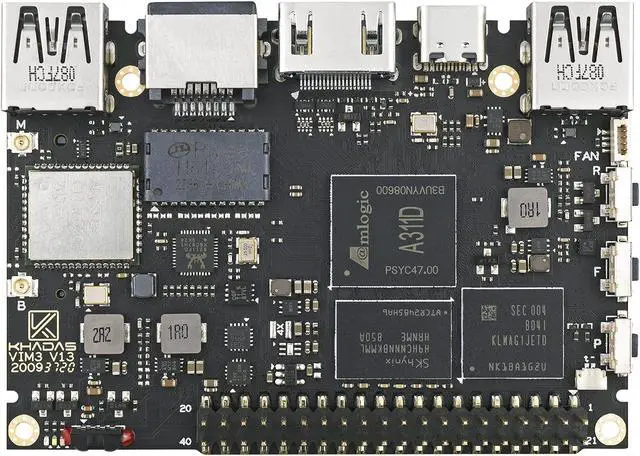

Khadas VIM3
Amlogic A311D SBC with 5.0 TOPS NPU

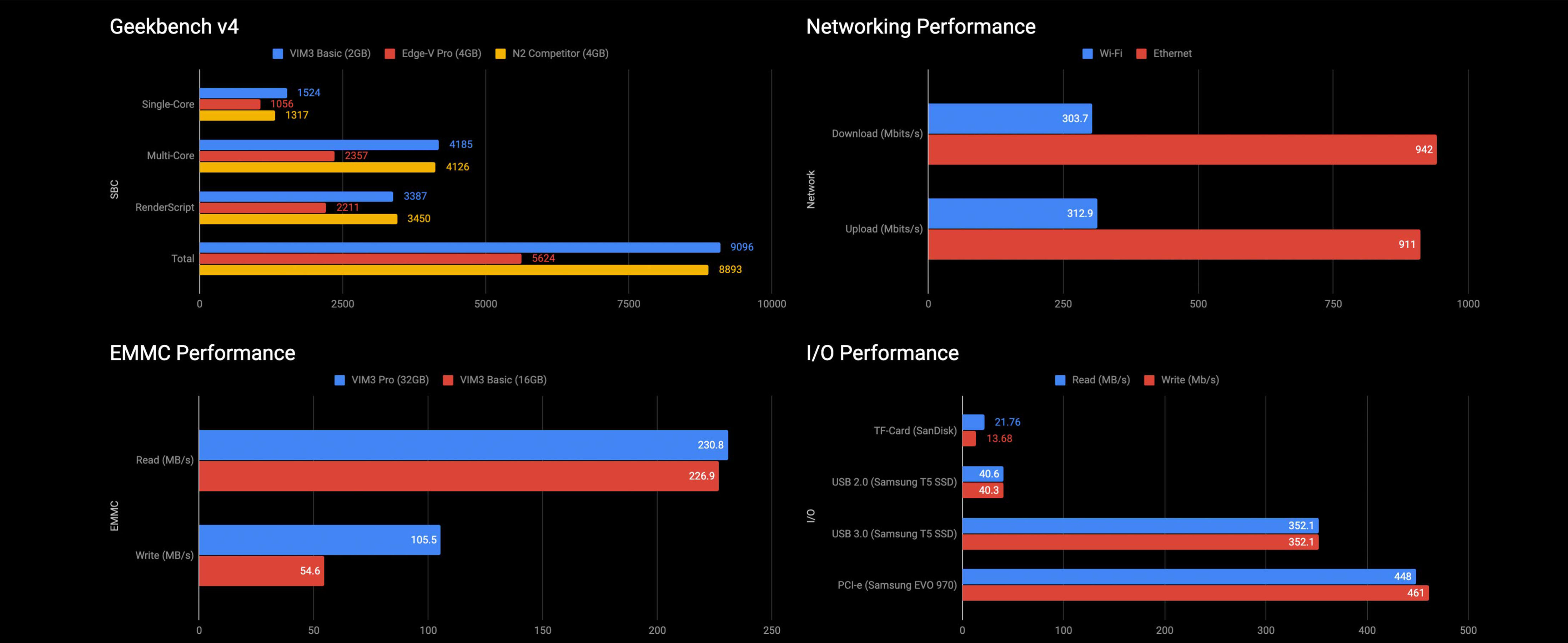

1. Faster CPU Performance: A311D big-little architecture. x4 2.2Ghz Cortex-A73 cores, paired with x2 1.8Ghz Cortex-A53 cores.
2. Neural Processing Unit for A.I.:Next generation, deep-neural-network applications, at 5.0 TOPS. Download the NPU Toolkit.

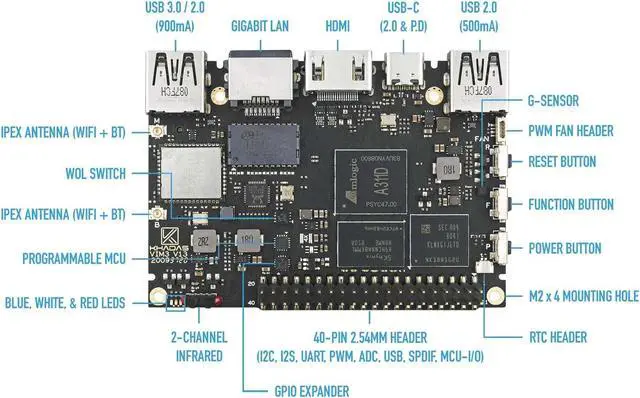

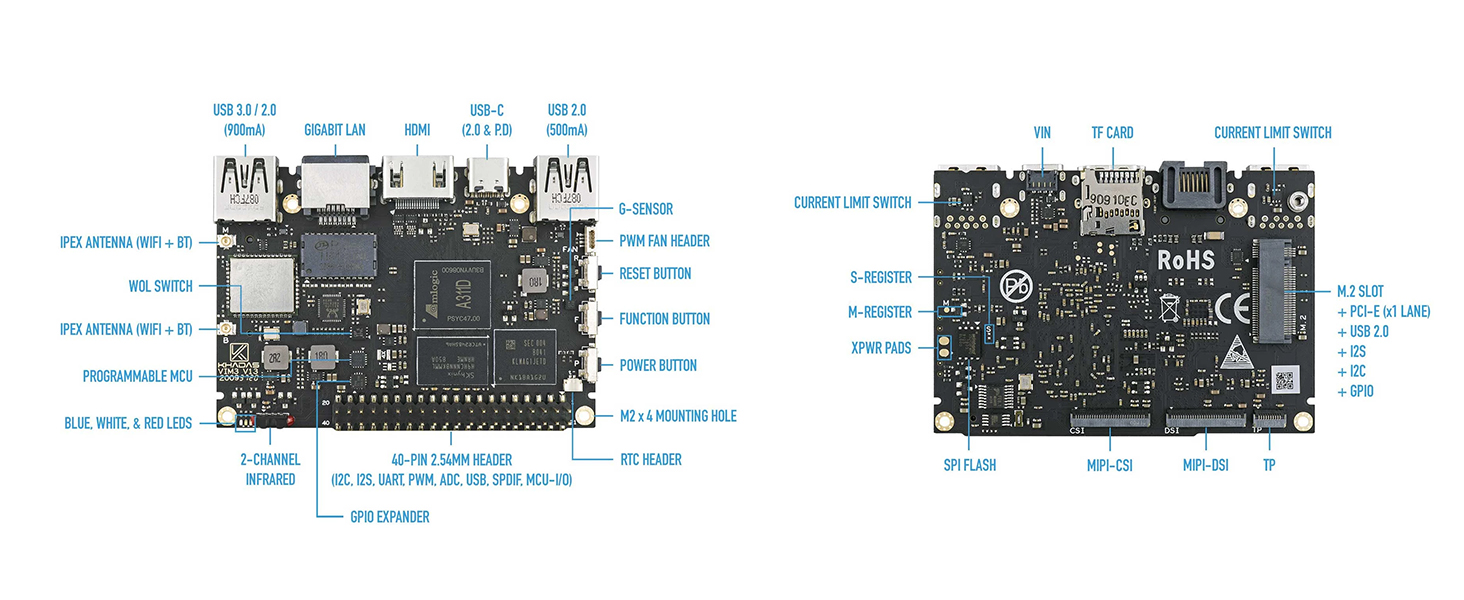

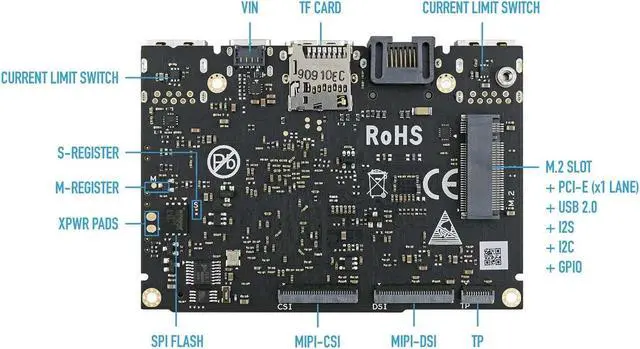

I/O Interface
Feature

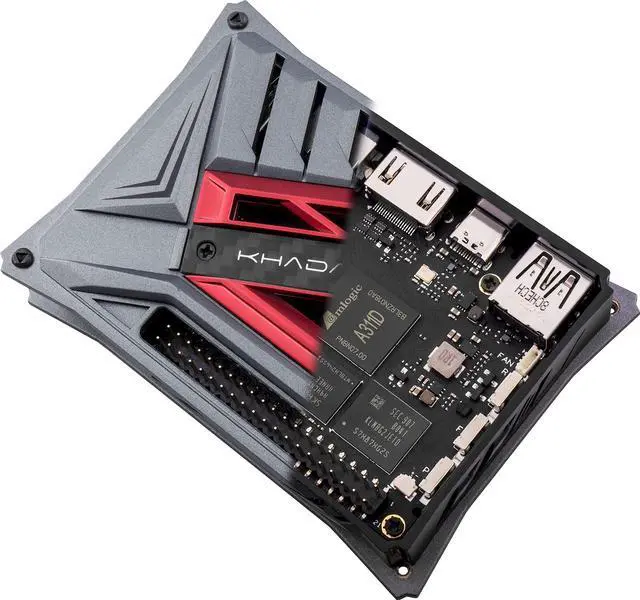

Computing Cluster
- 12nm SoC for efficient thermal & electrical performance.
- Power dense form factor that's thin and light.

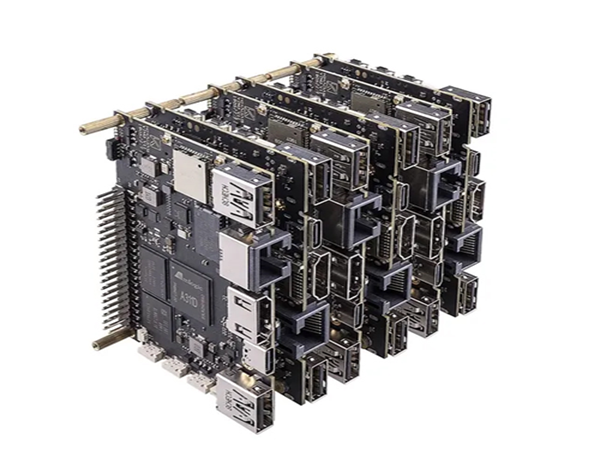

- Stackable via M2 x 4 mounting points.

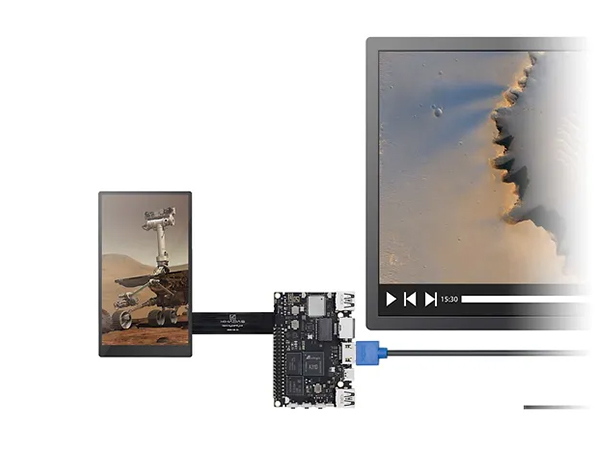

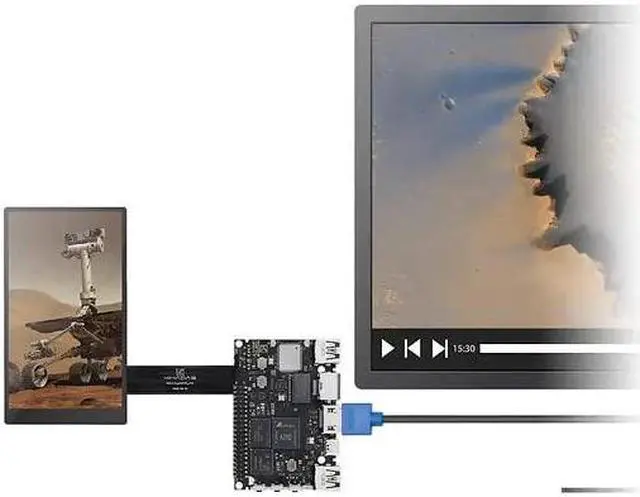

Dual Displays
- Multi-touch input via TP connector.
- 1080P video output via MIPI-DSI.
- 4K video output via HDMI port.

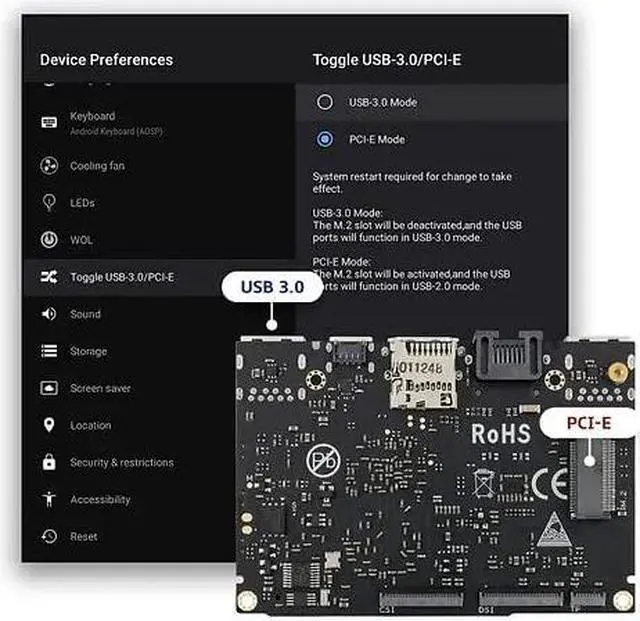

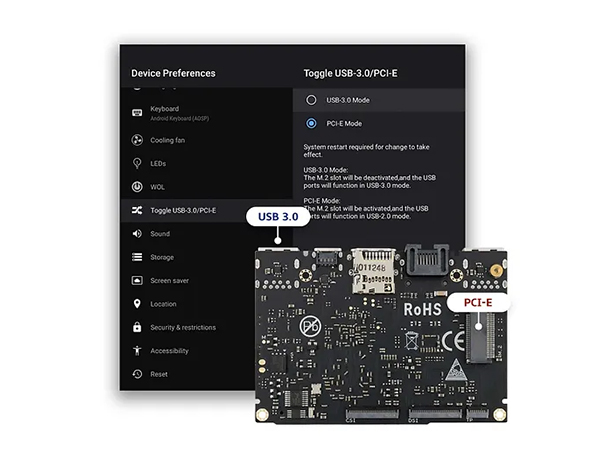

Combo Interface
- Switch between PCI-E and USB-3.0.
- Option available via Android UI.
- Or Khadas KBI / Ubuntu Command Line.

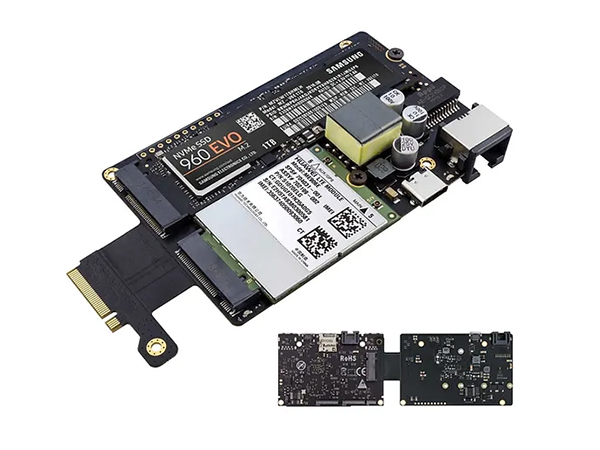

M2X Extension
- 4G LTE Module w/ Nano-sim slot.
- PCI-e NVMe 2280 SSD (x1 Lane).
- 802.3at Power-Over-Ethernet.
Specific
| SoC | Amlogic A311D |
|---|---|
| NPU | 5 TOPS |
| Wi-Fi | AP6398S 2T2R Wi-Fi 5 Module |
| WoL | Gigabit Ethernet with WoL support |
| Resolution | Up to 4K@60fps decoding and up to 1080p@60fps encoding |
| Basic Version | 2GB/16GB |
| Pro Version | 4GB/32GB |

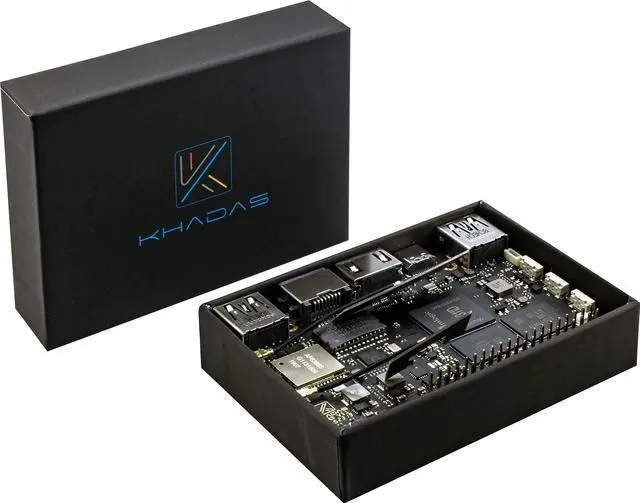

| Package Included | 1x VIM3 2x Antenna |
| Note | not included power adapter and usb-c cable |
