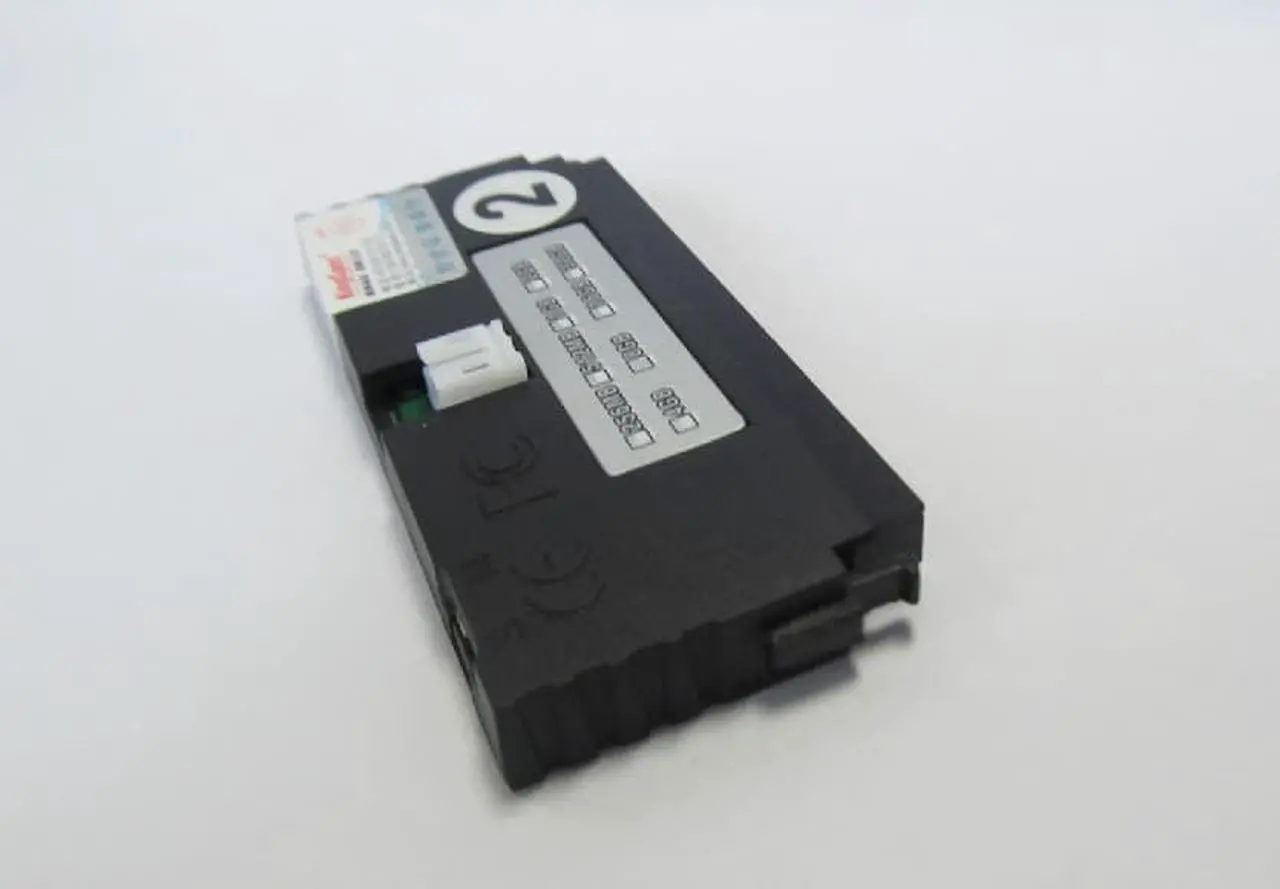

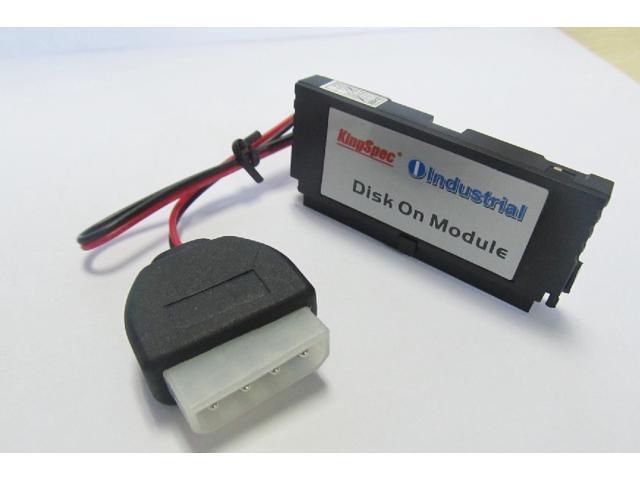

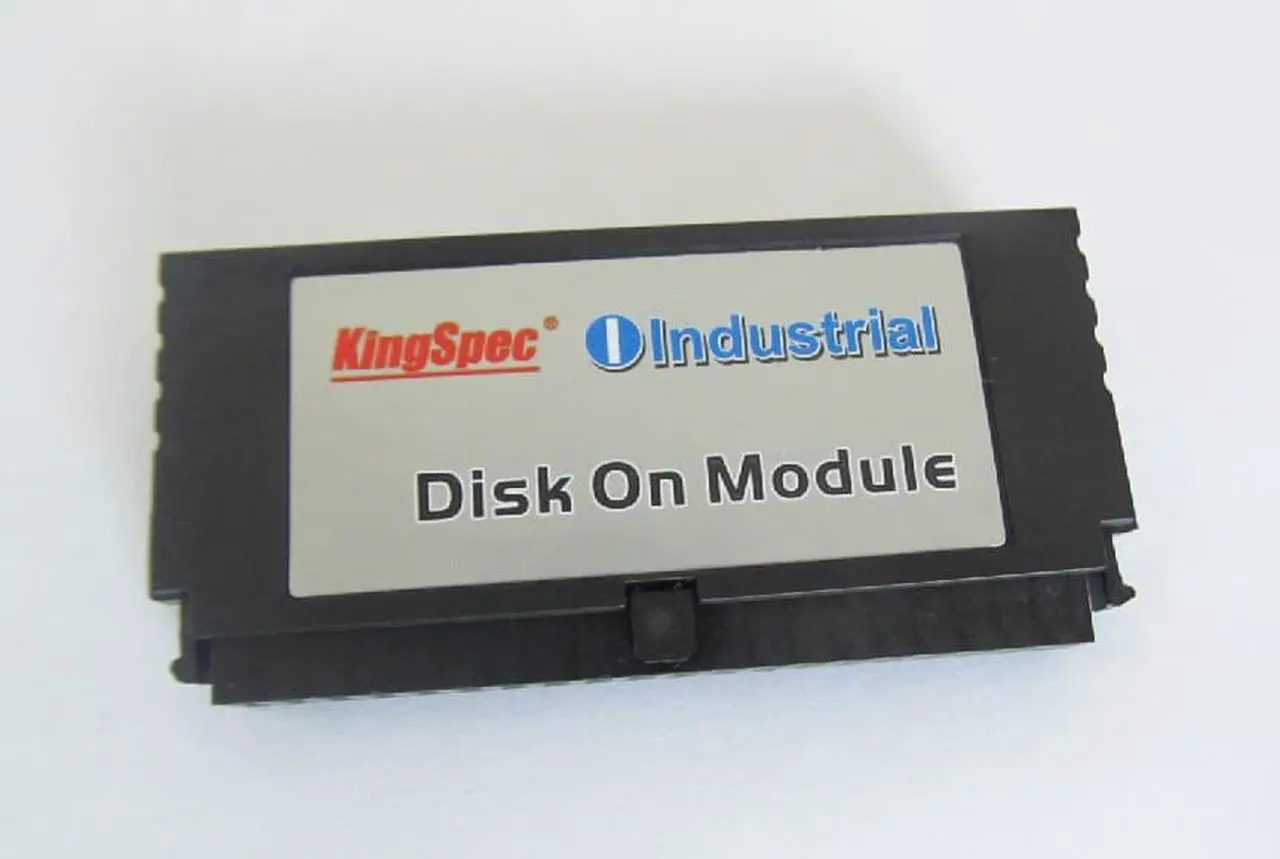

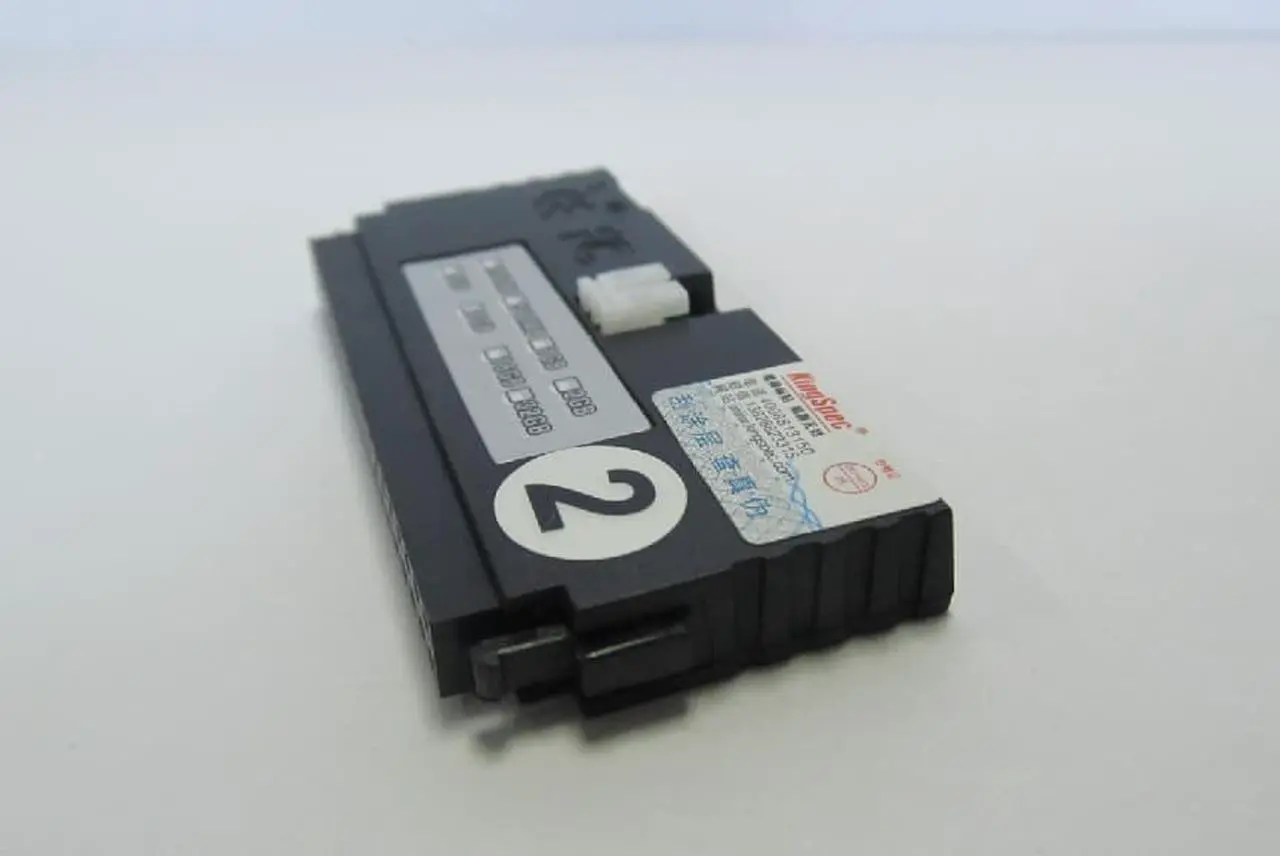

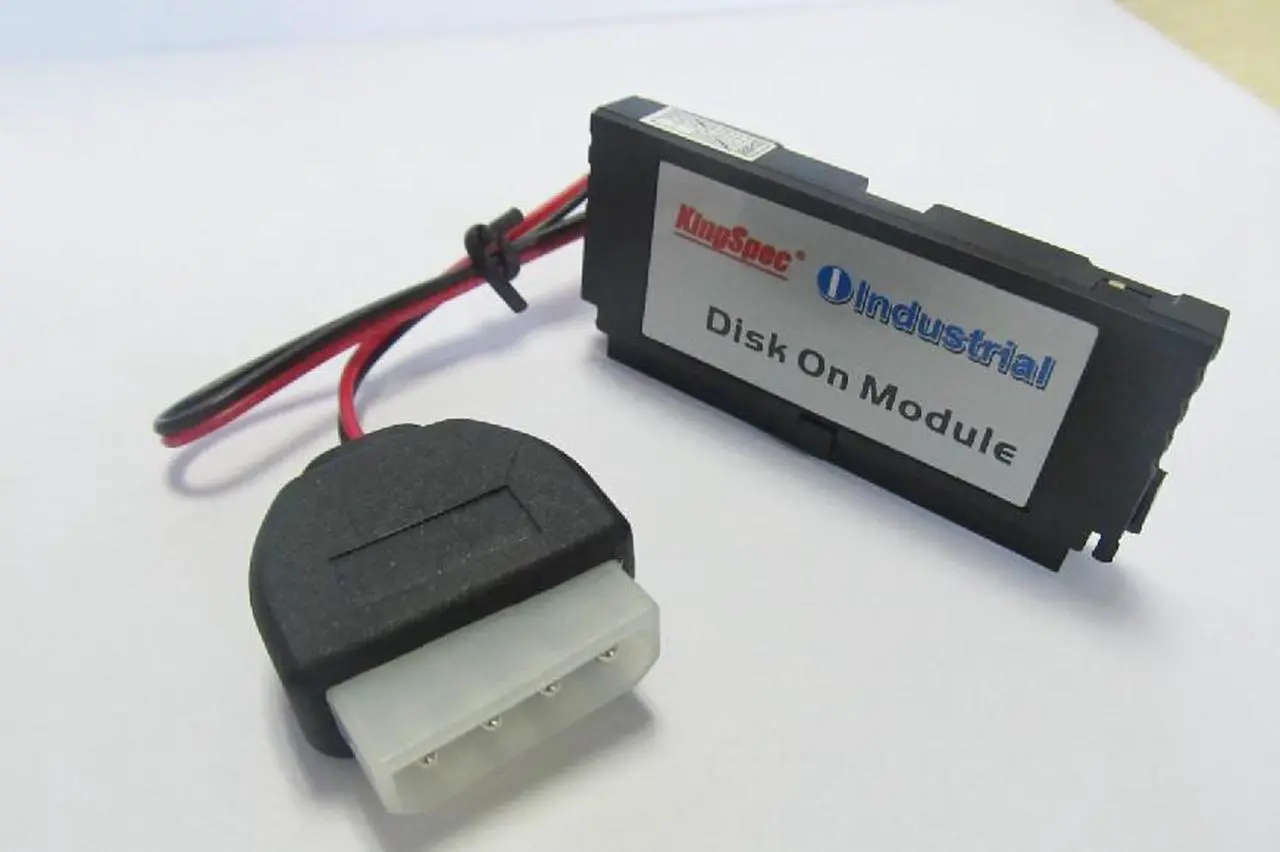

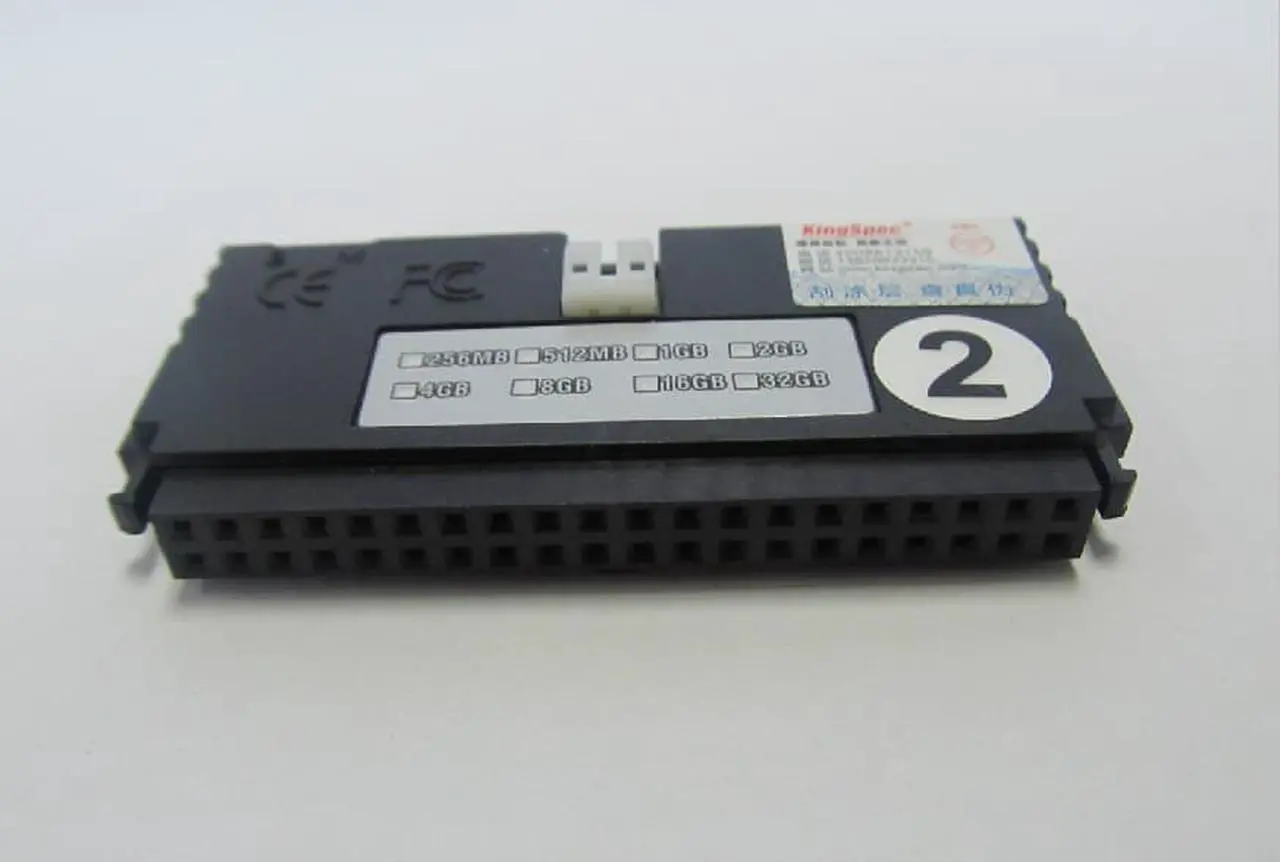

KingSpec 16GB 40PIN DOM DISK ON MODULE MLC Vertical+Socket IDE interface female

Model: KDM-40VS.2-016GMS
Interface: 40PINS
Capacity: 16GB
NAND Flash: MLC
4KB Random Read IOPS
input Voltage : 5V
Data Retention: 10years at 25ºC


Application:Network PC, Communications Equipment, Network Routers, POS Machines, Embedded Devices, Automation Equipment, Industrial PC Field, Military / Aerospace Facilities, Medical Equipment, Gaming, etc.

Disk On Module, is a high-performance, embedded flash drive designed to replace the traditional IDE mechanical hard drives. It is mainly used in some old motherboards, to enhance the performance of the equipment. It is characterized by the relatively small size, safe and reliable. DOM has a small control chip firmware, transfer data by standard interface of IDE, SATA, USB, no need additional host software.

DOM work at the voltage of 5V, it provided the scalability new features, such as more cost-effective designs, better performance, improved reliability, making it ideal for the field of embedded memory. PATA DOM supports the standard ATA / IDE, up to PIO Mode-4, Multiword DMA Mode 2 and Ultra DMA Mode-6, compatible with all the major operating systems on the market, such as the Microsoft Windows series, Mac OS, and Unix versions.
