KINGWIN ABT-450MM 450 W ATX 12V Ver.2.2 SLI Ready Power Supply
- ATX 12V Ver.2.2
- 115 / 230 V 50/60 Hz
- +3.3V@21A, +5V@26A, +12V1@16A, +12V2@17A, -12V@0.6A, +5VSB@2.0A
Specs
Reviews (41)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Kingwin Inc. ABT-450MM
| Brand | KINGWIN |
|---|---|
| Model | ABT-450MM |
| Type | ATX 12V Ver.2.2 |
|---|---|
| Maximum Power | 450 W |
| Fans | 1 x 120mm Fan |
| PFC | No |

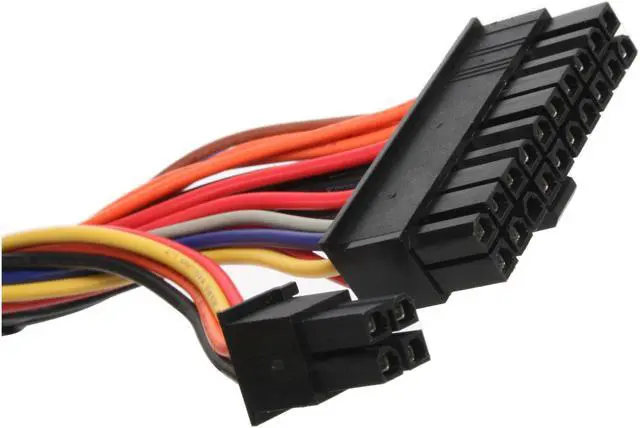

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SATA Power Connector | 2 |
| SLI | SLI Ready |
| Modular | No |
| Efficiency | 70% minimum at full-load |
| Over Voltage Protection | Yes |
| Overload Protection | 105%~150% |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 8.8A@115V/ 5A@230V |

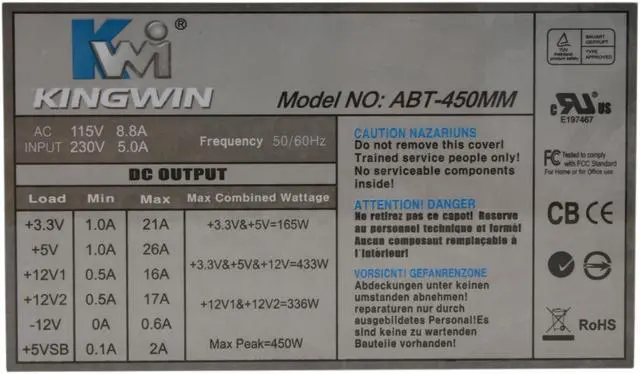

| Output | +3.3V@21A, +5V@26A, +12V1@16A, +12V2@17A, -12V@0.6A, +5VSB@2.0A |
| MTBF | >100,000 Hours |
| Approvals | CB, CE, FCC, cUL, RoHS |

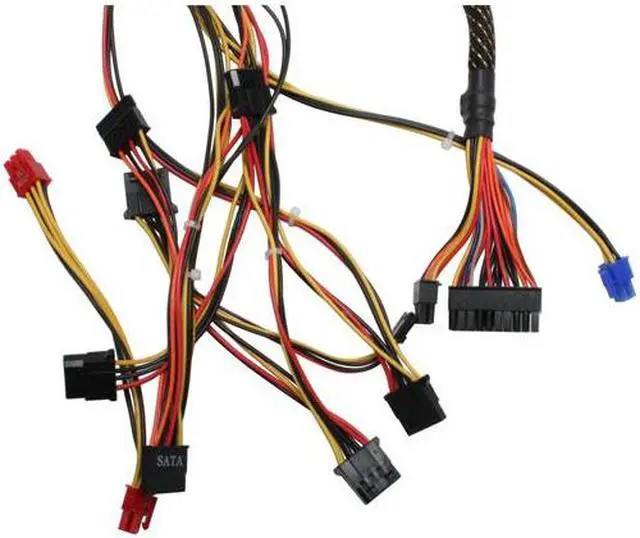

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V (P4) 5 x peripheral 2 x SATA 1 x Floppy 2 x PCI-E |
| Features | Comply with Intel ATX/BTX standard Extend output capacitance Output gold-coated connector |
|---|
| Dimensions | 5.75" x 5.88" x 3.38" |
|---|---|
| Weight | 5 lbs. |
| Dimensions | 3.3" x 5.9" x 5.7" |
|---|
| First Listed on Newegg | April 16, 2007 |
|---|
