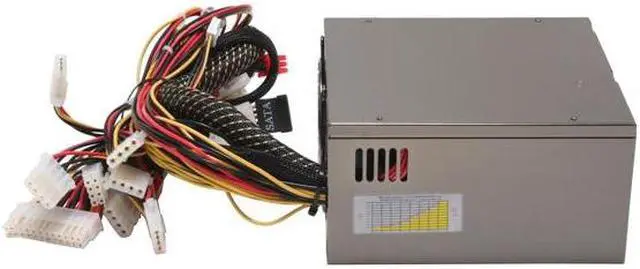

KINGWIN ABT-520MM 520 W ATX / BTX SLI Certified CrossFire Ready Power Supply

Name: KINGWIN ABT-520MM 520 W Power Supply
Brand: Kingwin Inc.
SKU: N82E16817121003
Rating: 4 (21 reviews)

ATX / BTX
115-120V/ 200-240V 50/60 Hz
+3.3V@32A,+5V@42A,+12V1@18A,+12V2@18A,[email protected], [email protected],[email protected]

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (21)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Kingwin Inc. ABT-520MM

General
Brand	KINGWIN
Model	ABT-520MM

Details
Type	ATX / BTX
Maximum Power	520 W

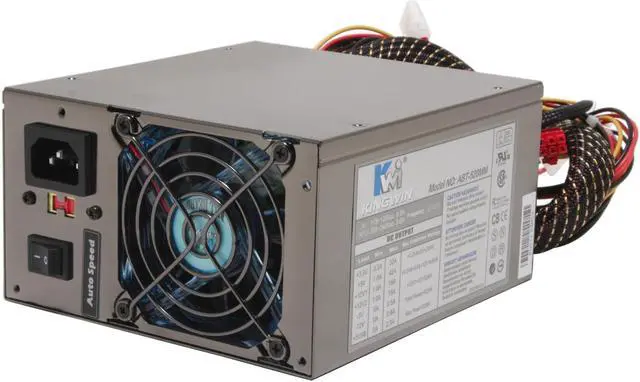

Fans	Dual 80mm Blue LED fans
PFC	No

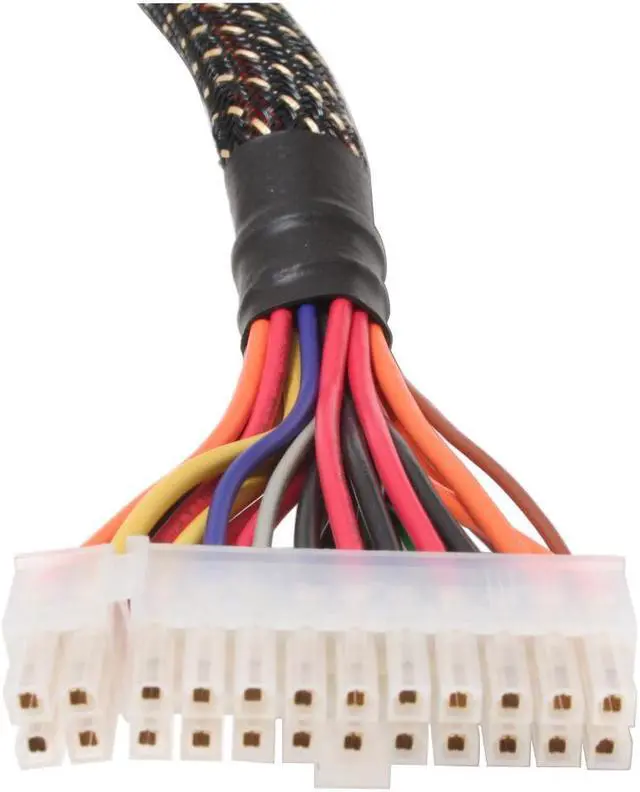

Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	2 x 6-Pin
SLI	SLI Certified
CrossFire	CrossFire Ready
Modular	No
Efficiency	> 70%
Over Voltage Protection	+5V output is between 5.7V to 6.5V/+12V output is between 13.2V to 14.4V/+3.3V output is between 3.7V to 4.1V.
Overload Protection	105%~150%
Input Voltage	115-120V/ 200-240V
Input Frequency Range	50/60 Hz
Input Current	8.8A@115V /5.0A@240V
Output	+3.3V@32A,+5V@42A,+12V1@18A,+12V2@18A,[email protected], [email protected],[email protected]
MTBF	100,000 hours under the following conditions full-rated load, 120Vac input, and 25C ambient.
Approvals	CB, CE, CSA, cUL

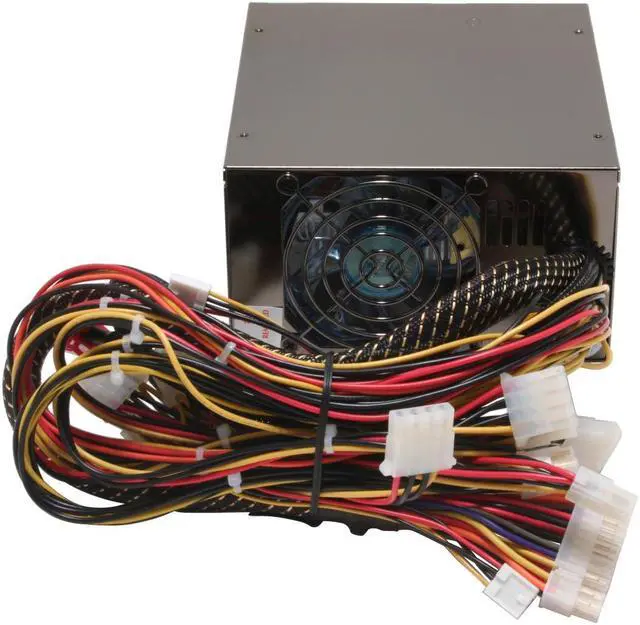

Connectors	1 x Main connector (20+4Pin) 1 x 12V (P4) 10 x peripheral 2 x SATA 1 x Floppy 2 x PCI-E

Features
Features	Triple Window Design Output gold-coated connector Nickel-Plated Input waveform: Sine wave, modified sine wave or square wave Withstand voltage: Input to output 1800Vac 3 sec/Input to ground 1800Vac 3 sec. Switches: ATX Logic power rocker switch. Support EPS & Intel 945/955 chipset

Additional Information
Date First Available	January 17, 2006
