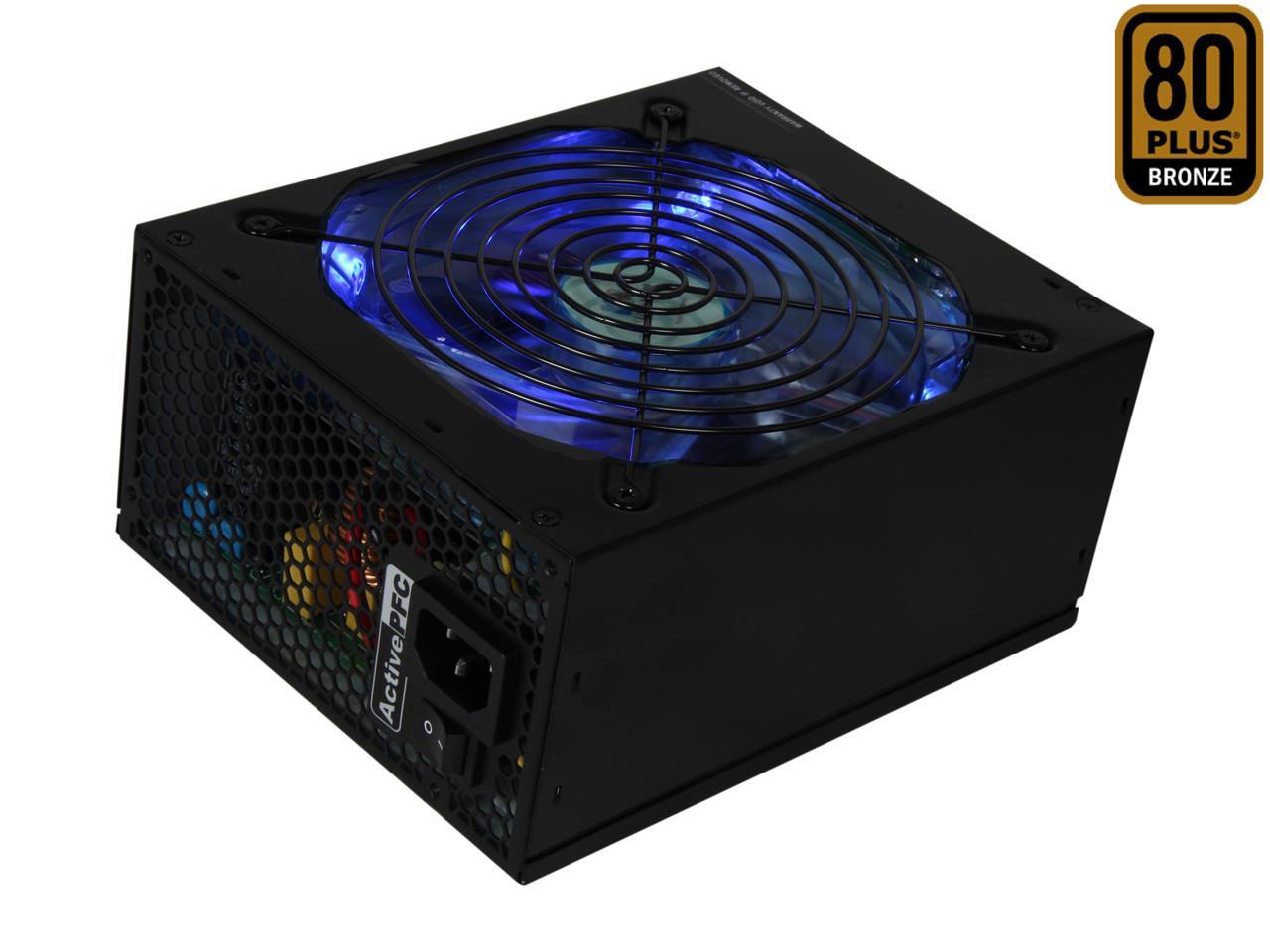

KINGWIN Mach 1 ABT-1220MA1S 1220 W ATX / BTX SLI Ready 80 PLUS BRONZE Certified Modular Active PFC Power Supply

OUT OF STOCK.
  • ATX / BTX
  • Modular
  • 80 PLUS BRONZE Certified
  • 50/60 Hz
  • +3.3V@24A, +5V@24A, +12V@99.5A, -12V@0.5A, +5VSB@3.0A
Specs
Reviews

Learn more about the Kingwin Inc. ABT-1220MA1S

General
Brand KINGWIN
Series Mach 1
Model ABT-1220MA1S
Details
Type ATX / BTX
Maximum Power 1220 W

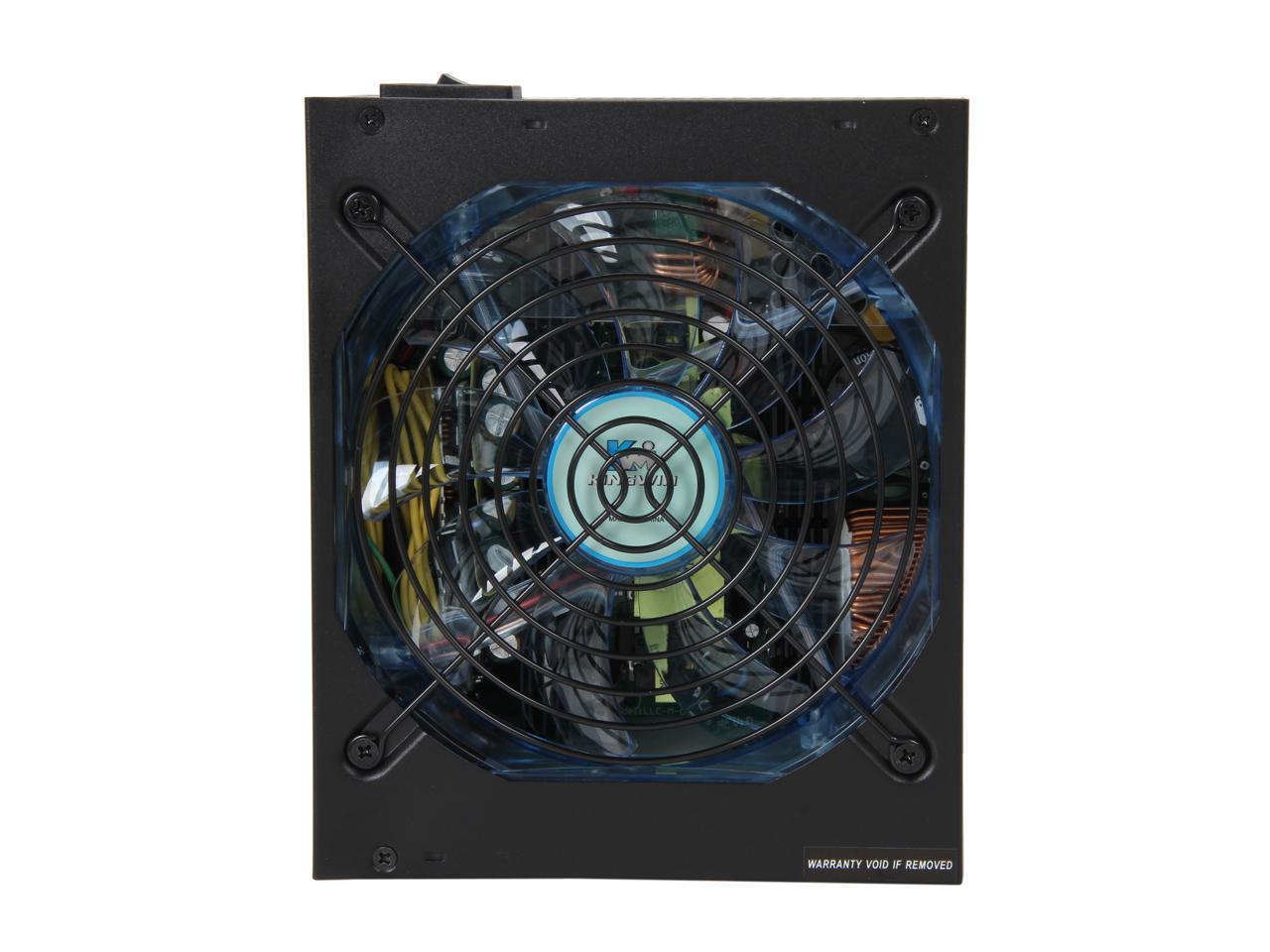

Fans 1 x 140mm blue LED fan

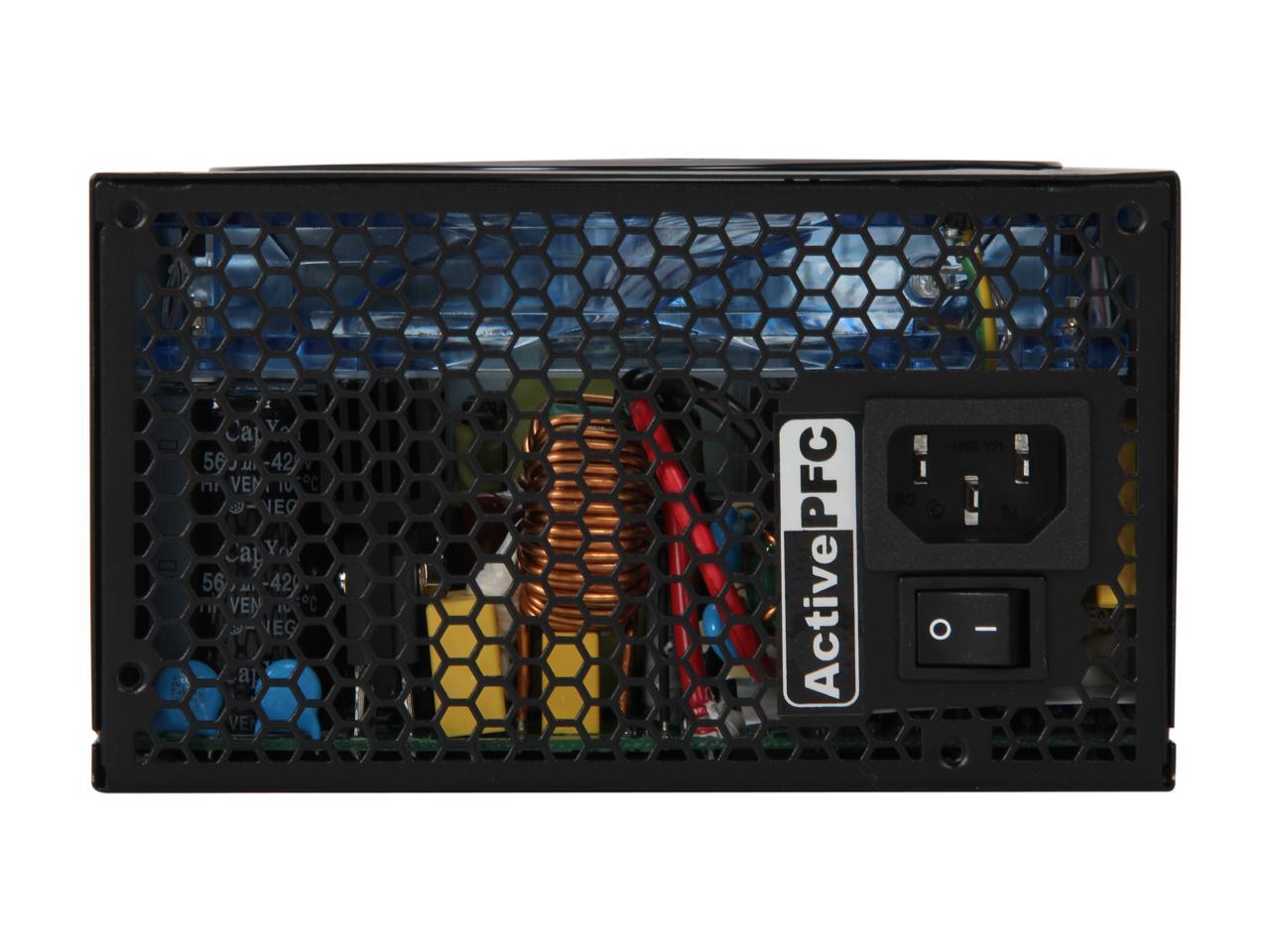

PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector 8
SLI SLI Ready
Modular Modular
Efficiency Up to 86%
Energy-Efficient 80 PLUS BRONZE Certified
Over Voltage Protection Yes
Input Frequency Range 50/60 Hz

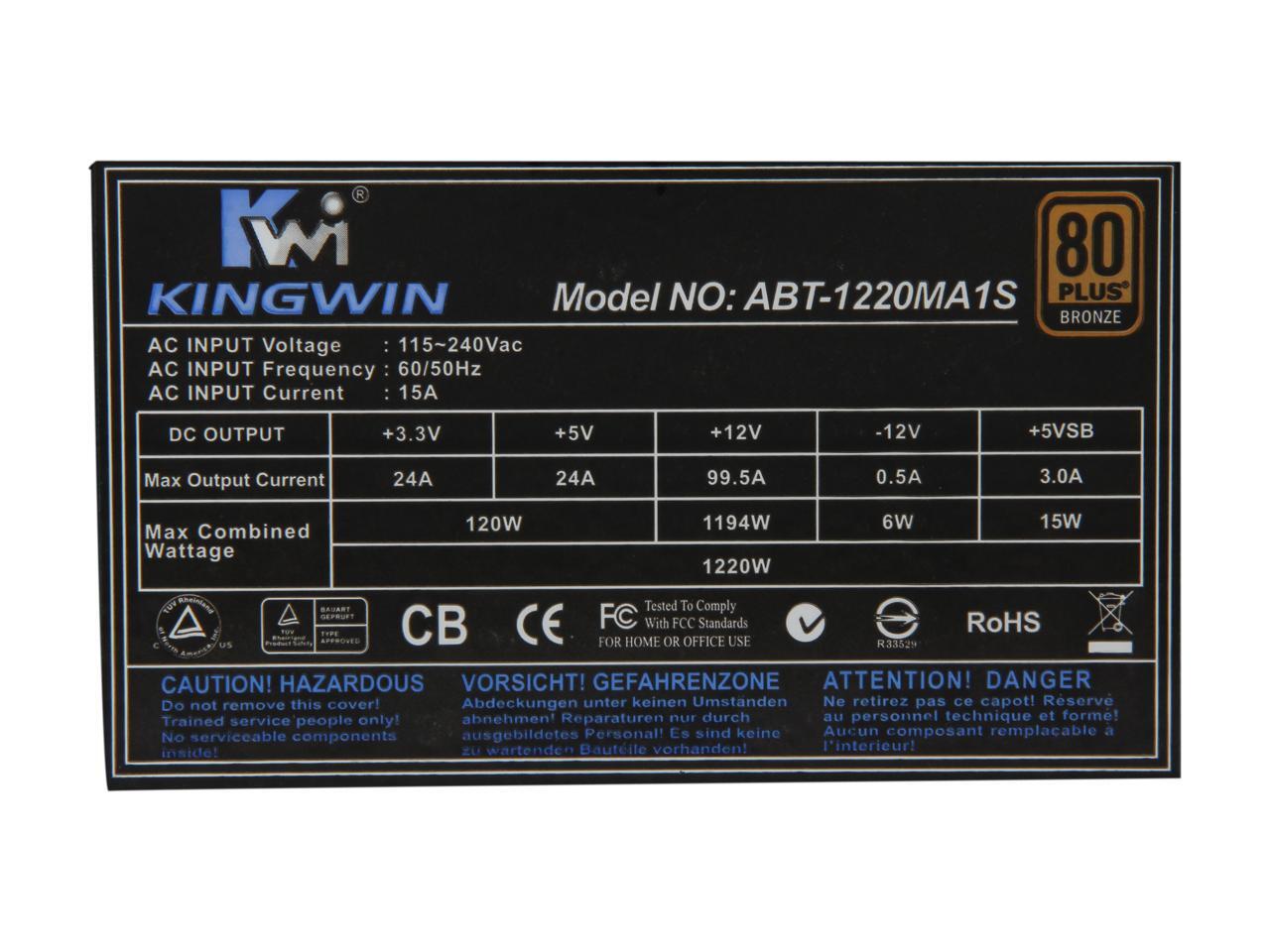

Output +3.3V@24A, +5V@24A, +12V@99.5A, -12V@0.5A, +5VSB@3.0A
MTBF >100,000 Hours

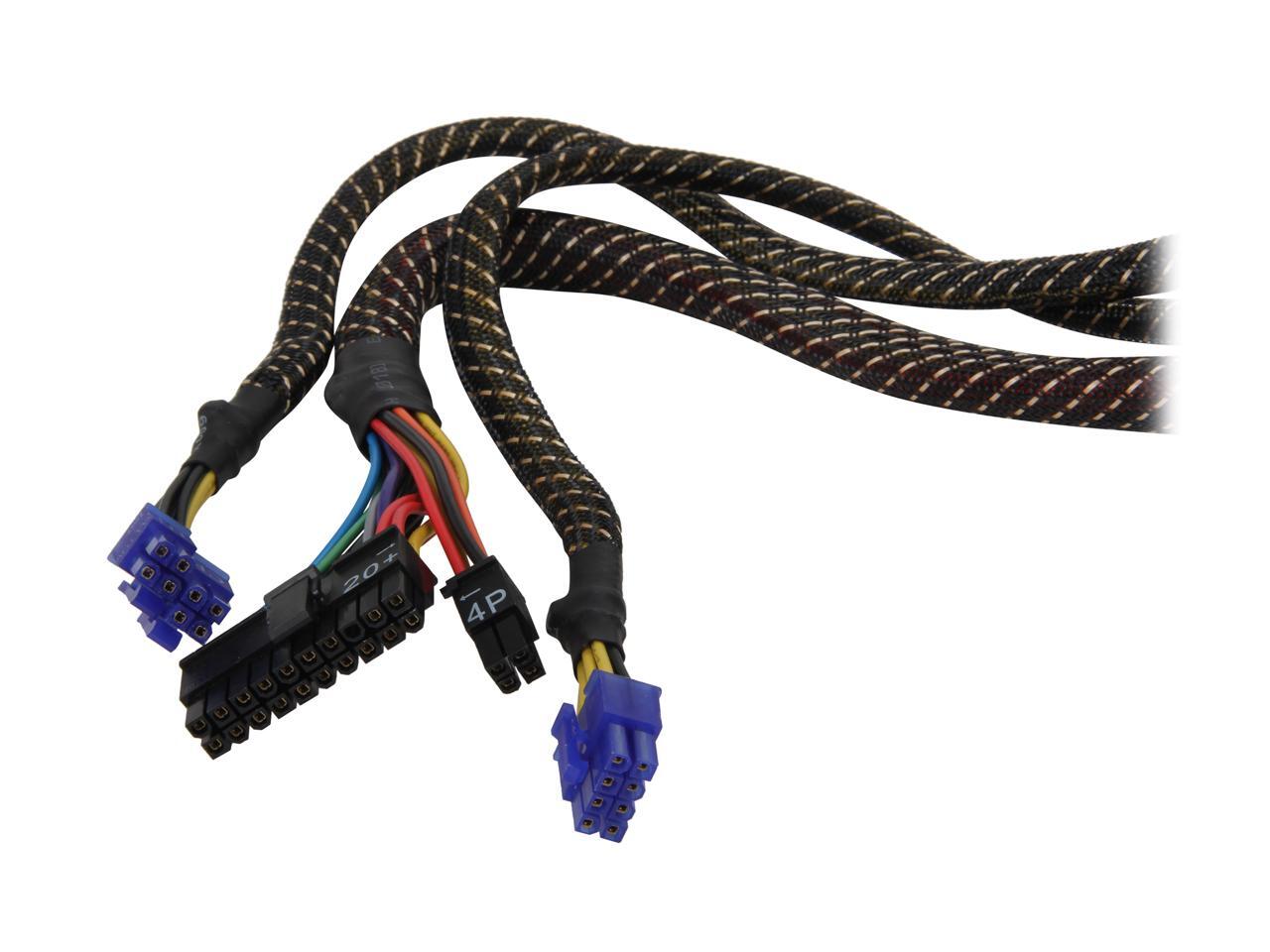

Connectors 1 x Main connector (20+4Pin)
1 x 12V(P4)
1 x 12V(8Pin)
8 x peripheral
8 x SATA
1 x Floppy
4 x PCI-E
Features
Features Support Intel Core Duo CPU & Core 2 Duo CPU
Support AMD 64 CPU & 64x2 CPU
Support High Performance Nvidia SLI GPU
ATX 12V Ver.2.92
Output gold-coated connector
Output over / under voltage protection
Black coating finish

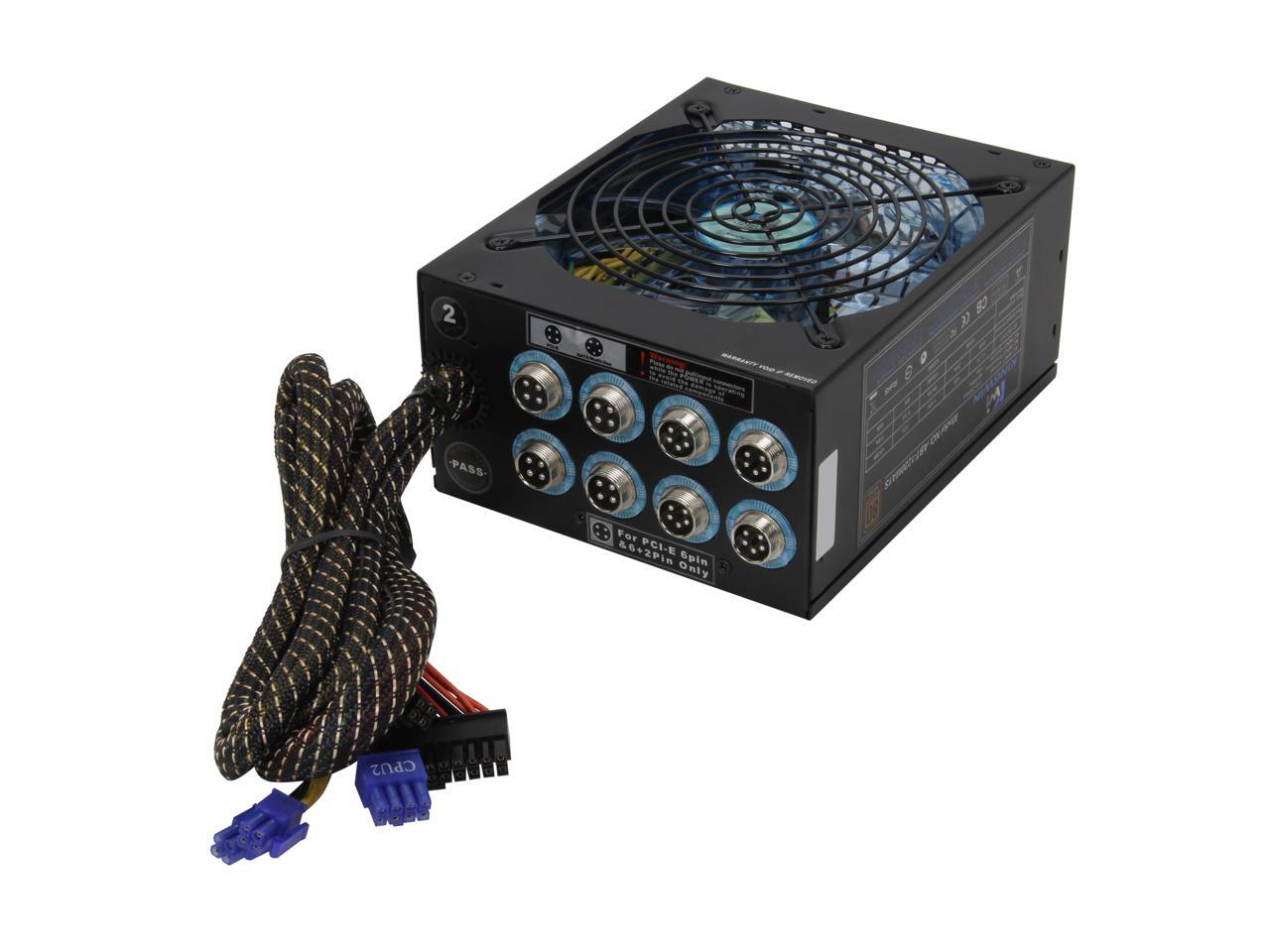

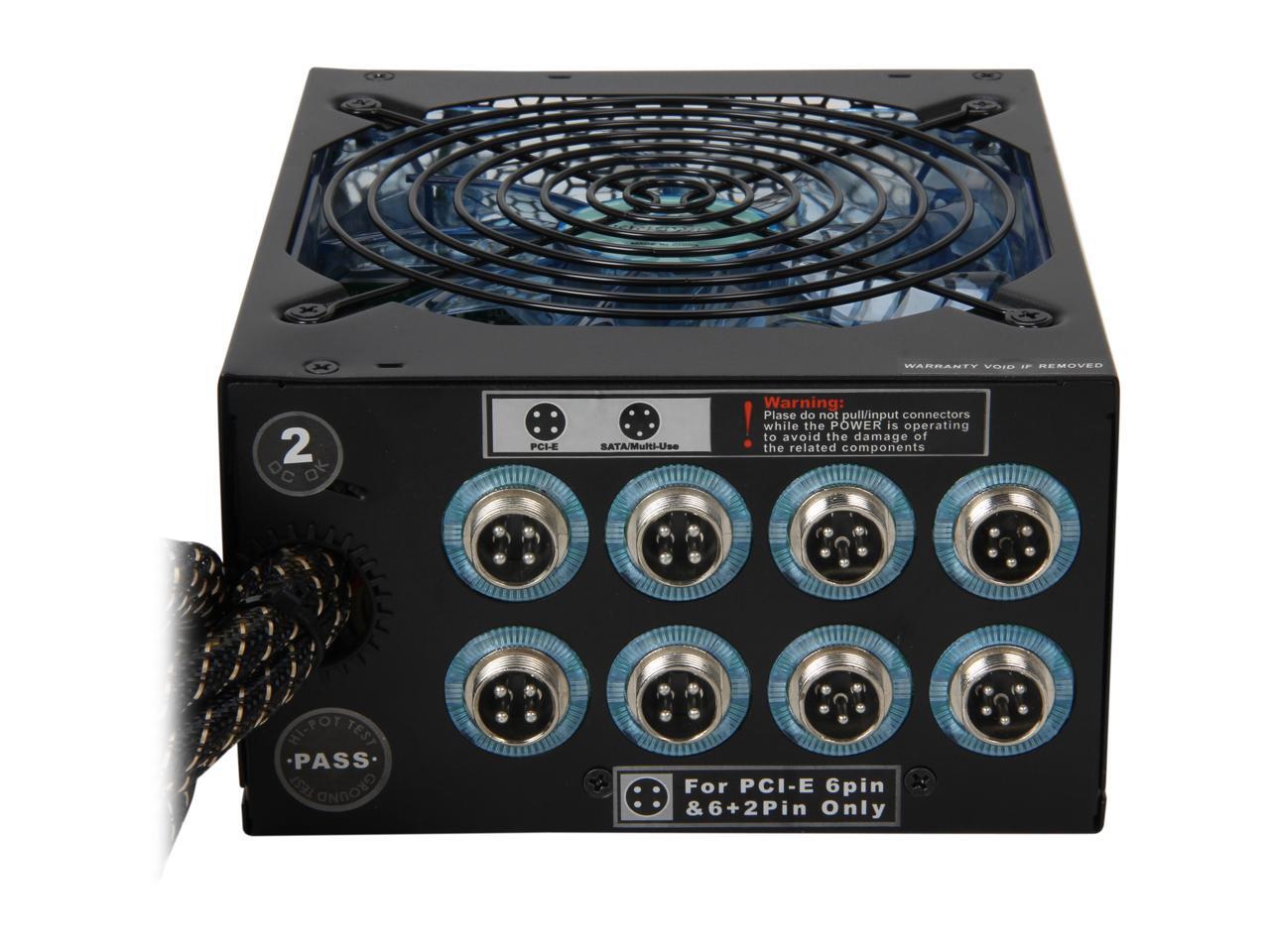

Aircraft style modular connectors
Built in auto fan-speed sensor
Dimension & Weight
Dimensions 7.09" x 5.91" x 3.35"
Weight 9 lbs.
Dimensions & Weight
Dimensions 3.3" x 5.9" x 7.1"
Additional Information
Date First Available July 08, 2008
