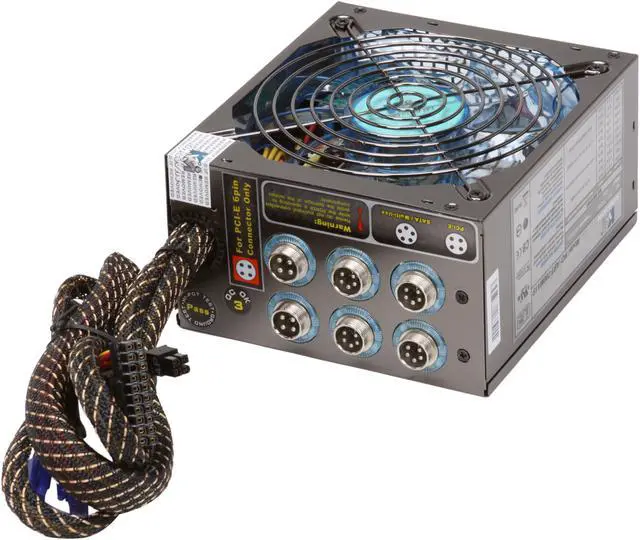

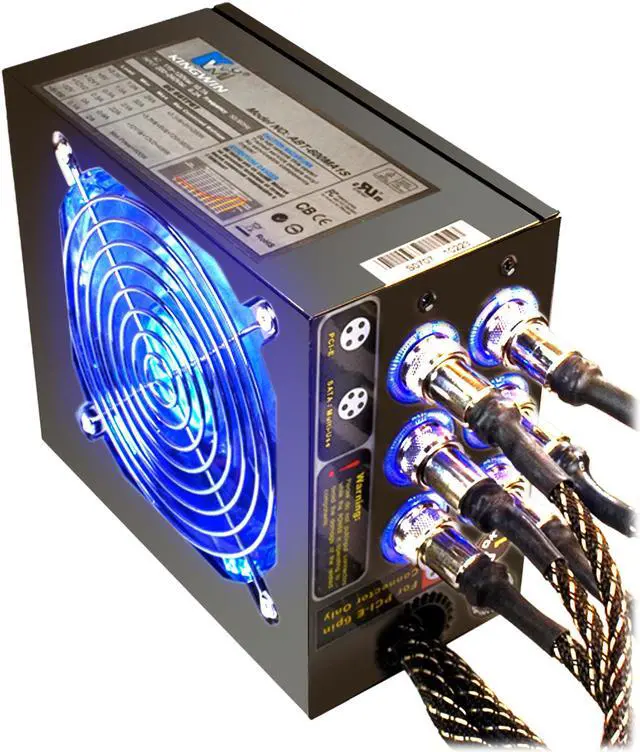

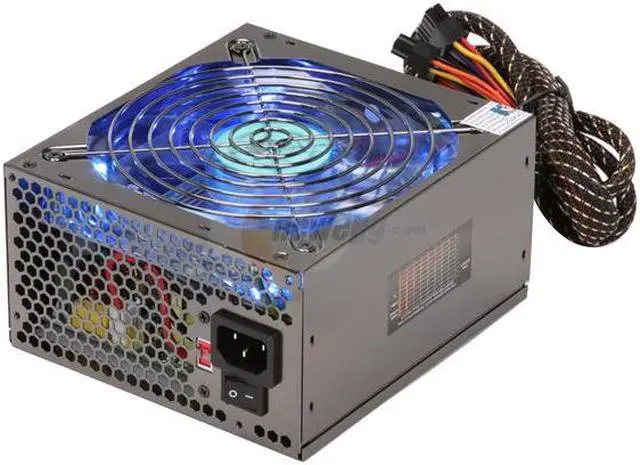

KINGWIN Mach 1 ABT-700MA1S 700W ATX / BTX SLI Certified CrossFire Ready Modular Power Supply

ATX / BTX
Modular
115 / 230 V 50/60 Hz
+3.3V@24A, +5V@30A, +12V1@18A, +12V2@18A, +12V3@18A, +12V4@20A, [email protected], [email protected]

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (50)

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Kingwin Inc. ABT-700MA1S

Details
Type	ATX / BTX
Maximum Power	700 W

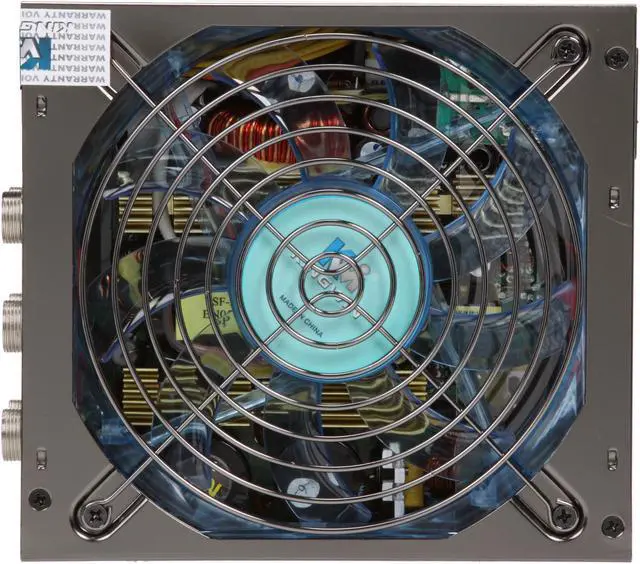

Fans	One 140mm bottom blue LED fan
Main Connector	20+4Pin
+12V Rails	4
PCI-Express Connector	2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Certified
CrossFire	CrossFire Ready
Modular	Modular
Efficiency	70% minimum at full-load
Over Voltage Protection	Yes
Overload Protection	105%~150%
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz
Input Current	13A@115V/ 7A@230V

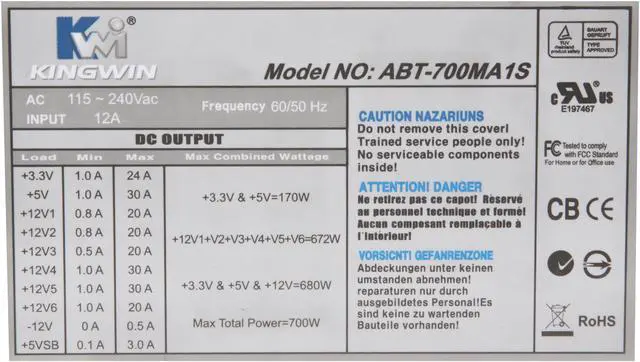

Output	+3.3V@24A, +5V@30A, +12V1@18A, +12V2@18A, +12V3@18A, +12V4@20A, [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	UL, CE, CB, TUV, FCC, CSA

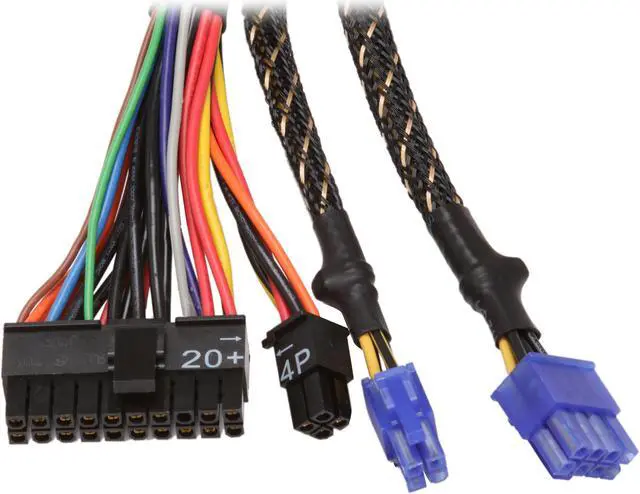

Connectors	1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8Pin) 8 x peripheral 6 x SATA 1 x Floppy 4 x PCI-E

Features
Features	Modular Connector NVIDIA SLI certified Special cable management system Comply with Intel ATX/BTX standard Support EPS & Intel 945/955/975x chipset Output gold-coated connector Output over / under voltage protection Output short protection Over load protection Nickel-Plated Aircraft style modular connectors Built in auto fan-speed sensor

Additional Information
First Listed on Newegg	July 02, 2007
