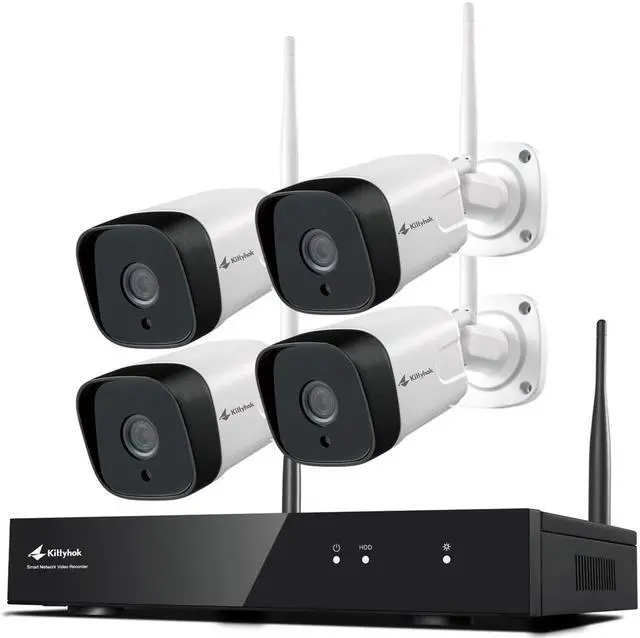

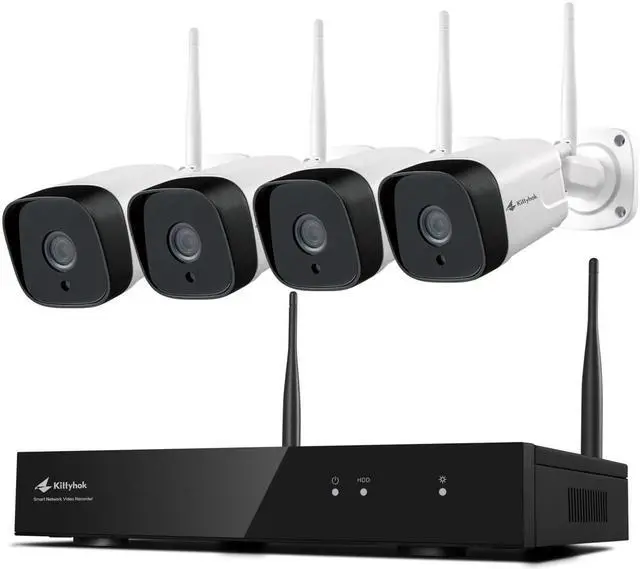

Plug and Play, Auto WiFi Relay Technology, Long-range WiFi
All Cameras are already paired to NVR before out of factory. Once the wireless cameras and NVR powered on, the video will show on the NVR at once. The camera records all day and night. With 1TB HDD, recording of the past 30 days can be checked anytime.

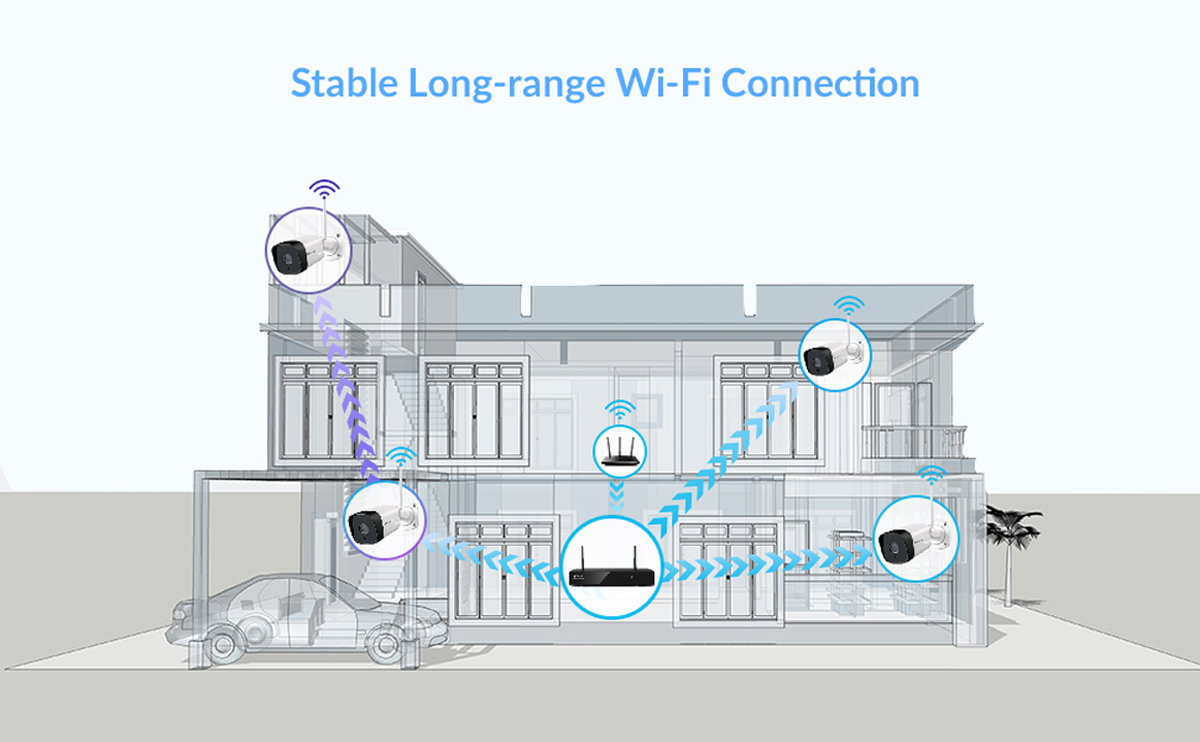

Each upgraded IP camera acts as a WiFi repeater. The camera with poor signal will search and connect to the camera with better signal to extend already long wifi range.

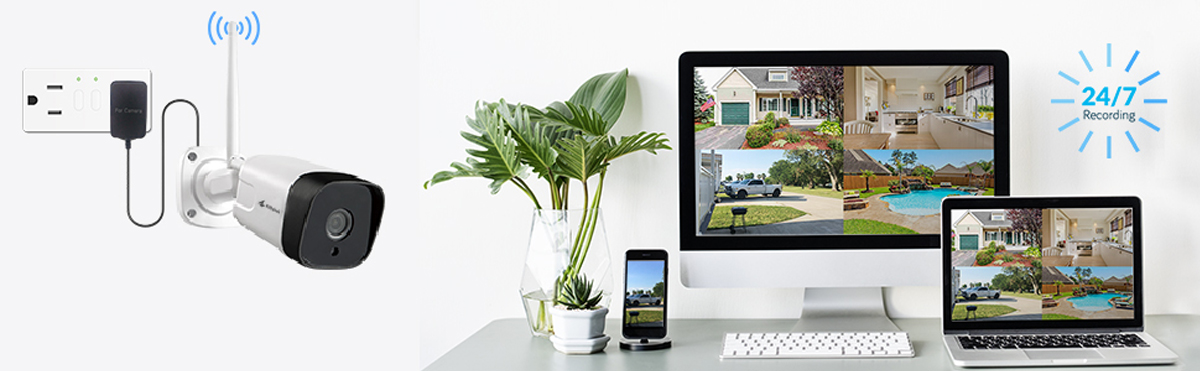

24/7 continuous recording
With pre-installed 1TB HDD, the system is able to loop record and keep records in hard disk. The NVR supports up to 6TB HDD.The oldest records will be overwritten by new one.
Remote Viewing
For remote view, NVR needs to be connected to home router and download free App "Kittyhok" in your mobile devices.
You can playback videos from mobile device or PC to check what happened when not at home, no need real-time monitoring.

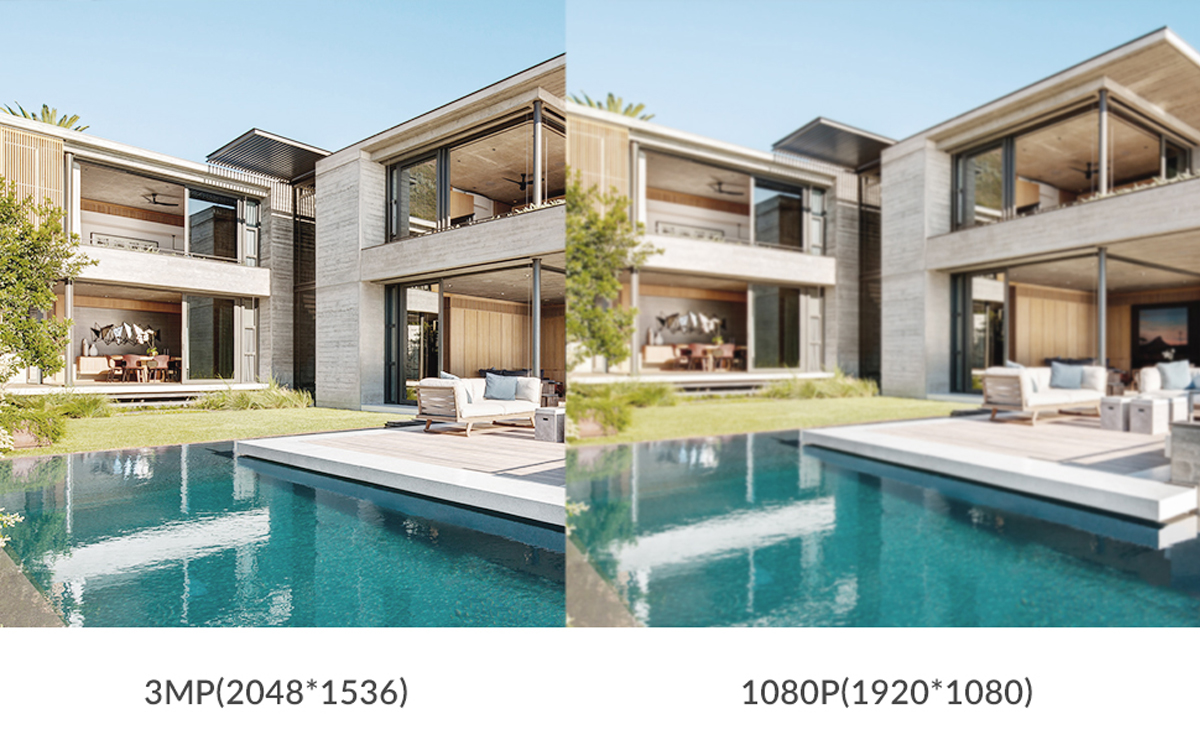

- The 3MP security camera provides stunning clear images and videos for you to check details day and night. It's much clearer than 1080p.
- Use free iOS & Android App with a smartphone or table to view and play back recordings anytime.
Parameter:
NVR
1. Video Compression : H.265+

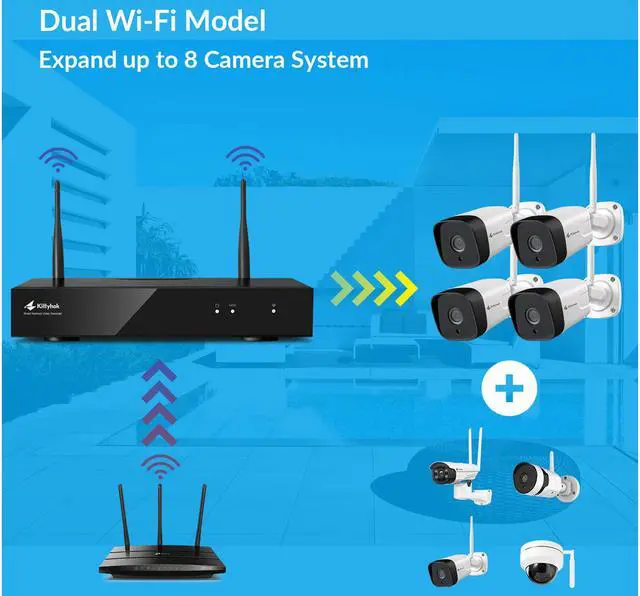

2.. IP Video Input: 8CH
3. Video Output: HDMI and VGA up to 1080p
4. Max. Recording Resolution: 3MP (2048 X 1536)
5. Max. Playback Resolution: 3MP (2048 X 1536)
6. Playback: 4CH 3MP
7. HDD: 1TB 3.5 Inches, Up to 6TB
8. Network Interface: RJ45 X1 (10/100 M)
9. Wireless Antenna: 2 Ports (IEEE802.11b/g/n)
10. USB: USB 2.0 X 2
11. Operating Power: DC 12 V
12. Power Consumption: 6 W (Without HDD)
13. Working Temperature: 14 °F – 131 °F/-10 °C – 55 °C
14.Dimensions (W X H X D): 10.2” X 9.6” X 1.9”/260 X 245 X 47 mm
15. Weight (Without Hard Disk) : 1.68 lbs./760 g (Without HDD)

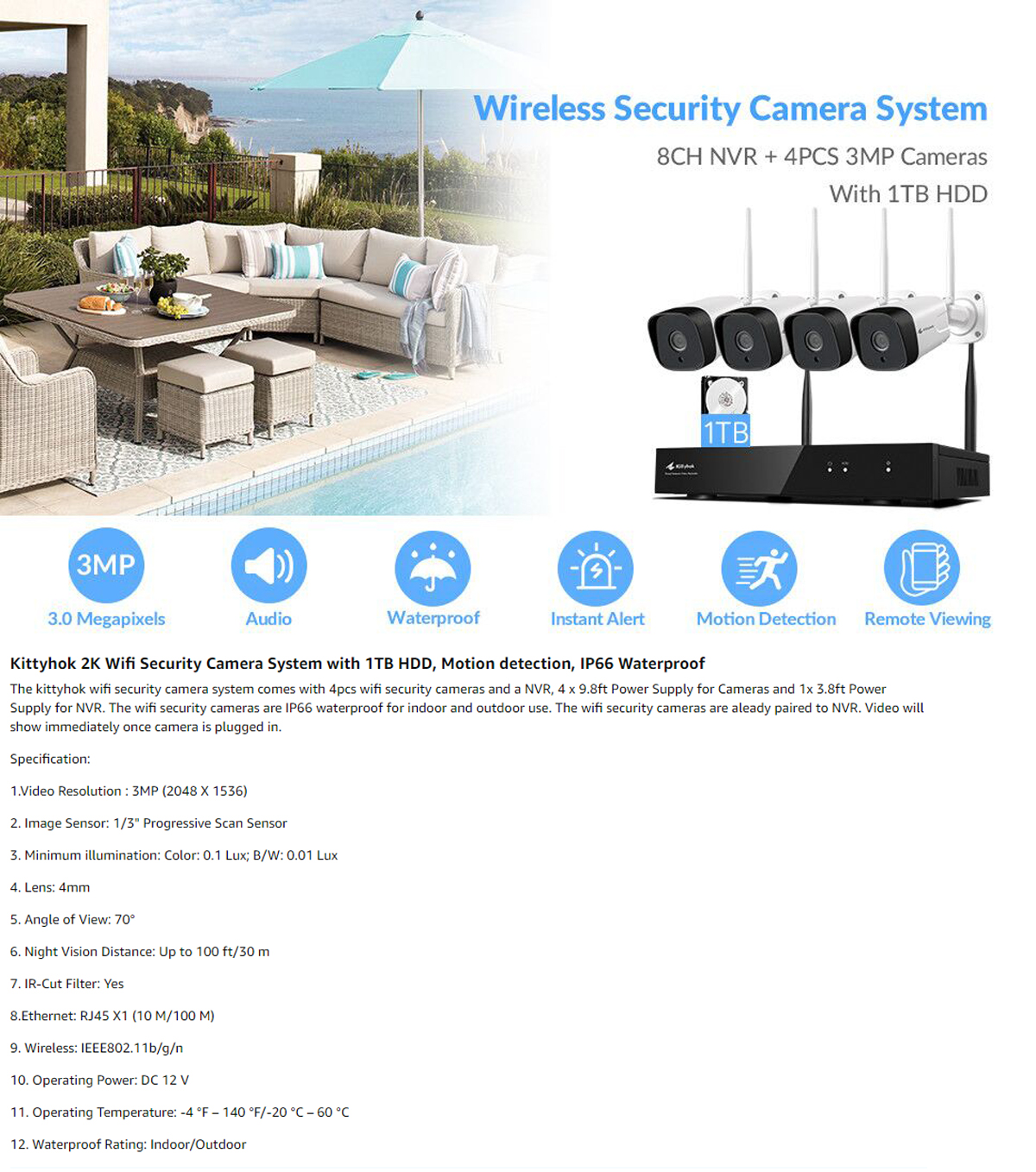

Camera
1.Video Resolution : 3MP (2048 X 1536)
2. Image Sensor: 1/3" Progressive Scan Sensor
3. Minimum illumination: Color: 0.1 Lux; B/W: 0.01 Lux
4. Lens: 4mm
5. Angle of View: 70°
6. Night Vision Distance: Up to 100 ft/30 m
7. IR-Cut Filter: Yes
8.Ethernet: RJ45 X1 (10 M/100 M)
9. Wireless: IEEE802.11b/g/n
10. Operating Power: DC 12 V
11. Operating Temperature: -4 °F – 140 °F/-20 °C – 60 °C
12. Waterproof Rating: IP66
13.Dimensions (L X W X H) : 6.9” X 2.6” X 2.6”/175 X 67 X 67 mm (Including the Bracket)
14.Weight: 0.82 lb./370 g
Note: Camera and NVR need to be plugged in to work.

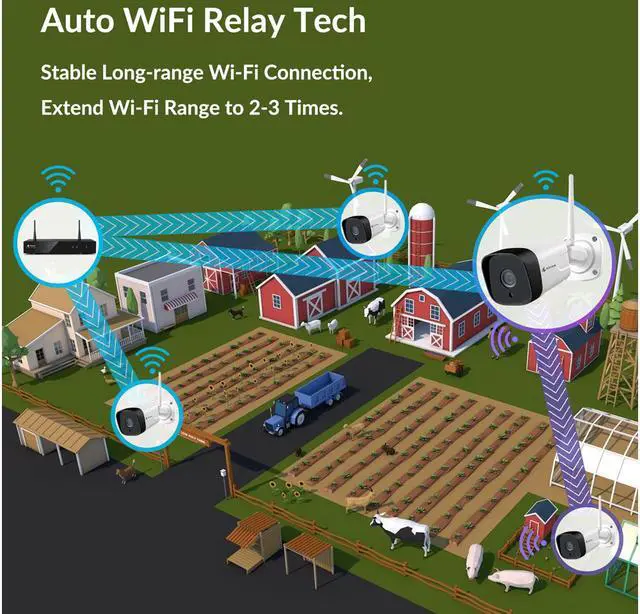

Plug and Play, Auto WiFi Relay Technology, Long-range WiFi
All Cameras are already paired to NVR before out of factory. Once the wireless cameras and NVR powered on, the video will show on the NVR at once. The camera records all day and night. With 1TB HDD, recording of the past 30 days can be checked anytime.
Each upgraded IP camera acts as a WiFi repeater. The camera with poor signal will search and connect to the camera with better signal to extend already long wifi range.
Remote Viewing
For remote view, NVR needs to be connected to home router and download free App "Kittyhok" in your mobile devices.
You can playback videos from mobile device or PC to check what happened when not at home, no need real-time monitoring.
Motion Detection
You can select the motion detected area and record time in NVR, then enable the Email alert
when motion is detected, you can get notifications/emails with pictures and video.
