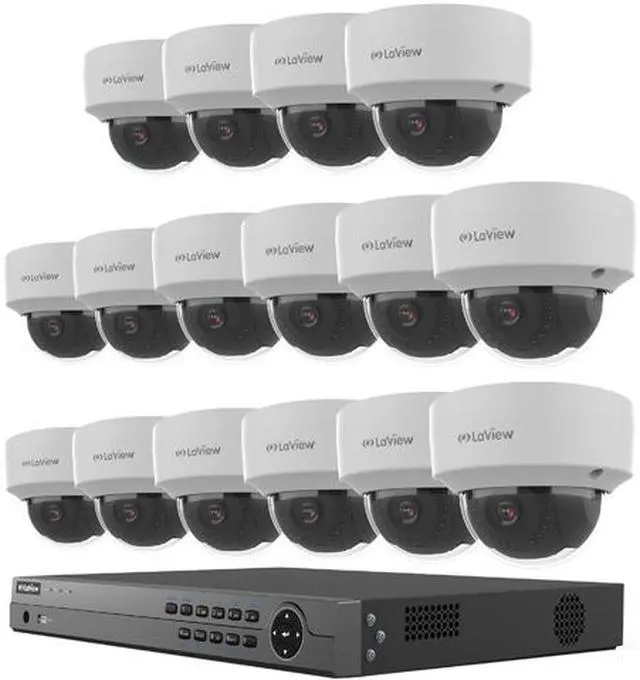

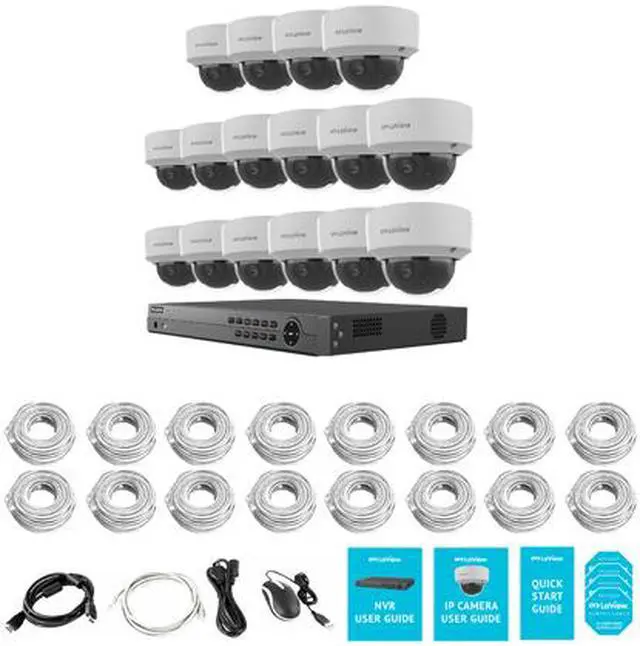

LaView 4MP 2688 x 1520P Full PoE IP Camera Security System, 16-channel H.265 NVR w/ 4K Output, 16 x 4MP Dome Full HD In / Outdoor IP Cameras (No HDD Included, Sold Separately)
- H.265 Video Coding NVR w/ 4K Output (Upgradable to 8MP)
- 2688 x 1520p 4.1MP Resolution: Double the quality of 1080P
- 100 ft. Night Vision, IP66 Weatherproof
- Plug & play with Full Built-in POE
- 16 CH @ 4MP Simultaneously Live View & Playback
- Email Alert for Motion Detection
Learn more about the LaView USA LV-966SXLS16D4
| Brand | LaView |
|---|---|
| Model | LV-966SXLS16D4 |
| Type | Surveillance System / Security Camera Kit |
| Camera inputs | 16 Channel |
|---|---|
| Video Input | 8-ch |
| Audio Input | 1-ch, RCA (2.0Vp-p, 1K Ohms) |
| Resolution Recording | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2 CIF / CIF / QCIF |
| Audio Output | 1-ch, RCA (Linear, 1K Ohms) |
|---|
| Storage Capacity | Up to 6TB capacity for each HDD |
|---|---|
| Backup Device | 1 x USB 2.0, 1 x USB 3.0 |
| Network Connection | 1 x 10M / 100M / 1000M self-adaptive Ethernet interface |
|---|---|
| Network Protocol | TCP / IP, PT CLOUD, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Features | Third-Party network cameras supported Up to 8MP resolution recording HDMI output at up to 3840 x 2160P resolution VGA output at up to 1920 x 1080P resolution Plug & Play with 16 independent PoE network |
|---|---|
| Power Supply | Power Supply: 100 to 240V AC Consumption: <=15W |
| Bundled Camera Number | 16 |
|---|---|

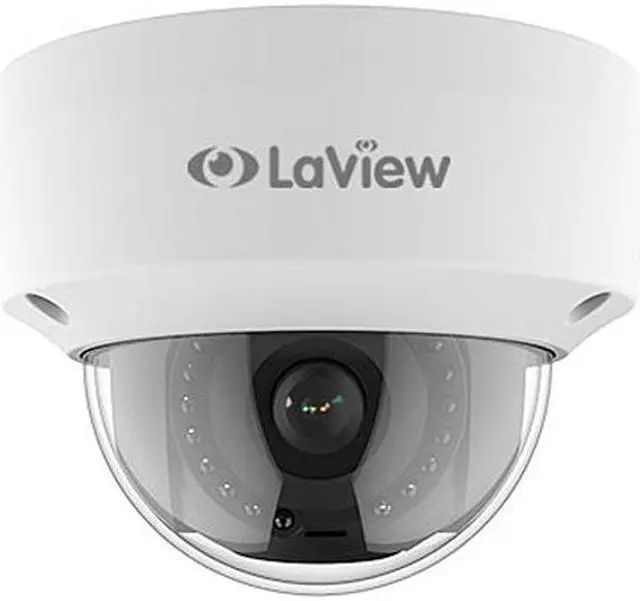

| Bundled Camera Spec | 4.1MP Mini Network Dome Camera Image sensor: 1/3" sensor Min. illumination: 0.0036 Lux @ (F2.0,AGC ON) 0 lux with IR" Shutter time: 1/3s to 1/100,000s, support slow shutter Lens: 2.8mm,Angle of view: 105 degree Lens mount: M12 Day & night: Digital noise reduction: 3D DNR Wide Dynamic Range: Digital WDR Swivel and Tilt: Swivel: 0 degree ~ 355 degree, Tilt: 0 degree ~ 70 degree Operating conditions: -22 degree F ~ 140 degree F (-30 degree C ~ 60 degree C ) humidity 95% or less (non-condensing) Power supply: 12V DC +/- 25%, PoE (802.3af) Power consumption: Max 5W Weather proof rating: IP67 Impact Protection: IK10 IR range: Approx. 100 ft. (30 meters) |
| Dimensions | 1.90" x 14.90" x 11.40" |
|---|---|
| Weight | 6.60 lbs. |
| First Listed on Newegg | September 15, 2017 |
|---|
