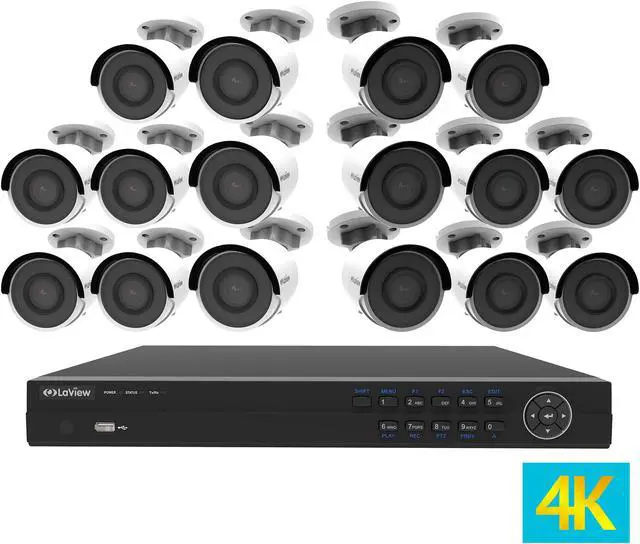

Main image of LaView 4K UltraHD (3840 x 2160P) Full PoE IP Camera Security System, 16-channel H.265 NVR w/ UHD 4K Output, 16 x 4K UltraHD Bullet Full HD In / Outdoor IP Cameras (No HDD Included, Sold Separately)

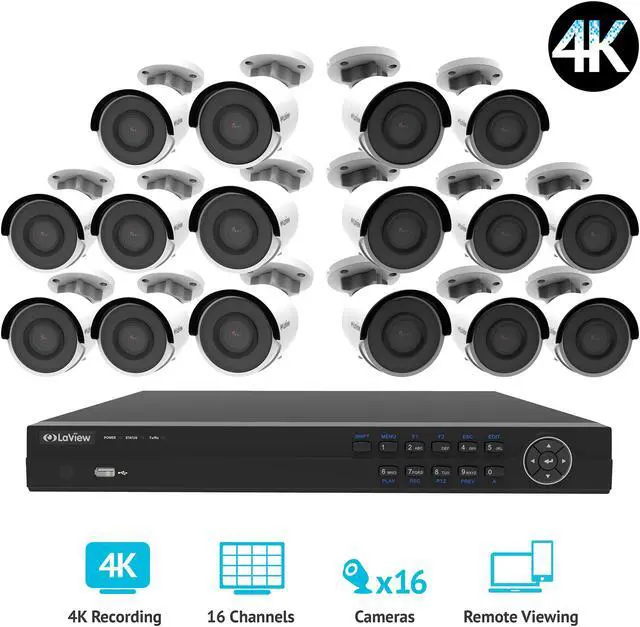

Alt view image 2 of 3 - LaView 4K UltraHD (3840 x 2160P) Full PoE IP Camera Security System, 16-channel H.265 NVR w/ UHD 4K Output, 16 x 4K UltraHD Bullet Full HD In / Outdoor IP Cameras (No HDD Included, Sold Separately)

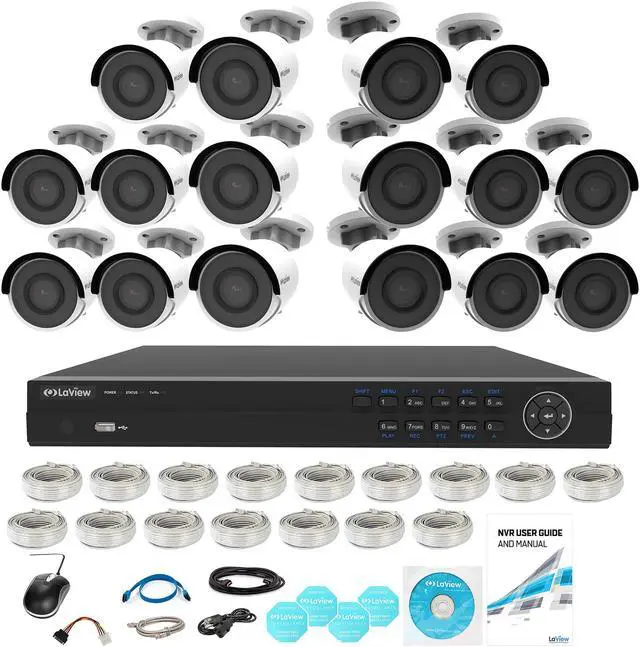

Alt view image 3 of 3 - LaView 4K UltraHD (3840 x 2160P) Full PoE IP Camera Security System, 16-channel H.265 NVR w/ UHD 4K Output, 16 x 4K UltraHD Bullet Full HD In / Outdoor IP Cameras (No HDD Included, Sold Separately)

Shop All LaView USA Products

LaView 4K UltraHD (3840 x 2160P) Full PoE IP Camera Security System, 16-channel H.265 NVR w/ UHD 4K Output, 16 x 4K UltraHD Bullet Full HD In / Outdoor IP Cameras (No HDD Included, Sold Separately)

Be the first to review this product...

Experience true image clarity with the Ultra 4K Resolution
16CH 4K live view simultaneously
Record longer with advanced H.265
100 feet night vision
Easy Plug and Play
Email alert and motion detection
2 SATA up to 6TB each

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

True 4K Resolution

Enjoy clarity like never before, in ultra HD 4K resolution. Record everything with sharper details with the high pixel count to ensure you do not miss a single detail. With image capture size of 3840 x 2160, you will be able to digitally zoom into far away objects without losing any quality.

Save More, Do More with H.265

Record more footage with new encoding technology to enjoy longer storage capability with H.265. With advanced compression technology, double your recording capacity to ensure you get every history saved. The improvements will also allow bandwidth efficiency to view your recordings faster than ever before.

Weatherproofing with Full Metal Casing

Rated IP67, the operating temperature can go as low as -22°F and up to 140°F. Place them indoor or outdoor, where you need those extra security measures. Metal casing ensures your camera cannot be tampered with easily.

All of the Above in One Single App

Enjoy your new window to your home even while on the go, 24/7 with our free mobile app LaView Net. Download it free from Apple Store or Google Play today.

Be There, Even When You Can’t See

Night vision technology helps you capture images when the human eye cannot - the camera’s IR is capable to reach up to 100ft even in the darkness, in 79° field of view.

Model
Brand	LaView
Model	LV-966SXLS16G8
Type	Surveillance System / Security Camera Kit

Recording
Camera inputs	16 Channel
Video Input	16-ch
Audio Input	1-ch, RCA (2.0Vp-p, 1K Ohms)
Resolution Recording	8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2 CIF / CIF / QCIF

Display
Audio Output	1-ch, RCA (Linear, 1K Ohms)

Details
Storage Capacity	Up to 6TB capacity for each HDD
Backup Device	1 x USB 2.0, 1 x USB 3.0

Network
Network Connection	1:10M/100M/1000M self-adaptive Ethernet interface
Network Protocol	TCP / IP, PT CLOUD, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Features
Features	Third-Party network cameras supported Up to 8MP resolution recording HDMI output at up to 3840 x 2160P resolution VGA output at up to 1920 x 1080P resolution Plug & Play with 8 independent PoE network
Power Supply	Power Supply : 100 to 240V AC Consumption: <= 15W

Bundle
Bundled Camera Number	16
Bundled Camera Spec	Image sensor: 1/2.5" Progressive Scan CMOS Min. illumination:0.01Lux @ (F1.2, AGC ON), 0 lux with IR" Shutter time: 1/3s to 1/100,000s Slow Shutter: Support Lens: 4mm,Angle of view: 79 degree Lens mount: M12 Day & night: IR cut filter Digital noise reduction: 3D DNR Wide Dynamic Range: 120 dB Angle Adjustment: Pan:0 degree ~ 360 degree, Tilt: 0 degree ~ 90 degree, Rotation: 0 degree ~ 360 degree Operating conditions: -22 degree F ~ 140 degree F (-30 degree C ~ 60 degree C ) humidity 95% or less (non-condensing) Power supply: DC 12V +/- 25%, 7W; PoE (802.3af, class 3), 7.5W Weather proof rating: IP67 Impact Protection: IK10 IR range: Up to 100 ft. (30m)

Dimensions & Weight
Dimensions	1.90" x 14.90" x 11.40"
Weight	6.60 lbs.

Additional Information
First Listed on Newegg	October 27, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

LaView 4K UltraHD (3840 x 2160P) Full PoE IP Camera Security System, 16-channel H.265 NVR w/ UHD 4K Output, 16 x 4K UltraHD Bullet Full HD In / Outdoor IP Cameras (No HDD Included, Sold Separately)
