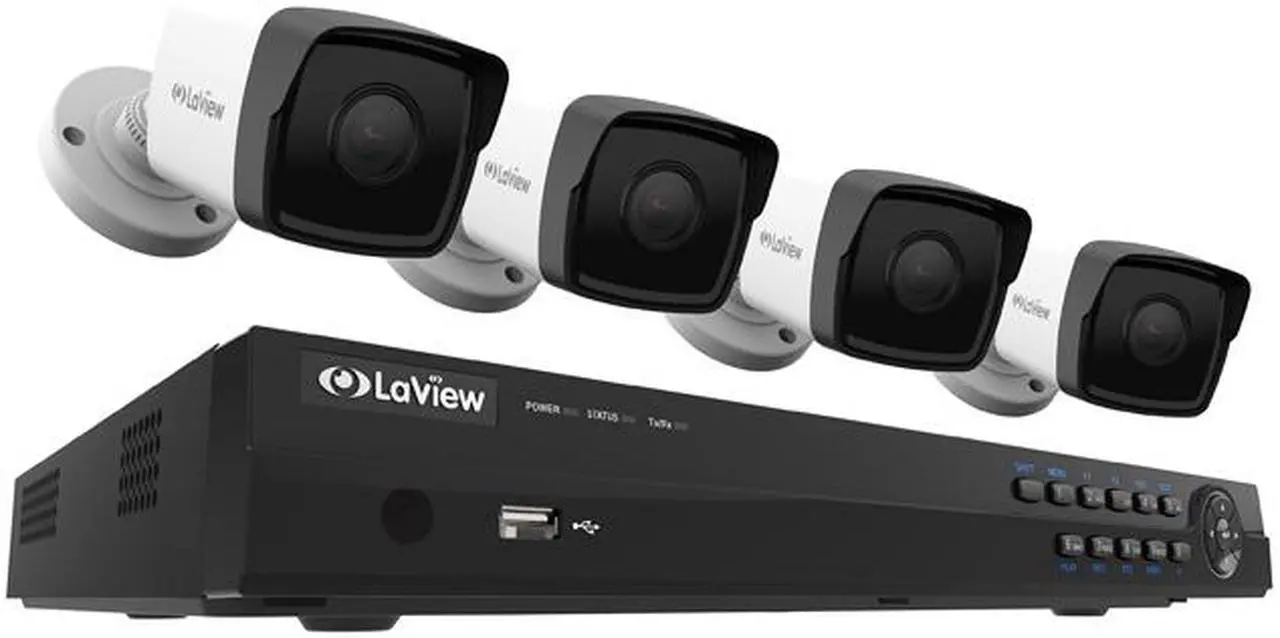

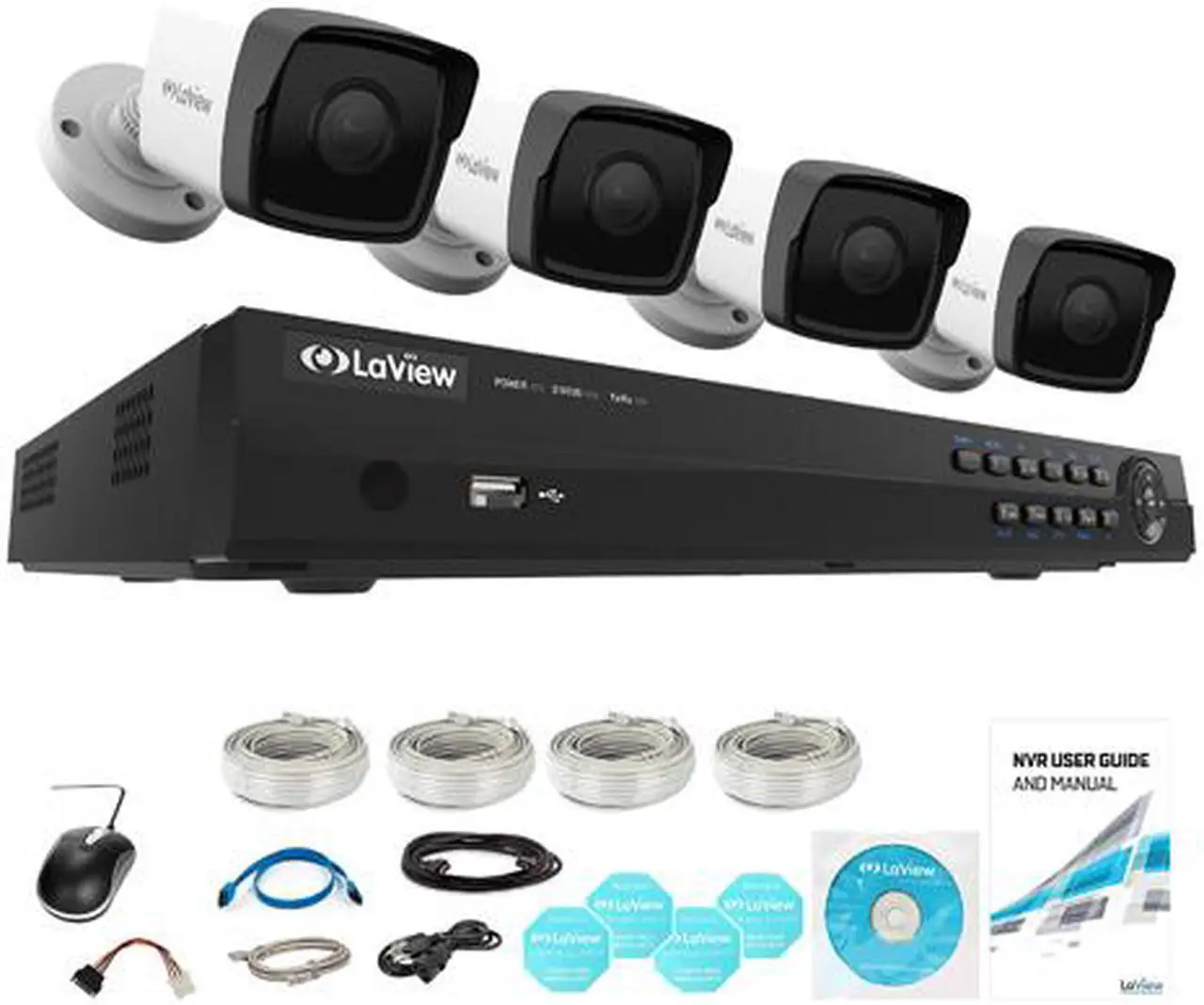

LaView 1080P PoE IP Security Camera System, 4 HD 2MP Cameras with Matrix IR Day / Night View, 8 Channel H.264+ NVR (NO HDD Included, Sold Separately)

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller

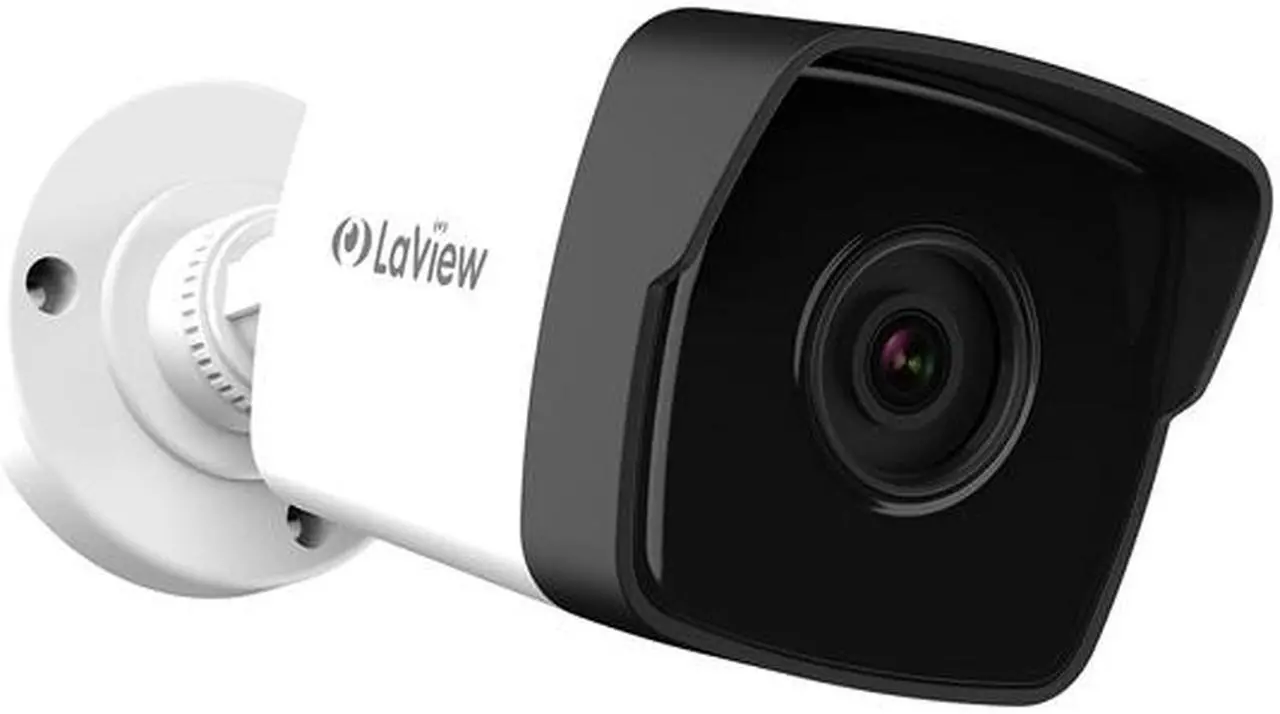

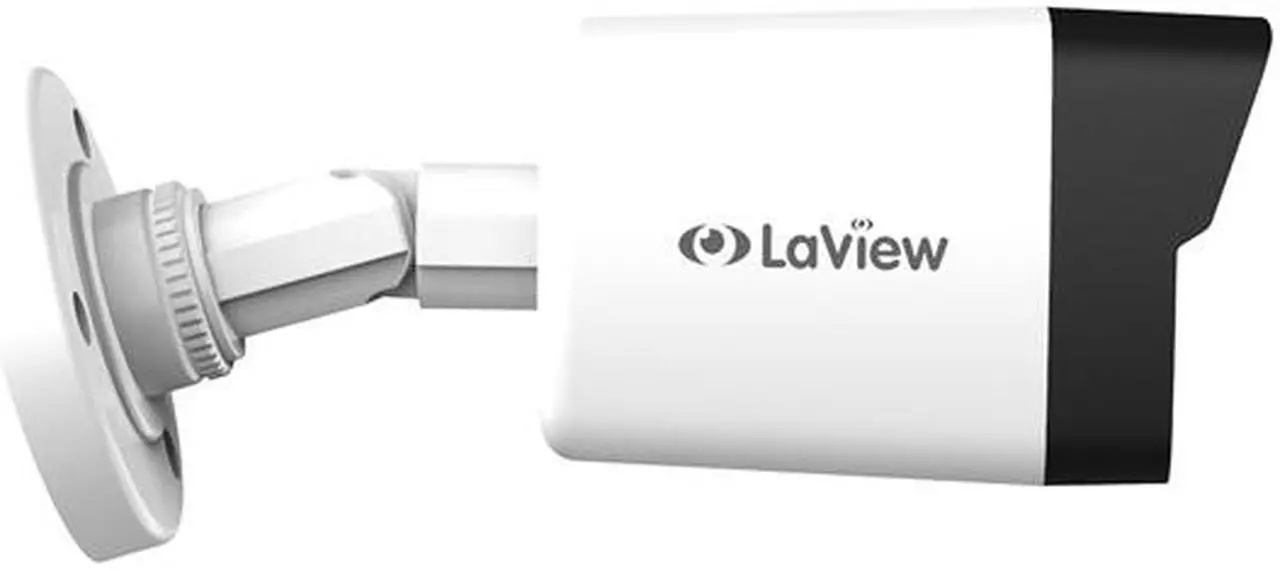

  • 2MP PoE bullet cameras deliver HD 1080P clarity
  • Matrix IR delivers up to 100 ft. of ultra-bright night vision
  • 21% higher energy efficiency increases IR life and no distracting halo effects
  • Surveillance 1080P at 30 fps max
  • HDMI VGA output
  • 1 x SATA up to 6TB max HDD capacity

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews

Enhanced Night Vision with Matrix IR

If security after dark is just as important to you as daytime surveillance, LaView’s Matrix IR line is your premium option. Invest in heightened round-the-clock protection with Matrix IR cameras, designed for brighter, clearer, longer-lasting night vision.

Matrix IR – Special Features

Each camera features a precisely sculpted 4mm lens flanked by two Matrix IR LEDs that provide 100 feet of ultra-illuminated night vision. With Matrix IR, you get 20% brighter night vision without any distracting glow effects, and the cameras use 21% less energy for a prolonged recording lifespan!

Laview Laview

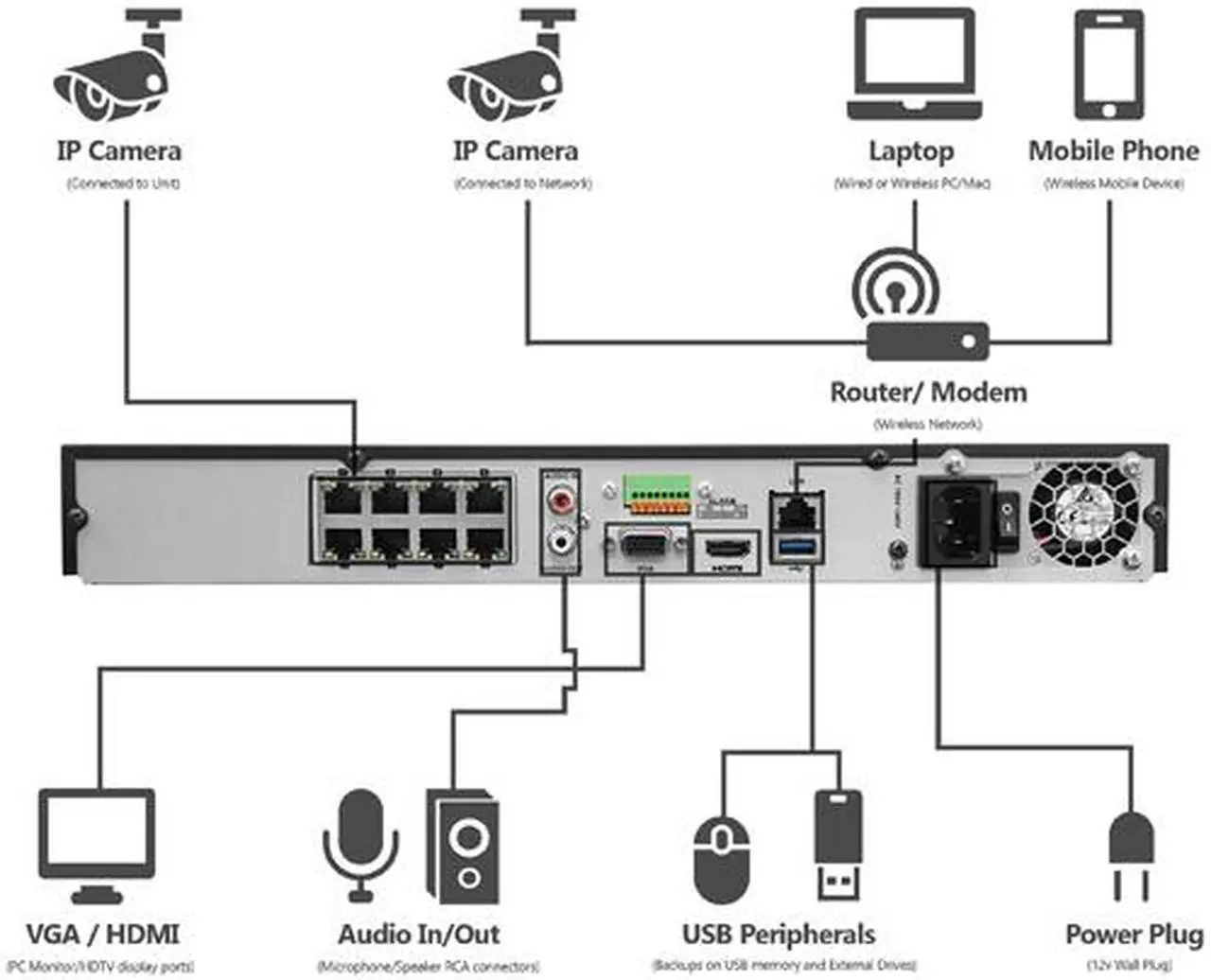

Effortless Install with Power Over Ethernet

Power and data combined through ONE single cable means less wiring for you, and NO need for external switches!

Motion Detection
Recording & Alerts

Motion-triggered recording saves precious hard drive space, while capturing the footage you need. Advanced options allow you to customize recording zones and schedules, and receive alerts!

Easy Remote Viewing
FREE Mobile App

Use LaView Net to scan the code on your NVR, and you’re all set to view real time and playback from anywhere in the world!


Laview

Buy with Confidence

Our warrents this product and parts against defects in material for 2 years from the date of original purchase. Warrant does not cover service or replacements made necessary by any external cause.

Surveillance for your Home


1. Doors and Windows
Providing up to 100 ft of night vision, the bullet cameras ensures that you see anyone who enters your home - and the prominent design deters intruders!

2. Backyards and Balconies

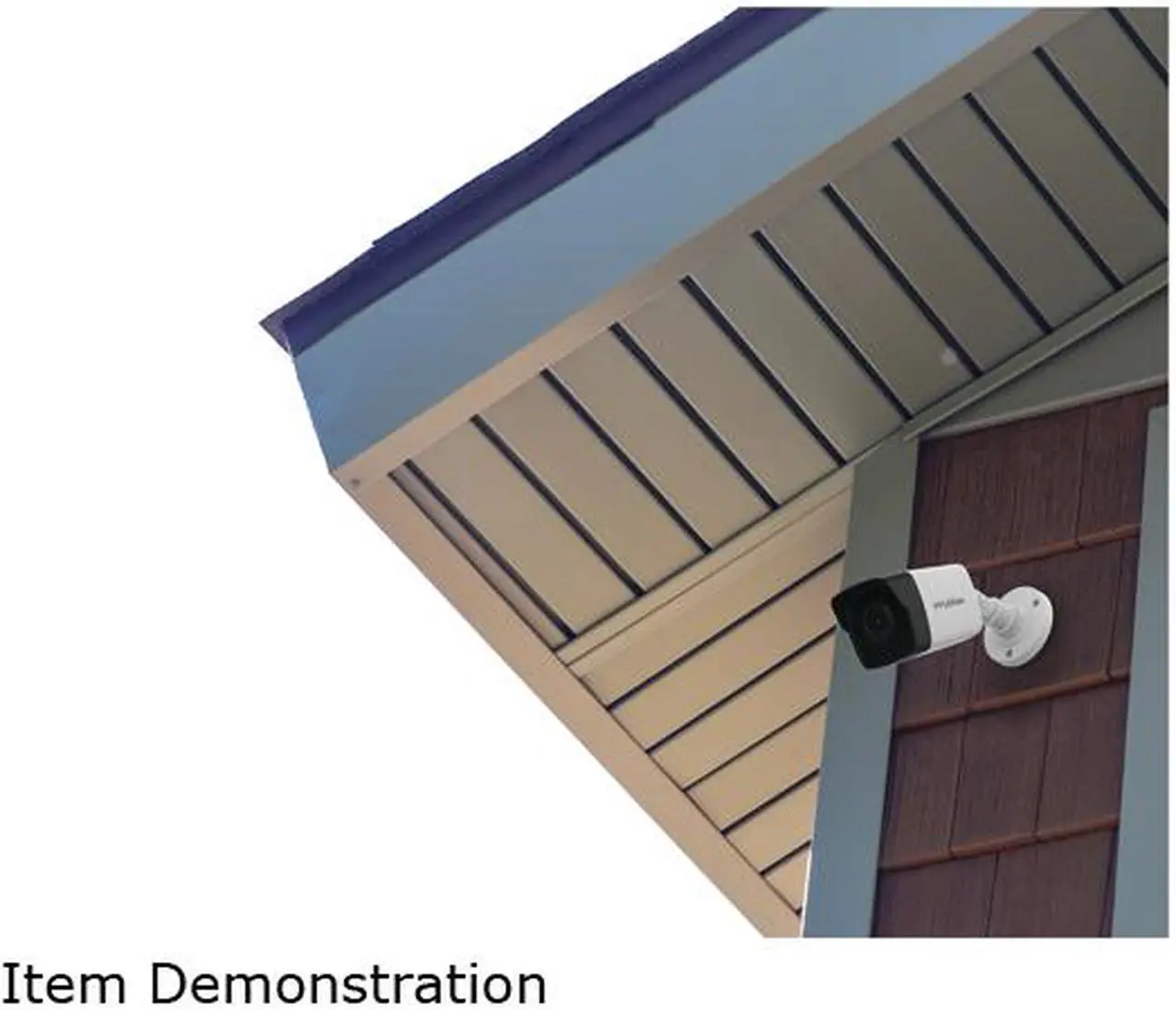

Easily installed outdoor bullet cameras protect you from intruders trying to sneak in through the back! Precipitation won't affect the IP66 weather-resistant casing.

3. Bedrooms
The first place burglars target, bedrooms can be discreetly protected with sleek dome cameras. Motion detection allows you to trigger recording upon entry.

4. Hallways and Stairs
Passageways connecting rooms have the most traffic - dome cameras blend easily into your home decor, and your 2TB drive ensures you have enough space to record it all.


Surveillance for your Business


5. Offices and Conference Rooms
Elegant dome cameras resemble ceiling lights for aesthetic security in your meeting rooms. In time-sensitive situations, Smart Search helps you target the footage you need.

6. Cubicles
Increase employee productivity by mounting workplace domes - the covered lens is non-distracting, but the 98' field of view ensures your team is always working hard!

7. Entrances and Exits
With people constantly coming in and out, you want to make sure all your doors are covered by assertive bullet cameras - ours have night vision the length of a tennis court!

8. Warehouses
Warehouses are large areas with minimal heating and AC, but cost-efficient bullet cameras are quick to install and can func¬tion from -40' C to 140* C.



Learn more about the LaView USA LV-KNT91F84E2

Model

|
Brand
LaView
Model
LV-KNT91F84E2
Type
Surveillance System / Security Camera Kit

Recording

|
Camera inputs
8 Channel
Video Input
8 Channel PoE
Audio Input
RCA x 1
Recording Compression
3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Display

|
Video Output
1 x VGA, 1 x HDMI
Audio Output
RCA x 1
ONVIF
Yes
Max Resolution
1080P

Details

|
Built-In HDD
No
Storage Capacity
2 SATA interfaces for 2 HDDs (HDD Sold Separate)
Backup Device
2 x USB 2.0

Network

|
Network Connection
8 x 100 Mbps PoE

Features

|
Features
Third-party network cameras supported

Up to 6MP resolution recording

HDMI and VGA output at up to 1920 x 1080P resolution

Plug & Play with 8 independent PoE network interfaces

2 SATA HDD interface up to 4TB each

HDD quota and group managment
Power Supply
Power supply: 100~240V AC, 47~63 Hz, 3A
Consumption: <= 15W (withouthard disk)

Bundle

|
Bundled Camera Number
4
Bundled Camera Spec
Camera:
Image sensor: 1/2.8" sensor
Min. illumination: 0.01 Lux @ (F1.2, AGC ON), 0 lux with IR
Shutter time: 1/3s to 1/100,000s, support slow shutter
Lens: 4mm,Angle of view: 83.6 degree
Lens mount: M12
Day & night: IR cut filter with auto switch
Digital noise reduction: 3D DNR
Wide Dynamic Range: Digital WDR
Swivel and Tilt: Pan: 0 degree ~ 355 degree; Tilt: -90 degree ~ 90 degree; Rotation: 0 degree ~ 355 degree

Compression Standard:
Video compression: Main stream: H.264 Zip+ / H.264;Sub stream: H.264 / MJPEG
H.264 Type: Baseline Profile / Main Profile
Dual Stream: Yes
Bit rate: 32 Kbps ~ 8 Mbps

Image:
Max. Image Resolution: 1920 x 1080
Main Stream Max. Frame Rate:
60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720)
50 Hz: 25 fps (1920 x 1080), 25 fps (1280 x 960), 25 fps (1280 x 720)

Image settings: Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

Network:
Network storage: Support local storage and NAS (NFS, SMB / CIFS), ANR
Alarm trigger: Motion detection,Video tampering, network disconnected, IP address conflicted
Protocols: TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: One-key reset, anti-flicker, mirror, password protection, privacy mask, watermark, IP address filter
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Communication interface: 1 x RJ45 10M/100M Ethernet interface

General:
Operating conditions: -22 degree F ~ 140 degree F (-30 degree C ~ 60 degree C ) humidity 95% or less (non-condensing)
Power supply: 12V DC +/- 25% , PoE (802.3af)
Power consumption: Max 5W
Weather proof rating: IP67
IR range: Approx.100 ft. (30 meters)
Dimension: 2.70" x 2.60" x 6.80"
Weight: 1.10 lbs.

Dimensions & Weight

|
Dimensions
1.80" x 17.50" x 11.40"
Weight
4.40 lbs. (with out hard disk)

Additional Information

|
Date First Available
June 08, 2017
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 week to 1 month
Verified Owner
3/ 5
LaView PoE system 9/25/2017 10:48:20 AM

Pros: I mean really 8 channels and 4 all weather HD camera's for a great price, I just need to add my own hard drive. I Like the system so far. The HD quality of the camera's, WOW even the wife is impressed.
Love the PoE only cabling, this is one of the reason I purchased this unit, beside price.

Cons: Do Not like the fact that I cannot lower the motion sensitivity below 20%, really I've even been in touch with the manufacture and have been told that you can only adjust the sensitivity in 20% increments. Come on guys lets fix that.
Did not like the documentation, I needed to google some steps to setup the system. I don't think I should have to google setup steps or tweaks.
But after some research and adjustments I have the system running and I'm able to access from my iPhone with no issues.
I just wish it wouldn't email me for every little bug or bird that floats by. I think if the sensitivity could be lowered more I believe this would be a really great system for anybody.

Overall Review: just a little about me.
I am not a security system guy, so I don't know security systems. But I am a computer tech for a small company, so I do know a thing or too about networking and configuration steps.
I'm giving the system a 3 out of 5 rating just because the motion sensitivity settings. other wise I would have given it a 4 out of 5.

1 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Hello,
Thank you for your valued opinion. LaView works every day to make our customer’s experience better. We are always looking for improvements to firmware and features. We will add this experience to our notes and look for every way to resolve this for you. Thank you for choosing LaView and we look forward to pleasing you in the future.
Anonymous
Ownership: 1 week to 1 month
Verified Owner
3/ 5
Nice cameras, frustrating software. 9/24/2017 5:52:23 AM

Pros: Nice day and night image clarity.

Cons: Viewing via http / https doesn't work on updated (current) web browsers - don't bother trying the "workarounds" suggested on their website.
Was in their telephone tech support queue for literally over an hour before giving up.
Setting up LaView Net mobile app with QR code (as suggested) did not work.

Overall Review: The IR LED's (two per camera) are quite obvious bright red dots in the dark.
Remote viewing on a Windows based device requires downloading & installing the LaView Net client. You'll want to manually add your NVR with your public IP address if you want to view from outside the network that the NVR is on.
If you're not tech savvy you'll probably want/need help getting everything set up and working correctly.

1 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Hello,
Thank you for your valued opinion. LaView strives to make our customer’s experience better every day. As we continue to make firmware updates and software updates we will keep your comments in mind to better the experience overall. Although, using Internet Explorer should still give you access to the web interface of the system. You may have some network issue occurring. This would also explain the failure of adding the system to your mobile device when using the QR code. Sometimes our tech lines are very backed up due to high volume of calls. It may be easier to reach our tech group by submitting a ticket from our website. Thank you for choosing LaView and we look forward to helping you in the future.
