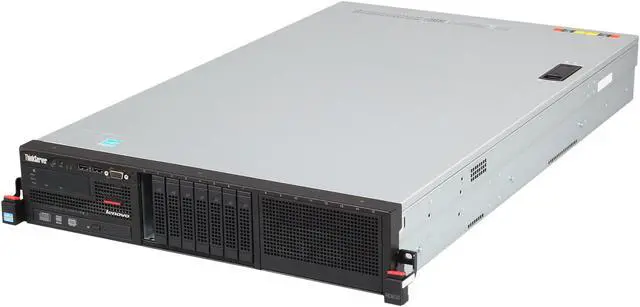

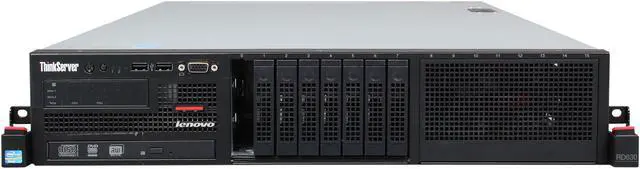

Lenovo ThinkServer RD630 Rack Server System Intel Xeon E5-2640 2.5GHz 6C/12T 8GB DDR3 No Hard Drive 2594A6U
- Intel Xeon E5-2640 2.5GHz 6C/12T
- 2 MAX Processors
- 8GB DDR3
- 320GB Max Memory Capacity
- No Hard Drive
- 2 x 800W Redundant Power Supply
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Lenovo 2594A6U
| Brand | Lenovo |
|---|---|
| Series | ThinkServer RD630 |
| Model | 2594A6U |
| Type | Rack |
|---|---|
| Rack Height | 2U |
| CPU Type | Intel Xeon E5-2640 2.5GHz 6C/12T |
|---|---|
| CPU Socket | LGA 2011 |
| Number of CPU Cores | 6-Core Processor |
| CPU Features | 95W |
| Cache Memory | 15MB |
| MAX Processors | 2 |
| Chipset | Intel C602 |
| Installed Memory Size | 8GB |
|---|---|
| Memory Type | DDR3 |
| Max Memory Capacity | 320GB |
| Hard Drive (Installed) | No Hard Drive |
|---|---|
| Storage Controller | ThinkServer RAID 700 Adapter |
| HDD Interface | SATA/SAS |
| Raid Level | RAID 0/1/5/6/10/50/60 w/ Battery |
| Max HDD Capacity | Up to 14.4TB internal SAS storage |
| Media Drives | DVD RW |
| Ethernet Controller | Dual ports 10/100/1000 Intel i350 PHYs |
|---|
| Expansion Slots | PCIe GEN3/1 CPU: 1 x LP x8 mechanical, x8 electrical 1 x FH/HL x16 mechanical, x16 electrical*** 1 x FH/HL x8 mechanical, x8 electrical PCIe GEN3/2 CPU: 1 x LP x8 mechanical, x8 electrical 1 x FH/HL x16 mechanical, x16 electrical*** 1 x FH/HL x16 mechanical, x8 electrical 2 x FH/HL x8 mechanical, x8 electrical *** Populated with hardware RAID adapter (choose either ThinkServer RAID 500 adapter or ThinkServer RAID 700 adapter) |
|---|---|
| Expansion Bays | 8 x 2.5" HS SAS/SATA |
| Other ports | Front: 2x USB2.0, 1x VGA Rear: VGA, COM, 4x USB2.0, Internal: 2x USB(2x5), 2x USB(typeA), 1x TPM/TCM |
| Operating System | No |
|---|---|
| Compatible/Certified OS | Windows Server 2008 - x86 Edition (Standard / Enterprise / Datacenter) Windows Server 2008 - x64 Edition (Standard / Enterprise / Datacenter) Windows Server 2008 R2 - x64 Edition (Standard / Enterprise / Datacenter) Windows Server 2008 R2 SP1 - x64 Edition (Standard / Enterprise / Datacenter) Windows Small Business Server 2011(Standard / Premium Add On) Novel SUSE Linux Enterprise Server (11.1 / 11.2) RedHat Enterprise Linux Server (5.7 / 6.1) VMWare vSphere 5 Microsoft Hyper-v Server 2008 Microsoft Hyper-v Server 2008 R2 with SP1 |
| Power Characteristics | 2 x 800W Redundant Power Supply |
|---|
| Features | Management Included: iKVM CPU: Up to 135W choices |
|---|
| Dimensions | 442mm (W) x 87.6mm (H) x 720.6mm (D) |
|---|
| First Listed on Newegg | April 11, 2026 |
|---|
