Does the disk controller support Raid-1 (mirrowing)?

yes. but only for windows. no vmware/citrix support. I wouldnt use it for windows either since it has terrible performance. use windows2012 or spend 100 bucks in a real raid card.

does this really come with laptop ram and is this system come prebuilt or in pieces?

It comes with 8GB of server memory, not laptop memory. It is pre-built minus the hard drive(s), operating system and hard drive caddy(s). The caddy(s) to mount the drives are a little hard to find separately. I got them off of a popular bidding site.

Does this server have redundant power supplies (2)?

Sorry for the late reply. I had to actually check at the customer because I couldn't remember. This item does not come with a redundant power supply. It only has one.

hyper threading yes or no?

Hello, Thank you for contacting us in regards to your question. The specifications of the item will be updated shortly. We thank you for brining this to our attention. Thank you, Newegg Support

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

More Resources

Manufacturer Brochure

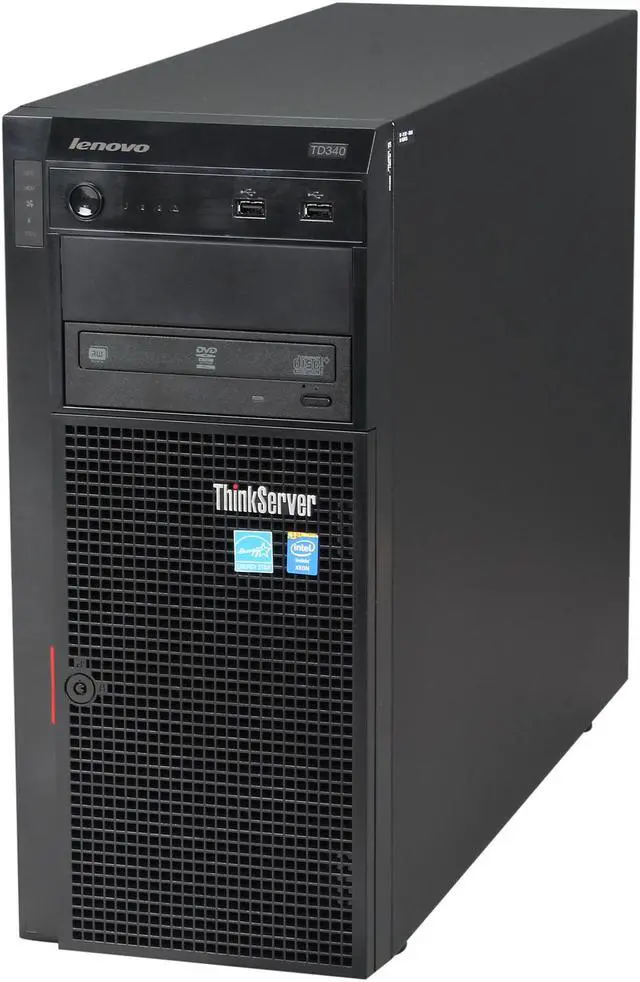

Main image of Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

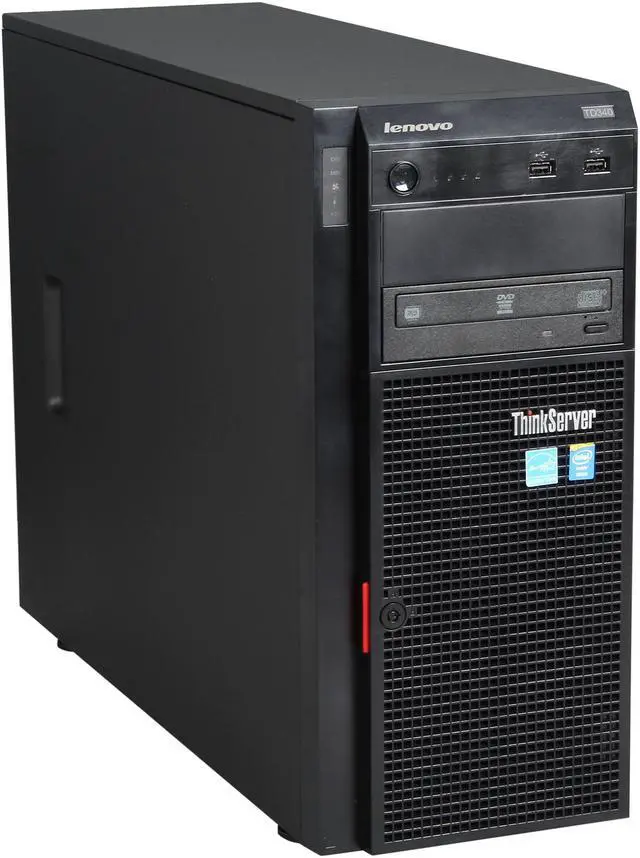

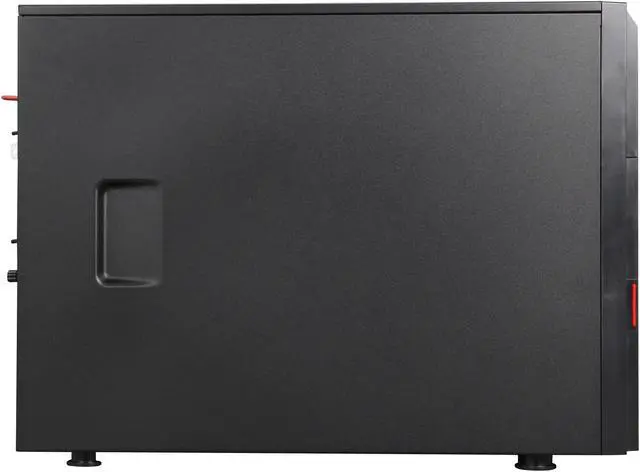

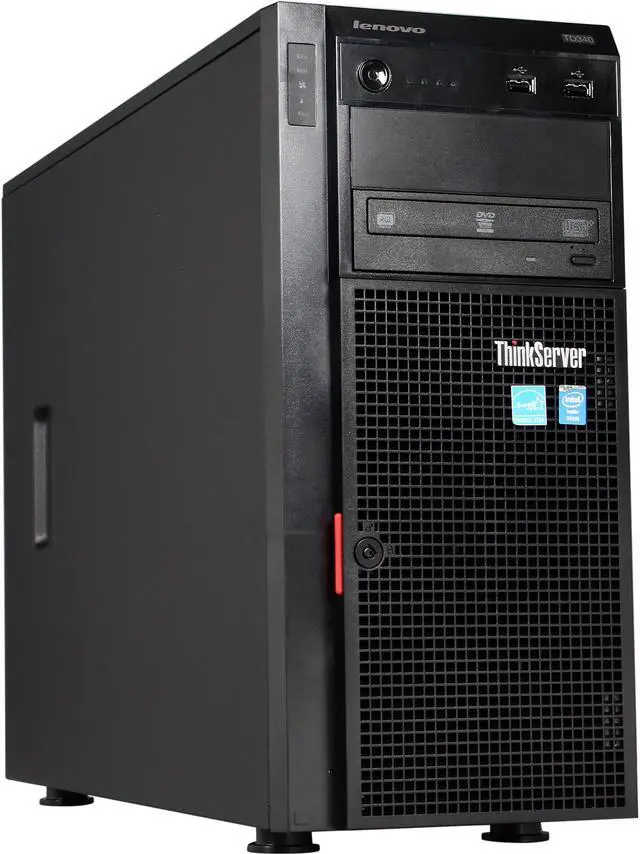

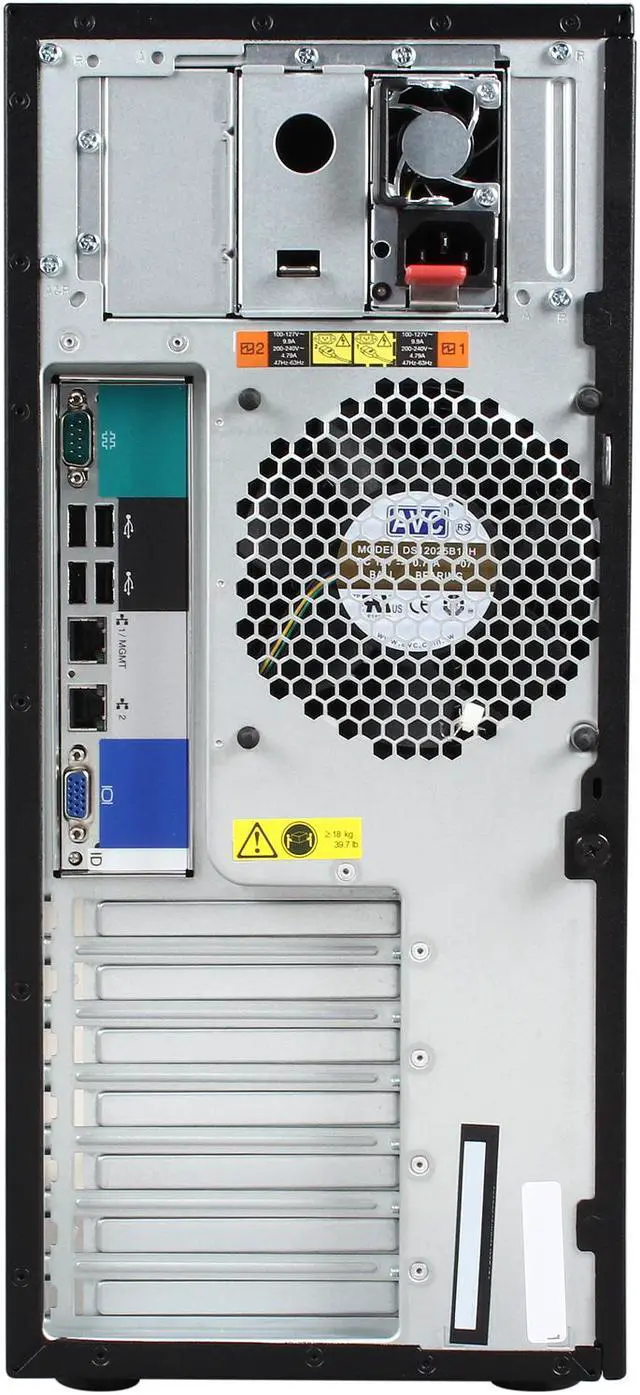

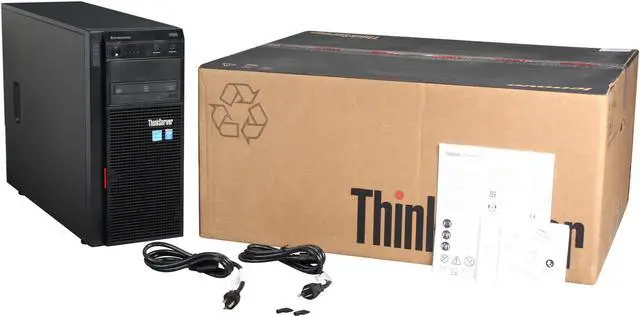

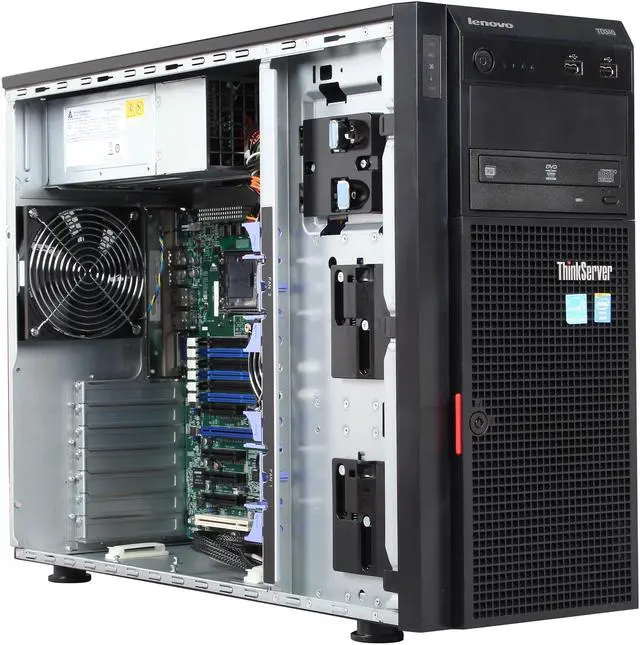

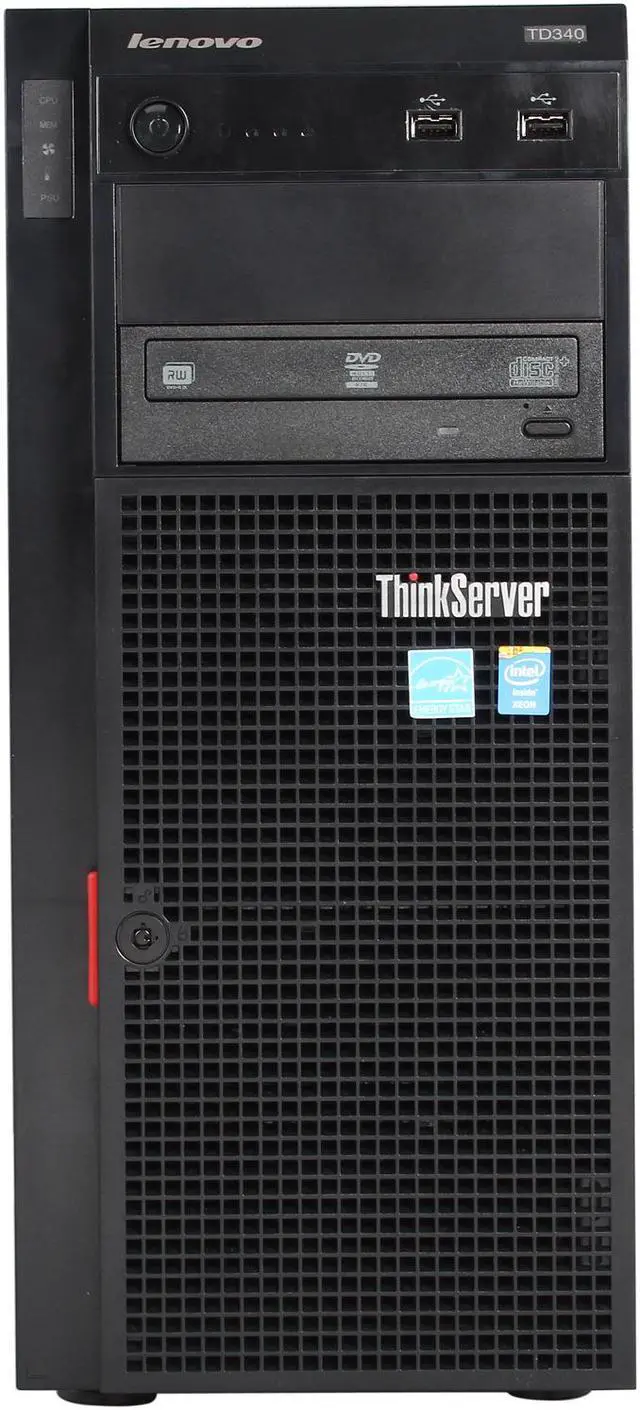

Alt view image 2 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Alt view image 3 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Alt view image 4 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Alt view image 5 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Alt view image 6 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Alt view image 7 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Alt view image 8 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Alt view image 9 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Alt view image 10 of 10 - Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

Shop All Lenovo Products

Lenovo ThinkServer 70B7002KUX 5U Tower Server - Intel Xeon E5-2407 v2 2.40 GHz

(2) Write a Review

1 x Intel Xeon E5-2407 v2 2.4GHz 4C/4T
8GB DDR3L 1600
192GB Max Memory Capacity
No Hard Drive
800W Redundant

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

PERFORMANCE-PACKED. ENTERPRISE RELIABILITY.

The Lenovo ThinkServer TD340 is a dual-processor tower server perfect for when you need full enterprise capability in a tower form factor.

Boasts High Performance & Reliability

If you need an enterprise server to run your business, but you're not ready to invest in a rack infrastructure or simply just need a tower form factor, the Lenovo ThinkServer TD340 is perfect for you. It packs in the performance of an entry-level rack server with up to two Intel® Xeon® E5-2400 v2 Series processors, giving you the power to run strenuous workloads, such as web, database and CRM - in addition to infrastructure and point-of-sale applications. Coupling that with high-reliability features, such as hot-swap hard disk and solid-state drives, integrated full-performance RAID, and redundant power, gives you peace of mind that your data will stay safe and your system will stay up and running.

Model
Brand	Lenovo
Series	ThinkServer TD340
Model	70B7002KUX

Details
Type	Tower

Processor
CPU Type	1 x Intel Xeon E5-2407 v2 2.4GHz 4C/4T
CPU Socket	LGA 1356
Number of CPU Cores	Quad-Core Processor
Cache Memory	10MB L3 Cache

Memory
Installed Memory Size	8GB
Memory Type	DDR3L 1600
Max Memory Capacity	192GB
Memory Features	Memory Technology:DDR3 SDRAM
Number of Memory Slots	12

Storage
Hard Drive (Installed)	No Hard Drive
HDD Interface	SATA/SAS
Raid Level	RAID 0/1/1+0
Media Drives	DVD +/- RW

Expansion & Ports
Expansion Slots	6
Expansion Bays	6

Software
Operating System	No

Power
Power Characteristics	800W Redundant

Features
Features	Number of Processors Supported: 2Number of Processors Installed: 1Processor Manufacturer: IntelProcessor Type: XeonProcessor Model: E5-2407 v2Processor Core: Quad-core (4 Core)Processor Speed: 2.40 GHzQuickPath Interconnect: 6.40 GT/s64-bit Processing: YesHyper-Threading: NoStandard Memory: 8 GBMaximum Memory: 192 GBMemory Technology: DDR3 SDRAMNumber of Total Memory Slots: 12Optical Drive Type: DVD-WriterOptical Media Supported: DVD?????????åR/?????????åRWController Type: Serial Attached SCSI (SAS),Serial ATARAID Supported: YesRAID Levels: 0, 1, 1+0Number of Total Expansion Bays: 6Number of Total Expansion Slots: 6Ethernet Technology: Gigabit EthernetRemote Management: YesOperating System: NoMaximum Power Supply Wattage: 800 WGreen Compliant: YesGreen Compliance Certificate/Authority: ENERGY STARForm Factor: TowerRack Height: 5UHeight: 16.9" (429.8 mm)Width: 7.7" (194.8 mm)Depth: 23.4" (594.9 mm)Weight (Approximate): 28.03 kg

Dimensions & Weight
Weight	66

Additional Information
First Listed on Newegg	March 03, 2014
