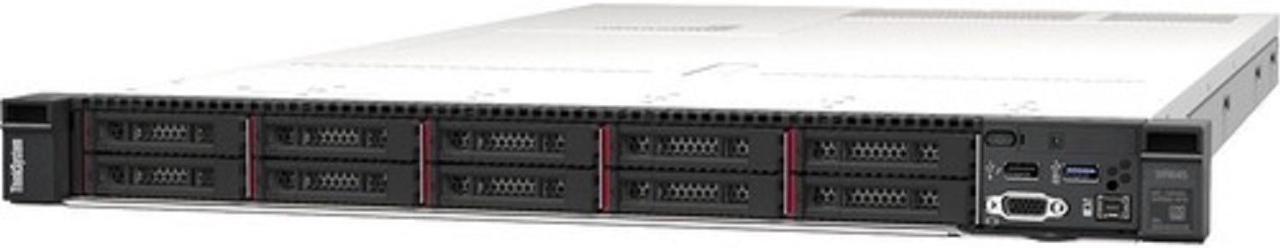

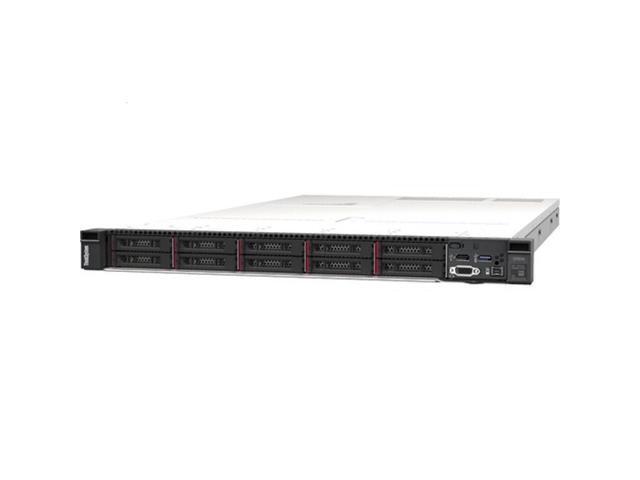

Lenovo ThinkSystem SR645 Rackmount Rack Server AMD EPYC 7003 Series 32GB DDR4 No Hard Drive Hard Drive (Installed) 7D2X100DNA
- AMD EPYC 7003 Series 7203 (2.80 GHz)
- 32GB DDR4
- 8TB Max Memory Capacity
- No Hard Drive Hard Drive (Installed)
- 1100W
+
+
Specs
Reviews
Learn more about the Lenovo 7D2X100DNA
| Brand | Lenovo |
|---|---|
| Series | ThinkSystem SR645 |
| Model | 7D2X100DNA |
| Workload | General Purpose Server |
|---|---|
| Type | Rack |
| Rack Height | 1U |
| Hot-swap Fans | 6 x Performance fans |
| CPU Type | AMD EPYC 7003 Series |
|---|---|
| CPU Speed | 7203 (2.80 GHz) |
| CPU Socket | Socket SP3 |
| Number of CPU Cores | 8-Core Processor |
| Cache Memory | 64 MB L3 Cache |
| # of Processors Installed | 1 |
| Installed Memory Size | 32GB |
|---|---|
| Memory Type | DDR4 |
| Max Memory Capacity | 8TB |
| Memory Features | 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR4 RDIMMs and 3DS RDIMMs are supported: Performance+ RDIMMs: 1 DPC at 3200 MHz, 2 DPC at 3200 MHz RDIMMs: 1 DPC at 3200 MHz, 2 DPC at 2933 MHz 3DS RDIMMs: 1 DPC at 2933 MHz, 2 DPC at 2666 MHz |
| Number of Memory Slots | 32 |
| Hard Drive (Installed) | No Hard Drive |
|---|---|
| HDD Interface | SATA/SAS |
| SSD (Installed) | No |
| Expansion Slots | Open |
|---|---|
| Expansion Bays | Option 2.5"; Open bay |
| Other ports | Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), External diagnostics port, optional VGA port. Rear: 3x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management. Optional DB-9 COM serial port (installs in slot 3). Internal: 1x USB 3.2 G1 connector for operating system or license key purposes |
| Operating System | No |
|---|
| Power Characteristics | 1100W |
|---|
| Dimensions | 1.7" x 17.3" x 30.4" |
|---|---|
| Weight | 44.6 lbs. |
| Date First Available | August 12, 2024 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: non-refundable
- Return for replacement within: non-replaceable
- This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
