Lenovo ThinkSystem ST45 V3 7DH51003NA Tower Server - 1 x AMD EPYC 4244P 3.80 GHz - 32 GB RAM - Serial ATA/600 Controller - AMD PRO-665 Chip - 1 Processor Support - 64 GB RAM Support - TruDDR5 - Gigabit Ethernet - 1 x SFF Bay(s) - OEM
- AMD EPYC 4004 Series 4244P (3.80 GHz)
- 1 MAX Processors
- 32GB TruDDR5
- 64GB Max Memory Capacity
- None Hard Drive (Installed)
- One fixed 300W Gold power supply
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Lenovo ST45 V3
| Brand | Lenovo |
|---|---|
| Series | ThinkSystem ST45 V3 |
| Model | ST45 V3 |
| Part Number | 7DH51003NA |
| Workload | General Purpose Server |
|---|---|
| Type | Tower |
| Rack Height | 4U |
| CPU Type | AMD EPYC 4004 Series |
|---|---|
| CPU Speed | 4244P (3.80 GHz) |
| Number of CPU Cores | 6-Core Processor |
| Cache Memory | 32 MB L3 Cache |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Chipset | AMD PRO-665 Chip |
| Installed Memory Size | 32GB |
|---|---|
| Memory Type | TruDDR5 |
| Max Memory Capacity | 64GB |

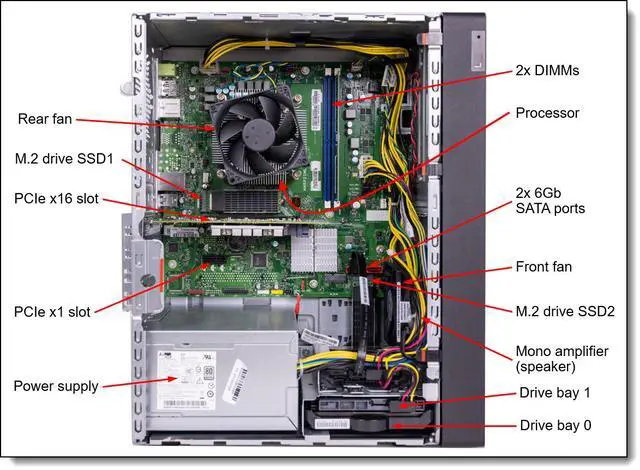

| Memory Features | Two DIMM sockets supporting Lenovo TruDDR5 DIMMs at 5600 MHz. Support ECC UDIMMs. |
| Number of Memory Slots | 2 |
| Hard Drive (Installed) | None |
|---|---|
| Storage Controller | Onboard 6 Gb SATA controller, supporting AHCI mode (non-RAID) |
| SSD (Installed) | No |
| Max HDD Capacity | 3.5-inch drives: 24TB using 3x 8TB 3.5-inch HDDs 2.5-inch drives: 960GB using 1x 960GB 2.5-inch SATA SSDs |
| Expansion Slots | Two PCIe slots as follows: Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) (75W) Slot 3: PCIe 3.0 x1 full-height half-length (FHHL) (25W) |
|---|---|
| Expansion Bays | Up to 4x non-hot swap (NHS) drive bays: - 3x 3.5-inch NHS drive bays supporting HDDs or SSDs - 1x 2.5-inch NHS drive bay supporting an SSD |

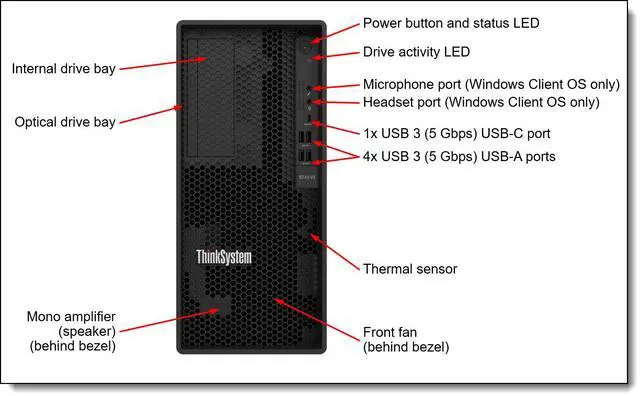

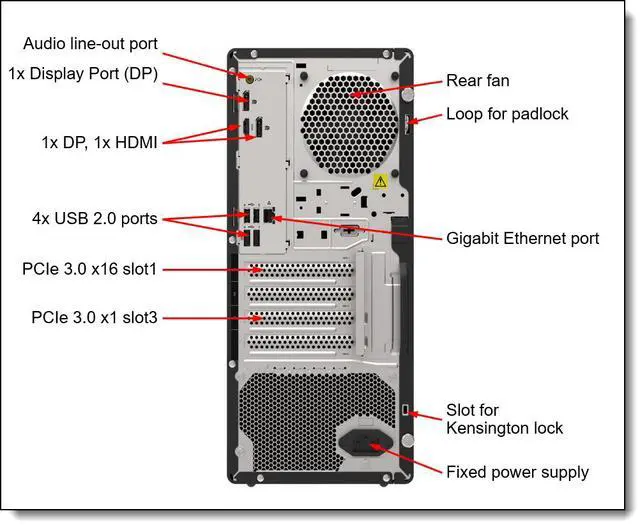

| Other ports | Front ports: Five USB ports - 1x USB 3 (5 Gb/s) with USB-C connector - 4x USB 3 (5 Gb/s) with USB-A connector Microphone port* Headset port* Rear ports: Four USB 2.0 ports Two DisplayPort 1.4 video ports One HDMI 2.1 One RJ-45 Gigabit Ethernet port One audio line-out port* * Windows 11 only; some line noise is possible |
| Power Characteristics | One fixed 300W Gold power supply |
|---|
| Temperature | Operating: 10°C to 35°C (50°F to 95°F) Storage: -20°C to 60°C (-4°F to 140°F) |
|---|---|
| Humidity | Operating: ASHRAE Class A2: 8% to 80% Storage: 8% to 90% |
| Dimensions | 14.8" x 6.7" x 12.4" |
|---|---|
| Weight | 18.9 lbs. |
| First Listed on Newegg | May 09, 2025 |
|---|
