Will this fit into an Australian socket?

What I got was the North American socket. However theoretically it can work with Australian Light Socket if you have an Adapter or a cord that fits into the PSU image you see. On the box for AC input it says 100 to 240VAC 47 to 63hz. I know Australia uses 230 volts at 50hz. You would need an adapter, Australia uses Type I AS/NZS 3112 while North America uses type A or B NEMA 1-15P or 5-15P. That should help incase you want to look for a AC Adapter.

Is this compatible with the Asus M5A97 LE r2.0 mobo?

This does work with the Asus M5a99x r2.0 evo. It also has the power connectors that your mobo requires plus some. So yes it should be compatible with yours.

will this fit a DIYPC Adventurer-9601G Black Steel Gaming ATX Full Tower Computer Case with 5 x 120mm Green Fan and 1 x USB3.0? If so where do you like to make sure?

Physically the PSU will fit in the case; they are all a standard size. Your case fans typically plug into your motherboard. If you have more case fans than the motherboard has fan plugs, then you can plug the fans into a peripheral 4-pin connector (same connector for plugging power into a DVD/BluRay drive). You will need to use an adapter, which typically comes with the fan. The adapter can be daisy chained so you can connect multiple fans and won't lose the peripheral connector.

Would this fit in my iBUYPOWER ARC Series NE611FX Desktop PC AMD FX-Series FX-4200 (3.3GHz) 4GB DDR3 1TB HDD Windows 8.1 64-Bit ? I wanna upgrade the 300w power supply but I'm a total noob with PCs.

It's a good power supply I mean it rinds my 6 core easily I would do allot of research though

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 2 wish lists)

Get Educated

Make informed decisions with expert advice. Learn More

Main image of LEPA MaxBron B800-MB 800 W ATX CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

Alt view image 2 of 6 - LEPA MaxBron B800-MB 800 W ATX CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

Alt view image 3 of 6 - LEPA MaxBron B800-MB 800 W ATX CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

Alt view image 4 of 6 - LEPA MaxBron B800-MB 800 W ATX CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

Alt view image 5 of 6 - LEPA MaxBron B800-MB 800 W ATX CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

Alt view image 6 of 6 - LEPA MaxBron B800-MB 800 W ATX CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

Shop All LEPA Products

LEPA MaxBron B800-MB 800 W ATX CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

(13) Write a Review

ATX
80 PLUS BRONZE Certified
100 - 240 V 47 - 63 Hz
+3.3V@24A, +5V@24A, +12V@65A, [email protected], [email protected]

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (13)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

BM-MaxBron is an 80 PLUS Bronze line that goes from 450W to 1000W with over 88% efficiency. The same as GM-MaxGold, this series is equipped with a hybrid modular cable design, hydraulic bearing fan, powerful single +12V rail, and complies with ErP Lot 6 standard. The BM-MaxBron series carries one unique feature - The special "Anti3s Q-Brick design," which is a protective sleeve that protects power supplies from three aspects: shock, static, and slip. BM-MaxBron comes with one red Q-Brick and one extra black Q-Brick as a gift for users to replace or swap-out as they prefer. (GM-MaxGold has the bricks, too)

Newegg TV:

Product Features:

80 PLUS® BRONZE certified with over 88% efficiency
Hybrid Modular Cabling Design makes system upgrade and replacement easy
Anti3s Q-Brick design protects power supply from shock, static electricity, and slip
Hydraulic Bearing Fan provides silent, cooling, and durable performance
High efficiency +5Vsb circuit helps system meet EU ErP Lot 6 standard (lower than 1W power consumption at standby mode)
Double Forward circuit design provides high efficiency
Active PFC universal switching circuit improves Power Factor value up to 0.99
Over Power, Over Voltage, and Short-circuit protection provide great safety to your system
6+2P PCI-E connector supplied supporting extreme graphic cards
Powerful single +12V design provides maximum power and compatibility to latest CPUs and high-end graphics cards
Extended CPU connector cable to 23.6" (60cm) facilitates installation with bottom-mounted PSU chassis

Close-Up:

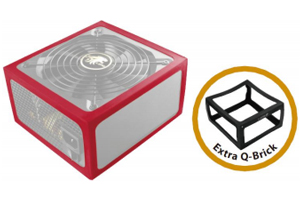

Anti3s Q-Brick Design

Anti3s Q-Brick design protects power supply from three aspects

Anti-shock
Anti-static
Anti-slip

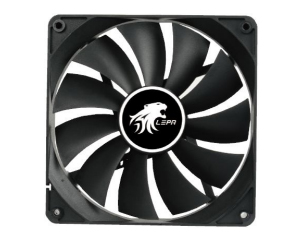

Hydraulic Bearing Fan

Hydraulic Bearing Fan delivers silent, cooling, and durable performance

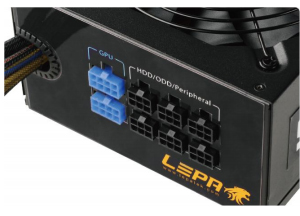

Hybrid Modular Cabling Design

Hybrid modular cabling design makes system upgrade and replacement easy

Type	ATX
Maximum Power	800 W
Fans	1
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	12
CrossFire	CrossFire Ready
Max PSU Length	165 mm
Modular	No
Efficiency	> 88%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	15-7.5A
Output	+3.3V@24A, +5V@24A, +12V@65A, [email protected], [email protected]
Connectors	1 x 20+4P Main Power 1 x 4+4P CPU 1 x 8P CPU 12 x SATA 4 x 6+2P(8P) PCI-E 4 x 4P Molex 1 x Floppy

Dimensions	6.50" x 5.91" x 3.39"
Weight	6.45
