can the 12v outputs be combines to achiele the 34 amp output?

I'm afraid not that psu is made to do what it can originally do. Not combined it, if you look at the specifications again it only has 1 single 12v rails. If you are still unsure give them a call so that they can verify it before you buy. If thats not enough I recommend going with antec's 500-700watt. As they are good as lepa if not far more better.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of LEPA N Series N500-SA 500 W ATX12V Non-Modular Power Supply

Alt view image 2 of 7 - LEPA N Series N500-SA 500 W ATX12V Non-Modular Power Supply

Alt view image 3 of 7 - LEPA N Series N500-SA 500 W ATX12V Non-Modular Power Supply

Alt view image 4 of 7 - LEPA N Series N500-SA 500 W ATX12V Non-Modular Power Supply

Alt view image 5 of 7 - LEPA N Series N500-SA 500 W ATX12V Non-Modular Power Supply

Alt view image 6 of 7 - LEPA N Series N500-SA 500 W ATX12V Non-Modular Power Supply

Alt view image 7 of 7 - LEPA N Series N500-SA 500 W ATX12V Non-Modular Power Supply

Shop All LEPA Products

LEPA N Series N500-SA 500 W ATX12V Non-Modular Power Supply

(72) Write a Review

ATX12V
Non-Modular
115 / 230 V 47 - 63 Hz
+3.3V@25A, +5V@20A, +12V@34A, -12V@0.8A, +5VSB@3A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (72)

Any questions? Our AI beta will help you find out quickly.

Try me now

- High efficiency 5Vsb circuit helps system meet EU ErP Lot 6 2010 standby low power consumption requirements.
- 12cm fan with thermal programmed speed controller provides silent cooling performance.
- Over Power, Over Voltage, Over Current, Short-circuit, and Brown Out protection are equipped to provide great safety to your system.
- 8P PCI-E connector for extreme graphics cards.
- CPU 12V connector rail with >18A output to support next generation >6 cores processor structure.
- 60cm CPU connector cable facilitates installation with bottom-mounted PSU chassis.
- SATA power connectors with 3.3V rail support new generation SSD.
- Active PFC universal switching circuit improves Power Factor value up to 0.99. (N400-SA-EU, N500-SA-EU, N600-SA only)

LEPA 500W ATX 12V NATIVE PSU

High efficiency 5Vsb circuit helps system to meet EU ErP Lot 6 2010 standby low power consumption requirements

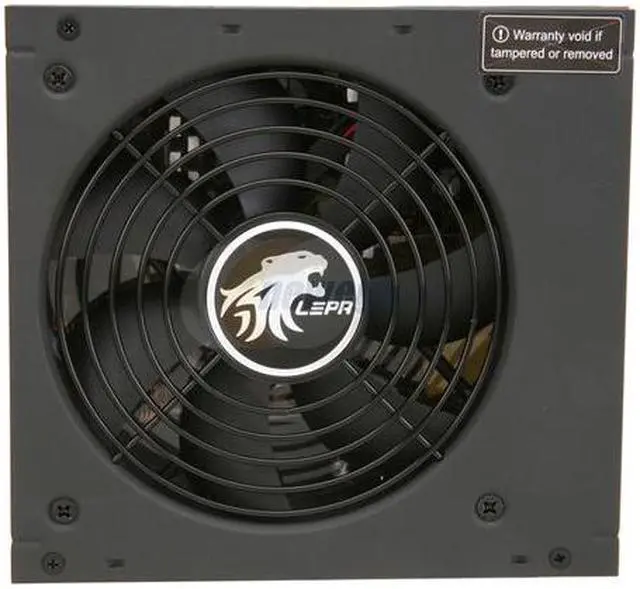

12cm Fan with thermal programmed speed controller providing silent cooling performance
PCI-E 6-pin and 6 + 2-pin connectors support for extreme graphic cards
Protected by Over Power, Over Voltage, Over Current, Short-Circuit, and Brown Out protections circuits
CPU 12V connector rail with >18A output to support next generation >6 cores processor structure
Extended CPU connector cable to 60cm facilitates installation with bottom-mounted-PSU chassis
SATA power connector with 3.3V rail to support new generation SSD
Over Power, Over Voltage, Over Current, Short-circuit, and Brown Out protection provide great safety to your system.
8P PCI-E connector for extreme graphics cards.
Powerful single +12V design provides maximum power and compatibility to latest CPUs and high-end graphics cards.
Two-year warranty

Gallery

Specifications

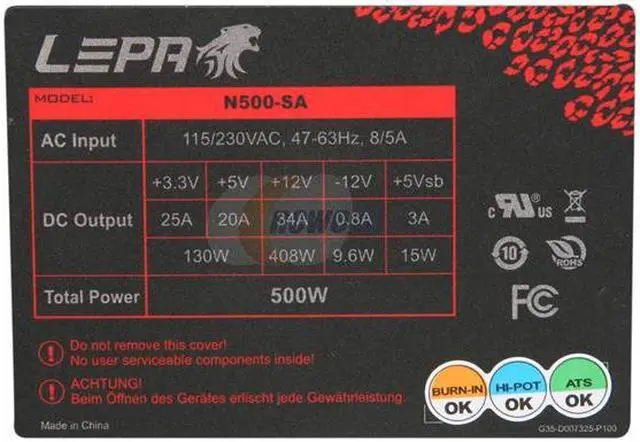

Model Number: N500-SA
AC Input Voltage		115 ~ 230V, 47 - 63Hz
AC Input Current		8 / 5A
DC Output	+3.3V	25A	130W
	+5V	20A
	+12V	34A	408W
	-12V	0.8A	9.6W
	+5Vsb	3A	15W
	Total Power	500W

Connectors

General
Brand	LEPA
Series	N Series
Model	N500-SA

Details
Type	ATX12V
Maximum Power	500 W
Fans	1 x 120mm Fan
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector	5
Max PSU Length	140 mm
Modular	Non-Modular
Over Voltage Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	8/5A
Output	+3.3V@25A, +5V@20A, +12V@34A, -12V@0.8A, +5VSB@3A

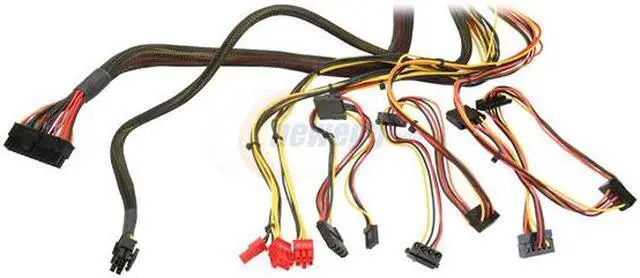

Connectors	1 x Main connector (24Pin) 1 x 4+4 Pin CPU connector 4 x Peripheral 5 x SATA 1 x Floppy 2 x PCI-E

Features
Features	High efficiency 5Vsb circuit helps system to meet EU ErP Lot 6 2010 standby low power consumption requirements 12cm fan with thermal programmed speed controller providing silent cooling performance PCI-E connector supplied supporting extreme graphic cards Protected by Over Power, Over Voltage, Over Current, Short-Circuit, and Brown Out protections circuits CPU 12V connector rail with >18A output to support next generation ?6 cores processor structure Extended CPU connector cable to 60cm facilitates installation with bottom-mounted-PSU chassis SATA power connector with 3.3V rail to support new generation SSD

Dimension & Weight
Dimensions	6" x 3.5" x 5.5"
Weight	5

Details
Energy-Efficient	No

Dimensions & Weight
Dimensions	5.5" x 6" x 4.25"
