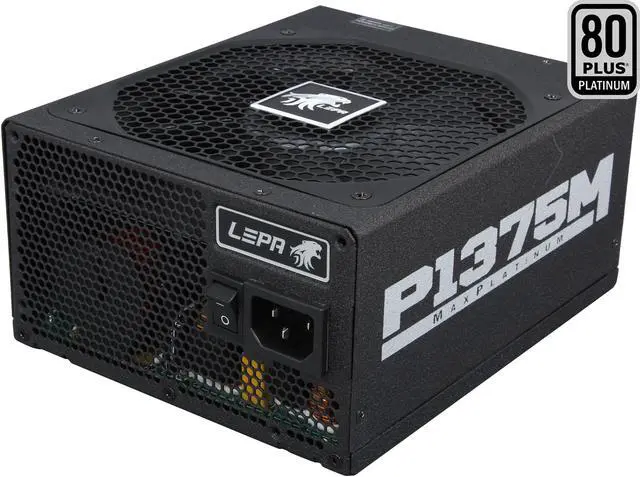

LEPA P1375-MA 1375 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply
- ATX12V / EPS12V
- Full Modular
- 80 PLUS PLATINUM Certified
- 110 - 240 V 50/60 Hz
- +3.3V@24A, +5V@24A, +12V1@20A, +12V2@20A, +12V3@30A, +12V4@30A, +12V5@30A, +12V6@30A, [email protected], +5Vsb@3A
- 110-240 V
Overview
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
- Surpass 80 Plus Platinum level
- Continuous full power with average 110% peak power

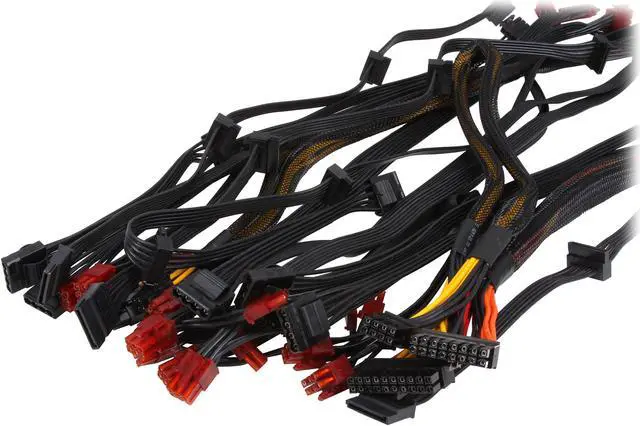

- Fully modular cable design with flat peripheral cables simplifies the installation of PSU and cable management

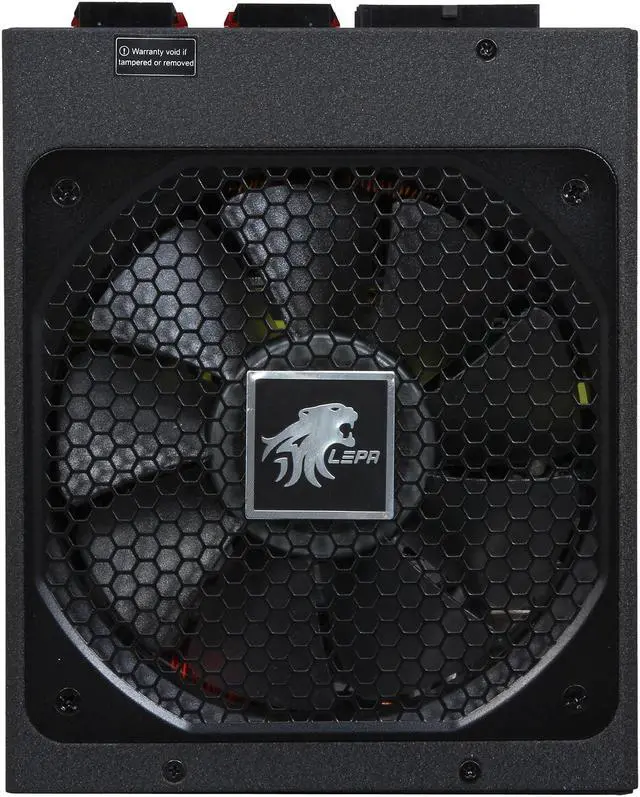

- 135mm Ball bearing fan with thermal speed control delivers silent and durable cooling performance
- High density PCB makes this power supply only 18cm in depth, providing extra room to dissipate the heat inside chassis
- Full Bridges topology with Zero Voltage Switch (ZVS) circuitry helps PSU achieve high efficiency
- Solid State capacitors and 221°F (105°C) Japanese grade A capacitors offer great reliability & longer lifespan
- Intel Haswell fully supported by DC to DC converter design, which ensures the stability of output voltage when CPU goes into C6/C7 power states
- Multiple +12V rails with high maximum loads give great compatibility with heavy-duty graphics cards
- Able to run four-way GPU (SLI/CrossFireX) and dual CPUS together without difficulty
- Comply with EU 2013 ErP Lot 6 standards (lower than 0.5W power consumption at standby mode)
- System safety assured by comprehensive protection of Over Power, Over Voltage, Under Voltage, Over Current, Over Temperature, and Short-circuit
- ATX12V version 2.4 and EPS12V version 2.92 compliant

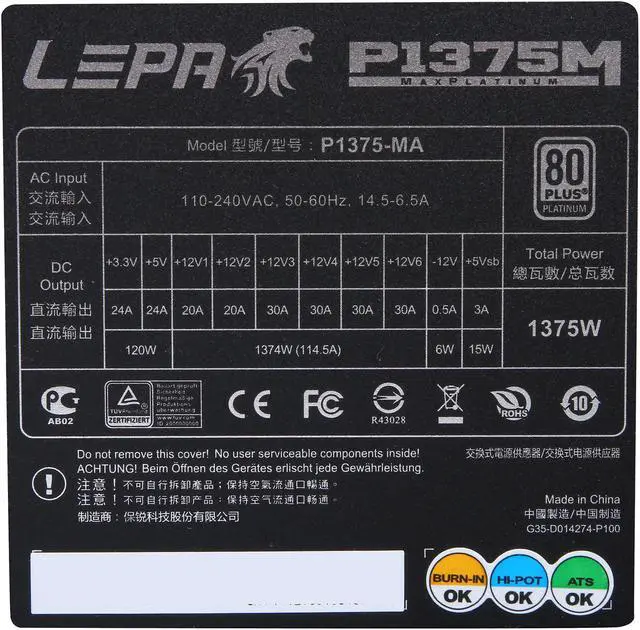

| Model | P1375-MA | ||
|---|---|---|---|
| AC Input | 100 ~ 240VAC, 50 - 60Hz, 14.5 - 6.5A | ||
| DC Output | +3.3V | 24A | 120W |
| +5V | 24A | ||
| +12V1 | 20A | 1374W (114.5A) | |
| +12V2 | 20A | ||
| +12V3 | 30A | ||
| +12V4 | 30A | ||
| +12V5 | 30A | ||
| +12V6 | 30A | ||
| -12V | 0.5A | 6W | |
| +5Vsb | 3A | 15W | |
| Total Power | 1375W | ||
| Peak Power | 1600W | ||
| Model | Modular | ||||||
 |
 |
 |
 |
 |
 |
 |
|
| P1375-MA | 1 | 1 | 2 | 8 | 14 | 10 | 2 |
