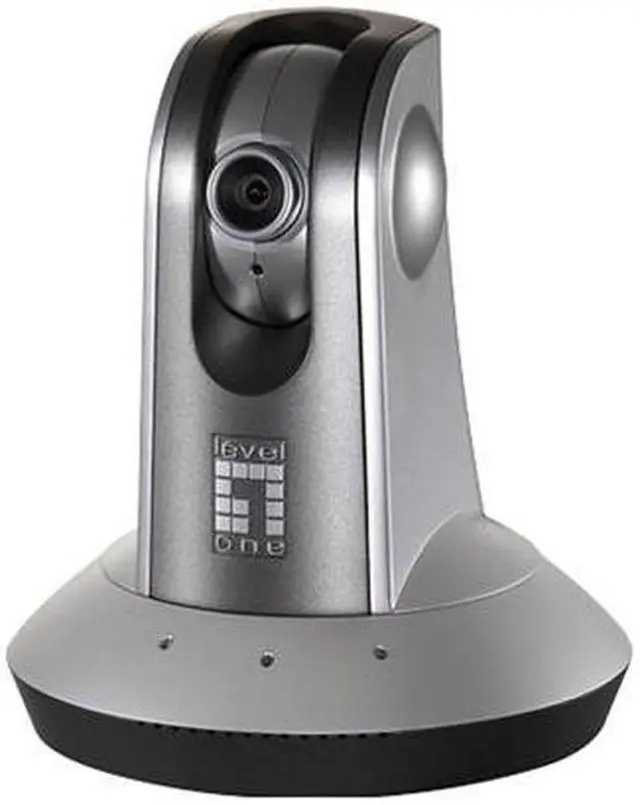

LevelOne FCS-1060 640 x 480 MAX Resolution RJ45 10/100Mbps P/T IP Network Camera

Be the first to review this product...
  • Wired Camera
  • RJ45
  • 640 x 480 MAX Resolution
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the LevelOne FCS-1060

Model
Brand LevelOne
Model FCS-1060
Details
Network Camera Yes
Type Wired Camera
Connection Type RJ45
Network
Networking Protocol UPnP, TCP/IP, RTSP/RTP/RTCP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, DDNS and PPPoE
Ports 1 x RJ-45 10/100 Mbps port
Camera
Pan/Tilt/Zoom Pan: range 350º (+175º~-175º)
Tilt: range 125º (+90º~-35º)
Auto pan mode/ Auto patrol mode
Sensor & Detector 1/4 inch color CMOS sensor
MAX Resolution 640 x 480
Video Capture Resolution Up to 30/25 frames at 160 x 120
Up to 30/25 frames at 176 x 144
Up to 30/25 frames at 320 x 240
Up to 15/12 frames at 640 x 480
Lens Type Typical: 1.0 Lux / F2.0
AGC, AWB, AES
Fix length: 4.0mm
Aperture: F2.0
Shutter Control 1/60 to 1/15,000 sec
Security ID/Password authentication
Power
Power Adapter output: 12VDC, 1.5A
Features
Operating Systems Supported Microsoft Windows 98SE/ ME/ 2000/ XP
Features Standards Compliance:
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet

Video Algorithm Support:
MPEG4 (Simple Profile) for streaming video
JPEG for still image
Features:
Adjustable image size, quality and bit rate
Timestamp and text overlay
3 motion detection windows
Flip & mirror

Algorithm: GSM-AMR/ MPEG4 AAC
Audio Mute: Supported
Microphone:
Omni-directional
Frequency: 50 – 16,000Hz
S/N ratio: more than 60dB

System:
RAM: 32MB SDRAM
ROM: 4MB Flash ROM

LEDs:
System power and status indicator
System activity and Network link indicator
Microphone status indicator

Motorized wild-range Pan/Tilt
Built-in 1/4" CMOS sensor and high sensitive microphone to deliver high quality streaming video
Provides 4x digital zoom
Supports MPEG4 (Short header mode) compression for streaming video and JPEG for still Image
Intelligent Motion Detection
Supports 3GPP/ISMA RTSP (Real Time Streaming Protocol)
Free-Bundled powerful 32-Channel Recording Software
Built-in Web server for remote accessing image from general web browser anywhere
Supports UPnP & DDNS
Additional Information
First Listed on Newegg April 04, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
