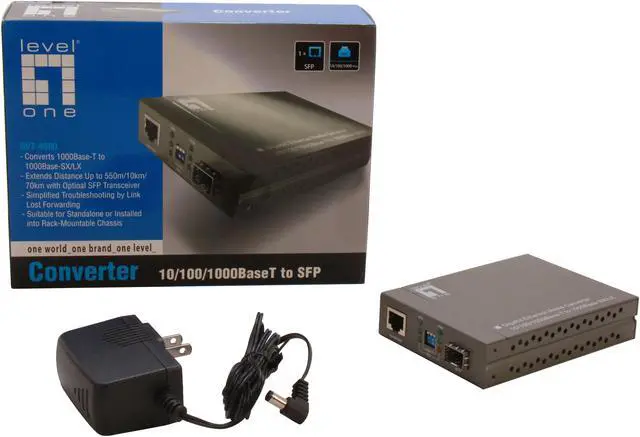

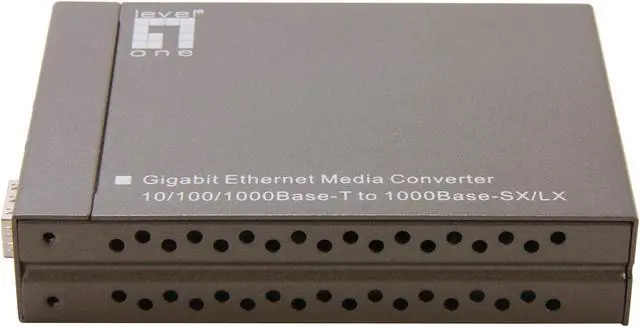

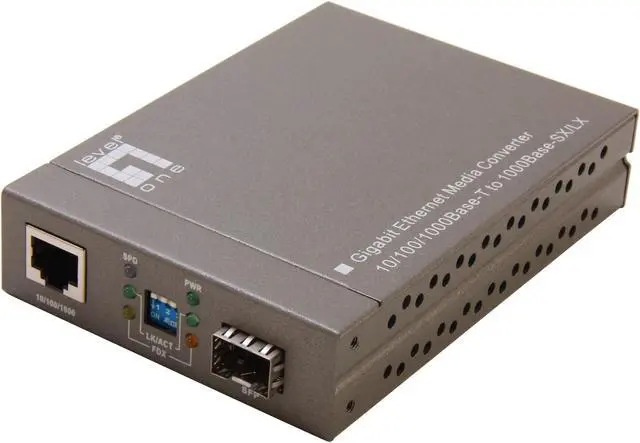

LevelOne GVT-4000 10/100/1000BaseT to SFP Media Converter 10/100/1000Mbps Fiber mini-GBIC 3.3V RJ-45 Socket CAT-5 (10/100/1000Mbps) Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Function Support DIP Switch: DIP Switch 1: Fiber Aut

  • 10/100/1000Mbps
  • Fiber mini-GBIC 3.3V RJ-45 Socket CAT-5 (10/100/1000Mbps) Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Function Support DIP Switch: DIP Switch 1: Fiber Auto-Nego / 1000Mbps Full Duplex mode DIP Switch 2: TX to Fiber LLF (Link Lose Forwarding) Disable/Enable DIP Switch 3: Fiber to TX LLF (Link Lose Forwarding) Disable/Enable
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the LevelOne GVT-4000

Model
Brand LevelOne
Model GVT-4000
Details
Standards IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE802.3x Flow Control and Back pressure
Wavelength 850nm (Multi-mode)
1310nm (Single-mode)
1550nm (single-mode)
Fiber Cable Fiber Core
Multi-Mode (62.5/125µm, 50/125µm)
Single-Mode (9/125µm, 8/125µm)
Ports Fiber
mini-GBIC 3.3V
RJ-45 Socket
CAT-5 (10/100/1000Mbps) Twisted Pair cable
Auto MDI/MDI-X and Auto-Negotiation Function Support

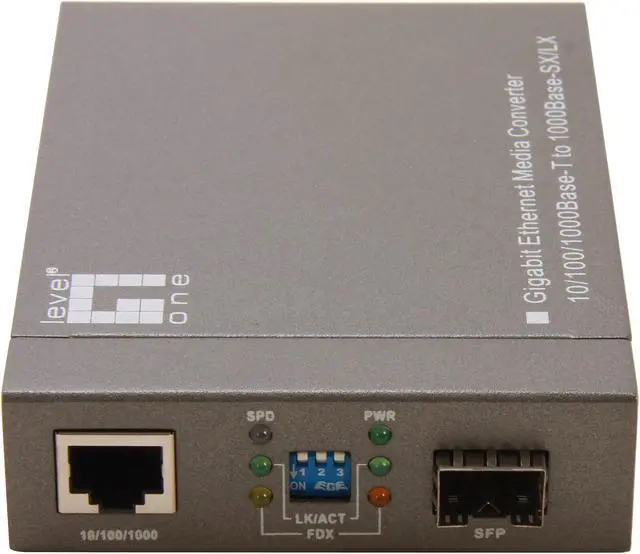

DIP Switch:
DIP Switch 1: Fiber Auto-Nego / 1000Mbps Full Duplex mode
DIP Switch 2: TX to Fiber LLF (Link Lose Forwarding) Disable/Enable
DIP Switch 3: Fiber to TX LLF (Link Lose Forwarding) Disable/Enable
Transfer Rate 10/100/1000Mbps
LEDs Power, TX (100/1000Mbps, LK/Act, FDX), Fiber (LK/Act, FDX)

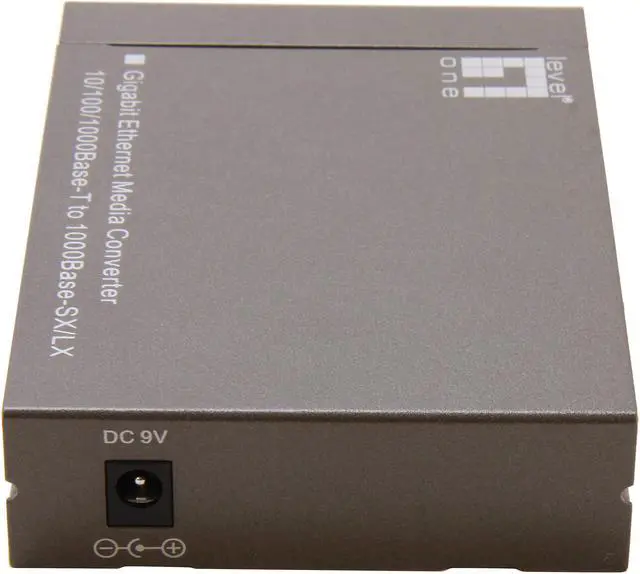

Power Adapter Power DC9V / 0.7A
Environmental
Temperature 0 ~ 45°C
Humidity 10% to 90% (Non-condensing)
Features
Feature UTP to Fiber (mini-GBIC) Media converter
Auto Negotiation Speed, Half/Full Duplex
TX port support Auto MDI/MDI-X
Build in Link Loose Forwarding Technology
Hot swap for chassis
Can be used stand alone or mounted in Converter Chassis
Dimensions & Weight
Dimensions 4.7" x 3.3" x 1.0"
Additional Information
First Listed on Newegg February 22, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
