Lian Li Edge Series-1200W Full Modular Power Supply (Fan Hub Included) - Gold-ATX 3.0, 3.1-PCIE 5.1-L-Shape Design for Dual Chamber Case-120mm FDB Fan-Supports up to 4 USB Device - White - EG1200G.WH

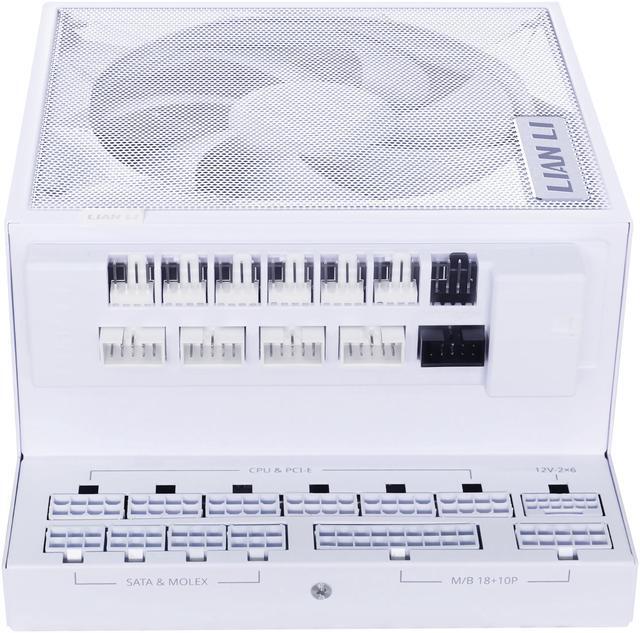

Integration with Fan Hub Module : Enhance your setup with a EDGE Hub supporting four devices and up to eight downstream connections, ideal for RGB controllers. The Fan Hub features six 4-pin connectors, each rated for 2A, ensuring optimal cooling power. (NOTE:If needed, please purchase separately: EG-HUB01W and EG-HUB01B)

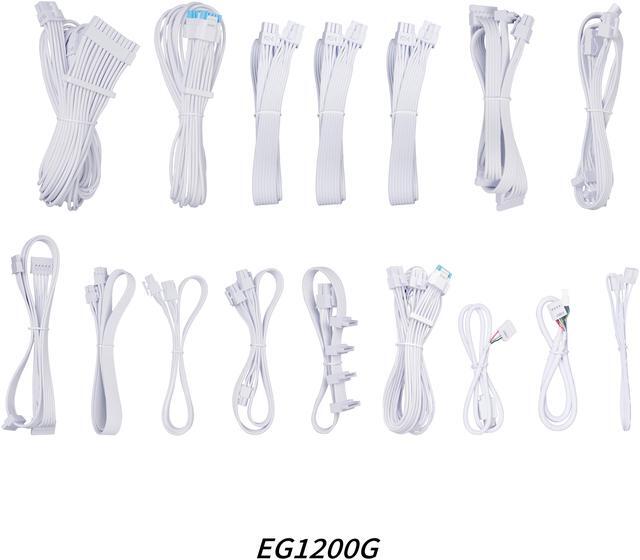

Connector 12V-2X6 for GPUs: The EG1200G model includes dual 8-pin to 12VHPWR connectors, allowing easy future GPU upgrades. NOTE: Only the 1200W variant has dual connectors; other models (EG1000G, EG0850G, EG0750G) feature a single 12V-2x6 cable.
Enhanced Flexibility: The advanced power supply designed for dual-chamber cases with simplifies cable management. The Gold series offers longer PCIe, 12+4P, and 24P cables for top-bottom, left-right setups configurations, greater flexibility.
Magnet Dust Filter Mesh:This magnetic design allows for easy removal of the front dust mesh for cleaning, ensuring hassle-free maintenance.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews (47)
Any questions? Our AI beta will help you find out quickly.
Try me now
Edge Gold 750/850/1000/1200W PSU with T-shape design is best suited for dual chamber cases where the PSU is installed vertically. USB expansion hub, facilitating connectivity for a wide array of RGB devices, fans, and controllers.
Learn more about the Lian Li EG1200G.WH
General
Brand
LIAN LI
Model
EG1200G.WH
Details
Color
White
Type
ATX 3.1 Compatible
Maximum Power
1200 W
Fans
1 x 120 mm
PFC
Active
Main Connector
24Pin
SATA Power Connector
1 x SATA extender(345mm) 1 x SATA-Y connector (525mm) 1 x SATA connector (850mm) 1 x SATA-Y connector (525mm) 1 x SATA connector (850mm)
