Question 1

Can the ports be used in reverse ? For example I would like to use the CPU flow ports through the BACK where the pump is located, instead of the front. Or is it on accessible through the front, opposite of the pump?

Thanks !!!

Accepted Answer

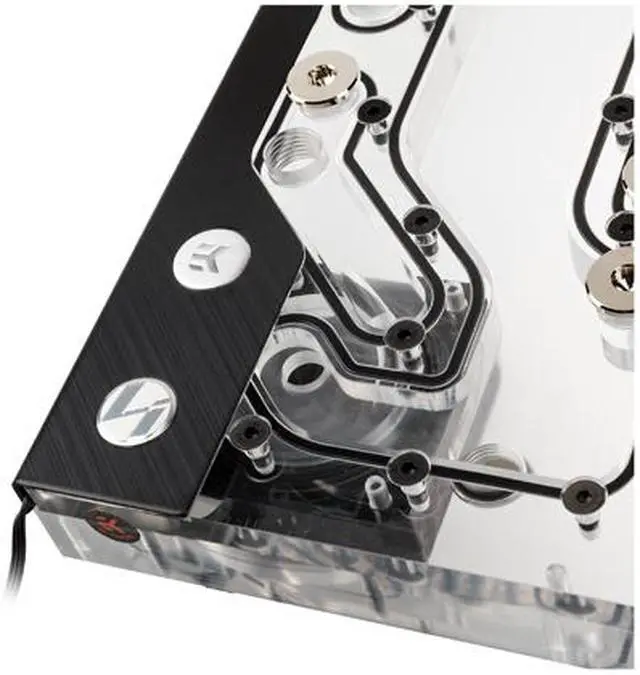

To add onto Andrew B's answer above, the pump's intake and outtake are both located on the back of the distro plate, from the hole in the hooked bit on the bottom and the hole directly above that, respectively. Unless you take off the pump and figure out a way to attach it somewhere else, this forces you to have liquid running INTO the large, contiguous area in the middle and OUT OF the small "✓" shaped area. Past that, you can hook things up however you want.

It's not super clear in the pictures, but there are two free ports on the back that both connect to the central area. I think these are intended to be used as fill and drain ports, but if you have a way of using them differently, go for it.

Question 2

Is this compatible with Lianli pc-o11 wgx case?

Accepted Answer

Hello, Thank you for contacting us in regards to your question. This particular product is being offered through a Newegg Marketplace Seller. For more information, please contact them directly through their Seller Profile page. https://www.newegg.com/LIAN-LI/about Thank you, Newegg Support

Question 3

Is this compatible with water blocks that are copper or nickel plated?

Accepted Answer

I would imagine so as it is only made or acrylic I have one on order to run in my system with both mono block and gpu block both nickel plated  just make sure your radiators are not aluminum is the important part not to use them with copper cooling components. Don’t mix the two metals in your loop

Question 4

Is it possible to use 25mm thick fittings ? Because the holes for the CPU are so tight together.

Accepted Answer

Barely, if at all. I am using 24mm Primochill fittings with mine and the two CPU fittings rub together slightly. An extra mm might be too much.

Don't worry over it too much though because it isn't a great product, I'd just go with a regular res/pump solution if I did it over.

Question 5

Could I specify the type of DDC pump I would like to use at purchase?

Accepted Answer

No, it comes with the 3.1.  You can always swap it out with a newer model.

Question 6

Does this have an extra port on it for draining? Or would I still need to install a drain valve somewhere in the loop

Accepted Answer

There is a port in the rear right by the pump to place a ball valve. But I had to take off the pump and add a Male to Male extender to be able to fit it in place.

Question 7

Given the dimensions, could I install the EKWB D5 pump in this instead of the DDC pump?

Accepted Answer

I don't think so, the best you can do to get more flow is to get a 3.2 ddc. Perhaps EK might have a better answer.

Question 8

Can this be installed in the front panel of the O11D? If so, how?

Accepted Answer

This plate is 35x13 cm, the front penal if the case is 42x21 cm. So you could theoretically mount it against the glass panel if you really wanted with some glue or double sided tape, but it's not a replacement for the full panel.

Question 9

Do any fittings/ plugs come with the plate?

Accepted Answer

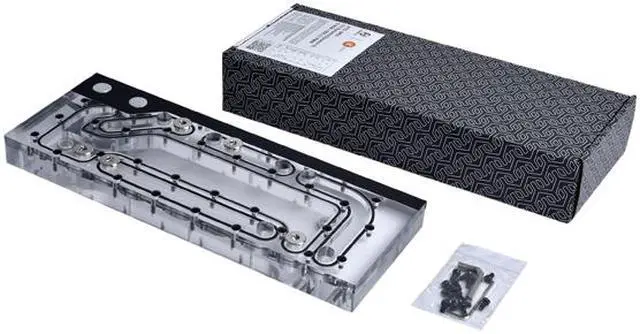

Fittings no, and whatever plugs are shown - yes.

Question 10

would this work with 2 distro plates the front and this one?

Accepted Answer

Yes you could do that.. Just have to get creative with your tubing. It would allow you to run two loops in your system. one for your cpu and one for your gpu if desired. But this one plate can also handle 2 rads.

MODEL	LIAN LI O11D DISTRO-PLATE G1 DESIGNED BY EKWB WITH DDC 3.1 PUMP
DIMENSIONS	(L) 345 x (W) 131 x (H) 29 mm
MATERIAL	ACRYLIC (BODY) PPS-GF30, EPDM O-RINGS, ALUMINUM OXIDE, GRAPHITE (PUMP)
COMPATIBILITY	O11D SERIES, O11D XL

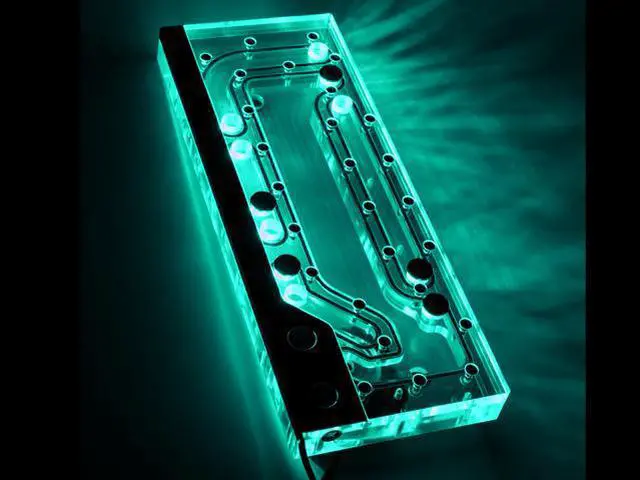

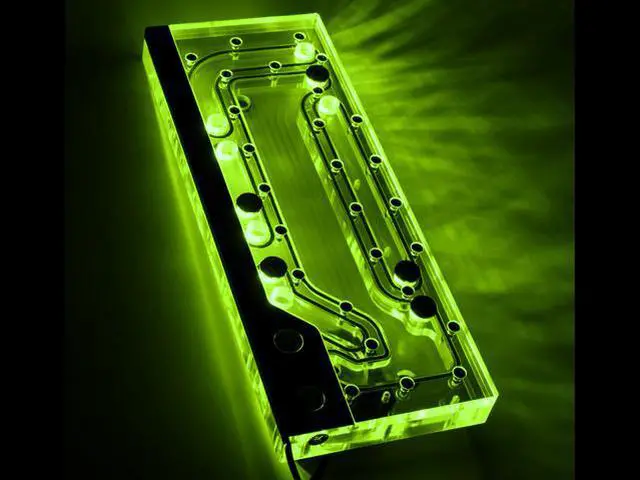

ADDRESSABLE RGB LED STRIP	1 (LED COUNT 18
LED POWER CONSUMPTION	0,3A 5V
CPU BLOCK SUPPORT	1 CPU block
GPU BLOCK SUPPORT	UP TO 2 GPU BLOCKS IN SLOT 1 OR SLOT 2
RADIATOR SUPPORT	UP TO 2 X 120/240/360MM RADIATORS UP TO 60MM IN THICKNESS
PORT THREAD TYPE	G1/4
MOUNTING HOLE SIZE	M4 (MOUNTING HARDWARE IS INCLUDED)

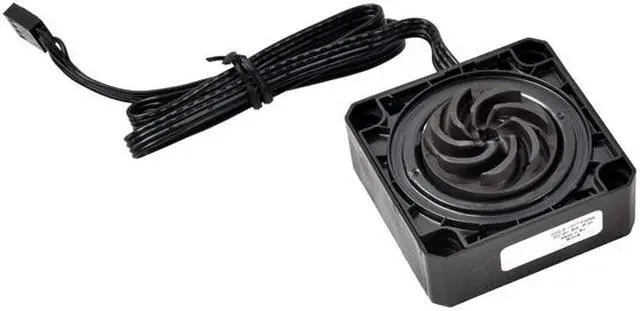

MOTOR	ELECTRONICALLY COMMUTED MOTOR
RATED VOLTAGE	12V DC
POWER CONDUMPTION	6W
MAXIMUM PRESSURE HEAD	2.6M<
MAXIMUM FLOW	500 L/H
MAXIMUM AMBIENT TEMPERATURE	10-50℃
MAXIMUM FLUID TEMPERATURE	10-60℃
POWER CONNECTOR	4PIN PWM FAN CONNECTOR
CABLE LENTH	50CM
Reservoir Diameter	60mm
Overall Height	121mm incl. pump
Mounting hole pattern	50x50mm
PWM DUTY CYCLE	~ 20-100%
DEFULT BEHAVIOR	Runs at 100% duty cycle when no PWM feedback signal is present.

Brand	LIAN LI
Series	O11D
Model	DISTRO-PLATE G1
Type	Reservoir

Color	Clear
LED Color	Addressable RGB LED Strip
