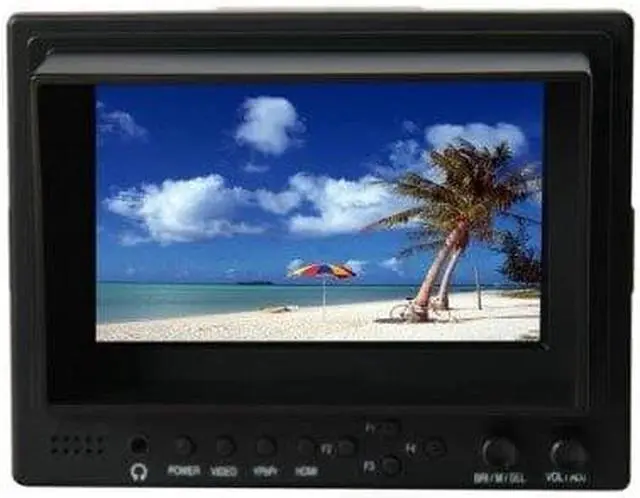

Lilliput 5 inch On-Camera HD LCD Field Monitor w/ HDMI 569GL-50NP/H/Y
- HDMI& YPbPr Input, to connect with Full HD Video Camera.
- LCD 16:9 Aspect Ratio,max 1920x1080 pixels.
- High Brightness/Contrast & Dizzy-proof monitor with sun shade, to see clearly under sunshine.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
* HDMI& YPbPr Input, to connect with Full HD Video Camera.
* LCD 16:9 Aspect Ratio,max 1920x1080 pixels.
* High Brightness/Contrast & Dizzy-proof monitor with sun shade, to see clearly under sunshine.
* Shooting view aperture,
* RGB monochromatic display,
* 16:9/4:3 aspect ratio switch, underscan/overscan switch, Video output.
* DC 6-24V wide range voltage.
* 4 user-definable function buttons (F1, F2,F3& F4).
* High capacity rechargeable Li-ion battery, make power cables free..
Specifications:
Model: 569GL-50NP/H/Y
Screen size (diagonal): 5"
Aspect ratio: 16:9
Resolution (pixels): 800x480 (native), 1920x1080 (maximum)
Pixel pitch (mm): 0.135x0.135
Scan frequency (Hz): 60-72
Response time (ms): 6
Viewing angle (degrees): 150 x, 130 y
Brightness (cd/m2): 400
Contrast ratio: 600:1
LCD backlight: LED
Screen rotation: Flip x, flip y
Video inputs: HDMI, component, composite
Video outputs: HDMI
Audio outputs: less than1W
Touch screen inputs: None
Input power source: DC 6--24V
Operating temperature: -20 degree C -- 60 degree C
Mount type: 1/4 inch BSW thread, shoe mount
* LCD 16:9 Aspect Ratio,max 1920x1080 pixels.
* High Brightness/Contrast & Dizzy-proof monitor with sun shade, to see clearly under sunshine.
* Shooting view aperture,
* RGB monochromatic display,
* 16:9/4:3 aspect ratio switch, underscan/overscan switch, Video output.
* DC 6-24V wide range voltage.
* 4 user-definable function buttons (F1, F2,F3& F4).
* High capacity rechargeable Li-ion battery, make power cables free..
Specifications:
Model: 569GL-50NP/H/Y
Screen size (diagonal): 5"
Aspect ratio: 16:9
Resolution (pixels): 800x480 (native), 1920x1080 (maximum)
Pixel pitch (mm): 0.135x0.135
Scan frequency (Hz): 60-72
Response time (ms): 6
Viewing angle (degrees): 150 x, 130 y
Brightness (cd/m2): 400
Contrast ratio: 600:1
LCD backlight: LED
Screen rotation: Flip x, flip y
Video inputs: HDMI, component, composite
Video outputs: HDMI
Audio outputs: less than1W
Touch screen inputs: None
Input power source: DC 6--24V
Operating temperature: -20 degree C -- 60 degree C
Mount type: 1/4 inch BSW thread, shoe mount
