New LILLIPUT 5" Q5 FULL HD Metal Slim Camera-top monitor 1000:1 contrast SDI/HDMI cross conversion F970+LP-E6 battery plate Waveform PIP mode Column (YRGB peak) time code by VIVITEQ …

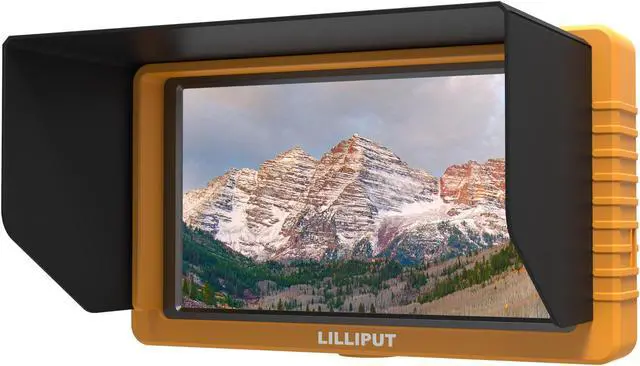

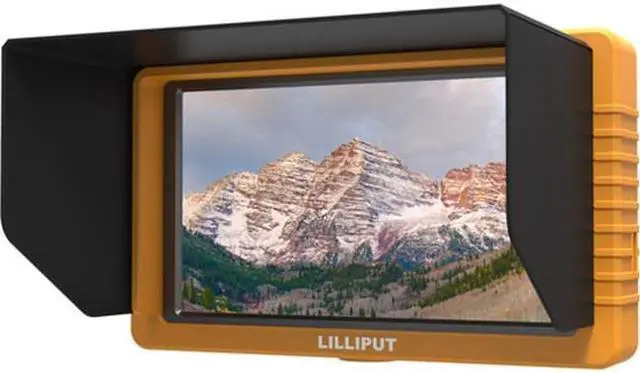

The Lilliput Q5 is the distillation of our expertise in small form camera monitors, in an even smaller 5" form factor, making it the most powerful compact field monitor we've produced to date. Featuring the newest panel type giving full HD 1920x1200 resolution native and enabled with SDI-HDMI cross conversion meaning that you can now output in either HDMI or SDI regardless of input, making it ideal for a professional workflow. The full metal outer body protects the unit against bumps and scrapes and both BSW threads and VESA 75 mounting allow both for mobile work and for studio installation.

Black Magic Pocket Cinema Camera Compatible
This monitor is fitted with a processing chip which gives a greater range of input frequencies that can be used.

5" SDI monitor with widescreen aspect ratio
The Lilliput Q5 features our first full HD native panel, clocking in at 1920 x 1200. Much improved over its predecessors, this high resolution will give you the clearest view of your images without the need for down sampling or interpolation

SDI - HDMI Cross conversion
You asked - we listened! The Lilliput Q5 monitor supports cross conversion between HDMI and SDI. Input SDI signal - receive HDMI output and vice versa.

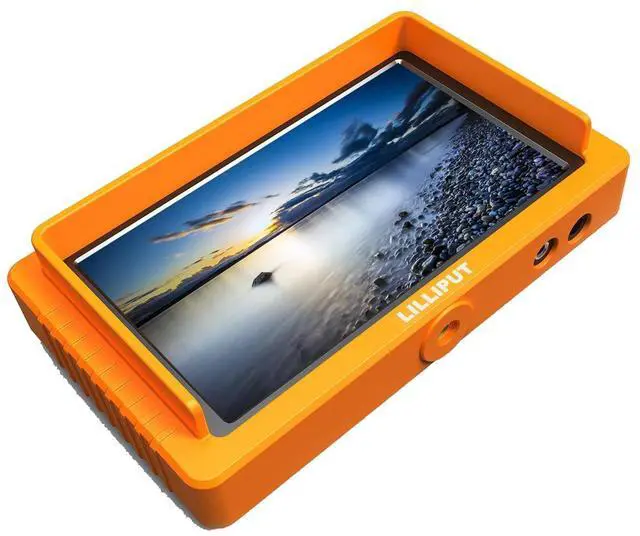

Metal outer frame for added durability
The Q5 has a lightweight metal housing - designed to take the roughest of knocks while at the same time being as light and portable. Invaluable for use in the field or in a tough-and-tumble environment.

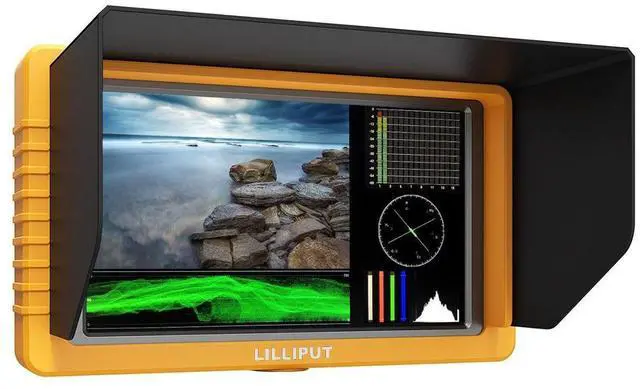

Advanced monitor functionality
As detailed at the top of this description page, the Q5 has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Columnar YRGB, Pixel Zoom Function, Vector Scopes, Waveforms, Audio Level Meters, Peaking, False Color, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel and Image flips. A host of functions for a multi faceted monitoring solution.

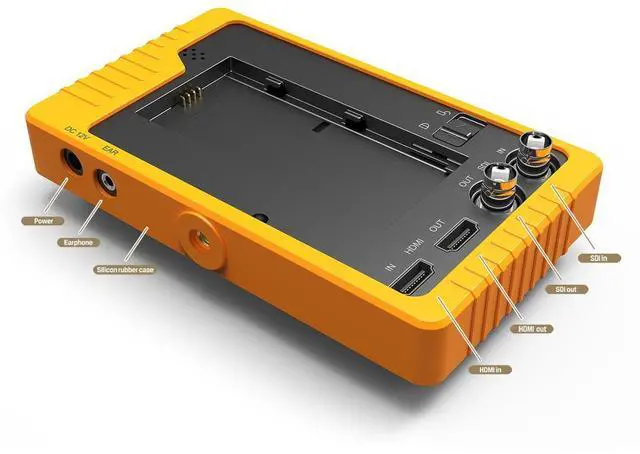

Battery plate system for compatible batteries with your DSLR setup

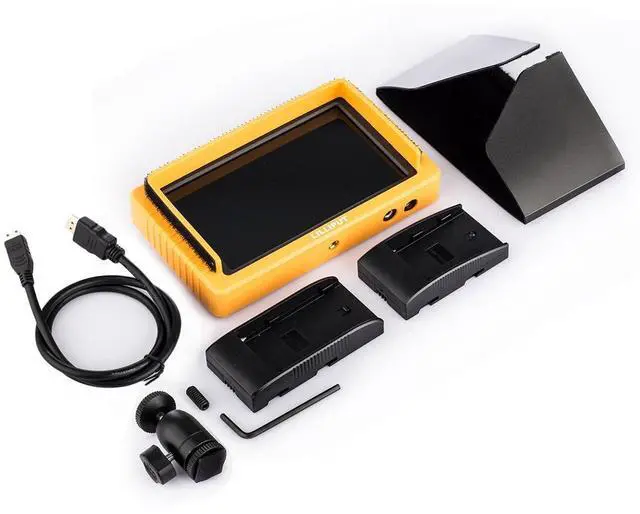

We supply the monitor with 2 battery plates as standard - these are compatible with the Canon LP-E6 and the Sony F-970. Also available are the Sony QM91D and the Panasonic DU21 and for an addition charge we can supply a V-Mount battery plate.

Shoe mount Adaptor included
There are two options for mounting this monitor - the most common is the Shoe Mount adaptor which screws into a 1/4" BSW threaded hole at the bottom of the monitor and then clips into the shoe mount on top of your camera. Alternatively, you can use the VESA 75 mounting hole set in the back to attach the monitor to a sturdier mount if needed.
