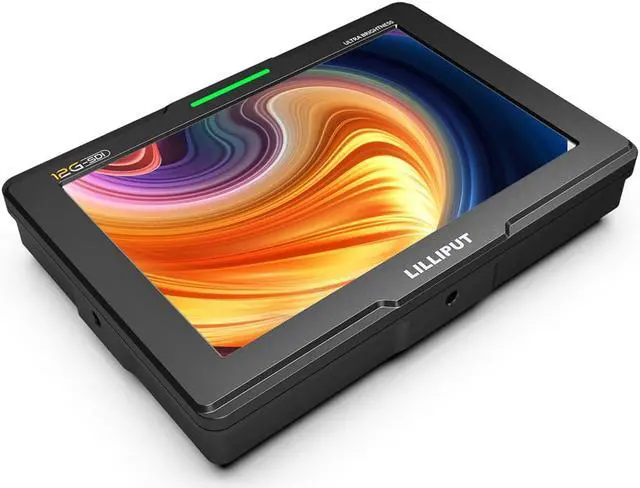

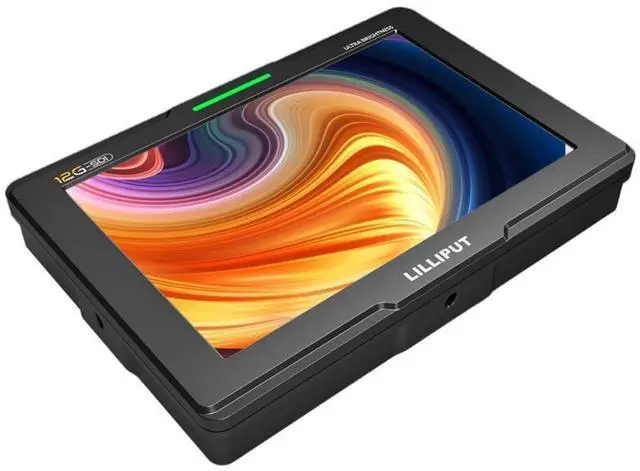

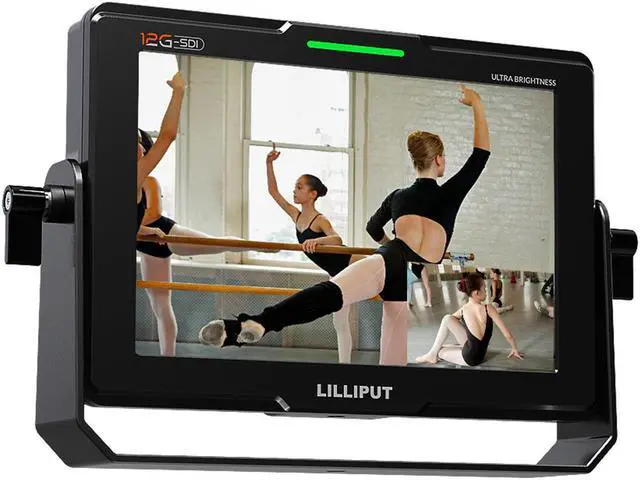

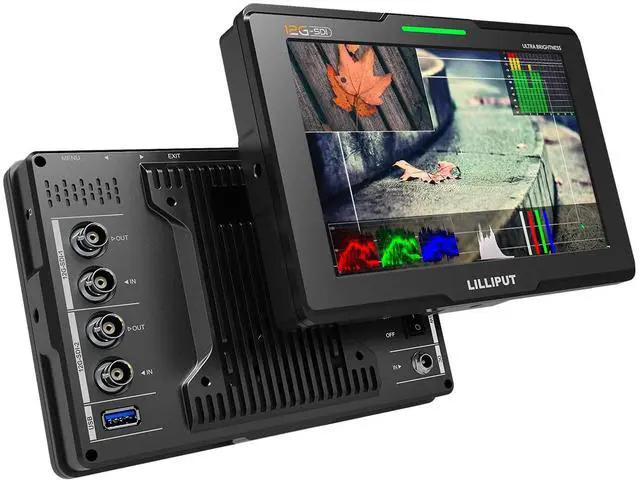

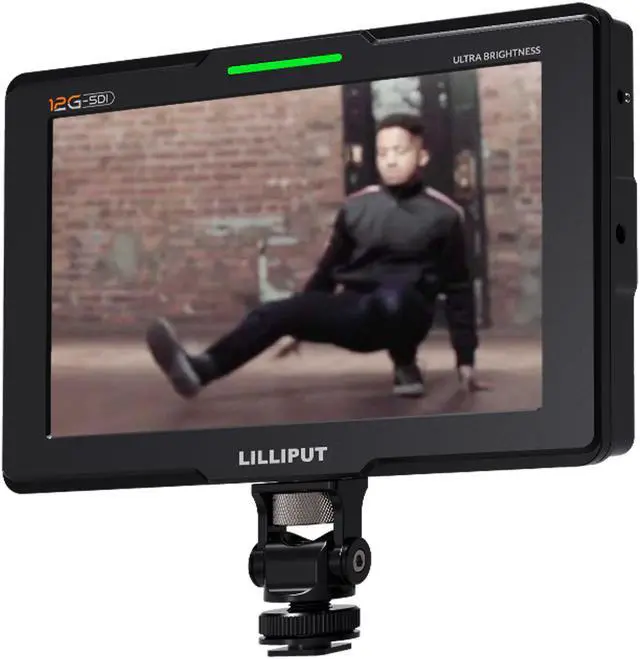

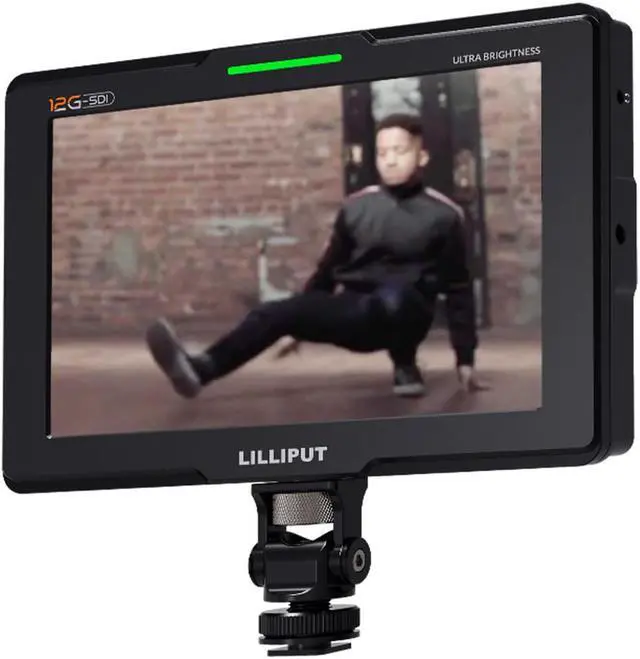

LILLIPUT 7" Q7-12G 7inch 2000nits 12G-SDI Ultra Brightness On-Camera Monitor-12G-SDI x 2 HDMI 2.0 x 1 Tally Output 12G-SDI x 2 HDMI 2.0 x 1 HDR 3D-LUT Waveform level meter Vector scope

Q7-12G is a precision camera monitor designed for the film and video shooting on any type of camera. Providing the superior picture quality, as well as a variety of professional assist functions, including 3D-Lut, HDR, Level Meter, Histogram, Peaking, Exposure, False Color, etc. It can help the photographer analyzing every detail of the picture and final capture the best side.
-PIP Mode - When turned on, a layer of sub screen can be superimposed on top of the main screen, allowing different videos to be displayed simultaneously. -PIP Size & PIP Position - Adjusts the size and position for sub screen. -PIP Source & PIP Swap - Switches different signal source from HDMI or SDI.
?Zoom The image can be enlarged by [10%]-[90%]. To select the [Zoom] under [Scan], choose the times under [Zoom] option which underneath the Check Field option.
-Color Temp - [3200K],[5500K],[6500K], [7500K], [9300K] and [User] mode for optional. Adjust the color temperature to make the image warmer (Yellow) or colder (Blue). Increase the value to make the image be warmer, decrease the value to make the image be colder. User can use this function to strengthen, weaken or balance the image color according requirements. The standard white light color temperature is 6500K
-HDR - Use this setting to choose one of the HDR presets: [Off], [ST 2084 300], [ST 2084 1000], [ST 2084 10000], [HLG]. When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality
Report incorrect product
LILLIPUT 7" Q7-12G 7inch 2000nits 12G-SDI Ultra Brightness On-Camera Monitor-12G-SDI x 2 HDMI 2.0 x 1 Tally Output 12G-SDI x 2 HDMI 2.0 x 1 HDR 3D-LUT, Delicate Milled
Q7-12G is a precision camera monitor designed for the film and video shooting on any type of camera. Providing the superior picture quality, as well as a variety of professional assist functions, including 3D-Lut, HDR, Level Meter, Histogram, Peaking, Exposure, False Color, etc. It can help the photographer analyzing every detail of the picture and final capture the best side.
Features

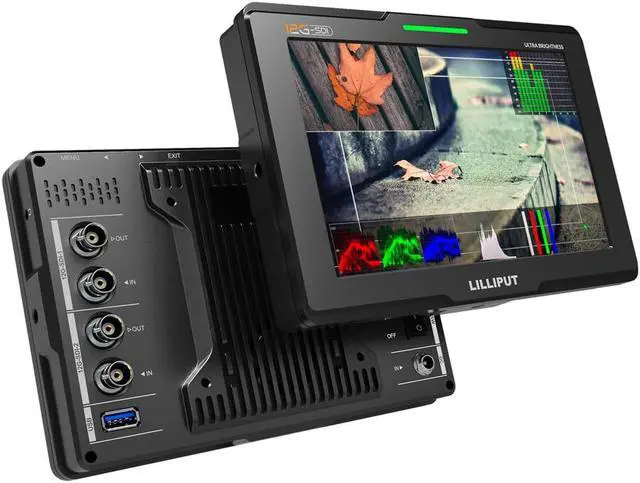

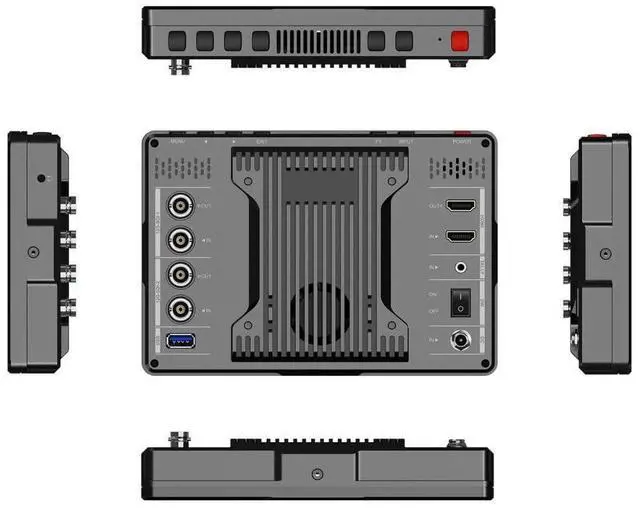

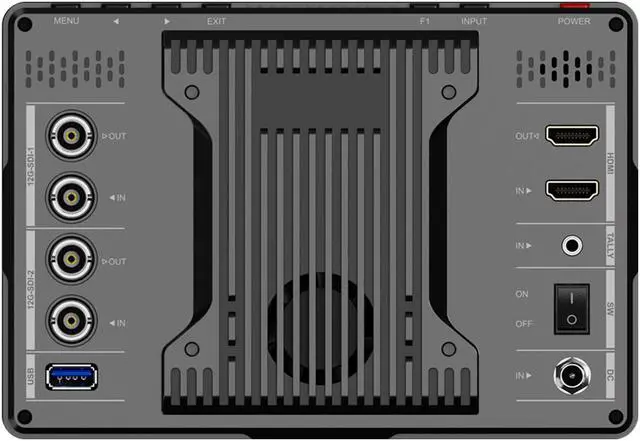

?HDMI 2.0 input & loop output
?12G-SDI input & loop output

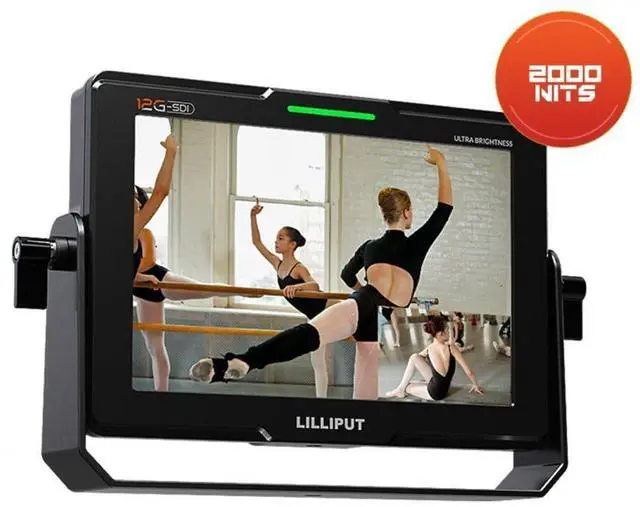

?2000 cd/m2 high Brightness
?HDR (High Dynamic Range) supporting ST2084 300/ST 2084 1000/ST 2084 10000/HLG
?3D-Lut option of color production includes 17 default camera log and 6 user camera log
?Gamma adjustments (1.8, 2.0, 2.2, 2.35, 2.4, 2.6, 2.8)
?Color Temperature (5500K, 6500K, 7500K, 9300K, User)
?Markers & Aspect Mat (Center Marker, Aspect Marker, Safety marker)
?Scan (Aspect, Pixel To Pixel, Zoom)
?Check Field (Red, Green, Blue, Mono)
?Assistant (Peaking, False Color, Exposure, Histogram)
?Image Flip (H, V, H/V)

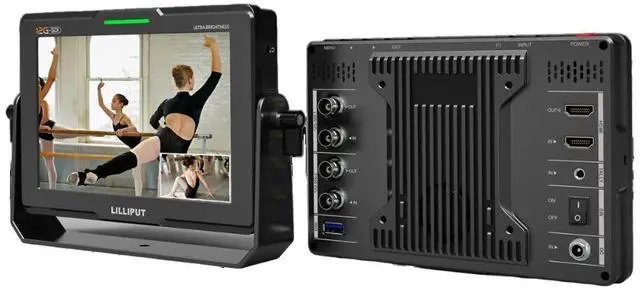

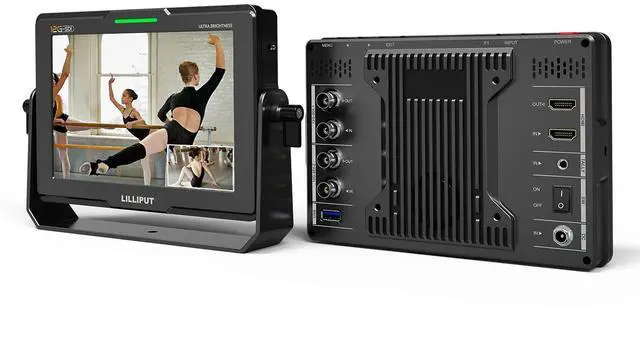

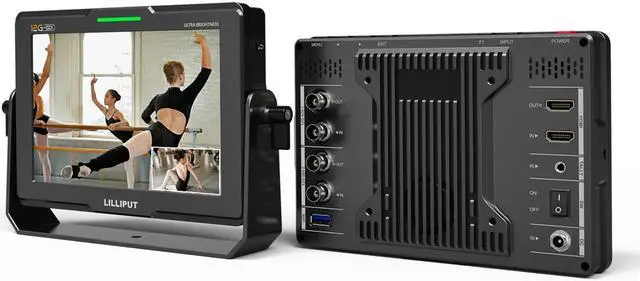

?12G-SDI Picture in Picture
?F1 User-definable function buttons

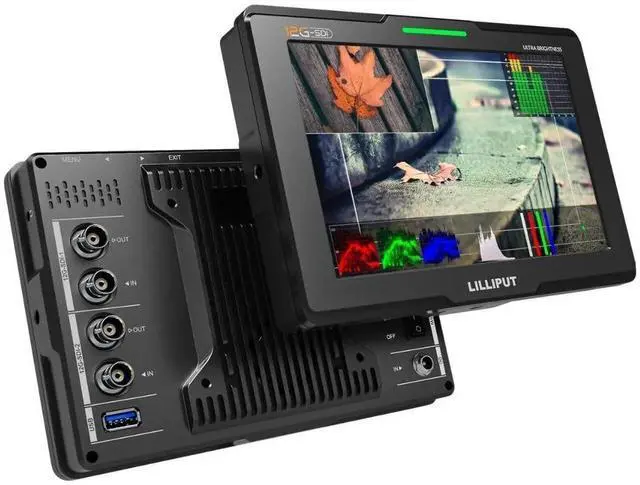

-Waveform --Vector --Transparency --Exposure & Exposure Level --False Color
What's in the package:
1.12V 2A DC Power Adapter1pc
2.Suitcase1pc
3.Bracket1pc
4.VESA 75mm Battery Plate (For Sony NP-F Series)1pc
5.Tally Control Line*11pc
