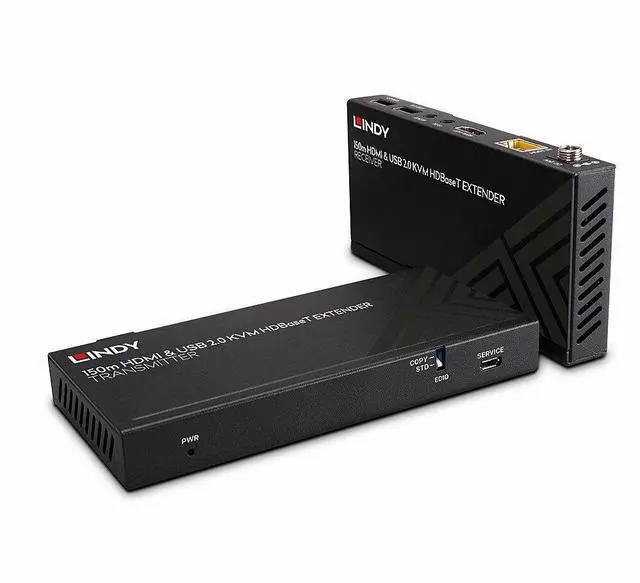

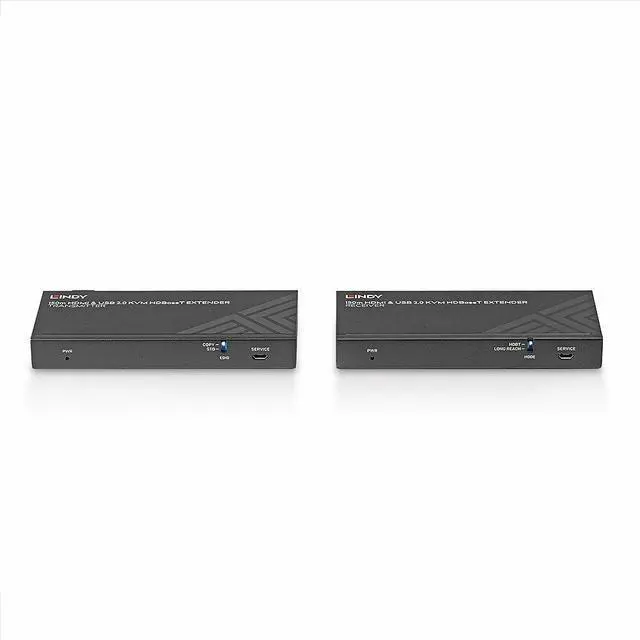

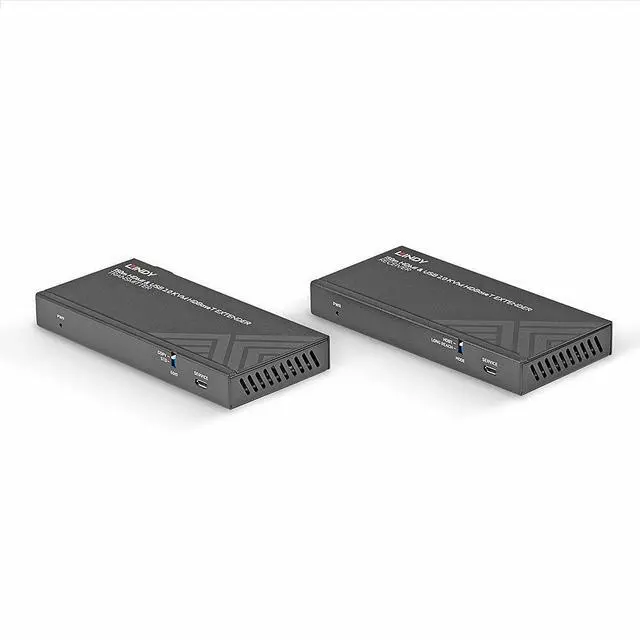

Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender 39384

Brand : Lindy

MPN : 39384

AV Interface: HDMI

Interface Standard: HDMI 2.0, USB 2.0

Supported Bandwidth: 18Gbps

Maximum Distance:

- 100m (328.08ft) - 3840x2160@60Hz 4:4:4 8bit (HDBT mode)

- 150m (492.12ft) - 1920x1080@60Hz (Long Reach mode)

Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit

HDCP Support: 2.2

EDID Pass Through: DIP switch with Copy function

Supported Audio: HDMI Audio Pass-through

Separate Audio Ports: -

IR Support: 20 - 60KHz

CEC Support: -

Serial Interface: -

Transmission Protocol: HDBaseT

Transmission Medium: 1 x Cat.6

Laser Class (only for Fibre): -

Wavelength (only for Fibre): -

Chipset: VS010-A0

Special Features: PoC (Power over Cable), Long Reach Mode

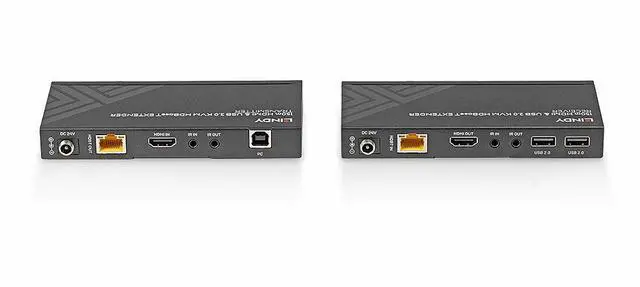

Connectors

Transmitter Input: HDMI Type A (Female), USB Type B (Female), 3.5mm IR (Female)

Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)

Receiver Input: RJ-45 (Female), 3.5mm IR (Female)

Receiver Output: HDMI Type A (Female), 2 x USB Type A (Female), 3.5mm IR (Female)

Power: 5.5/2.1mm

Product Description

The Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
