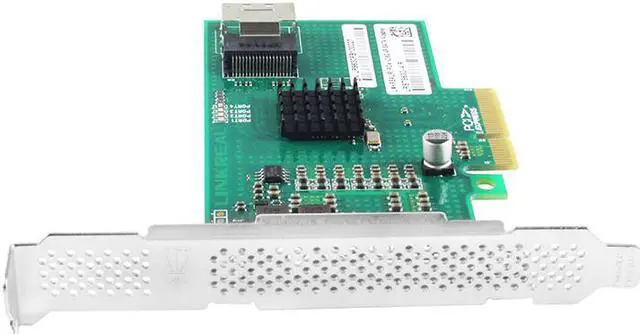

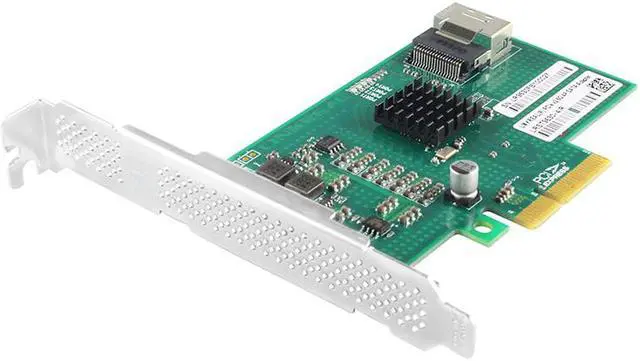

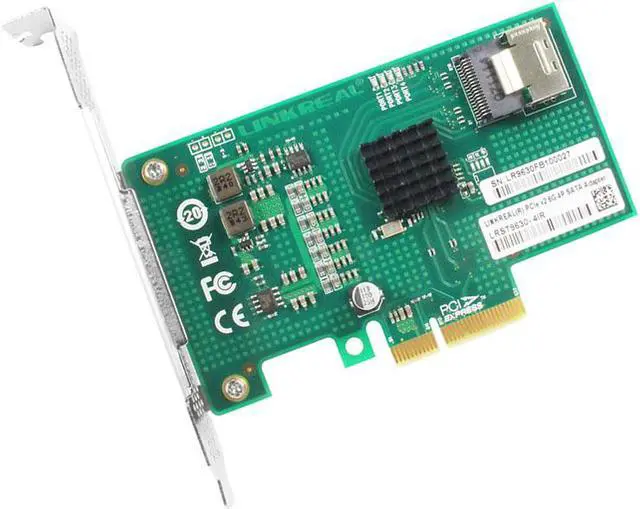

Linkreal 4-Lane PCIe 2.0 to 4 Port SATA 3.0 6Gbps RAID Controller Card with Marvell chip 88SE9230
- Compliant with SATA3.0 Specification and PCIe2.0 Specifications
- Supports communication speeds of 6.0Gbps, 3.0Gbps, and1.5Gbps
- Supports hot-plugging and heat-exchanging
- Compatible with SATA 6G, 3G and 1.5G hard disk drives
- Supports programmable transmission signal level
- Supports Gen1i, Gen 1X, Gen2i, Gen 2m, Gen2X ,Gen3i
- Supports 1 SAS interface and 4 SATA ports
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LRST9630-4IR is a new product developed on the basis of the chip scheme MARVELL 88SE9230, it is a PCIe to SATA 3.0. It bridges PCIe interface to SATA 3.0, making the expansion card with high performance and scalability. It can extend four SATA 3.0 interfaces and backward is compatible with SATA 2.0.
Technical Specifications
Host Bus Type: PCI Express V2.0
I/O Controller: MARVELL 88SE9230
Connector: SAS SFF-8087
Interface Card Type: x4 Channel, and compatible with x8, x16;
PCIe supply voltage: +3.3V ±9%
Dimension: 116* 69mm
Weight: 40g
Power dissipation: 1W
Working Humidity: 0% – 90%
Working Temperature: 0°C – 50°C (32°F - 122°F)
Storage Temperature: -10°C–65°C(14°F - 149°F)
System Requirements: With available PCI Express x4 slot
WHAT'S IN THE BOX
1 - SFF-8087 Raid Controller Card
1 - low-profile bracket
1 - full-profile bracket (installed)
1 - Warranty Card
Technical Specifications
Host Bus Type: PCI Express V2.0
I/O Controller: MARVELL 88SE9230
Connector: SAS SFF-8087
Interface Card Type: x4 Channel, and compatible with x8, x16;
PCIe supply voltage: +3.3V ±9%
Dimension: 116* 69mm
Weight: 40g
Power dissipation: 1W
Working Humidity: 0% – 90%
Working Temperature: 0°C – 50°C (32°F - 122°F)
Storage Temperature: -10°C–65°C(14°F - 149°F)
System Requirements: With available PCI Express x4 slot
WHAT'S IN THE BOX
1 - SFF-8087 Raid Controller Card
1 - low-profile bracket
1 - full-profile bracket (installed)
1 - Warranty Card
