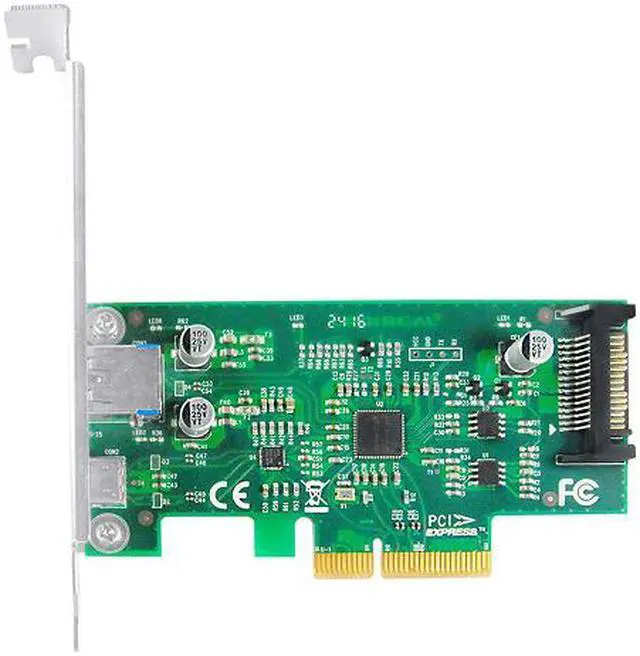

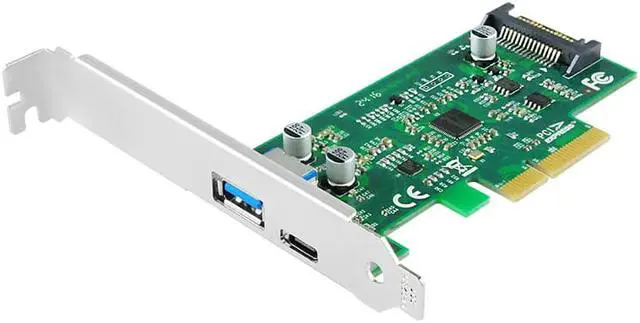

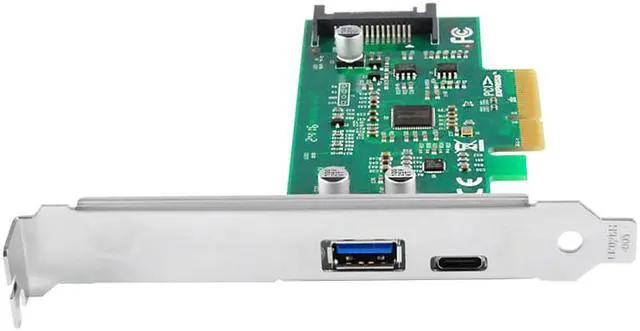

Linkreal PCIe to USB3.1 Type C + Type A Expansion Card Superspeed 10Gb/s for PC desktops
- Product Model:LRSU9A42-AC
- Product Name:2 Port PCIe x4 10Gb/s to USB 3.1 Type-A +Type-C Adapter
- Main Chipset:ASM1142 & ASM1543
- Interface Type:1*USB3.1 Type-A & 1*USB3.1 Type-C
- Host Bus Type:PCIe 3.0 x4
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description LRSU9A42-AC is a new product developed on the basis of the chip scheme ASM1142 and ASM1543, it’s a PCIe to 1 port USB 3.1 Type-A and 1 port USB 3.1 Type-C, xHCI Host controller, supporting PCIe 3.0 and USB 3.1 specifications, and up to 10Gbps high speed. Functional Characteristics • ASM1142 chip, USB 3.1 Host controller, bridge PCI Express to 2 port USB 3.1. • Up to 10Gbps bandwidth performance. • Backward compatible with USB 2.0 function and device. • PCIe X4 interface, compatible with slot X8, X16.
• 2 standard USB 3.1 type A interfaces, support 10G/5G/480M USB data transfer rate. • Compliant with USB 3.1 Gen2. • Support multiple USB devices operating at the same time. • Each USB port provides the maximum output: +5VDC/900mA. • Support Wake On LAN of USB keyboard or mouse devices.
• Input power: 15-pin SATA CD-ROM power connection. • Support Control, Bulk, Stream, Interrupt, Isochronous. • Support USB device hot-plugging Technical specifications
Host Bus Type: PCI-Express 3.0, USB 3.1
I/O Controller: ASM1142
Connector: USB 3.1
Host Bus Type: x4 channel, and compatible x8, x16
SATA supply voltage: 12V±8% 5V±9%
Dimension: 105.4 * 55.5 mm
Weight: 60g
Power dissipation: 1.5W
Working Humidity: 5% – 95%
Working Temperature: 0°C – 60°C (32°F - 140°F)
Storage Temperature: -20°C–70°C

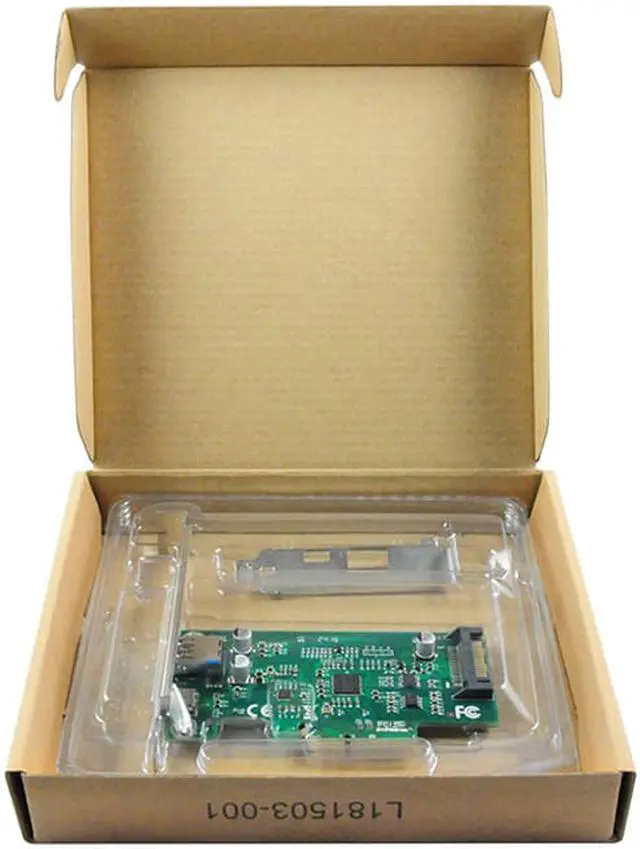

Warranty: 2 Years WHAT'S IN THE BOX 1 - USB 3.1 PCIe adapter card 1 - low-profile bracket 1 - full-profile bracket (installed) 1 -
Warranty Card After-sale Service: Supported by a Linkreal 2-year warranty, this PCIe to USB Controller adapter has free lifetime technical support
• 2 standard USB 3.1 type A interfaces, support 10G/5G/480M USB data transfer rate. • Compliant with USB 3.1 Gen2. • Support multiple USB devices operating at the same time. • Each USB port provides the maximum output: +5VDC/900mA. • Support Wake On LAN of USB keyboard or mouse devices.
• Input power: 15-pin SATA CD-ROM power connection. • Support Control, Bulk, Stream, Interrupt, Isochronous. • Support USB device hot-plugging Technical specifications
Host Bus Type: PCI-Express 3.0, USB 3.1
I/O Controller: ASM1142
Connector: USB 3.1
Host Bus Type: x4 channel, and compatible x8, x16
SATA supply voltage: 12V±8% 5V±9%
Dimension: 105.4 * 55.5 mm
Weight: 60g
Power dissipation: 1.5W
Working Humidity: 5% – 95%
Working Temperature: 0°C – 60°C (32°F - 140°F)
Storage Temperature: -20°C–70°C
Warranty: 2 Years WHAT'S IN THE BOX 1 - USB 3.1 PCIe adapter card 1 - low-profile bracket 1 - full-profile bracket (installed) 1 -
Warranty Card After-sale Service: Supported by a Linkreal 2-year warranty, this PCIe to USB Controller adapter has free lifetime technical support
