Brand | LINKSKEY |
---|---|
Model | LDV-DM702AUSK |
Type | DVI, USB |
---|---|

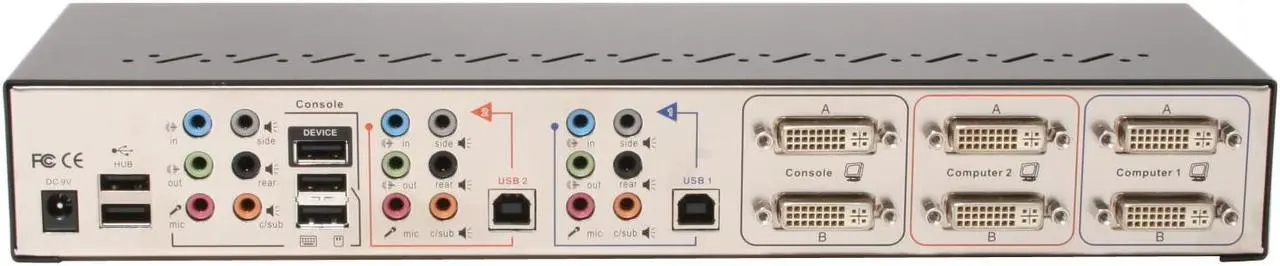

PC Connectors | (All Female Type) 2 x USB Type B 4 x DVI-I Single Link (Digital Only) 12 x 3.5mm Audio Jack (For 7.1 Surround Sound) |
Console Connectors | (All Female Type) 2 x USB Type A (For Keyboard / Mouse) 2 x USB 2.0 Type A Hub Ports 1 x USB 2.0 Type A Device Port 2 x DVI-I Single Link (Digital Only) 6 x 3.5mm Audio Jack (For 7.1 Surround Sound) |
Computer Connections | 2 Ports |
Monitor Connections | 2 Ports |
Video Resolution | Digital Display Resolution Up to 1920 x 1200 Analog Display Resolution Up to 2048 x 1536 |
PC Selection | Push Buttons/Hot Keys |
Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
---|---|
Humidity | 0% to 90%,Non-Condensing |
Audio Features | with Audio |
---|---|
USB Features | with USB support |

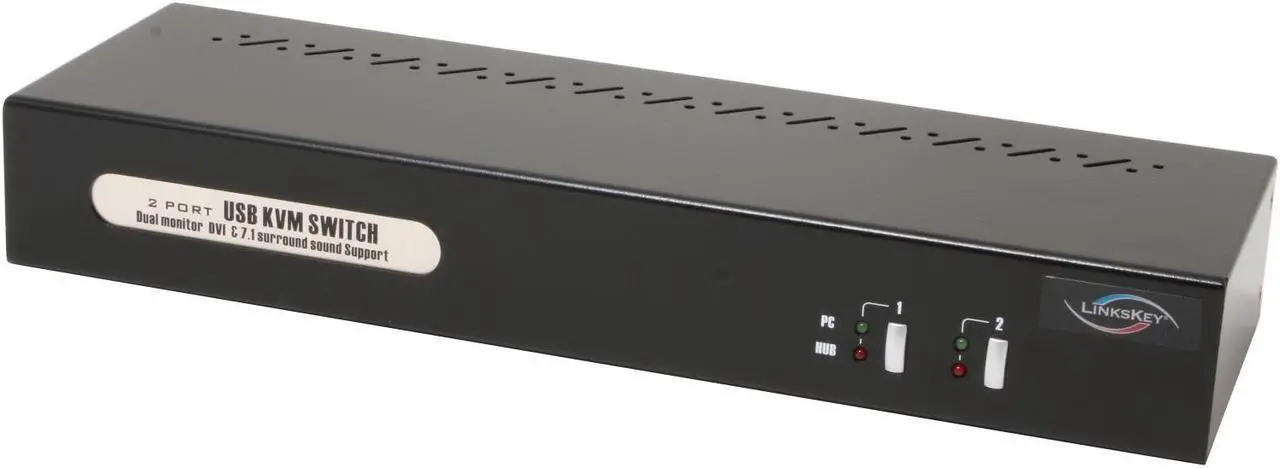

Features | 2-port Dual Monitor (DVI+DVI) KVM switch Support 7.1 surround sound for true theater audio experience Support Dual Monitor Two DVI Two USB 2.0 hub ports and one USB device port User-configurable simultaneous/Independent switching High Display resolution Support USB style keyboard and mouse Direct channel selection and operation and keyboard hotkeys Support for Windows 95/98/SE/ME/2000/XP, Linux, Mac OS Status LED display for easy port status monitoring Buzzer sound for port switching confirmation Metal enclosure for best shielding and protection True Transparent USB (TTU) Emulation technology with an integrated ASIC Full driver support for all types of USB keyboard and mouse All-time full DDC/EDID emulation for video compatibility and stability HDCP specifications compliant |
Dimensions | 12.70" x 3.94 "x 1.90" |
---|

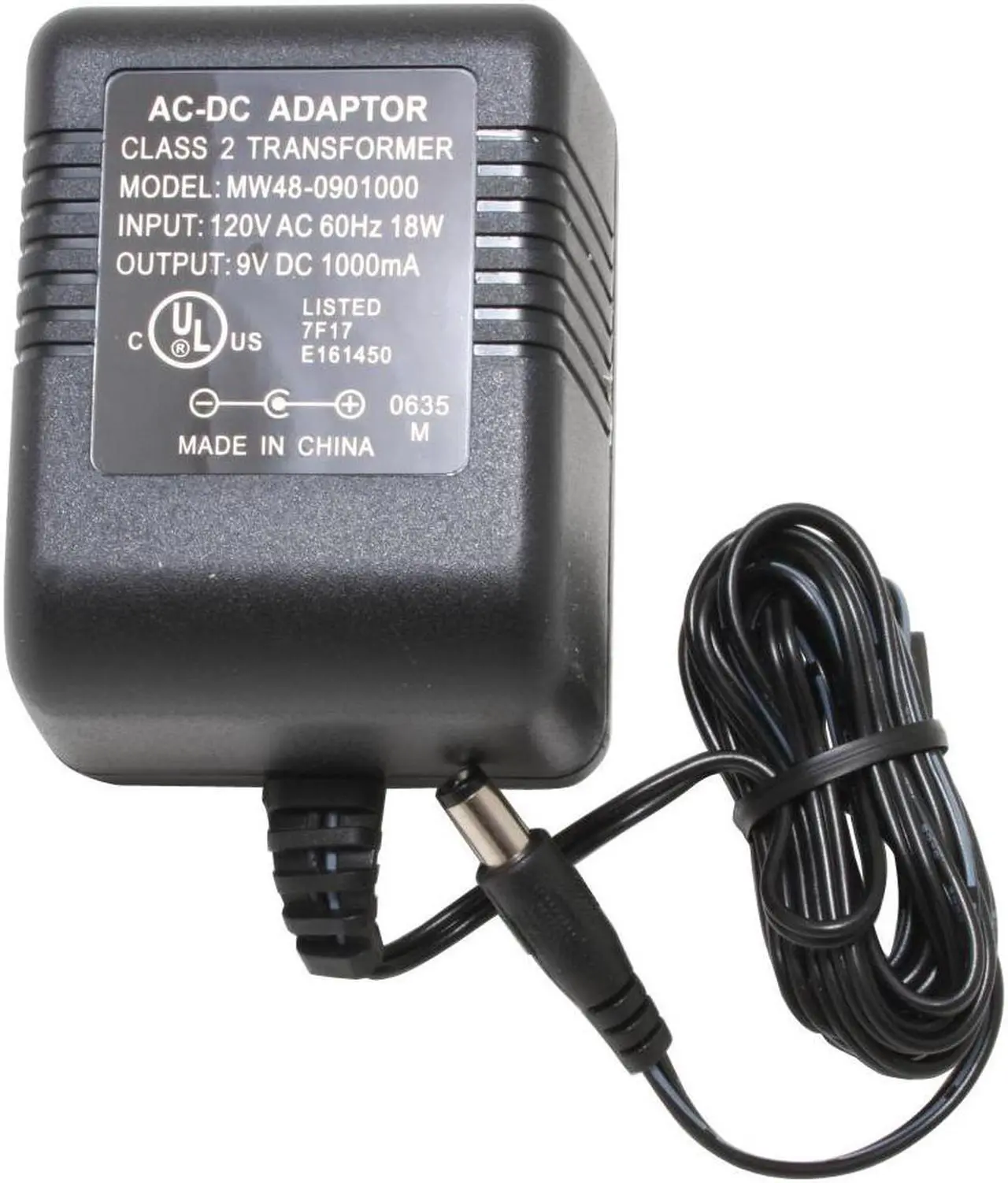

Package Contents | 1 x LDV-DM702AUSK Dual Monitor KVM Switch 1 x Power Adapter 4 x DVI-I Cable 2 x USB Cable 2 x 3.5mm Audio Cable |
---|
Date First Available | November 01, 2006 |
---|
Pros: Does almost every thing it should do.No problems with USB hub.It worked fine with my logitech G5 mouse but you have to plug it in to the councle USB device port not the mouse port other wise you loose driver support.So it you have a G5 mouse and a G15 keyboard both may not work.
Cons: 7.1 audio was a big problem.I have a pair of zalman 5.1 surround head phones & a creative XFi fatality sound card that i tried on this. It always had back ground noise,hum,hiss you could hear the hard drives running.When i plugged the head phones directly in to the pc all noise went away. I thought it was defective so i sent it back to newegg for a replacement but the replacement did the same thing.
