Im new to this - where do you run the line IN to the switch? I see the 24 out ports but no IN port?

In a switch you can "uplink" on any port. On this particular switch i would use the last port because 1-8 are your PoE ports and you don't want to waste those on the uplink.

Is this and active POE or Passive POE?

The LINKSYS LGS124P 24-Port Business Gigabit PoE+ Switch supports PoE+ (IEEE 802.3at), which is an active PoE standard.

$260^.00

Free 30-day Returns

Limit 99999 per customer.

Make an offer

Ships from Hong Kong.

Price alert

Add to wish list

Sold by Tom & Jerry

Hot Seller

4.4 (135 seller ratings)

Shipped by Tom & Jerry

Best Sellers

BTE Outlet

3.5 (1,429 total ratings)

$784^.97
+ FREE SHIPPING

Meet Your Seller

Tom & Jerry

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of LINKSYS LGS124P 24-Port Business Gigabit PoE+ Switch

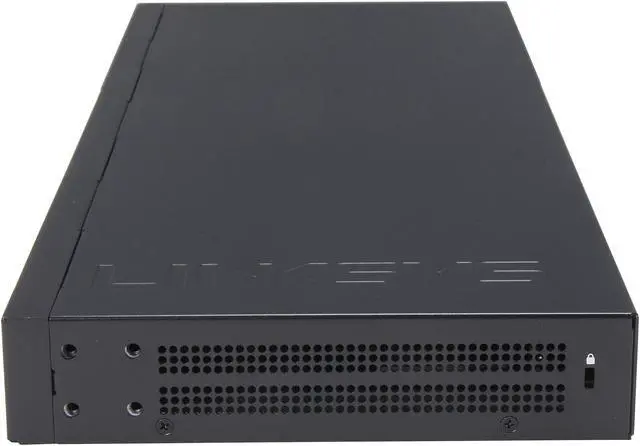

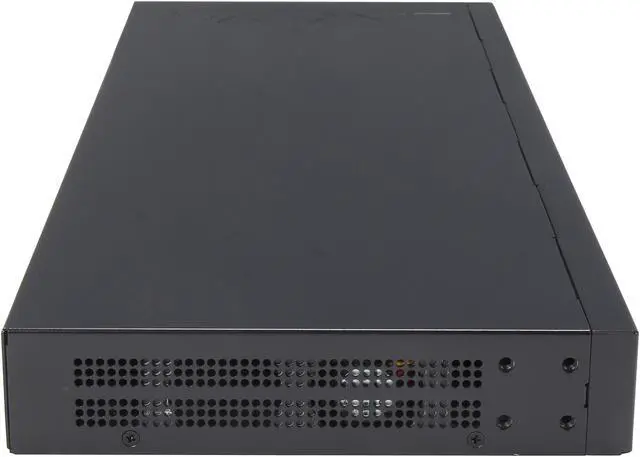

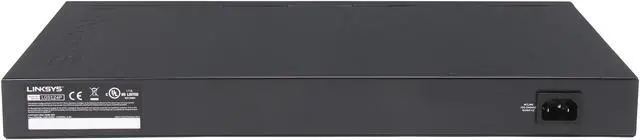

Alt view image 2 of 6 - LINKSYS LGS124P 24-Port Business Gigabit PoE+ Switch

Alt view image 3 of 6 - LINKSYS LGS124P 24-Port Business Gigabit PoE+ Switch

Alt view image 4 of 6 - LINKSYS LGS124P 24-Port Business Gigabit PoE+ Switch

Alt view image 5 of 6 - LINKSYS LGS124P 24-Port Business Gigabit PoE+ Switch

Alt view image 6 of 6 - LINKSYS LGS124P 24-Port Business Gigabit PoE+ Switch

Shop All Linksys Products | Visit Tom & Jerry Store

LINKSYS LGS124P 24-Port Business Gigabit PoE+ Switch

(9) Write a Review

Switch
Unmanaged
12 x 10/100/1000 (PoE+) + 12 x 10/100/1000
Rack-mountable
PoE+ (120 W)
AC 100/230 V

Overview

Specs

Reviews (9)

Any questions? Our AI beta will help you find out quickly.

Try me now

Linksys LGS124P 24-Port Business Gigabit POE+ Switch - 24-port switch with 12 PoE+ ports (ports 1-6 and 13-18) and dedicated PoE power budget of 120 W

Model
Brand	LINKSYS
Model	LGS124P

Format & Standards
Format	Rackmount
Standards	IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+)
Network Management Type	Unmanaged

Ports & Interface
Primary Ports	24 x RJ45 (1-6,13-18 PoE+)
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K

Details
Protocols	TCP/IP
PoE	Yes
LEDs	Link, speed, activity, and PoE indicators

Power Supply
Power	100~240VAC, 50/60Hz

Dimensions & Weight
Dimensions	17.32" x 7.87" x 1.73"
Weight	6.08 lbs.

Environmental
Temperature	0°C to 50°C (32°F to 122°F)
Humidity	10% - 90%, Non-condensing

Features
Features	Bandwidth: 48 Gbps (non-blocking) 24-ports switch with 12 PoE+ ports (ports 1-6 and 13-18) and dedicated PoE power budget of 120 W Internal Power Supply Enclosure Type: Metal Mounting: Rack mount 1 x Fan Power-Saving: Cable connected detection Sleep mode Quality of Service: 802.1p and DSCP Full line rate and forwarding rate of 64B frame at: 1.488 Mpps for 1000M port, 0.1488 Mpps for 100M port, 0.01488 Mpps for 10M port Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables

Packaging

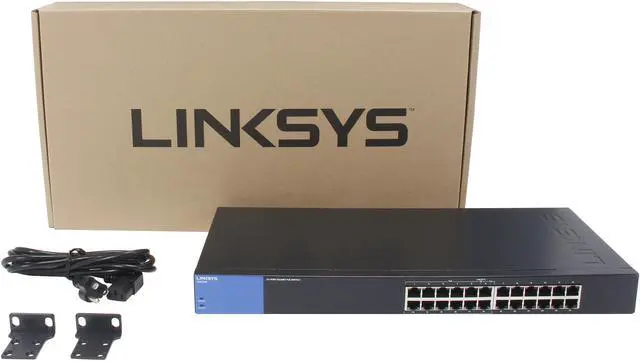

Package Contents	Linksys LGS124P 24-Port Gigabit Ethernet PoE Switch Power Adapter Quick Start Guide

Additional Information
First Listed on Newegg	October 31, 2022
