Question 1

Is this good for gaming?

Accepted Answer

Sorry I bought it for business not pleasure. It seems to run great though when throttling the cpu and memory to its max. The only downside (which probably doesn't matter if you're just gaming) is the PS only has a limited number of SATA lines so I had to buy another PS to support my multiple HDDs.

Question 2

Does it come with SSD drive bracket?

Accepted Answer

In addition to using the 3.5 adapter, you can mount the SSD directly onto the bottom of the case where it fits perfectly.  This is where I mounted my SSD.

Question 3

will it be able to run a gpu thats need 380w?

Accepted Answer

NO!

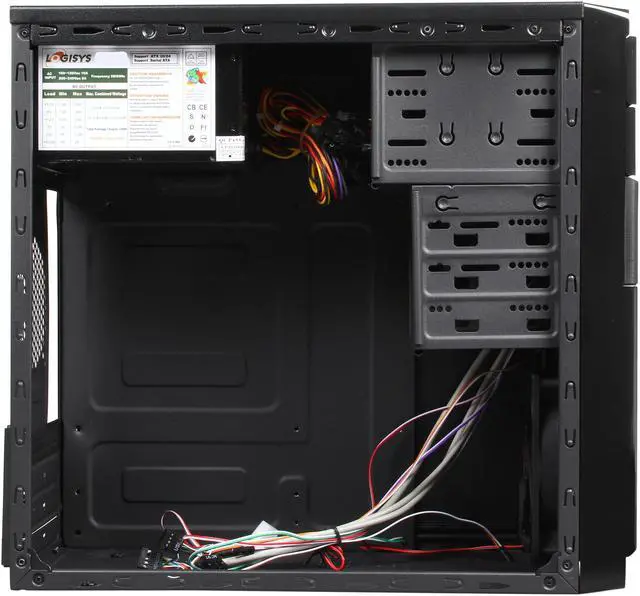

Look closely at the Power Supply in the images. The 12V rail is only capable of a maximum of 16A output! Let's convert the Amps to Watts where A(amps) x V(volts) = W(watts)

16A x 12V = 192W MAXIMUM 12V output.

The power supply in this case is a VERY outdated ATX standard. Modern power supplies do not supply more power to the 3.3V and 5V rails than the 12V rails - they're designed completely the opposite way.

Question 4

Confusing description. Is this a Micro ATX Tower Size or Mid Tower Size?

Accepted Answer

It is the Micro ATX Tower size.

Question 5

If I want to replace the ps, will I need a certain size? If so, what size?Does the case even allow for a different power supply?

Accepted Answer

I was going to max out mine before I even built it, so I replaced mine with a 780W and it worked just fine.  They are all pretty standard size, so you shouldn't have a problem putting a new one in place.

Question 6

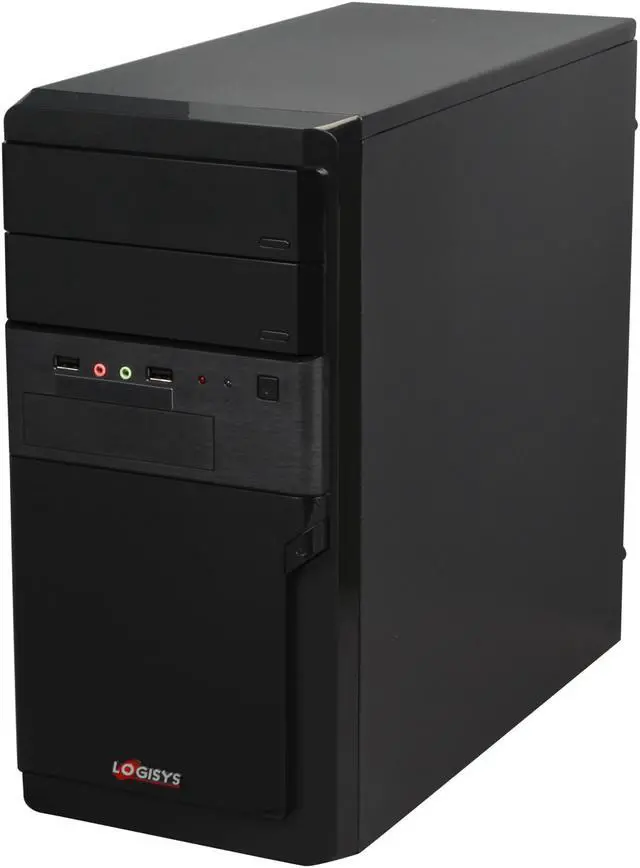

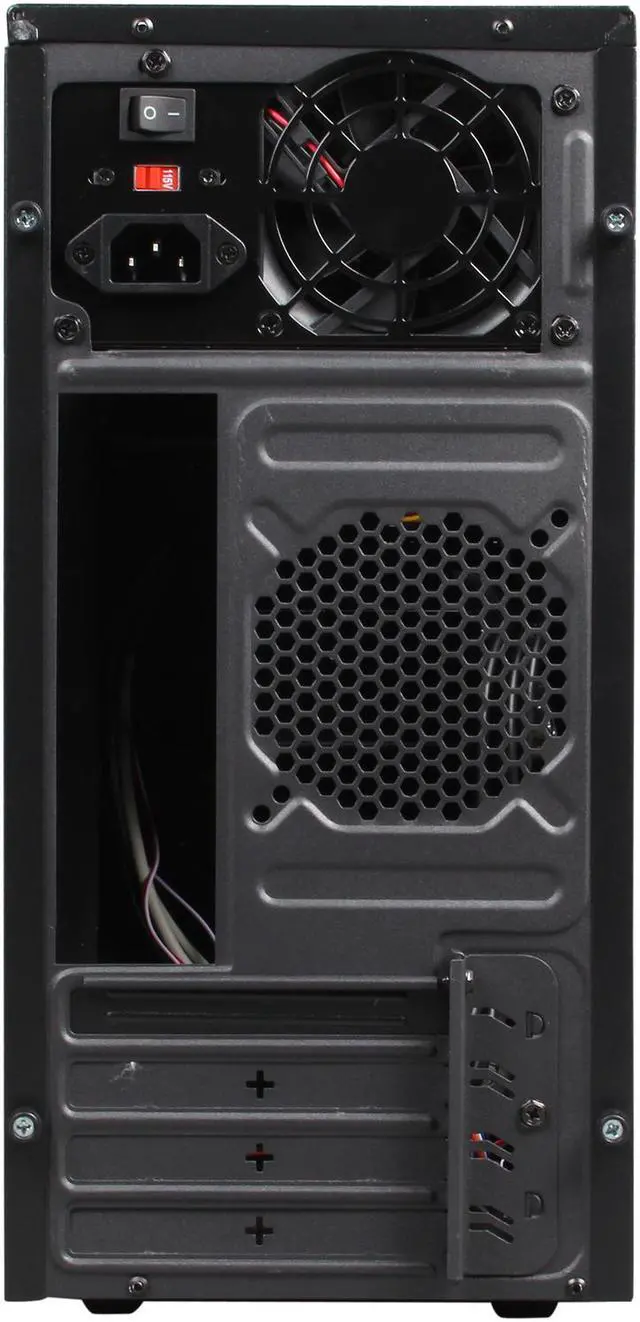

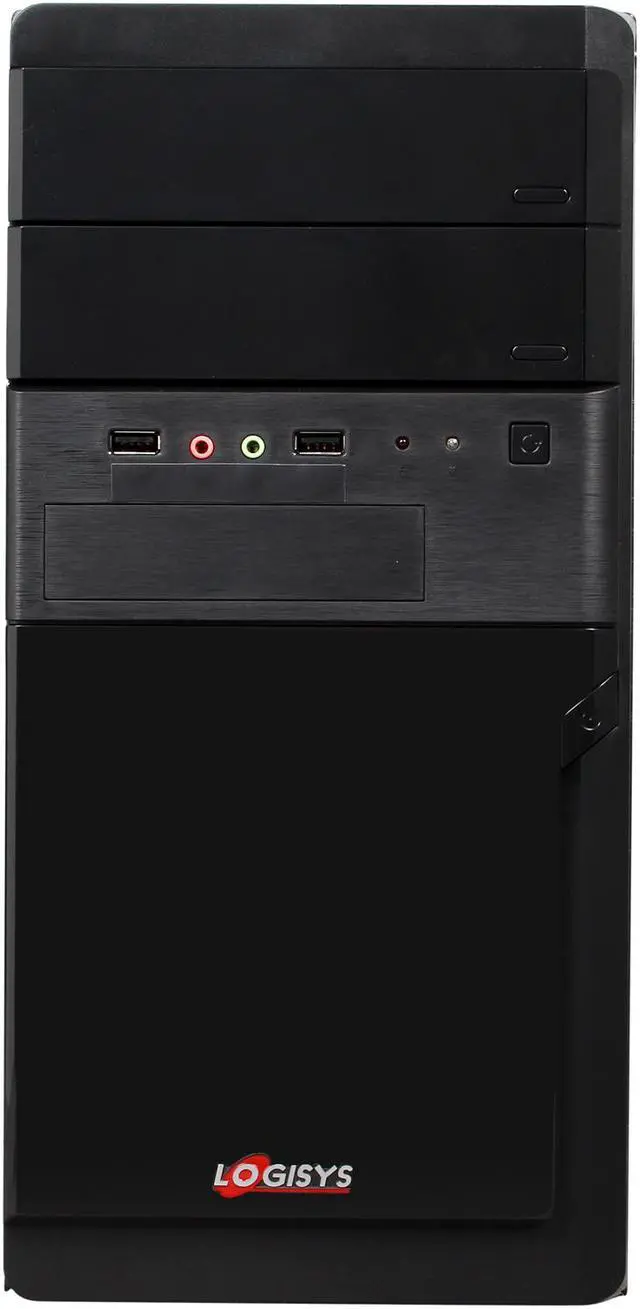

I see the two usb ports on the front panel.  Are there two also in the back?

Accepted Answer

My grandson built my new APU & the front USB ports work but the back ones don't.  I believe they need drivers. Anyway I was sitting here looking at the logisys case packaging box where it states two USB ports.  It doesn't say four.  Hence my dump question. So I guess the other two on the back are related to the motherboard.  Thanks for your input. I appreciate it.

Question 7

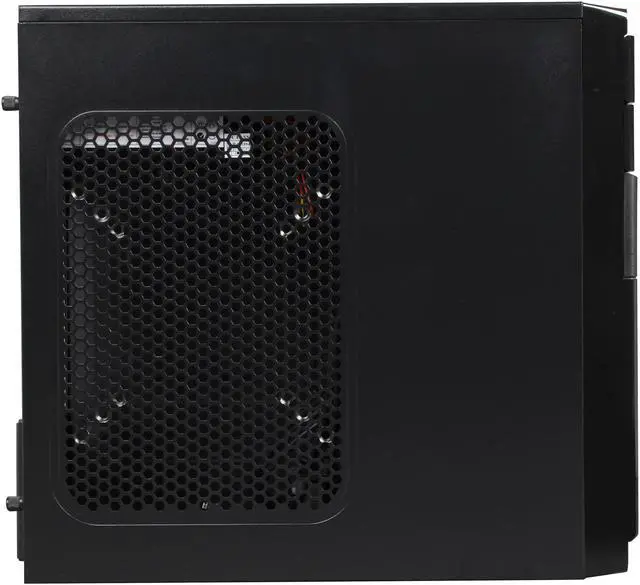

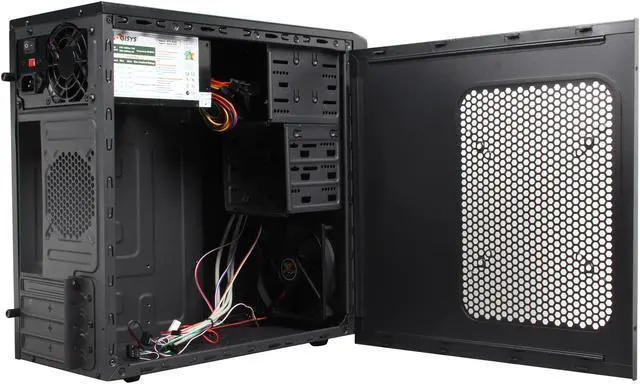

How do you get the right side panel off so you can install the disk drives? I removed the screws on the back like the left side but it acts like it is glued on.

Accepted Answer

Sometime paint on cases will fuse together due to heat. I've always found a slight slap of the hand toward the back in a dragging motion will dislodge the side panel effective.

Question 8

can it fit a mini itx motherboard?

Accepted Answer

it can. i used it for a mini itx. it is a mid size case though. you might want to look at something a bit better build. this is a full plastic face. and is pretty lame looking. i used it for a work station for my mom and it lasted a while.

...she broke it....lol had to get a new case with metal front. but it will come with motherboard rizers that you can move to different locations inside the case. and i will suggest never using the power supply that comes with a case. always buy third party with 80+ bronze certification.

Question 9

Can this case support two 3.5 Hard Disks in addition to a 2.5 SSD?

Accepted Answer

You can have two 3.5 hard disks in any mid-tower, but sometimes you need to use an inexpensive adapter for the second drive. The main issue with this case is that it has two dedicated mounting areas for 2.5 SSD's. There is one on the bottom of the case and a second one underneath where the card reader or other 3.5 component would go.

Question 10

Are the two usb ports usb 2 or 3? It says that they are usb 2 but on another site it says that the ports are usb 3.

Accepted Answer

2.0; other sites occasionally have other models with updated ports.

Brand	LOGISYS Computer
Model	CS136BK

Type	Micro ATX Mid Tower
Color	Black
Case Material	Aluminum / Steel
With Power Supply	480W
Power Supply	480W
Power Supply Mounted	Top
Motherboard Compatibility	Micro ATX
Side Panel	without Side Window

External 5.25" Drive Bays	2
External 3.5" Drive Bays	1
Internal 3.5" Drive Bays	3
Expansion Slots	4

Max GPU Length	229 mm
Max CPU Cooler Height	153 mm
Dimensions	14.25" x 6.80" x 15.00"
Weight	11.00 lbs.

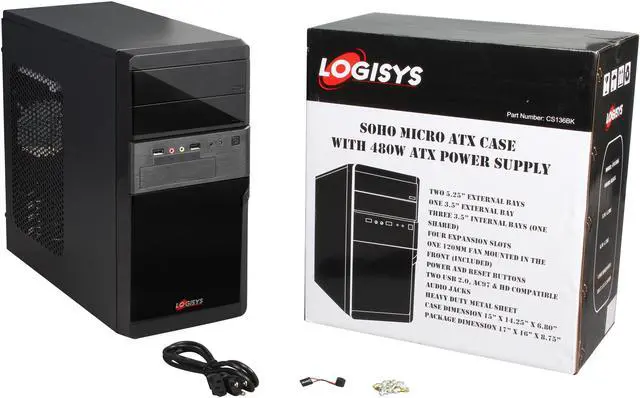

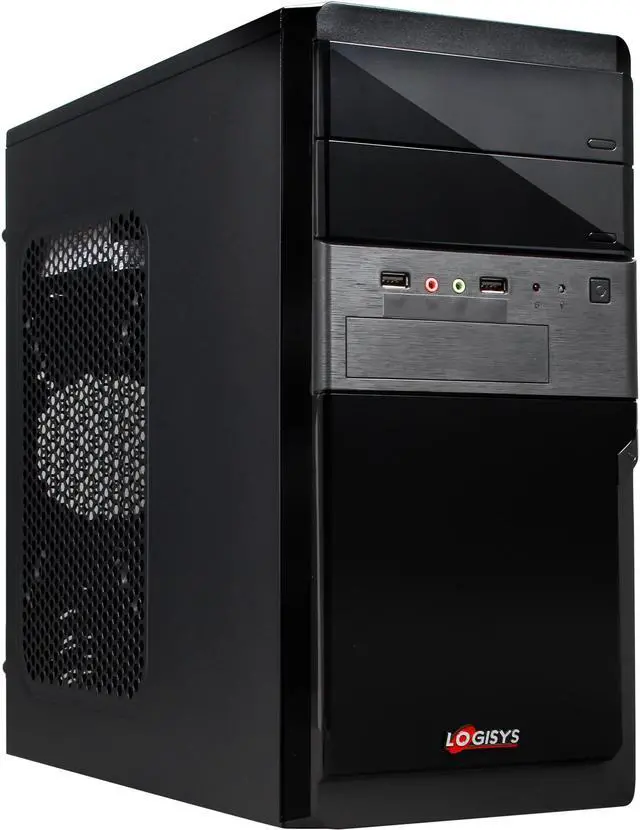

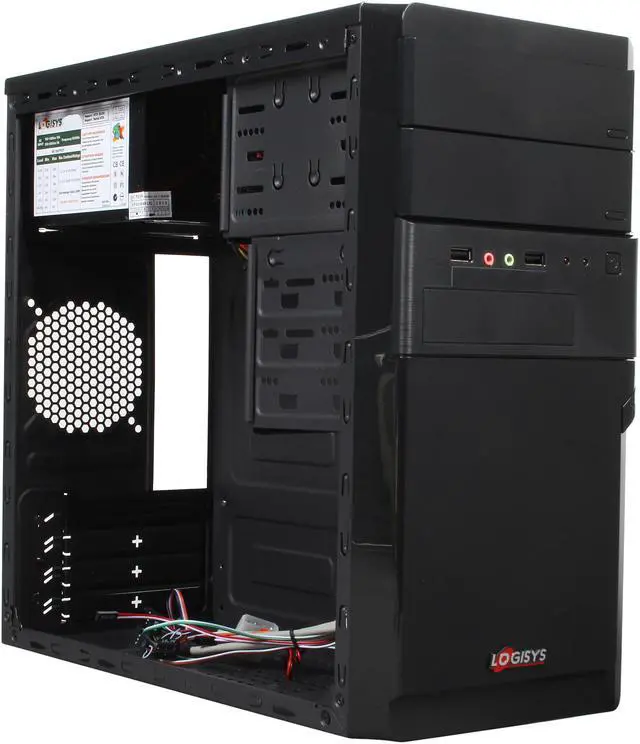

LOGISYS Computer CS136BK Micro ATX Computer Case with 480W Power Supply

LOGISYS Micro ATX Case for Your Home or Small Office!
