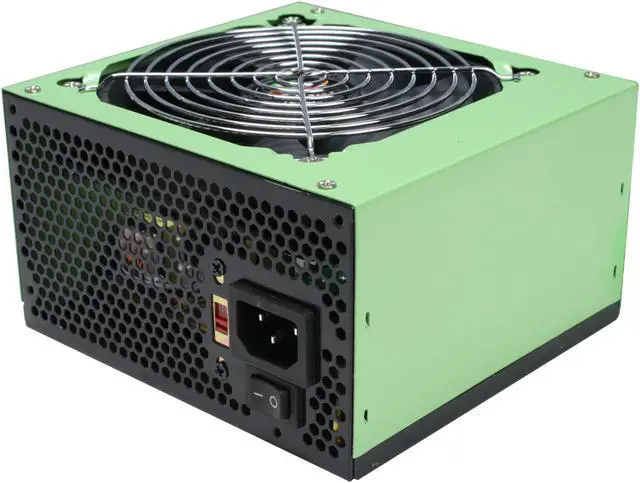

LOGISYS Computer PS650U12 650 W ATX12V / EPS12V SLI Ready CrossFire Ready Power Supply

Name: LOGISYS Computer PS650U12 650 W Power Supply
Brand: Logisys Computer
SKU: N82E16817170021
Rating: 3 (101 reviews)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (101)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Logisys Computer PS650U12

General
Brand	LOGISYS Computer
Model	PS650U12

Details
Type	ATX12V / EPS12V
Maximum Power	650 W
Fans	1

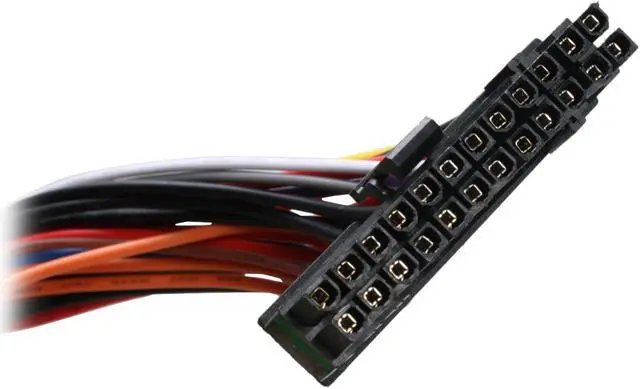

Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	2 x 6-Pin
SATA Power Connector	4
SLI	SLI Ready
CrossFire	CrossFire Ready
Modular	No
Over Voltage Protection	Yes

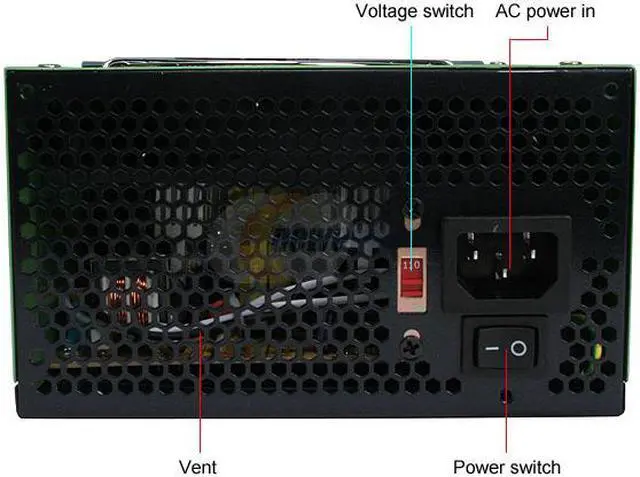

Input Voltage	100 - 120 V / 200 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10 / 5A

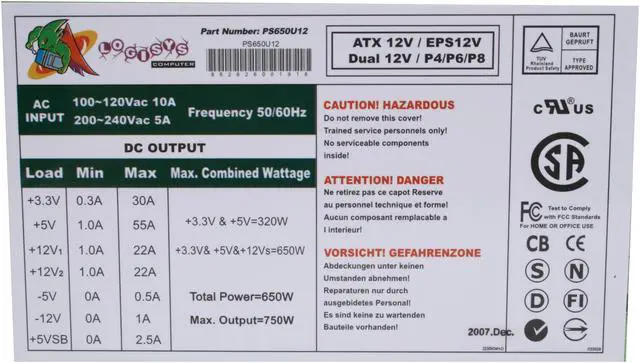

Output	+3.3V@30A,+5V@55A,+12V1@22A,+12V2@22A,[email protected],[email protected]
Approvals	cUL, CE, CB, TUV, FCC, CSA

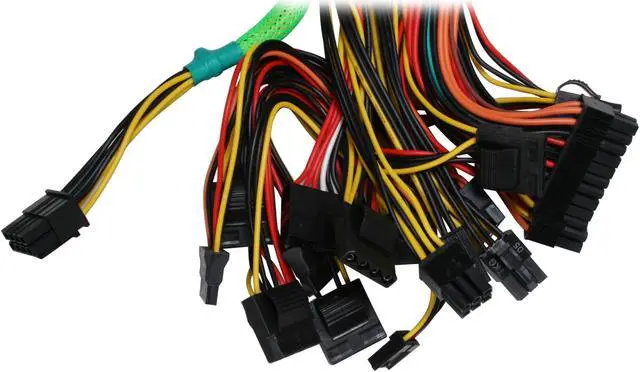

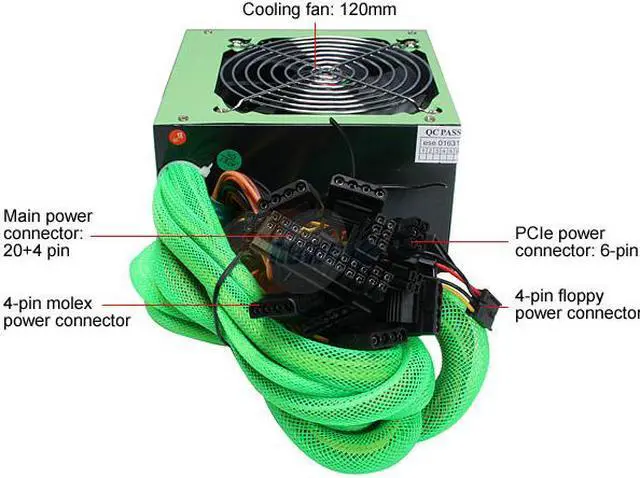

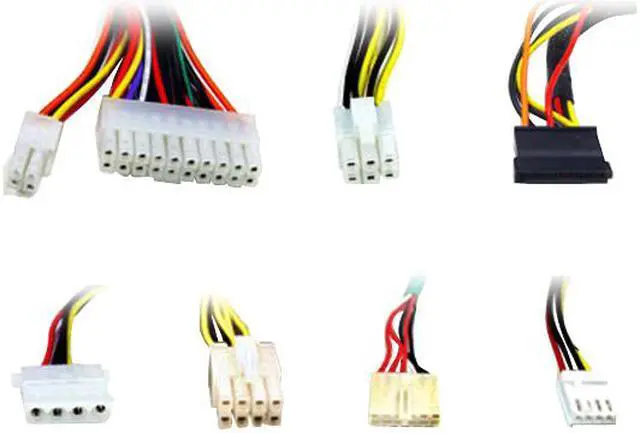

Connectors	1 x 24-Pin Mainboard (Approx. 500mm / 20") 1 x 8-Pin P8 (Approx. 500mm / 20") 1 x 4-Pin P4 (Approx. 500mm / 20") 2 x 6-Pin PCI Express (Approx. 500mm / 20") 4 x SATA (Approx. 500mm / 20") 6 x 4-Pin Molex (Approx. 500mm / 20") 1 x 6-Pin AUX (Approx. 500mm / 20") 2 x 4-Pin FDD (Approx. 500mm / 20")

Additional Information
First Listed on Newegg	January 23, 2008
