Lonely Binary 6-Pack UNO R3 ATmega328P USB-C Rainbow | Compatible with C++ & Python; 6 colors, ENIG; 16MHz, 32KB Flash; pre-soldered, 14 I/O + 6 analog; UNO shield compatible
- INDUSTRY-STANDARD ATMEGA328P MICROCONTROLLERPowered by the Microchip ATmega328P running at 16 MHz with 32KB Flash, 2KB SRAM, and 1KB EEPROM. Drop-in replacement for the UNO R3 with identical pin layout - your existing code, libraries, and shields work out of the box. Suitable for learning embedded programming, prototyping IoT devices, and building robotics projects.
- RAINBOW EDITION - SIX COLORS, ENIG FINISHSix boards in Black Gold, Red, Blue, Purple, Pink, and Yellow, each with ENIG (Electroless Nickel Immersion Gold) plating and high-contrast silk screen. Color-coded boards make it easy to organize student stations or separate parallel projects. Lead-free RoHS-compliant manufacturing.
- MODERN USB TYPE-C CONNECTIVITYReplaces the Type-B port with a reversible USB Type-C port for programming and power delivery. Plug in either way, using the same cable type as a phone or laptop. Includes one USB Type-C cable.
- PRE-SOLDERED HEADERS & STANDARD PINOUTShips with pre-soldered headers and silk-screened pin labels: 14 digital I/O pins (6 with PWM), 6 analog inputs, plus power rails (5V, 3.3V, GND, VIN). Identical footprint to the UNO R3 - UNO R3 shields, sensor modules, and breadboard projects plug in directly with no adapters needed.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
"
Lonely Binary 6-Pack UNO R3 Development Board Rainbow Edition, ATmega328P with USB Type-C, Compatible with C++
This six-board set combines the Microchip ATmega328P microcontroller and full UNO R3 pin compatibility with USB Type-C connectivity, ENIG PCB finishes, and lead-free RoHS-compliant construction. The six color variants make it easy to organize student stations or separate parallel projects in a lab or workshop.

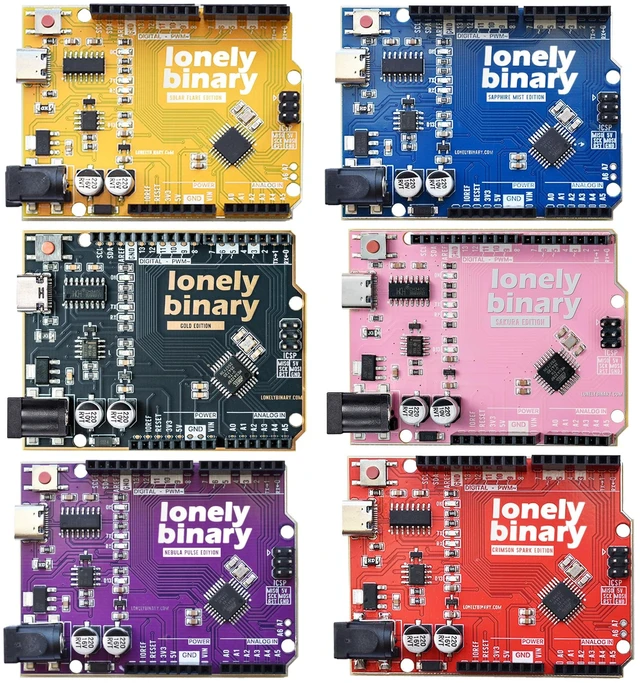

Six Colors Included

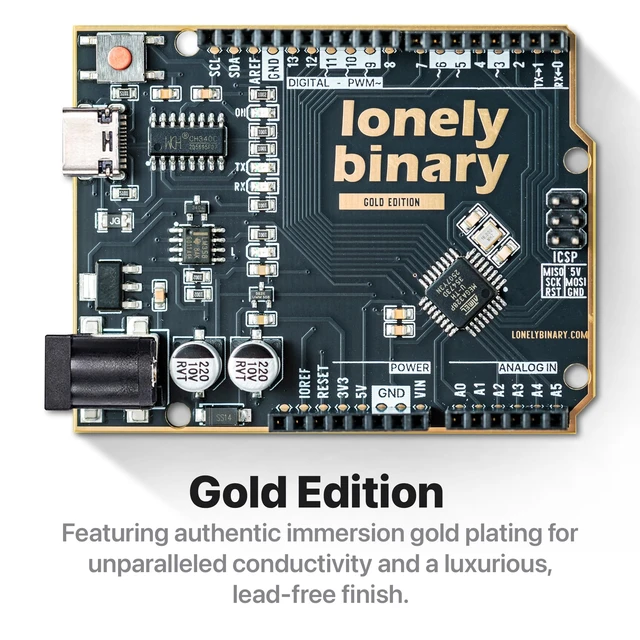

- Black Gold

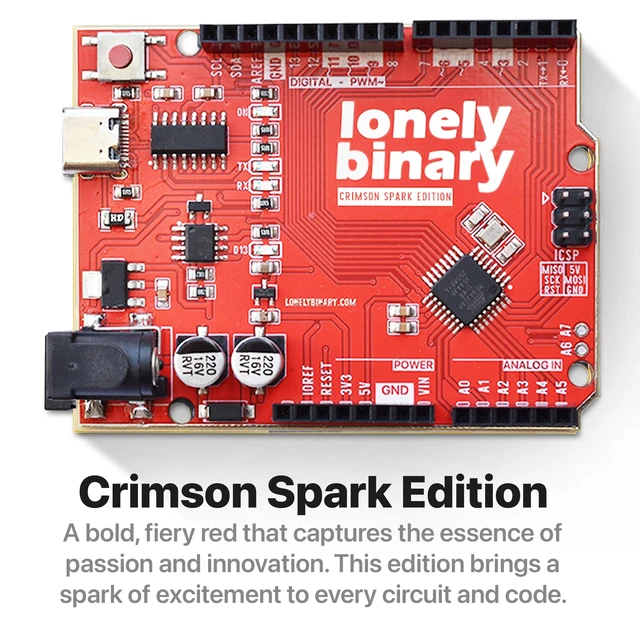

- Red

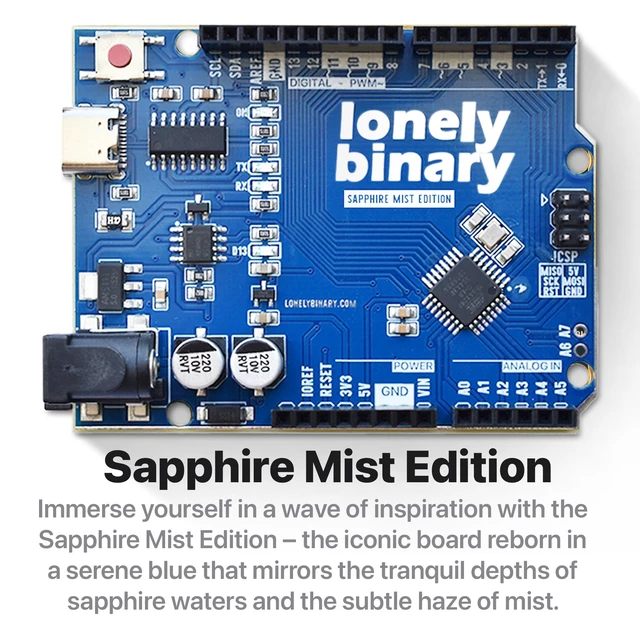

- Blue

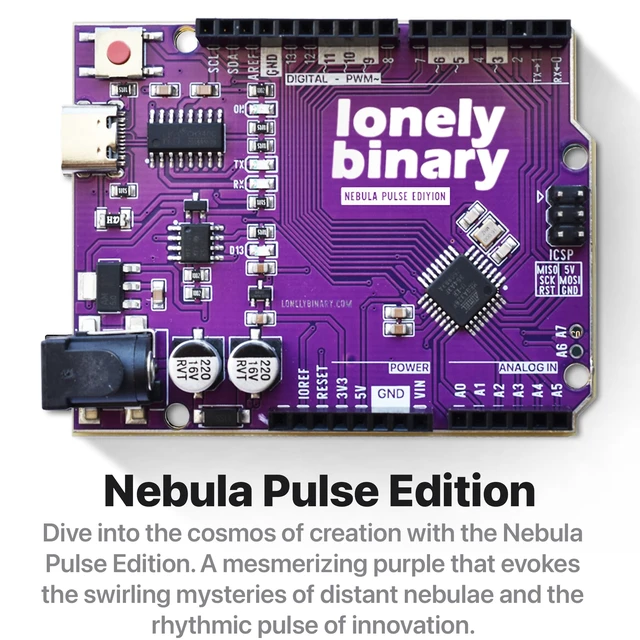

- Purple

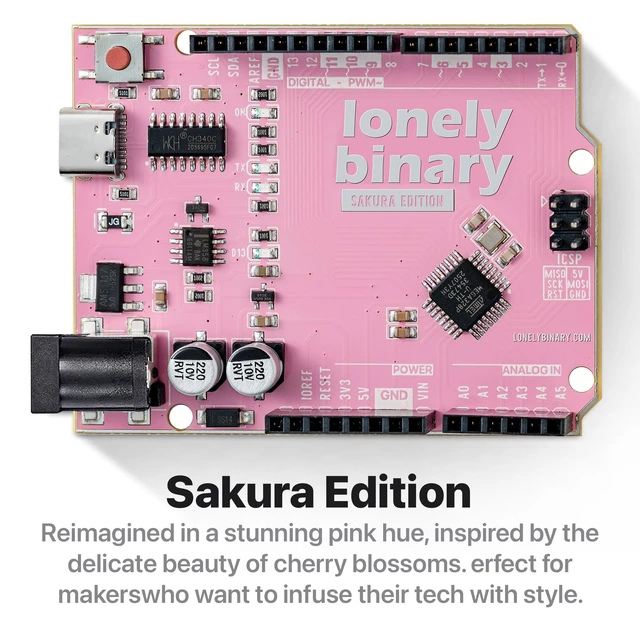

- Pink

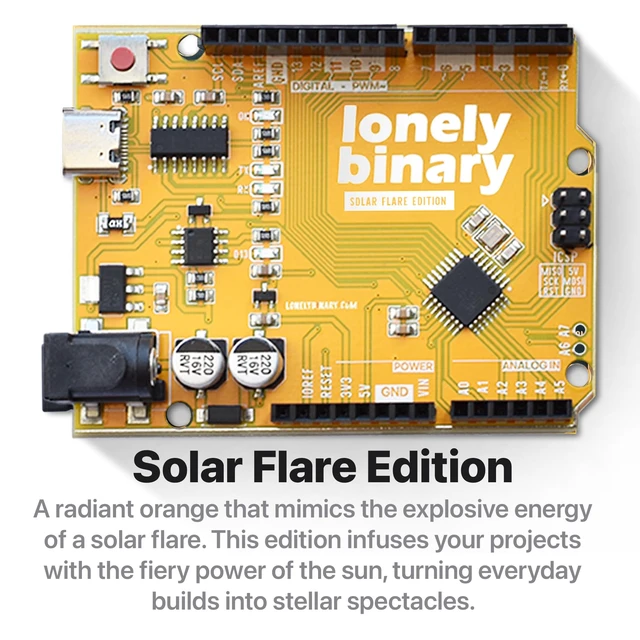

- Yellow
Features
- Six color-coded boards with ENIG finish improved oxidation resistance compared to HASL, with high-contrast silk screen for readable pin labels
- USB Type-C connector uses a reversible USB-C cable (one cable included)
- Lead-free, RoHS-compliantmanufacturing
- Pre-soldered headers ready for breadboard or shield use out of the box
- Color organization assign colors to student stations or separate concurrent projects
UNO R3 Compatibility
Each board uses the same pin layout, microcontroller, and bootloader as the UNO R3:
- Compatible with UNO shields (Motor Shield, Ethernet Shield, LCD Shield, sensor shields, and more)
- Works with C++ example sketches
- Pin numbering (D0-D13, A0-A5) matches C++ libraries and projects
Technical Specifications (Per Board)
- Microcontroller:Microchip ATmega328P
- Clock Speed:16 MHz
- Operating Voltage:5V (logic level)
- Input Voltage (USB):5V via USB Type-C
- Input Voltage (VIN):7V 12V recommended
- Digital I/O Pins:14 (6 provide PWM output)
- Analog Input Pins:6 (A0 - A5, 10-bit resolution)
- DC Current per I/O Pin:20 mA
- DC Current for 3.3V Pin:50 mA
- Flash Memory:32 KB (0.5 KB used by bootloader)
- SRAM:2 KB
- EEPROM:1 KB
- USB Interface:USB Type-C with USB-to-Serial converter
- PCB Finish:ENIG, lead-free
- Dimensions:Standard UNO footprint (approximately 68.6mm x 53.4mm)
Applications
STEM education with color-coded student stations · C++ programming and embedded systems learning · IoT and sensor prototyping · Robotics with motor and servo control · Home automation · Maker workshops and hackathons · Replacing existing UNO boards
Getting Started
- Install the C++ on your computer
- Connect a board using the included USB Type-C cable
- Select ""UNO"" as the board type in the IDE
- Upload the Blink example sketch to confirm operation
What's in the Box
- 6 x UNO R3 Boards (Black Gold, Red, Blue, Purple, Pink, Yellow)
- 1 x USB Type-C cable
Important Notes
- Board I/O pins operate at 5V logic levels, the same as the UNO R3.
- On older Windows systems, a USB-Serial driver may need to be installed.
About Lonely Binary
Lonely Binary is an Australian-designed brand making electronics components and kits for makers, students, and educators. Each board is quality-checked before shipping with clear pin labeling.
"
