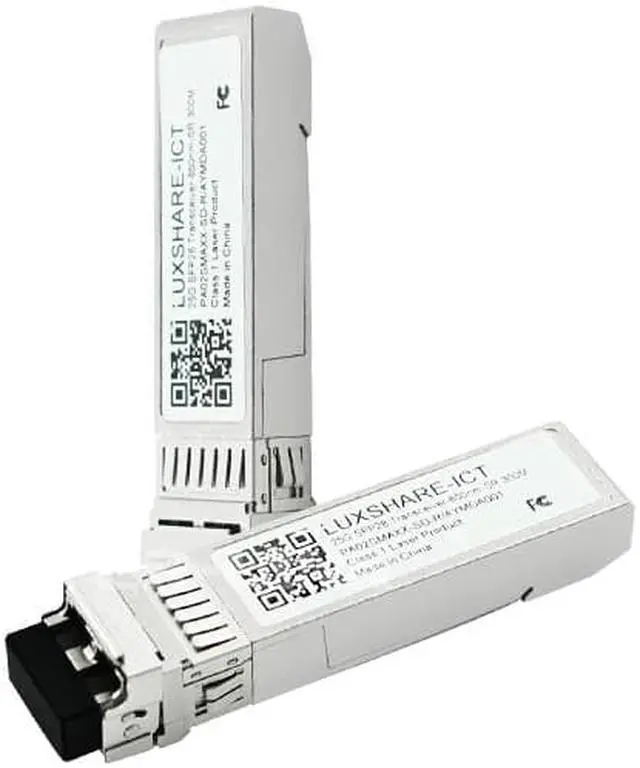

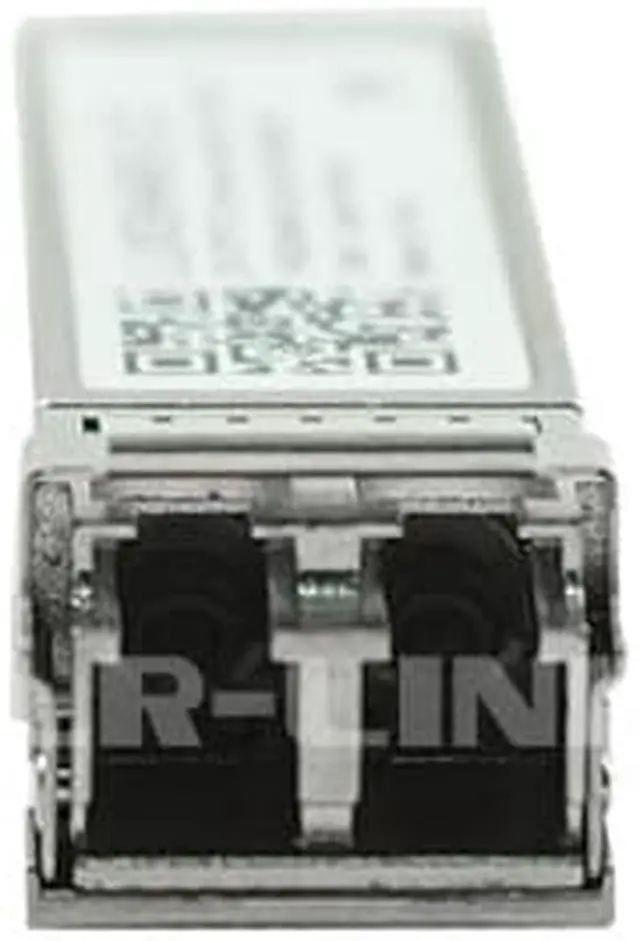

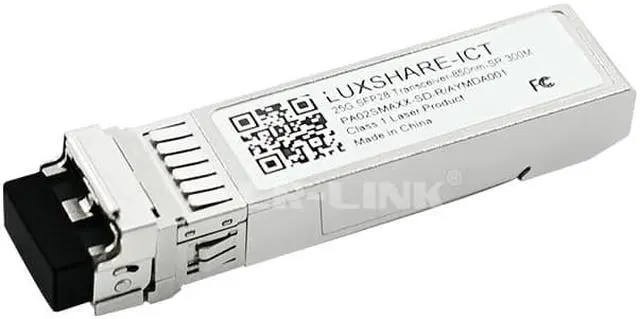

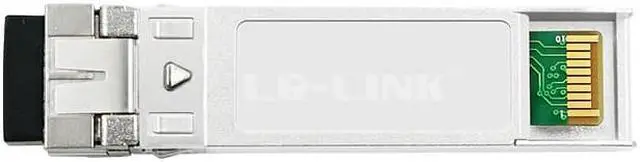

LRTP8525-X1ATL 25Gbps Multi-mode SFP28 Ethernet Fiber Optic Module Transceiver
- * Single power supply + 3.3V power supply;
- * Interoperability with IEEE 25GBASE-SR ;
- * Comply with IEEE 802.3by 25Gb/s standard;
- * SFF-8431 standard electrical interface;
- * 850nm VCSEL laser and PIN photodetector;
- * The transmission distance of OM3 MMF is 70 meters, and the
- transmission distance of OM4 MMF is 100 meters;
- * Digital diagnostic function can be used through I2C interface;
- * Support hot plug;
- * Bidirectional data link up to 25.78Gb/s;
- * Cost-effective SFP28 solution enables higher port density and higher bandwidth.
- * Commercial working temperature: 0 ~ + 70
- * Industrial working temperature: -40 ~ + 85
- * RoHS Compliant
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The LR-LINK 25 Gigabit Ethernet fiber optic module transceiver is available in a small SFP28 pluggable package for serial optical data communication. The module is designed as a Multi-mode MMF dual fiber with low-cost, High performance, and other features, using 850nm. Comply with IEEE 802.3 by 25Gb/s standard, support hot swap.
