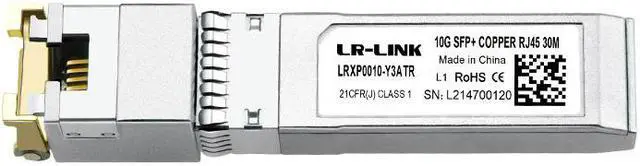

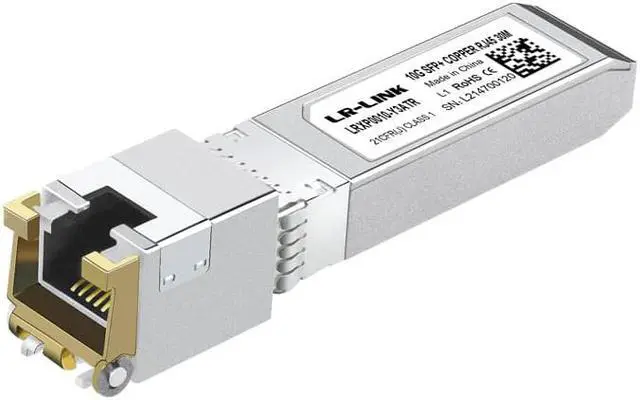

LRXP0010-Y3ATR 10GBASE-T Copper SFP+ Transceiver
- * Support 10Gbase-T/5Gbase-T/2.5Gbase-T/1000base-T/100base-Tx on line port;
- * Support 10Gbase-R / 5Gbase-R / 2.5Gbase-X / SGMII on host port;
- * Hot-pluggable SFP footprint;
- * Compact RJ-45 connector assembly;
- * RoHS compliant and lead-free;
- * Single +3.3V power supply;
- * 10 Gigabit Ethernet over Cat 6a cable;
- * Ambient Operating temperature: 0°C to +65°C;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LRXP0010-Y3ATR Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5G base-T / 1000base-T standards as specified in IEEE Std 802.3. LRXP0010-Y3ATR uses the SFP's RX_LOS (must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.
