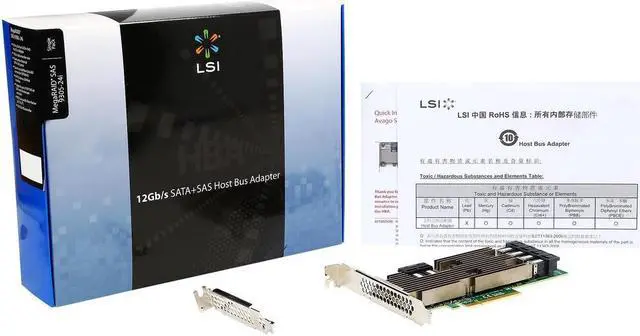

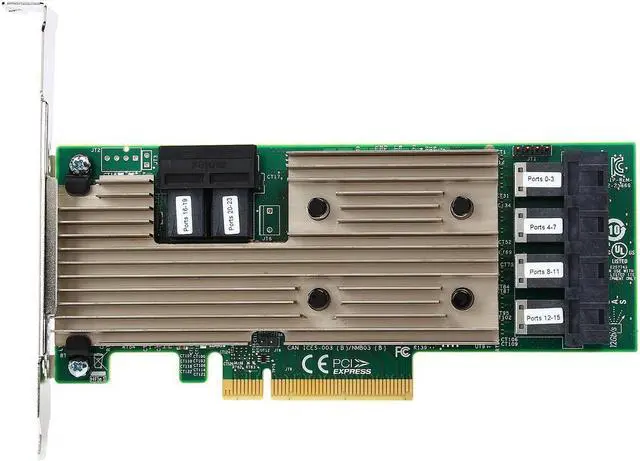

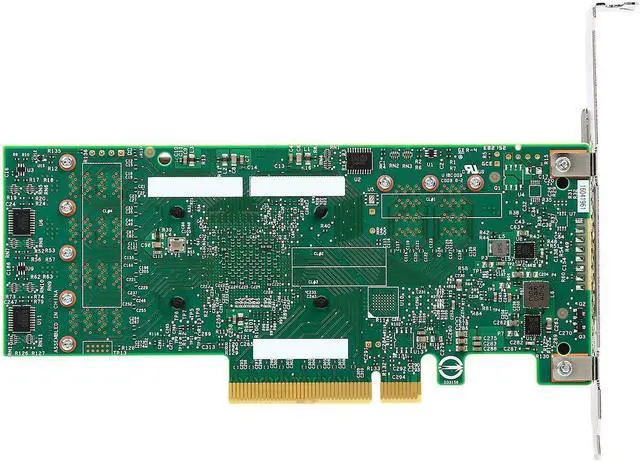

LSI 9305-24i x8 lane, PCIe 3.0 Full Height SAS SAS 9305 12 Gb/s SAS Host Bus Adapter
Learn more about the LSI 9305-24i
Model
Brand
LSI
Model
9305-24i
Part
05-25699-00
Form Factor
Full Height
Details
Type
SAS
External Connectors
24
Interface
x8 lane, PCIe 3.0
Transfer Rate
Up to 12Gb/s
Operating Systems Supported
Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix
Dimensions
2.70" x 6.60" (H x W)
Features
Features
Connectors: Mini-SAS HD SFF8643 Four (x6) Port Configurations: 24 ea, x1 ports (individual drives) 6ea, x4 wide ports 3 ea, x8 wide ports Cable Support: Passive Copper PCI Power (Nominal): 21W High performance with 12 Gb/s data transfer rates with full size form factor 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
Additional Information
Date First Available
July 20, 2025
