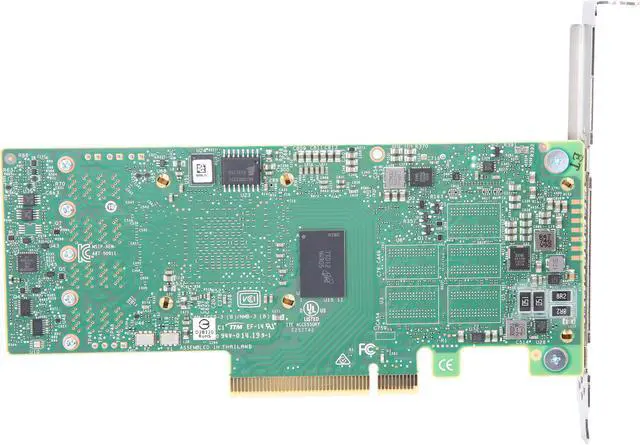

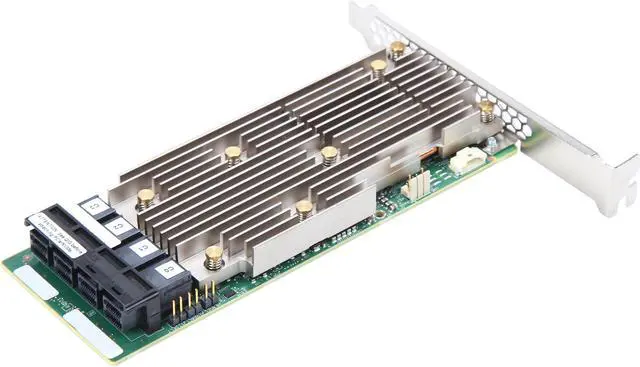

LSI MegaRAID 9400 9460-16i x8 lane PCI Express 3.1 SAS, SATA, PCIe (NVMe) Tri-Mode Storage Adapters

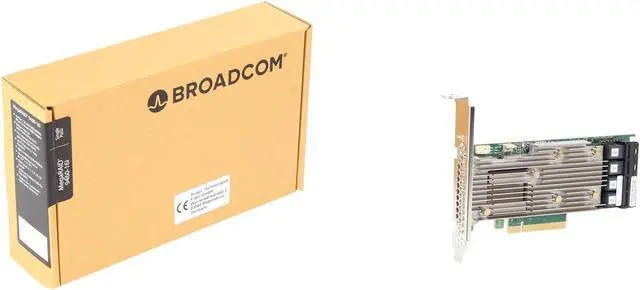

Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection, flexibility and performance today's applications and end users demand. The MegaRAID 9460-16i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of high-end server storage applications. Broadcom's Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility. Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors Support critical, high-bandwidth applications with PCIe® 3.1 connectivity Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60 Add more protection and peace of mind with CacheVault® flash cache protection Host Interface: PCI Express 3.1 x8 Package Contents: MegaRAID 9460-16i QIG LP Bracket Host Interface: PCI Express 3.1 x8 Product Type: SAS Controller Product Type: SAS Controller Manufacturer Part Number: 05-50011-00 Packaged Quantity: 1 Platform Supported: Linux Platform Supported: PC Limited Warranty: 3 Year Form Factor: Plug-in Card RAID Levels: JBOD RAID Levels: 60 RAID Levels: 50 RAID Levels: 10 RAID Levels: 6 RAID Levels: 5 RAID Levels: 1 RAID Levels: 0 Controller Type: 12Gb/s SAS Form Factor: Plug-in Card Manufacturer: LSI Logic Corp Product Model: 9460-16i Product Name: MegaRAID 9460-16i Product Line: MegaRAID RAID Levels: JBOD RAID Levels: 60 RAID Levels: 50 RAID Levels: 10 RAID Levels: 6 RAID Levels: 5 RAID Levels: 1 RAID Levels: 0 Controller Type: 12Gb/s SAS Brand Name: LSI Logic Brand Name: LSI Logic Height: 2.7 Width: 6.1 RAID Supported: Yes Total Number of SAS Ports: 16 SAS Connector Details: 4 SFF-8643 Environmentally Friendly: Yes Environmental Certification: WEEE Environmental Certification: RoHS RAID Supported: Yes Total Number of SAS Ports: 16 Number of SAS Ports (Internal): 16 SAS Connector Details: 4 SFF-8643 Cache Memory: 4 GB
