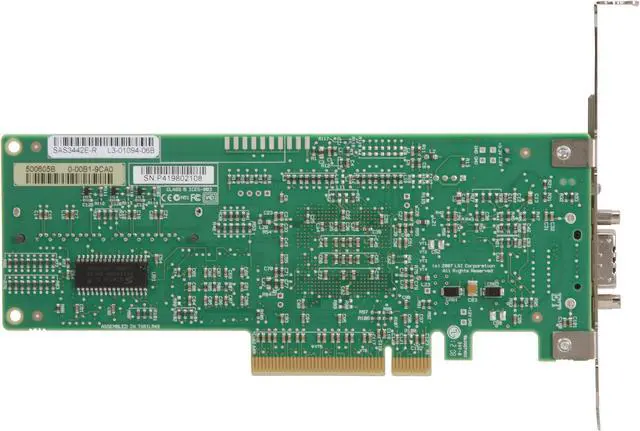

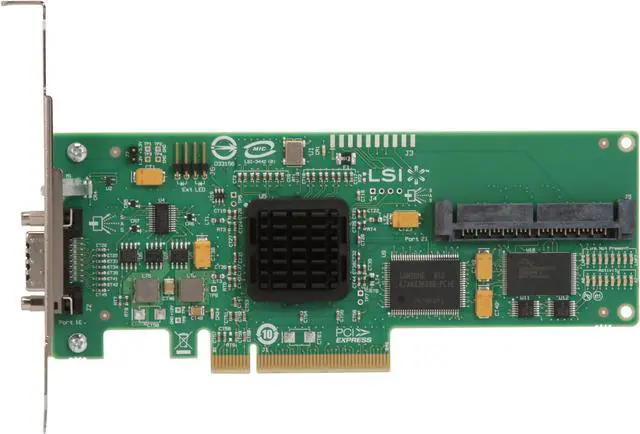

LSI SAS3442E-R PCI Express SATA / SAS Controller Card Single Pack

Specs

Reviews (4)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the LSI SAS3442E-R

Model
Brand	LSI
Model	SAS3442E-R

Details
Type	SATA / SAS

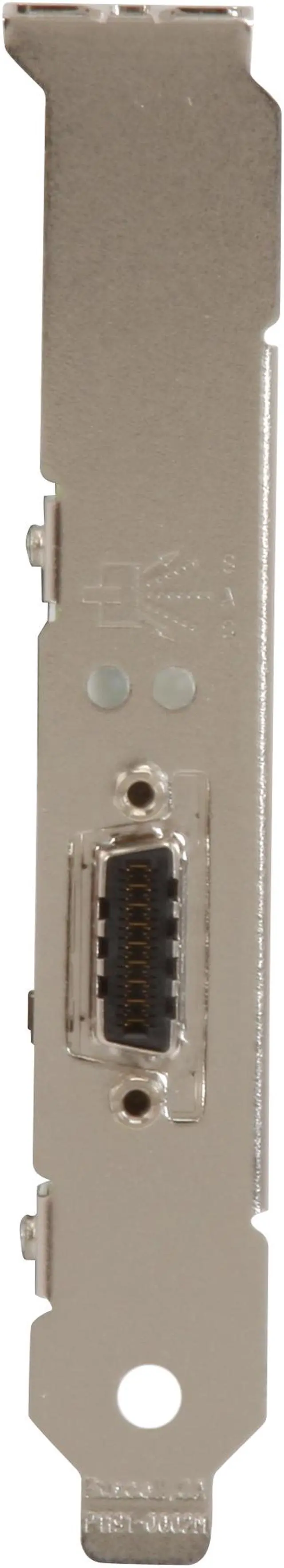

External Connectors	x4 SFF-8470
Internal Connectors	x4 SFF-8484
Interface	PCI Express
Transfer Rate	3Gb/s per port
RAID	RAID 0/1/1E/10E
Operating Systems Supported	Microsoft Windows 2000, Server 2003 32-bit and 64-bit (x86 and AMD64), XP Red Hat Linux RHEL 3 Novell NetWare 5.1 and 6.5 SuSE Linux/SLES Sun SPARC Solaris 2.6 thru 2.10
Dimensions	6.6" x 2.5" (MD2 Low-Profile)

Features
Features	x4 internal SFF-8484 / x4 external SFF-8470 connectors 8-lane 2.5 Gb/s PCI Express MD-2 small form-factor design Connects to both SAS and SATA HDDs and tape drives Allows more than 122 total end-point devices Fusion-MPT architecture provides more than 140,000 I/Os per second Supports all major operating systems Integrated RAID avoids additional host CPU overhead Flexible SAS/SATA array architecture optimizes cost SAS/SATA interconnect proven through robust LSI serial technology Speed: 3Gb/s per port combines to 2.4 GB/s full duplex speed

Package Contents
Package Contents	LSI SAS3442E-R HBA, driver CD, low-profile bracket, and quick installation guide
