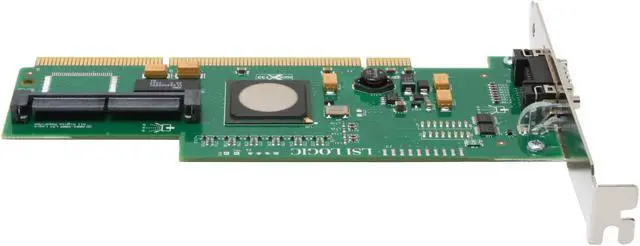

LSI LSI00100 PCI-X SATA / SAS SAS3442X-R KIT 3Gb/s 8-port IR
- RAID 0/1/1E/10E
- One SFF8470 SAS Connector Internal Connectors
- One SFF8484 SAS Connector External Connectors
- Half Duplex: Single lane – 300MB/s Wide port (2 lanes) – 600MB/s Wide port (3 lanes) – 900MB/s Wide port (4 lanes) – 1200MB/s Wide port (8 lanes) – 2400MB/s Full Duplex: Single SAS lane – 600MB/s Wide port (2 lanes) – 1200MB/s Wide port (4 lanes) – 2400MB/s
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the LSI LSI00100
| Brand | LSI |
|---|---|
| Model | LSI00100 |
| Type | SATA / SAS |
|---|---|
| External Connectors | One SFF8484 SAS Connector |
| Internal Connectors | One SFF8470 SAS Connector |
| Interface | PCI-X |
| Transfer Rate | Half Duplex: Single lane – 300MB/s Wide port (2 lanes) – 600MB/s Wide port (3 lanes) – 900MB/s Wide port (4 lanes) – 1200MB/s Wide port (8 lanes) – 2400MB/s Full Duplex: Single SAS lane – 600MB/s Wide port (2 lanes) – 1200MB/s Wide port (4 lanes) – 2400MB/s |
| RAID | RAID 0/1/1E/10E |
| Operating Systems Supported | Microsoft Windows 2000, Server 2003 32-bit (x86 and AMD64), XP Red Hat Linux RHEL 3 Novell NetWare/SLES Sun SPARC Solaris 2.6 thru 2.10 |
| Dimensions | 6.6" x 2.5" |
| Features | 3Gbps per port x4 Internal SFF-8484/x4 external SFF-8470 connectors MD-2 small form-factor design Connects to both SAS and SATA HDDs and tape drives Allows more than 122 total end-point devices Fusion-MPT architecture providing over 140,000 I/Os per second Supports all major OSes Integrated RAID avoids additional host CPU overhead Flexible SAS/SATA array architecture optimizes cost SAS/SATA interconnect proven through LSI's robust serial technology Speed: with 3Gb/s per port, combines to 4.8Gb/s full duplex speed Complete Solution: kit includes all necessary cables and brackets Market Leader: LSI Logic SAS powers 80% of SAS worldwide |
|---|

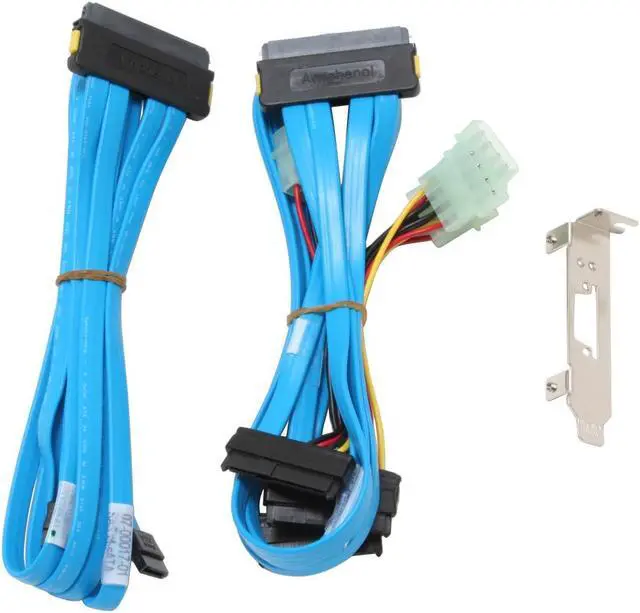

| Package Contents | SAS3442X-R Card, driver CD, low-profile bracket, (1) x4 SATA Cables, (1) x4 SATA/SAS Cables, and Installation Guide |
|---|
| First Listed on Newegg | October 16, 2016 |
|---|
