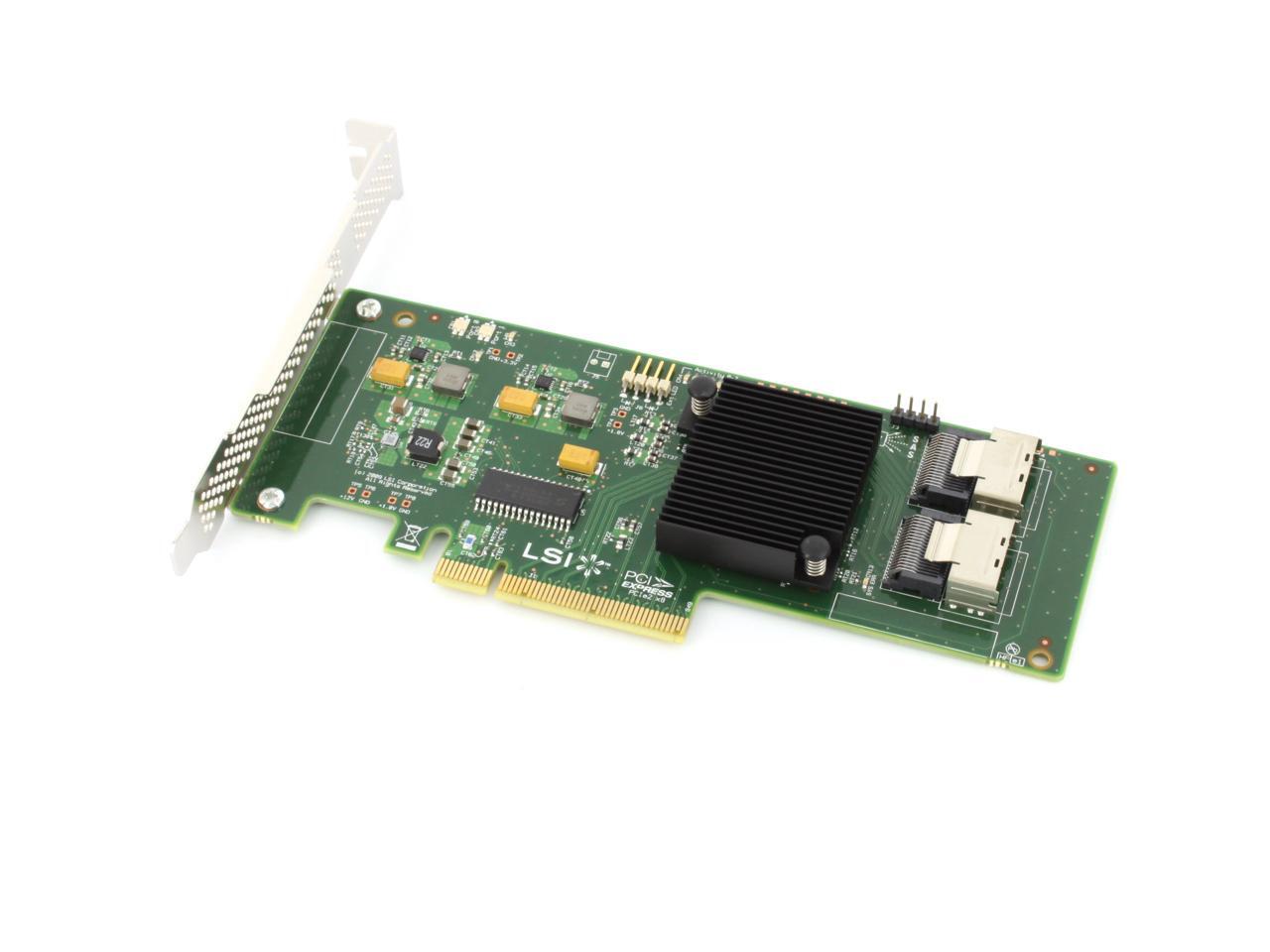

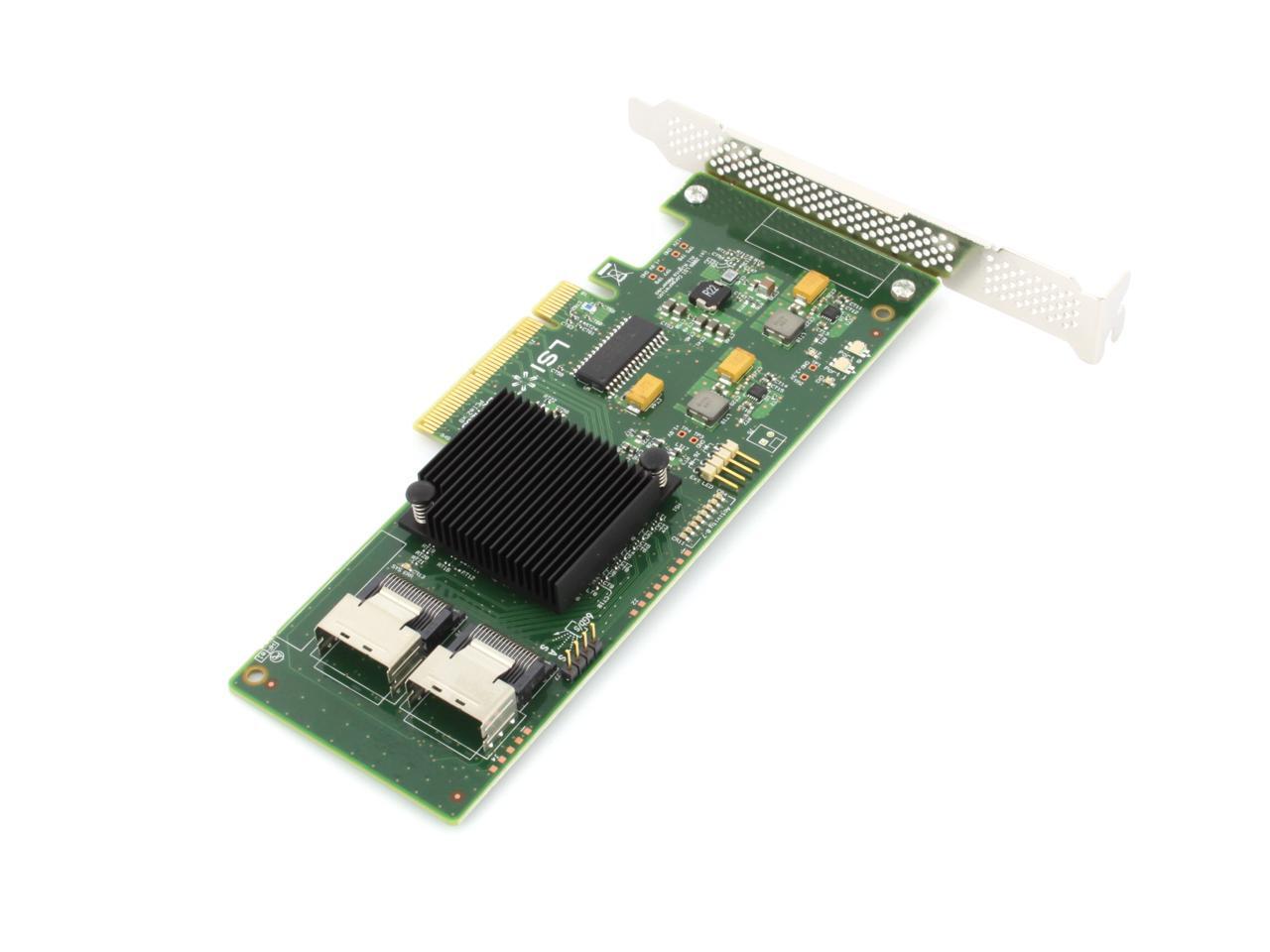

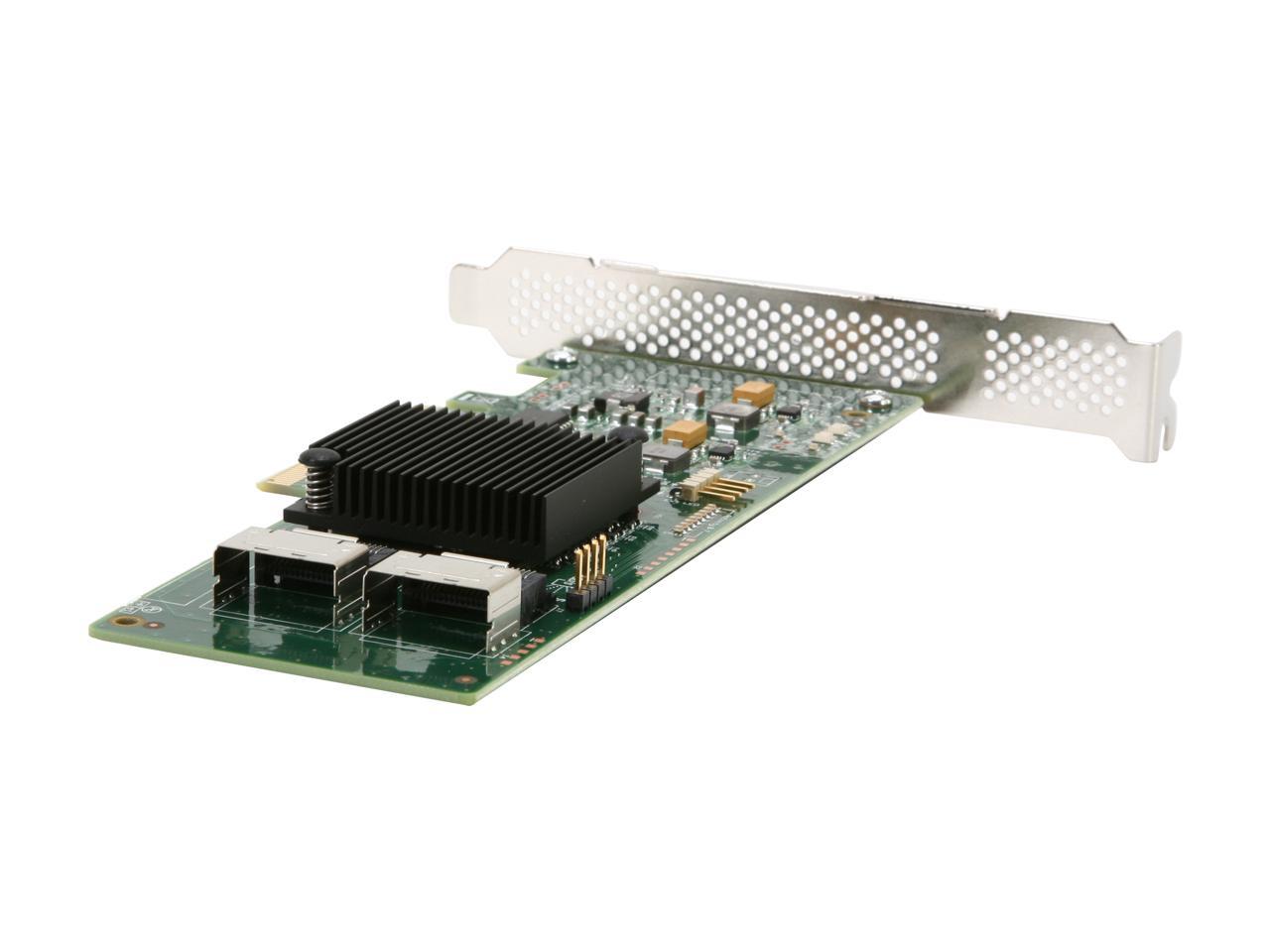

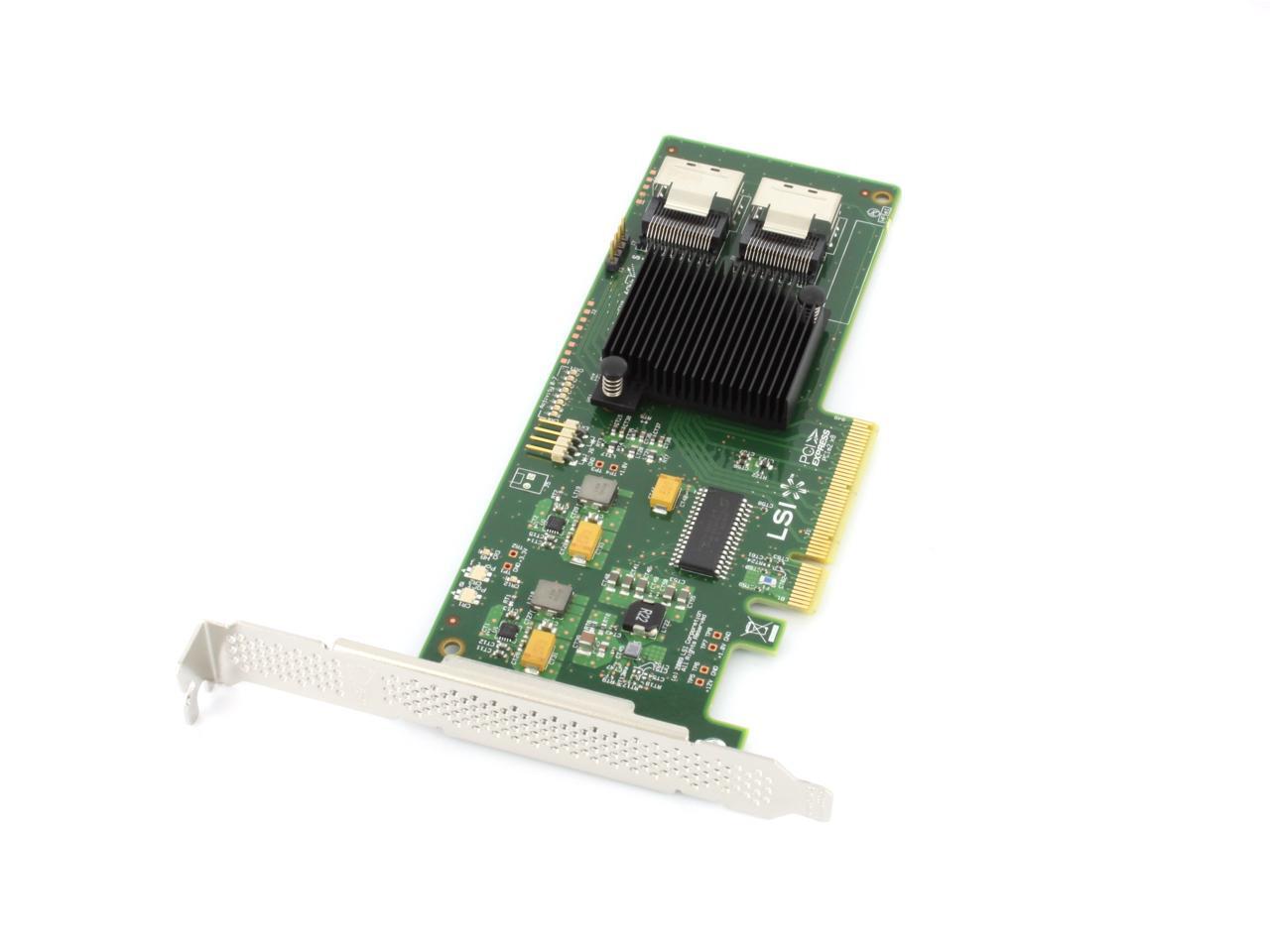

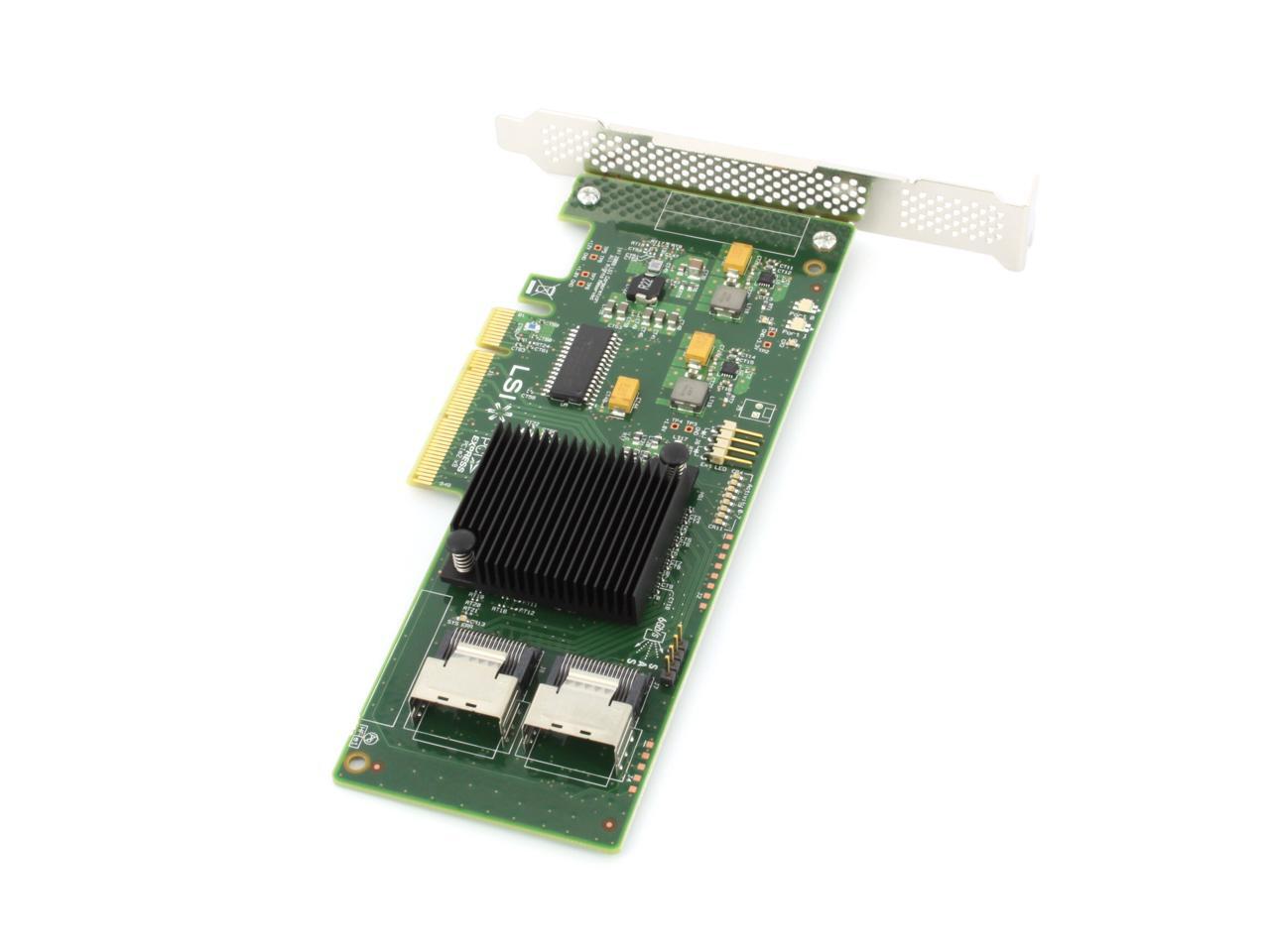

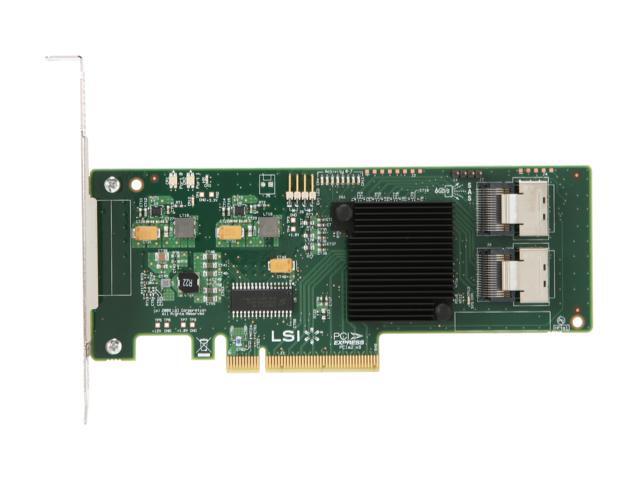

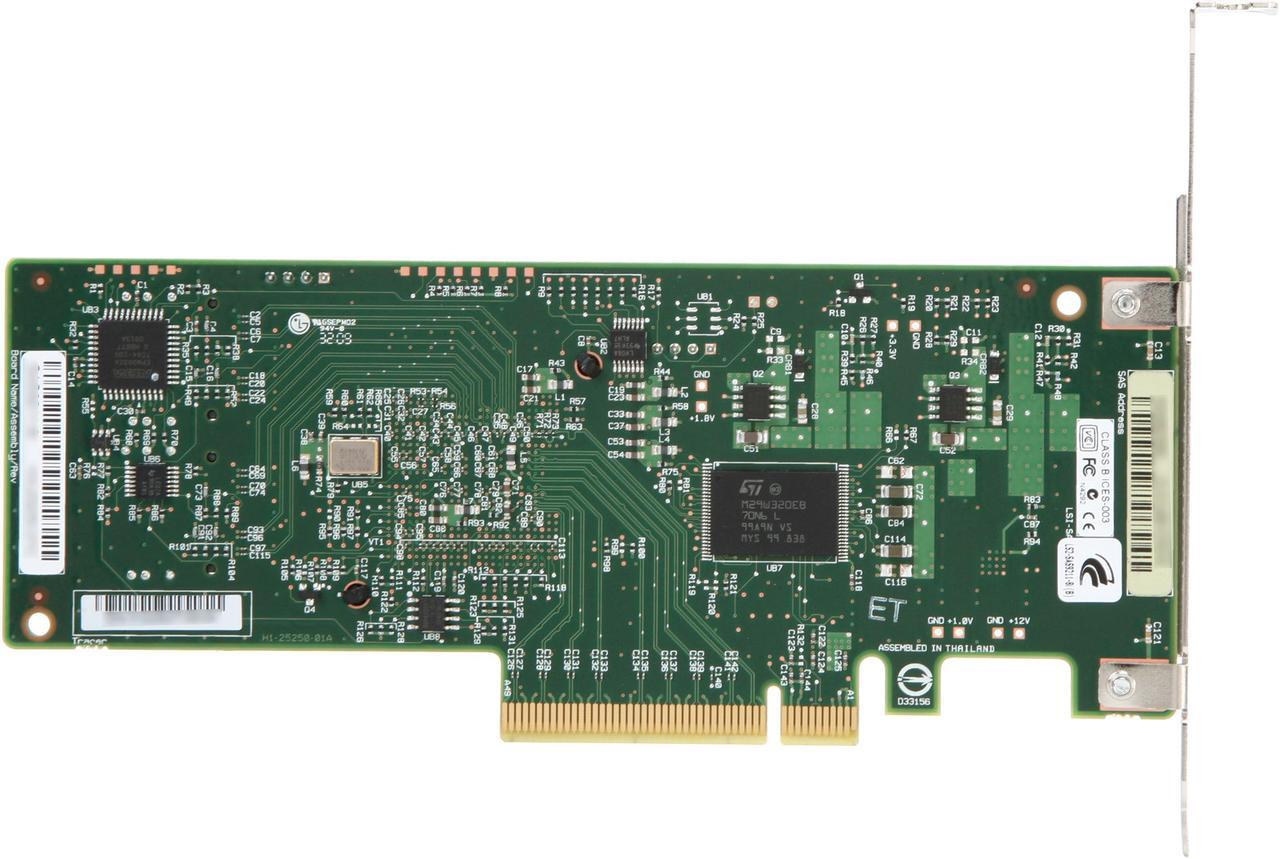

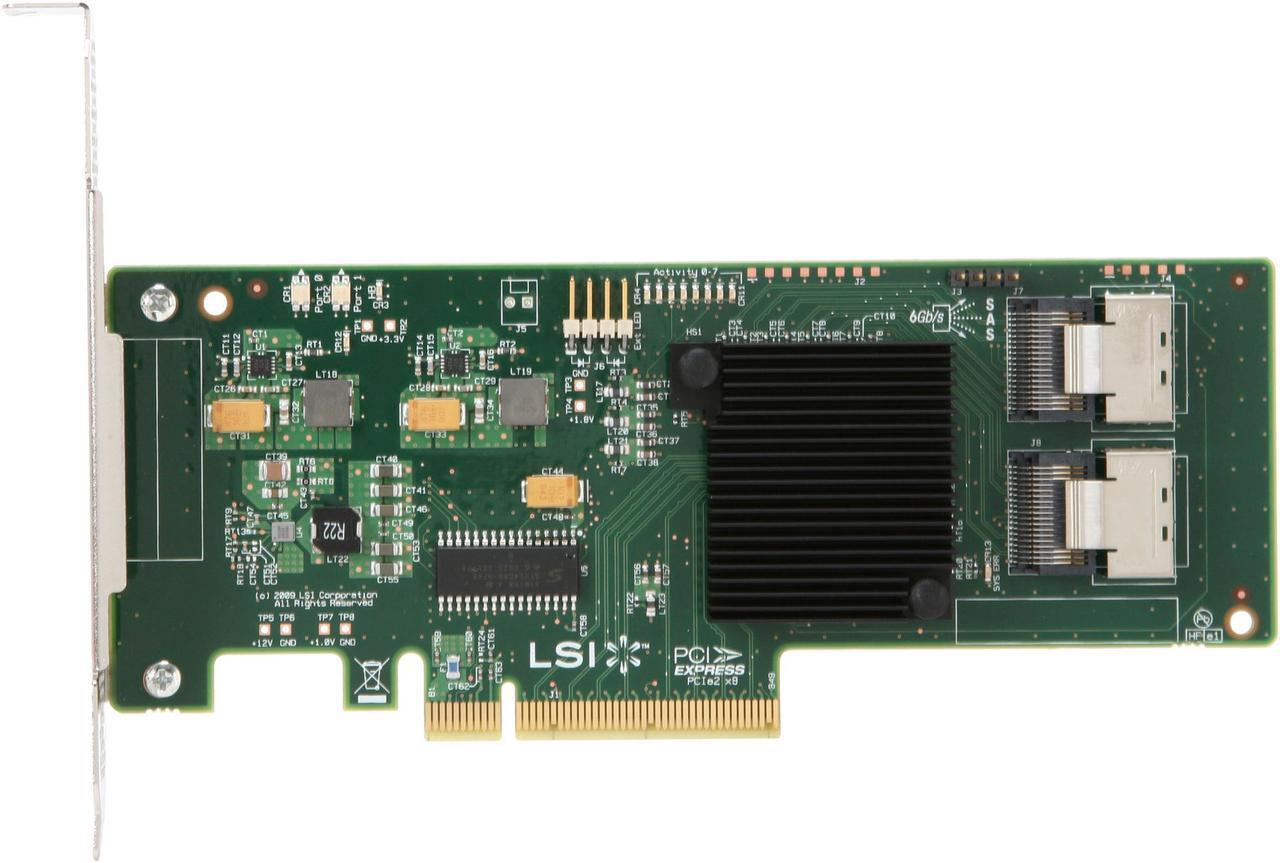

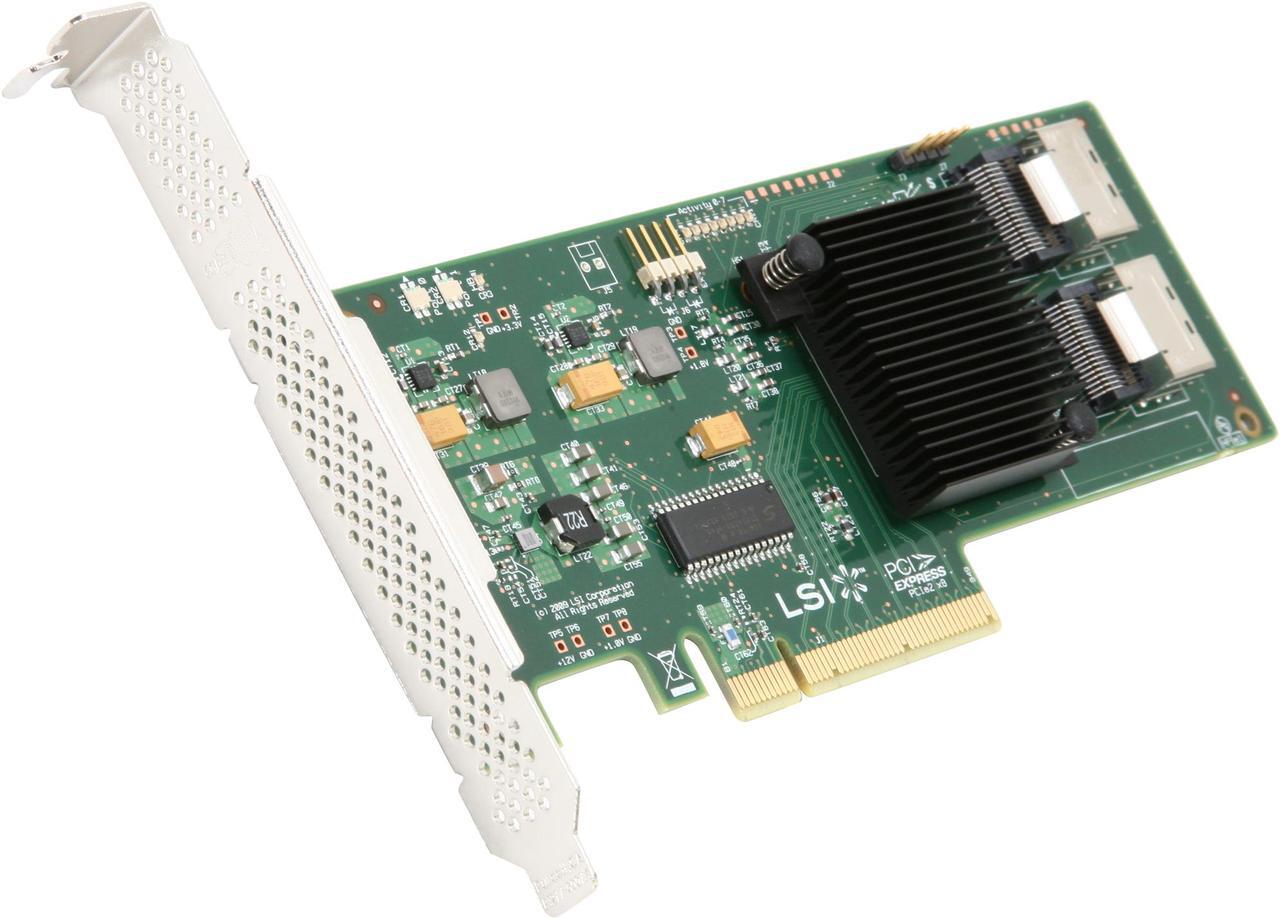

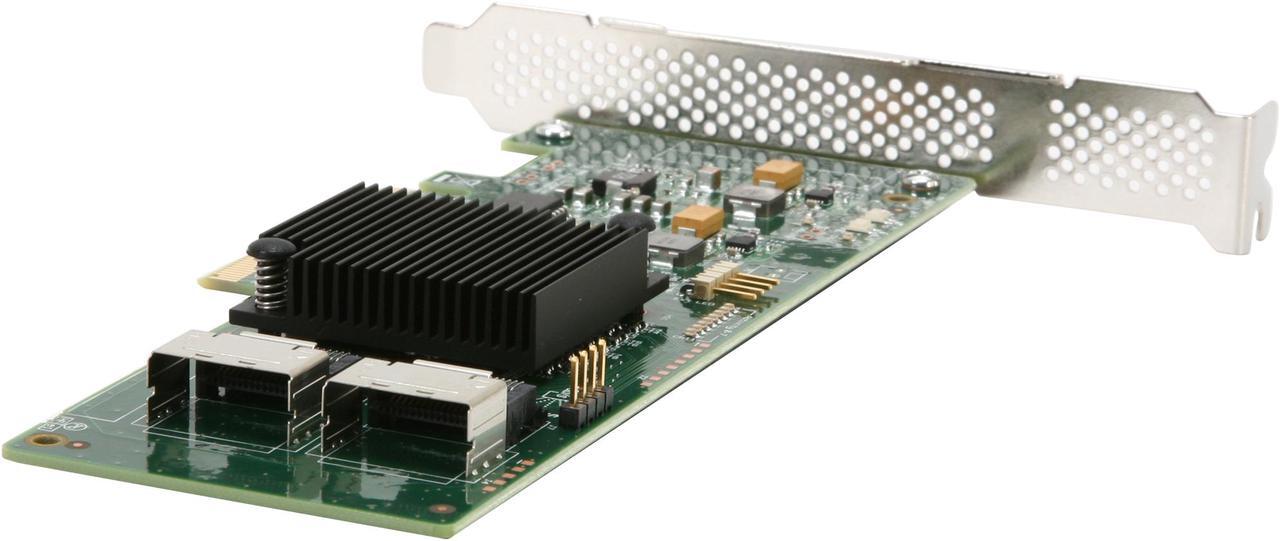

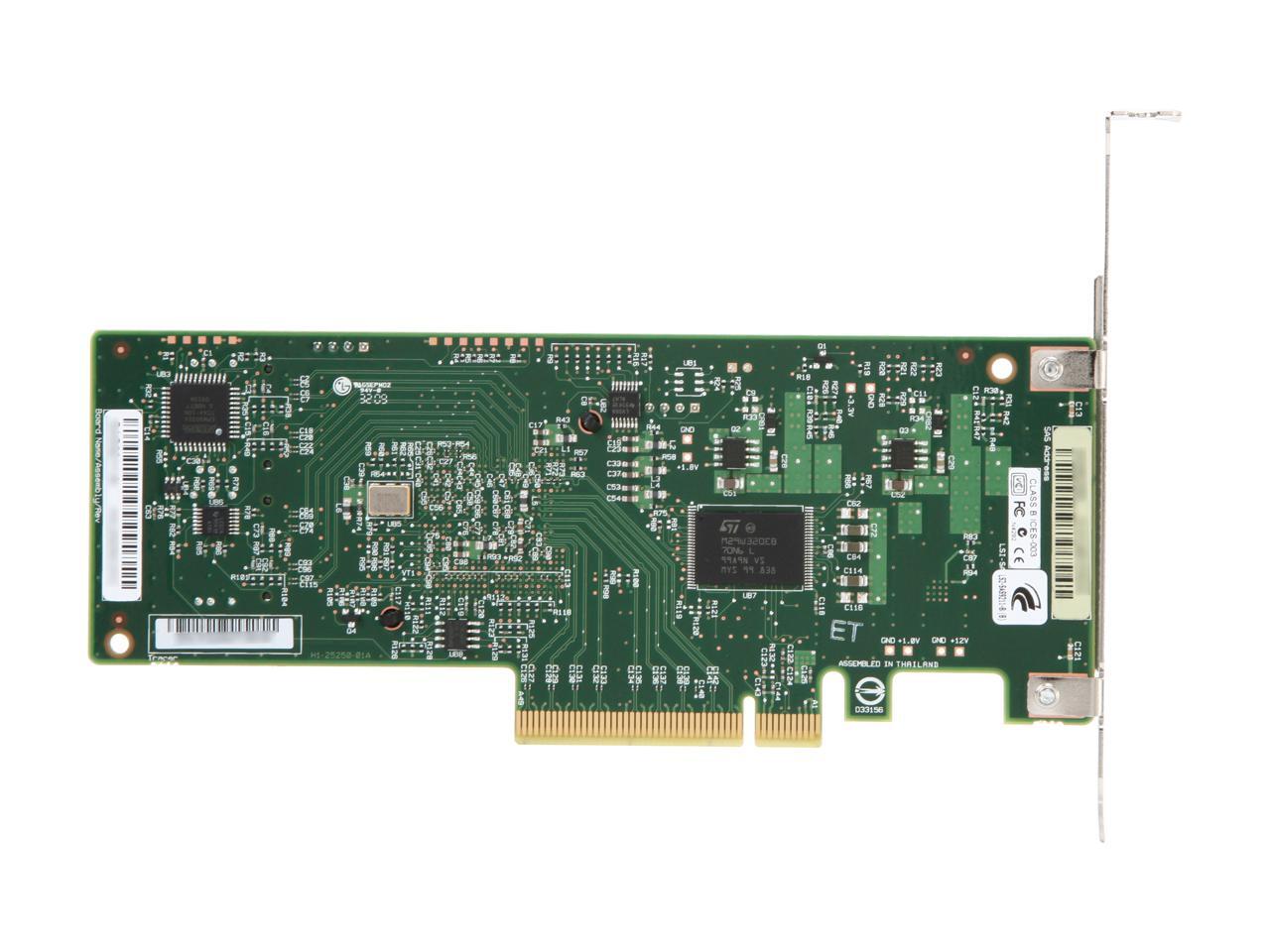

The LSI SAS 9211-8i host bus adapter provides the greatest available throughput to internal server storage arrays through eight internal 6Gb/s ports, driving up to 256 SAS and SATA physical devices. This HBA offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. Utilizing two internal x4 SFF8087 Mini-SAS connectors, the low-profile SAS 9211-8i is an excellent fit for 1U and 2U servers.
The SAS 9211-8i utilizes the embedded CPU in the LSI SAS2008 controller to perform integrated RAID 0, 1, 1E and 10 operations for reliable data protection with high-availability. The result is an ultra-thin, low-overhead device driver communicating over the x8 PCI Express 2.0 host interface. By reducing RAID code overhead, this HBA delivers high-speed READ/WRITE performance, making it well suited for medium to high-capacity internal storage applications.
- SAS 6Gb/s CompliantThe LSI 9211-8i features hot-pluggable, SATA-compatible SAS (Serial Attached SCSI) ports to provide 6Gb/s data transfer rates for optimum performance, efficiency, convenience and flexibility.
- RAID SupportThe LSI 9211-8i supports multi-level RAID configuration including RAID 0, 1, 1E and 10 for better performance, enhanced data security and flexible capacity upgrades..
- PCI Express 2.0 x8 InterfaceThe LSI 9211-8i features the PCI Express 2.0 x8 interface which provides sufficient throughput and full-duplex operation for enhanced performance.
