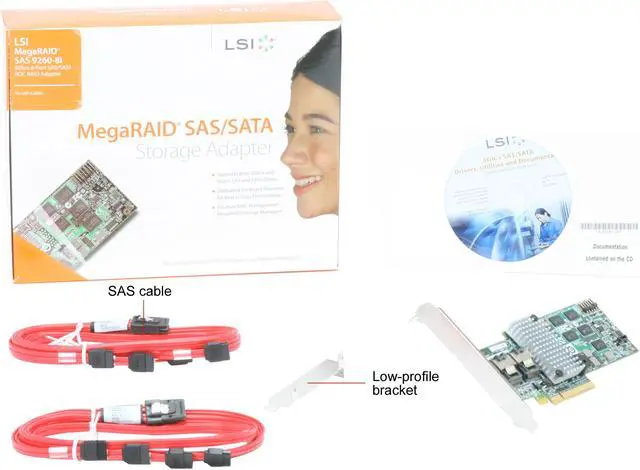

LSI MegaRAID SATA / SAS 9260-8i 6Gb/s PCI-Express 2.0 w/ 512MB Onboard Memory RAID Controller Card, Kit--Avago Technologies

Ships from United States. Most customers receive within 5-9 days.

Sold and Shipped by IT WHOLESALERS a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • RAID 0/1/5/6/10/50/60
  • 2 x SFF-8087 mini-SAS Internal Connectors
  • 512MB DDRII cache (800 MHz)

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The LSI MegaRAID SAS 9260-8i RAID controller offers a new level of flexibility and performance to servers and workstations by supporting both high-performance SAS hard drives and cost-effective, high-capacity SATA drives, as well as energy-efficient SSDs. Supporting RAID 0, 1, 5, 6, 10, 50 and 60, it can not only backup data but can also extend the storage capacity of a system significantly.

It supports ultra fast bus speeds at PCI-Express 2.0 X8 and offers complete connectivity with two internal mini-SAS connectors. Using an industry-leading RAID on Chip (ROC) processor and 512MB of DDR2 write cache, this high-performance PCIe-to-SAS RAID host adapter delivers enterprise-class performance for mission critical server applications.

General information

SAS 6Gb/s Compliant
The LSI MegaRAID SAS 9260-8i supports both 6Gb/s SAS and previous-generation SAS/SATA hard drives, enabling new levels of server storage scalability, performance and reliability.

General information

RAID Support
The LSI MegaRAID SAS 9260-8i supports multi-level RAID configuration including RAID 0, 1, 5, 6, 10, 50 and 60 for better performance, enhanced data security and flexible capacity upgrades.

General information

PCI Express 2.0 x8 Interface
The LSI MegaRAID SAS 9260-8i features a PCI Express 2.0 x8 interface to provide fast signaling for high-bandwidth applications.


Learn more about the LSI LSI00202

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 0 day
  • Read full details
4/ 5

Pros: See notes

Cons: See notes

Overall Review: Heres the bottom line and important points of this adapter.

First, it’s old at this point. As such you should NOT be building a prod business server with this in 2018. I mean, come on. Why? Cause its old tech so naturally it wont be fast.

In regards to performance, this card does well with spinning disks. Just as well as a 9271 in my experience. Rebuild times may be a bit slower but if you’re rebuilding a raid 6 with 6tb drives on ANY card its gonna take forever. That said, between LSI, adaptec, and areca cards I’ve used, LSI cards tend to have the best rebuild times.

Do NOT attempt to raid SSDs with this card. It will perform terribly. You want a 9266 or 9271 for that. Those will perform just as well as a 9361 for the most part. Their CPUs can handle it.

Management on windows using msm is great IMO. No experience with linux for me.

Yes, boot times will suffer when you install ANY raid card. To dock eggs for that proves you are a noob.

A minus is lack of jbod support. A bonus however is the ability to force write back without a bbu.

4 out of 5 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
1/ 5
So far Not good

Pros: No pros yet, because I can not get it to work

Cons: There were no installation instructions and no CD's that came with the units; I ordered two of them. So far these cards are headed to be returned unless I can find some documentation to install them in an ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 motherboard. I tried to contact the telephone number of the vendor, but there was no one to answer the phone. I left a message on their answering device.

1 out of 7 people found this review helpful. Did you?
1/ 5
Super Slow

Pros: If it did what it should it would be great.

Cons: Doesn't come with "premium addons" like LSI MegaRAID FastPath that are now free on other cards (9265 for example). Even with the premium addons I get abysmal performance. 8 x Crucial mx200 SSD's in raid 0 transfers from and to Ramdisk are SLLLLLLLLLLLOWWWWW.
Latest drivers, latest firmware, performance still terrible.

1 out of 3 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
1/ 5
Good concept but poor execution

Pros: Not many RAID card offers RAID 60 configuration. This is one of the few that I researched.

Cons: It worked the first time. But after reboot, I can no longer enter into WebBIOS. Don't know if this is a problem with the new UEFI BIOS or not, since the card was with 2012 packaging.

Overall Review: There is no way to change the wait time during boot. It takes a looooooong time.

Also, poor documentation. The vendor expects users to go online and download manuals electronically. When it comes to time to troubleshoot, I don't really have the manual handy to enter into BIOS and run command lines.

It also ran hot, so I have to install a 120mm fan on the side panel to keep the case cool.

I returned it.

3 out of 6 people found this review helpful. Did you?
Ownership: less than 1 day
Verified Owner
4/ 5
Excellent

Pros: Worked great out of the box. I installed this in a EVGA E762 classified and it worked no problem without updating the firmware. The setup gui was better than the others made it out to be, although my mouse didn't work (probably due to being run through a multi port usb hub). The card is very small in real life, it fit right between two GTX 480 hydro coppers with good air gaps. The card also works flawlessly with WD Sata III 3TB Reds. Incredible bandwidths on these cards!

Cons: The battery backup unit is ridiculously expensive, you guys have got to be kidding me! Drop the price on those, or at least make them last a very long time. This is the reason you guys get 4/5 eggs, the price on the BBU is a little too greedy methinks.

5 out of 6 people found this review helpful. Did you?
Ownership: more than 1 year
Verified Owner
5/ 5
Amazing customer service

Pros: * Amazing customer service -- everyone had thought my RAID was dead forever, with terabytes of lost data, but LSI calmly walked me through diagnosis and got my RAID back to an online state, which let me recover all of my data!
* Great performance even with complex encoding like RAID6 over 8 drives (when battery backup is online -- slow writes otherwise).
* Worked reliably over 2 years.

Cons: * Battery backup didn't last very long (~2 years), so had to replace, which wasn't terribly cheap.

5 out of 5 people found this review helpful. Did you?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Speed Racer

Pros: Setup is simple. Support is ample. Tech support helped with all my questions before I received the card. Youtube videos cover basic setup too. Buy a battery back-up for the entire machine. It is cheaper than the add-on card.

Cons: Price, but you get what you pay for. Wish these had the new super capacitor backup the new intel cards have.

1 out of 2 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
4/ 5
Enjoying it

Pros: Great card does wonders

Cons: Takes forever to do an online raid 5 expansion.

1 out of 1 people found this review helpful. Did you?
