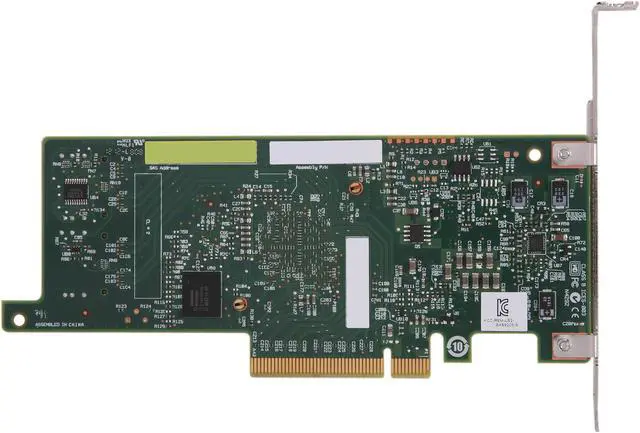

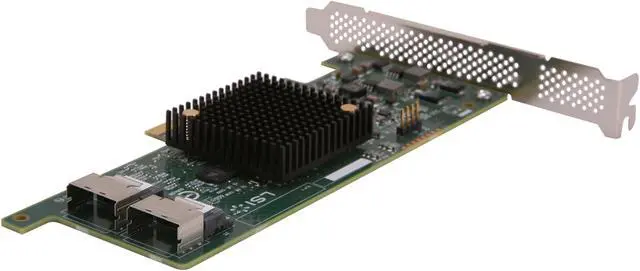

LSI LSI00302 (9207-8i Kit) PCI-Express 3.0 x8 Low Profile SATA / SAS Host Controller Card - Kit--Avago Technologies
- 2 x SFF-8087 mini-SAS Internal Connectors
- Up to 6Gb/s
+
+
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the LSI LSI00302 (9207-8i Kit)
| Brand | LSI |
|---|---|
| Model | LSI00302 (9207-8i Kit) |
| Form Factor | Low Profile |
| Type | SATA / SAS |
|---|---|
| Internal Connectors | 2 x SFF-8087 mini-SAS |
| Interface | PCI-Express 3.0 x8 |
| Transfer Rate | Up to 6Gb/s |
| Operating Systems Supported | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, Free BSD |
| Dimensions | Low Profile (2.6" x 6.6") |
| Features | IO Controller: LSI SAS2308, Fusion MPT 2.0 Cable Support: Passive Copper PCI Card Type: 3.3 V Add-in Card Operating Voltage: +12V +/-8%; 3.3V +/-9% PCI Power (Nominal): 9.8W Device Support: 256 Non-RAID devices. |
|---|

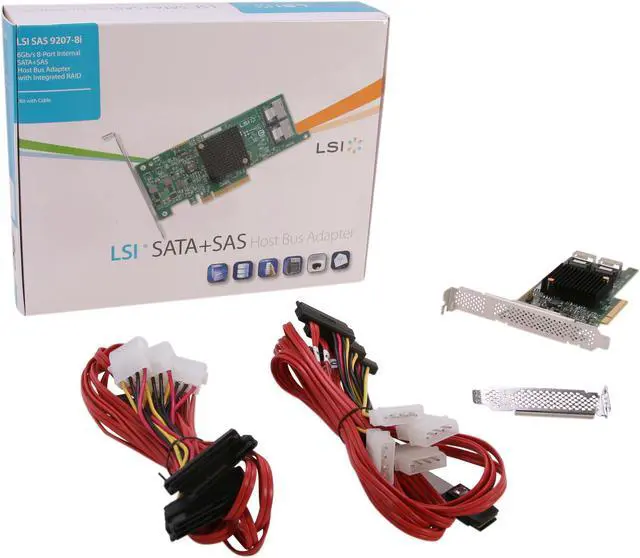

| Package Contents | PCIe3.0 HBA Two internal cables Documentation CD |
|---|
| First Listed on Newegg | July 20, 2025 |
|---|
