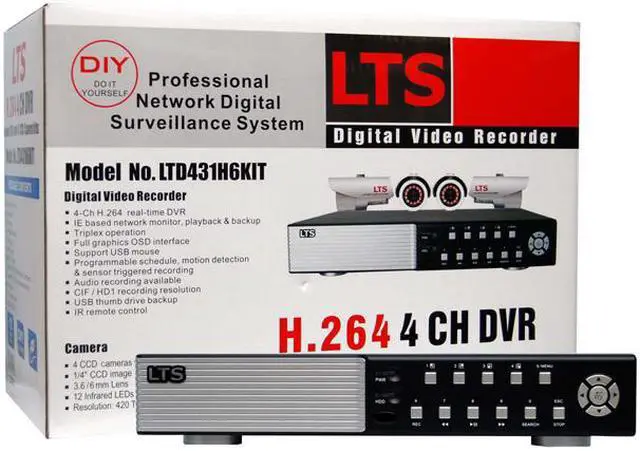

LTS LTD431H6KIT 4-Channel H.264 Triplex DVR System Kit with 3.6mm Bullet Camera (x4) and 320GB Hard Drive

(1) Write a Review
  • 4 x BNC
  • H.264
  • 4 Channel
  • Bundled Camera Number 4
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the LT Security Inc. LTD431H6KIT

Model
Brand LTS
Model LTD431H6KIT
Type Kit Solution
Recording
Camera inputs 4 Channel
Video Input 4 x BNC
Audio Input 4 x RCA
Resolution Recording 720 x 240 / 720 x 288
Recording Frame Rate NTSC Max. (120fps); PAL Max. (100fps)
Recording Mode Continuous, Motion Detection, Sensor Triggered, Time Schedule
Recording Compression H.264
Display
Video Output 1 x BNC
Audio Output 1 x RCA
Resolution Display 720 x 480 / 720 x 576
Display Frame Rate NTSC Max. (120fps) ; PAL Max. (100fps)
Network
Network Connection (RJ-45) TCP/IP
Network Protocol TCP/IP, Static IP, DHCP, DDNS
Network Remote IE Browser, Remote Client Software
Features
Features Perfect designed for Home and Small Business.

Linux Operation System with high recording quality using H.264 video compression.

Self-recovery after power reconnected and video loss alarm function.

Video Display Channel: Single, Sequence, Split (1/4). Individual Channel AVI format backup supported.
Power Supply DC 12V Adapter Included
Bundle
Bundled Camera Number 4
Bundled Camera Spec Image Sensor: 1/4" Sony Super HAD CCD
Minimum Illuminance: 0 Lux with 12 x IR LEDs
Signal System: NTSC
Lens: 3.6mm and 6.0mm
Power Supply: DC12V
Resolution: 420TVL
Dimension: 2.3" x 4.1"
Operation Temperature: 14°F ~ 122°F
Operation Humidity: 10% ~ 80%
Video Output: 1.0Vp-p 75 Ohm
Electronic Shutter: 1/50(1/60) - 1/100,000 second
S/N Ratio: >= 48db
Dimensions & Weight
Dimensions 12.6" x 17.6" x 8.25"
Weight 15.70 lbs.
