LTS 16-Channel 500GB H.264 Real Time DVR 8-Camera System Kit with iPhone / Android and IE / Apple Safari Remote Access (LTD9268DK)

  • 16 x BNC
  • H.264 Level
  • 1 x 500GB SATA HDD
  • 16 Channel
  • Bundled Camera Number 8
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the LT Security Inc. LTD9268DK

Model
Brand LTS
Model LTD9268DK
Type Kit Solution
Recording
Camera inputs 16 Channel
Video Input 16 x BNC
Audio Input 4 x RCA
Resolution Recording NTSC: 352 x 240 (CIF), 704 x 480 (D1); PAL: 352 x 288 (CIF),704 x 576 (D1)
Recording Frame Rate Real Time Recording: 16CH CIF real time
CIF: 480(NTSC)/400(PAL)fps
D1(4CIF): 120(NTSC)/100(PAL)fps
Recording Mode Schedule, Manual, Motion, Sensor
Recording Compression H.264 Level
Display
Video Output 1 x BNC, 1 x VGA, 1 x Spot
Audio Output 1 x RCA
Resolution Display VGA: 1280x1024, 800x600, 1024x768
Details
Storage Capacity 1 x 500GB SATA HDD
Backup Device USB Disk
Network
Network Connection 10/100 Mbps Ethernet (RJ-45)
Network Protocol TCP/IP, DHCP, DDNS, NTP, SMTP
Features
Features Bidirectional Talk: YES

Playback:
Search Mode: Time, Event, File Management
Playback Channel: 16CH

Remote Application:
Browser: IE (windows XP/2000/vista/7) , Safari(Mac OS)
3G: SuperCam/pro/HD for iPad/iPad2/iPhone/Blackberry/Android/Symbian/Windows mobile
CMS: YES
User Access: 10 users online with professional authority management

Alarm:
Alarm Input: 16
Alarm Output: 1

PTZ:
PTZ: 1*RS485
PTZ Protocol: PELCOP,PELCOD
PTZ Control: Pan, Tilt, Zoom, Preset, Cruise, Trace

Backup:
USB Disk: 1 USB2.0 port
Backup Format: DAT or AVI

Plug & Play
Operating System Embedded Linux
Power Supply DVR: DC 12V 3A
Bundle
Bundled Camera Number 8

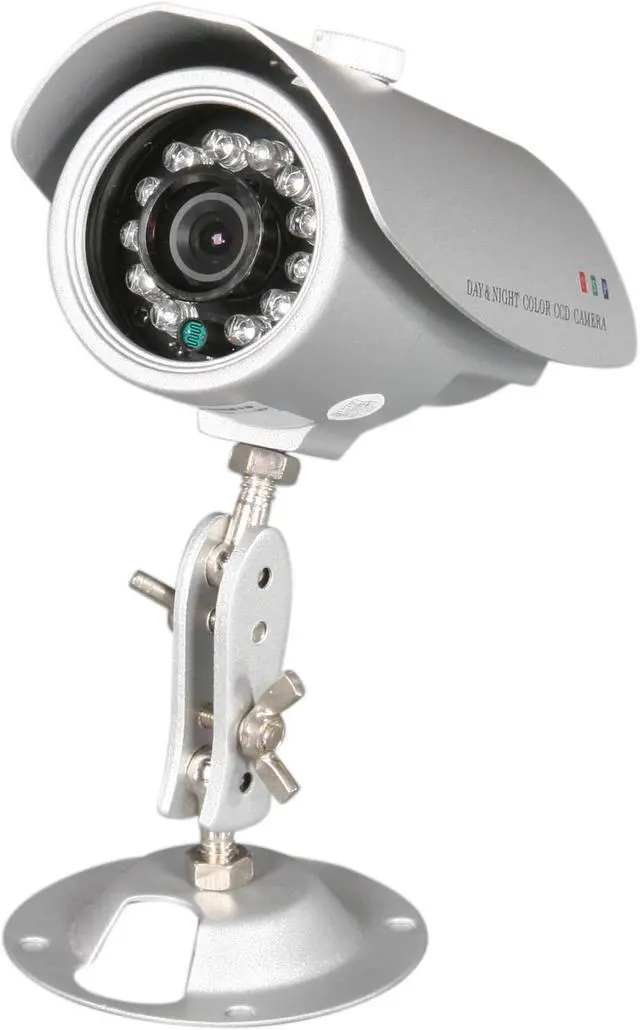

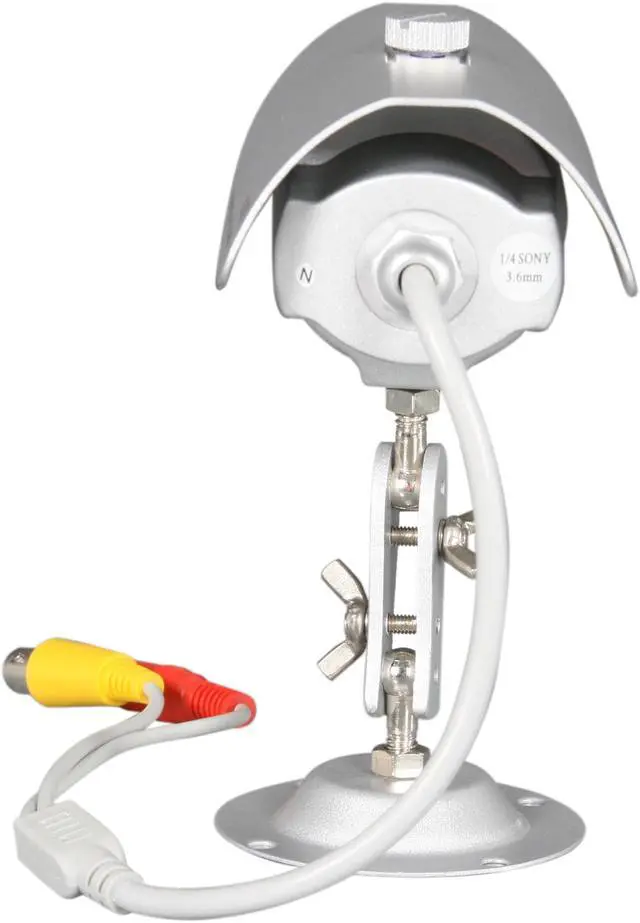

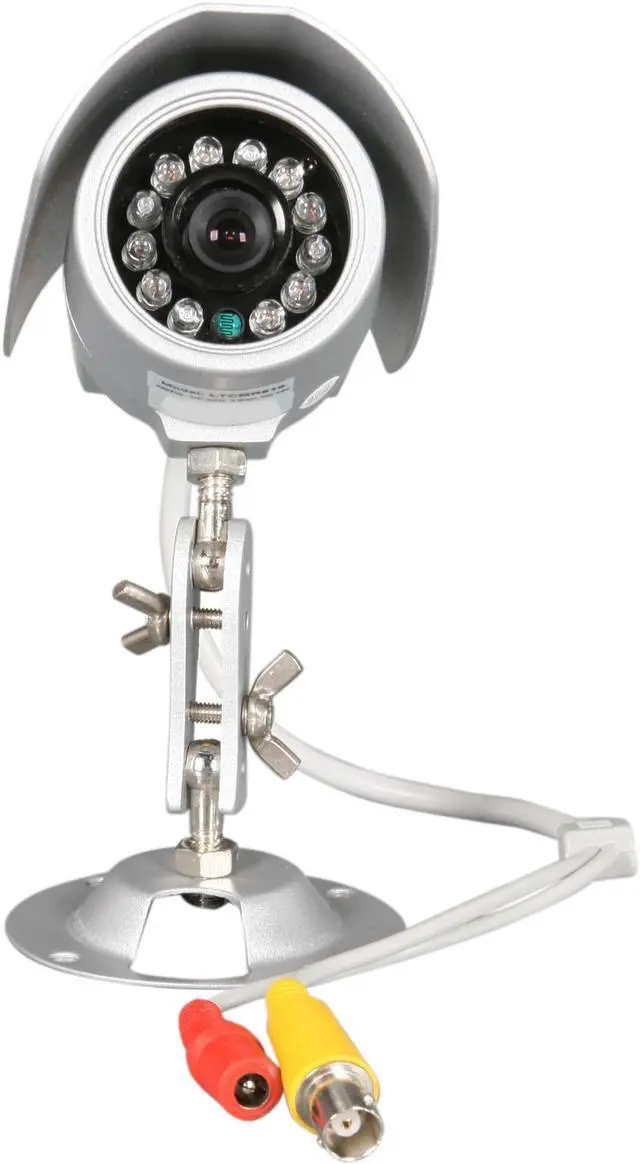

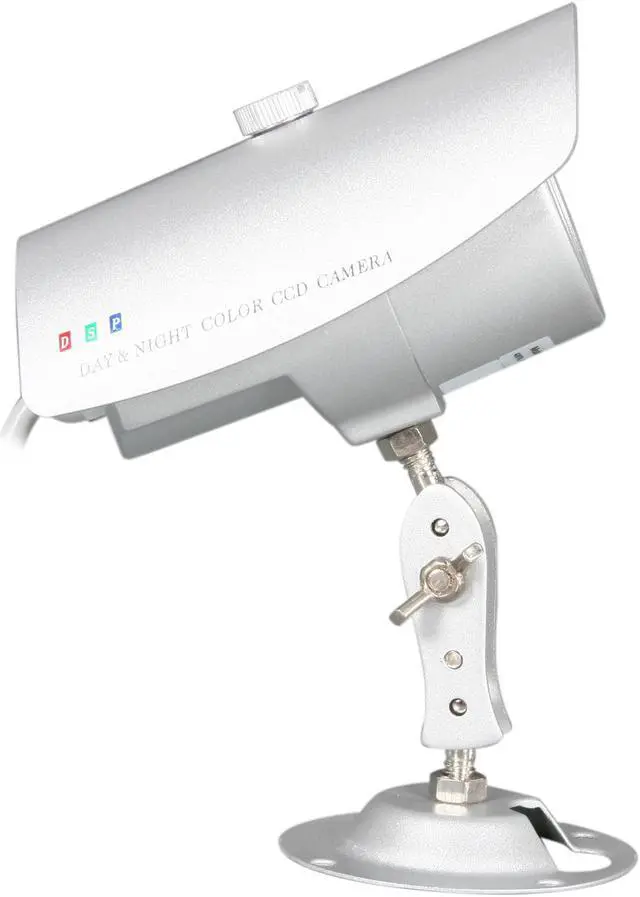

Bundled Camera Spec Image Sensor: SONY 1/4" Super HAD CCD

Signal System: NTSC

Effective Pixels: NTSC: 510 (H) x 492 (V)

Horizontal Resolution: 420 TV Lines

Focal Length: 3.6mm Fixed Lens

Video:
Video Scanning Type: 2:1 Interlace
Synchronization: Internal
S/N Ratio: > 48dB
Min. Illumination: 0 Lux (IR On)
Video Output: 1 BNC, 1.0 Vp-p, 75 Ohm Composite

Electronic Shutter: 1/60 ~ 1/100,000

Infrared LED:
Effective IR Distance: 49 ft (15 m)
Infrared Red Lamps: 12 IR LEDs
Gamma: 0.45

Power Supply: DC 12V, 120mA
Packaging

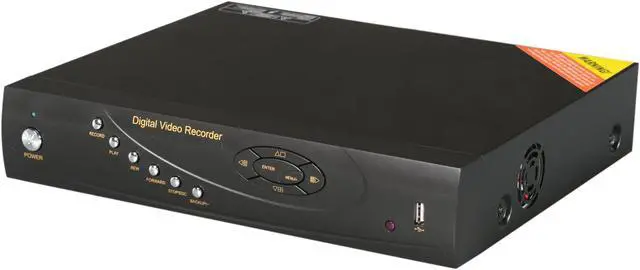

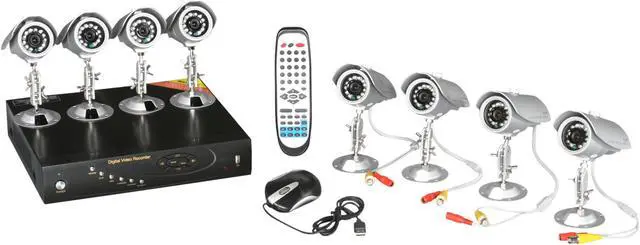

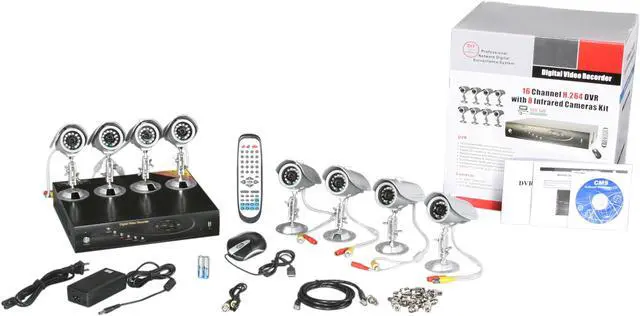

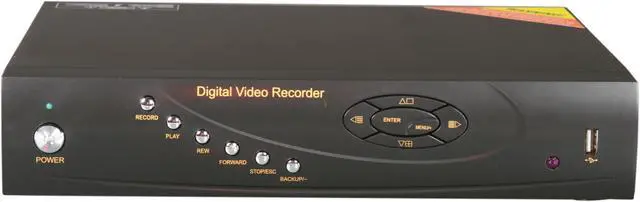

Package Contents 1 x 16 Channel DVR
8 x IR camera
8 x Camera Stand
8 x BNC Video/Power Cable (60 ft)
2 x Power Adaptor
1-to-8 way Splitter Cable
Infrared Remote Control
USB 2.0 Mouse
Software CD
