LTS LTN8704Q-P4 1TB 4CH HD 4K Megapixel IP 4 POE Ports 40Mbps to 8MP ONVIF NVR

LTS LTN8704Q-P4 1TB Platinum Professional 4 Channel NVR 4 POE Ports 1U SATA 1TB Pre Installed Storage

Brand: LTS
MPN: LTN8704Q-P4-1TB
Condition: New

-4 Channel Network Video Recorder
-H. 265/H. 265+/H. 264/H. 264 Zip+/MPEG4 video formats
-Support live view, storage, and playback of the connected
  camera with up to the resolution of 8 Megapixels
-Recording at up to 8MP resolution
-Built-in 1TB SATA interface HDD storage
-HDMI output at up to 4K (3840 x 2160) and
  VGA output at up to1920 × 1080p resolution

SPECIFICATIONS:

Recorder Series: Platinum Series
Recorder Channel: 4-Channel
Recorder Case: Compact Case
Recorder Technology: IP / NVR
VIDEO/AUDIO INPUT

IP Video Input: 4CH
Two Way Audio Input: 1- ch, RCA ( 2.0 Vp- p, 1kO)
Incoming Bandwidth: 40Mbps
Outgoing Bandwidth: 80Mbps
VIDEO/AUDIO OUTPUT

Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output: 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/ 60Hz
VGA Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output: 1CH, RCA (Linear, 1kO)
Decoding: H. 265/H. 265+/H. 264/H. 264 Zip+/MPEG4
Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback: 4CH
Capability: 1-ch @ 8 MP / 4-ch @ 1 080p
HARD DISK

SATA: Built-in 1 TB

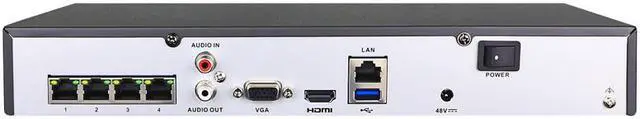

EXTERNAL INTERFACE
Network Interface: 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Network Protocols: TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, IP Portal, SMTP, NFS, iSCSI, UPnP™, HTTPS
USB Port: 2 x USB 2.0
GENERAL
Power Supply: 48V DC
Consumption: = 10W (without enabling PoE)
Working Temperature: 14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity: 10% - 90%
Chassis: 1U Casing
Dimension: 315 ×240× 48mm ( 12.4 × 9.4 × 1.9 inch)
